AV Link HDM-E2 User Manual

HDMI
EXTENDER
HDM-E2
(LOCAL)
HDM-E4
(LOCAL)
U M
SER ANUAL
HDM-E2 / HDMI-E4
Package Contents-
1x HDM-E2 or HDM-E4 Unit
1x user manual
1x Power adapter DC12V
2x screws
4x foot pads
1x Power cord (only HDM-E4)
Any thing missed, please contact with your vendor.
-1-

Features

Through the HDMI Extender, you can use DVD to
display identical image and extension of HDMI signal
up to 100 meter on HDTV
Supports 3D pass-through
Two or Four CAT.5e/CAT.6 cable extension
HDCP Compliant
Compliant with the specification of HDMI
Support high-resolution display up to 4Kx2K@30Hz
Use CAT.5e/CAT.6 cable to install easily
Resolution Cable Type
1080P(12bit) Cat5e
Cat5e
4K@30
Cat6a/Cat7

Specifications

Function HDM-E2
HDMI In HDMI A-Type Female
Connector
RJ-45 Connector
Max. Resolution
Cable Distance
Power Adapter
DC12V/1.25A with lock DC12V/5A with lock
(Min.)
Housing
Weight
Dimensions
171x120x25 mm
(LxWxH)

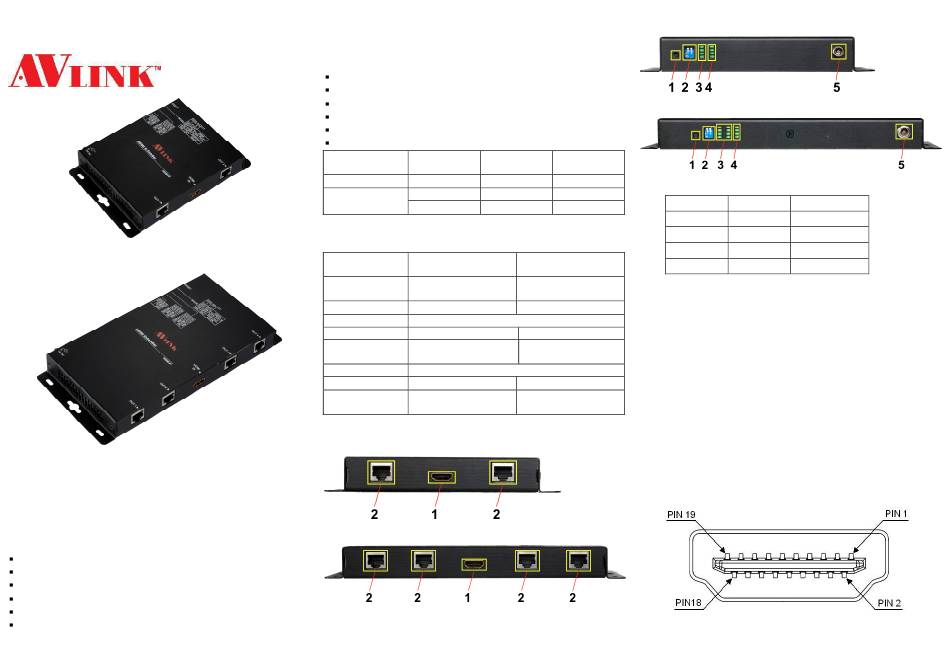

LOCAL FRONT VIEW
HDM-E2
V1.0
HDM-E4
1. HDMI IN
2. LINK (RJ-45 Connector)
HDM-E2 HDMI-E4
100M 100M
70M 70M
100M 100M
HDM-E4
HDMI A-Type Female
x 1 x 1
2 4
4K@30
100 m 100 m
Metal
480g 710g
240x120x25 mm
-2-
LOCAL REAR VIEW
HDM-E2
HDM-E4
1. Reset
2. Mode(must reset)
1 2 Mode
OFF OFF 1080P
OFF ON Copy Out1
ON OFF Reserved
ON ON 4K x 2K
3. 1~2/1~4 Out port LED
4. 4-IN-1 LED
(POWER LED、HDMI IN LED、HDCP LED、N/A)
5. Power jack (12V DC)

Installation

1. Turn off the DVD and HDTV.
2. Connect the HDMI cable between the DVD and the
"HDMI IN" port of HDM-E2 or HDM-E4.
3. Connect the CAT.5e/ CAT.6 cables between the HDM-E2
or HDM-E4 "OUT" port and the source device of
extender.
4. Connect the power cord and turn on the extender.
5. Turn on the DVD and HDTV.

Technical Specifications Output Signal
