Summary of Contents for ML Accessories 4IPB

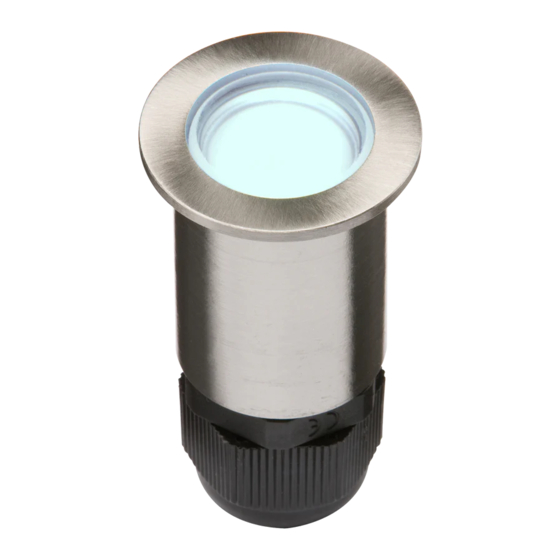

- Page 1 INSTALLATION & MAINTENANCE MANUAL 4IPB / 4IPW...
- Page 2 These instructions should be read carefully and retained after installation by the end user for future reference and maintenance. These instructions should be used to aid installation of the following product: 4IPB / 4IPW SAFETY • This product must be installed in accordance with the latest edition of the IEE Wiring Regulations (BS7671) and current Building Regulations.
- Page 3 Cut a suitable hole in the mounting surface as per the cut-out details (see Fig.1) ensuring not to nge with any joists, gas/water pipes or electrical cables infringe with any joists, gas/water pipes or electrical cables Fig. 1 Fig. 1 •...
- Page 4 • Ensure a minimum of 300mm of drainage below the luminaire (see Fig. 2). Ensure a minimum of 300mm of drainage below the luminaire (see Fig. 2). • When installing into decking, ensure there is enough clearance below so the fitting, cable, and driver are not When installing into decking, ensure there is enough clearance below, so the fitting, cable, an in standing water are not in standing water...
- Page 5 • Switch on and check for correct operation Fig. 4 Fig. 4 WARNING This product must be disconnected from the circuit if subjected to any high voltage or insulation resistance WARNING testing. Irreparable damage will occur if this instruction is not followed. This product must be disconnected from the circuit if subjected to any high voltage or insulation resistance This product is not suitable for installation in or near a coastal or marine environment.
- Page 6 If this product should fail within its warranty period, it should be returned to the place of purchase for a free of charge replacement. ML Accessories does not accept responsibility for any installation costs associated with the replacement product. Your statutory rights are not affected. ML Accessories reserve...
- Page 7 INTERNAT CONTACT D INTERNATIONAL CONTACT DETAILS ML Accessories Limited LU5 4LT www.mlaccessories.co.uk AKJUN21_V2...
