Sioux Tools 658 Instructions-Parts List Manual

Sioux Tools 658 Instructions-Parts List Manual

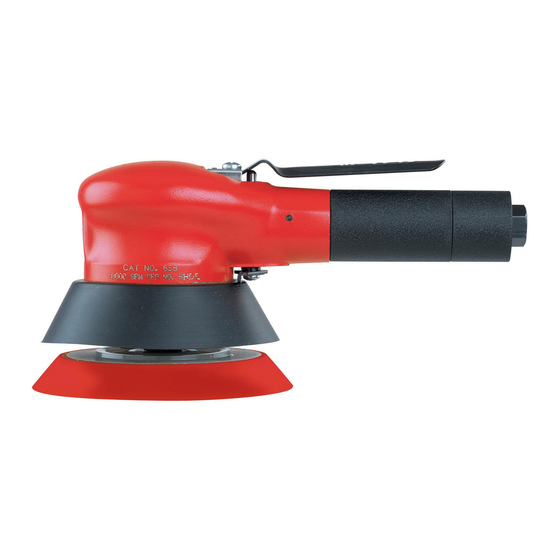

Air random orbital sander includes b, v, vv, & x suffixes

Advertisement

Quick Links

CAUTION
Do not at any time attempt to operate this tool without shroud and pad in place.
OPERATION
The sander is designed to operate on 90 p.s.i. air pressure. An air regulator is recommended if pressures are higher than 90
p.s.i. A filter is strongly recommended to provide clean air for long life of the sander.
Lubricate the sander by adding 8-10 drops of air motor oil into the air inlet each day before using.
HOSE AND HOSE CONNECTIONS
Hoses should not be smaller than 3/8" I.D. with 1/4" pipe thread fittings.
LUBRICATION
As mentioned above, 8-10 drops of Sioux air motor oil, Cat. No. 288, should be added to the air intake before using each day.
This will help protect the motor parts from rusting due to water in the air lines and also lubricate the parts for longer life. Caution
should be taken not to add too much oil as it will blow through the tool and may get on the surface being sanded. An air line oiler
will increase the life of the tool. The setting should be about 1 drop of oil per 1-2 minutes of use.
SPEED CONTROL AND SHUT OFF

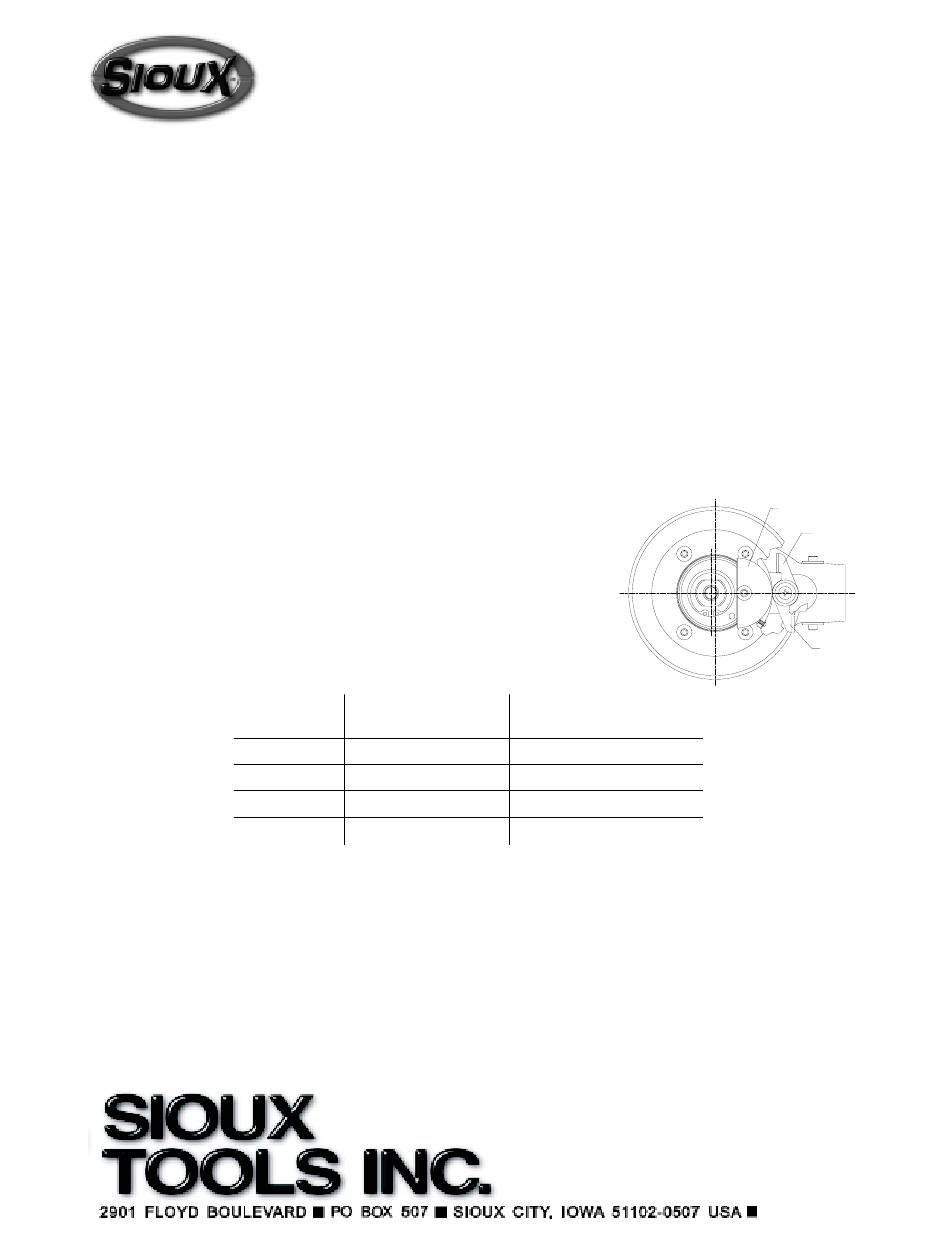

A speed control and air shut off is located on the bottom of the housing. This
control is adjusted as shown in the diagram. This is to control the speed of the
tool for various sanding operations and to control excessive air pressure. The
control is also used to shut off the air to the tool to safely change sand paper on
the pad.
COUNTER BALANCE
The units are equipped with different counterweights to decrease the vibration.
Following is a chart of pad size and counterweight.
PAD SIZE
LOSS OF POWER & SPEED
The air motor is probably dirty and sticky. Flush out by adding very light weight oil to the air intake and run unit. Do this
several times until it runs properly. Then add 8-10 drops of Sioux air motor oil, Cat. No. 288, in the air intake and run tool to
lubricate.
WARNING
Continued exposure to vibration may cause injury to your hands or arms.
INSTRUCTIONS & PARTS LIST FOR
NO. 658, 660, 690, 697
SIOUX AIR RANDOM ORBITAL SANDER
INCLUDES B, V, VV, & X SUFFIXES
APPROX.
PAD WEIGHT
5"
90-100 Grams
6"
115-125 Grams
5"
90-100 Grams
6"
115-125 Grams
(SERIAL "E")
COUNTER WEIGHT
64141 W/Lockout
64148 W/Lockout
64140 WO/Lockout
64147 WO/Lockout
1
Form Z262A
Date 1-02/C
Page 1 of 6
COUNTERWEIGHT
MAXIMUM SPEED
OFF
Printed In U.S.A.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 658 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sioux Tools 658

  • Page 1 INSTRUCTIONS & PARTS LIST FOR Form Z262A Date 1-02/C NO. 658, 660, 690, 697 Page 1 of 6 SIOUX AIR RANDOM ORBITAL SANDER INCLUDES B, V, VV, & X SUFFIXES (SERIAL “E”) CAUTION Do not at any time attempt to operate this tool without shroud and pad in place.
  • Page 3 INSTRUCTIONS & PARTS LIST FOR NO. 658, 660, 690, 697 SIOUX AIR RANDOM ORBITAL SANDER INCLUDES B, V, VV, & X SUFFIXES (SERIAL “E”) Fig. Part Fig. Part Description Description 66339 Housing [Also Includes 64133 Spindle—Pad (2*) Fig. 2, (4*) Fig. 46 & (4*) Fig. 52] 21513 Ring—Retaining...
  • Page 4 INSTRUCTIONS & PARTS LIST FOR NO. 690VV, 697VV (SERIAL “D”) Fig. Part Description 585V Vacuum Pad 5" 583V Vacuum Pad 6" 07248 Screw—Pan Head #10-32 X 3/4 (Taptite)(4)* 65863 Retainer—Motor 65734 Shroud—Flexible 14334 Ring—“O”(1/16 X 1 X 1-1/8) 65742 Extractor 14281 Ring—“O”(1/16 X 5/8 X 3/4) 25206...
  • Page 5 NOTES...
  • Page 6 Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. El polvo generado al lijar, aserrar, afilar, taladrar y realizar otras tareas de construcción contiene sustancias químicas que podrían causar cáncer, malformaciones congénitas y otras alteraciones del aparato reproductor.
