SEC/SH/11/16/EU1

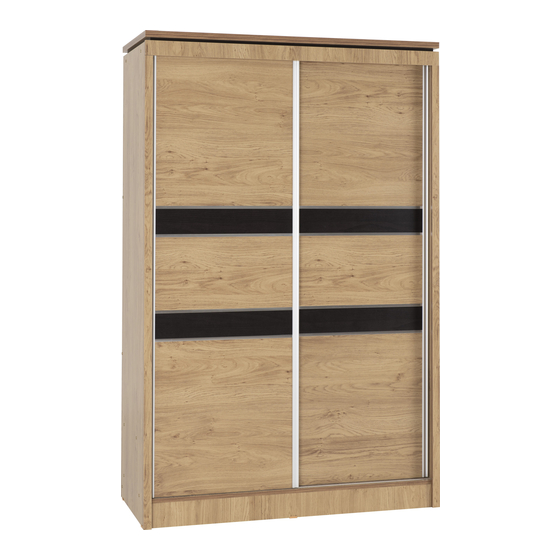

CHARLES 2 DOOR SLIDING WARDROBE
ASSEMBLY INSTRUCTIONS
IMPORTANT
FOR DOMESTIC USE ONLY
PLEASE READ BEFORE YOU CONTINUE FURTHER
THE PRODUCT YOU HAVE PURCHASED WILL GIVE YOU MANY
YEARS OF SERVICE IF YOU FOLLOW THE GUIDELINES FOR ITS
SAFE ASSEMBLY AND PERIODIC MAINTENANCE AND CLEANING.
ASSEMBLE ON A SOFT CLEAN SURFACE.
DO NOT USE ANY TOOLS OTHER THAN THOSE SHOWN.
ANY SPANNERS OR ALLEN KEYS REQUIRED ARE INCLUDED WITH
THE FITTINGS KIT.
DO NOT FOR ANY REASON USE A POWER TOOL TO ASSEMBLE
THIS PRODUCT.ITS USE WILL INVALIDATE ANY CLAIM YOU MAY
HAVE AND COULD MAKE THIS PRODUCT UNSAFE.
DEPENDING ON THE AMOUNT OF USE THIS PRODUCT RECEIVES
IT MAY BE NECESSARY TO TIGHTEN UP THE FIXINGS FROM TIME
TO TIME.THIS IS COMPLETELY NORMAL FOR ANY FLAT PACK
FURNITURE.DO NOT OVERTIGHTEN FIXING.
FOR CLEANING,YOU MAY USE A DAMP CLOTH (NOT WET) DO NOT
USE POLISH,DETERGENT OR CHEMICAL CLEANERS.
THE SURFACE OF THIS ITEM IS NOT HEAT RESISTANT.ALWAYS
USE A PLACE MAT UNDER HOT OR COLD ITEMS TO PREVENT
MARKING.
PAGE 1 OF 14
