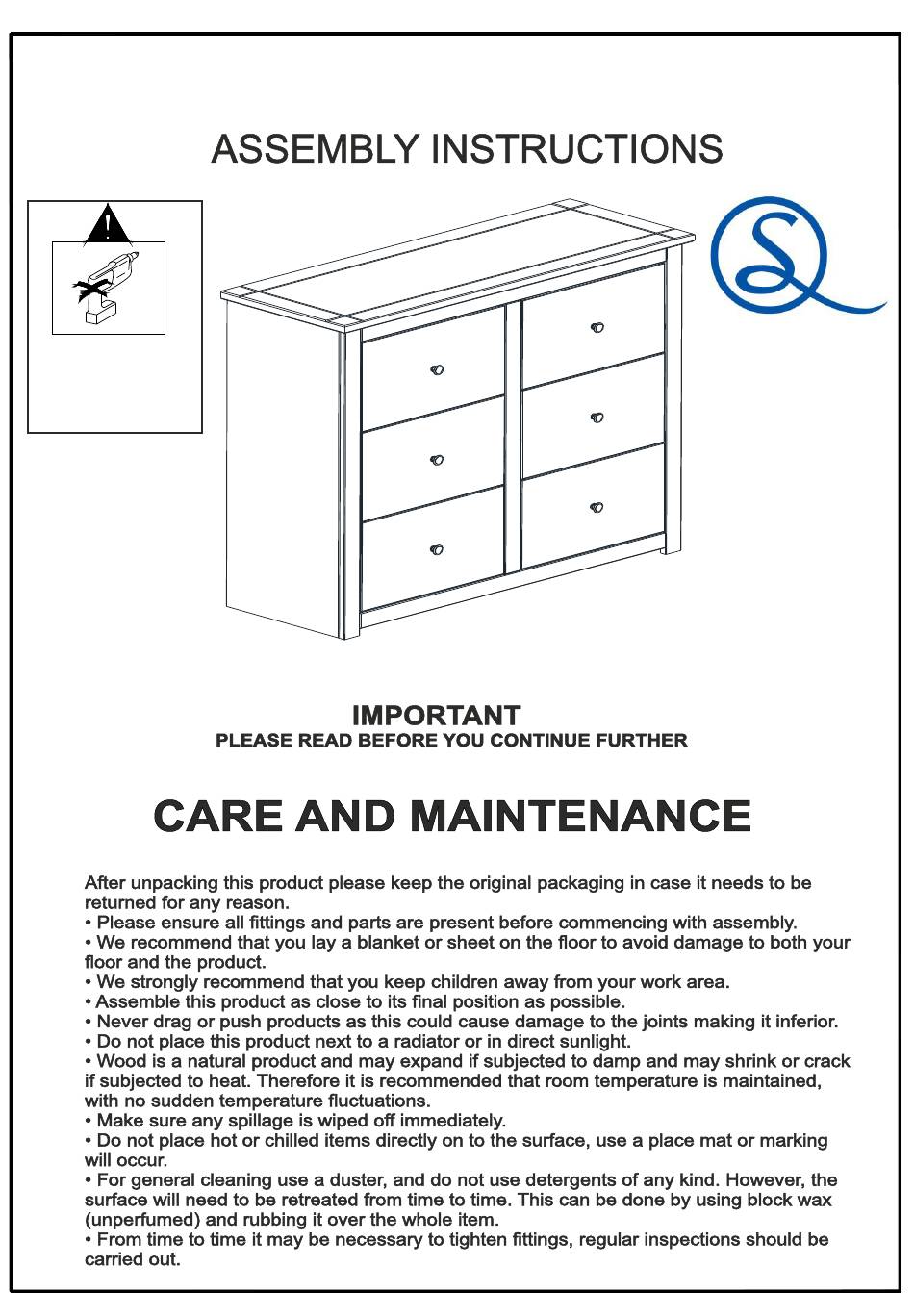

- Page 1 SEC/SH/08/20/RK 54086(RK) Panama 6 Drawer Chest DO NOT FOR DOMESTIC USE ONLY Page 1...
- Page 2 SEC/SH/08/20/RK GREEN ( 6x ) Part Number Part Code Part Description Quantity Carton S100-102-045-RK1-01 Right Side Panel (green) Le Side panel(red) S100-102-045-RK1-02 Right Front Upright(green) S100-102-045-RK1-03 Le front Upright(red) S100-102-045-RK1-04 Top Panel S100-102-045-RK1-05 Drawer Runner S100-102-045-RK1-06 Top Front Crossbeam S100-102-045-RK1-07 Back Crossbeam S100-102-045-RK1-08 Back Panel...
- Page 3 SEC/SH/08/20/RK Please assemble on GREEN a clean soft surface to avoid damage. Ø 8 x 25mm Please note the hole positions on GREEN parts 3 and 4. 3,5x30 Please note the hole positions when attaching parts 7, 14 and 17. 3,5x30 Page 3...
- Page 4 SEC/SH/08/20/RK Please assemble on a clean soft surface to avoid damage. 3,5x30 3,5x30 3,5x30 Page 4...
- Page 5 SEC/SH/08/20/RK * For your future reference Order Number should be here 10x10mm 10x10mm Ø 3,5 x 16mm ( 6x ) Ø 3,0 x 30mm M4 x 25mm Ø 8 x 25mm Page 5...
- Page 6 SEC/SH/08/20/RK Serious or fatal injuries can occur from furniture tipping recommend that it is permanently fixed to the wall. Wall fixings are not supplied with this product as different wall materials require different types of fixing devices. Please make sure you use fixings suitable for the walls in your home. 3,5 x 25mm (1x) Wall Wall...
