SEC/SH/02/17/EU1

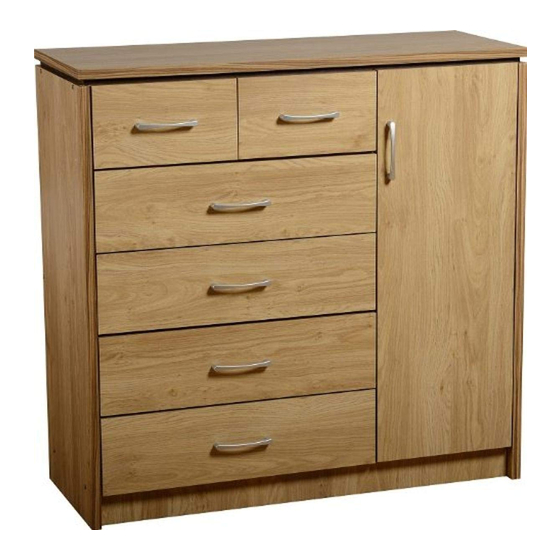

CHARLES 1 DOOR 6 DRAWER CHEST
ASSEMBLY INSTRUCTIONS
IMPORTANT
FOR DOMESTIC USE ONLY
PLEASE READ BEFORE YOU CONTINUE FURTHER
THE PRODUCT YOU HAVE PURCHASED WILL GIVE YOU MANY
YEARS OF SERVICE IF YOU FOLLOW THE GUIDELINES FOR ITS
SAFE ASSEMBLY AND PERIODIC MAINTENANCE AND CLEANING.
ASSEMBLE ON A SOFT CLEAN SURFACE.
DO NOT USE ANY TOOLS OTHER THAN THOSE SHOWN.
ANY SPANNERS OR ALLEN KEYS REQUIRED ARE INCLUDED WITH
THE FITTINGS KIT.
DO NOT FOR ANY REASON USE A POWER TOOL TO ASSEMBLE
THIS PRODUCT.ITS USE WILL INVALIDATE ANY CLAIM YOU MAY
HAVE AND COULD MAKE THIS PRODUCT UNSAFE.
DEPENDING ON THE AMOUNT OF USE THIS PRODUCT RECEIVES
IT MAY BE NECESSARY TO TIGHTEN UP THE FIXINGS FROM TIME
TO TIME.THIS IS COMPLETELY NORMAL FOR ANY FLAT PACK
FURNITURE.DO NOT OVERTIGHTEN FIXING.
FOR CLEANING,YOU MAY USE A DAMP CLOTH (NOT WET) DO NOT
USE POLISH,DETERGENT OR CHEMICAL CLEANERS.
THE SURFACE OF THIS ITEM IS NOT HEAT RESISTANT.ALWAYS
USE A PLACE MAT UNDER HOT OR COLD ITEMS TO PREVENT
MARKING.
PAGE 1 OF 13
Advertisement
Related Manuals for Seconique CHARLES 1 DOOR 6 DRAWER CHEST
Summary of Contents for Seconique CHARLES 1 DOOR 6 DRAWER CHEST
- Page 1 SEC/SH/02/17/EU1 CHARLES 1 DOOR 6 DRAWER CHEST ASSEMBLY INSTRUCTIONS IMPORTANT FOR DOMESTIC USE ONLY PLEASE READ BEFORE YOU CONTINUE FURTHER THE PRODUCT YOU HAVE PURCHASED WILL GIVE YOU MANY YEARS OF SERVICE IF YOU FOLLOW THE GUIDELINES FOR ITS SAFE ASSEMBLY AND PERIODIC MAINTENANCE AND CLEANING.
- Page 2 SEC/SH/02/17/EU1 ( SCREWDRIVER NOT PROVIDED ) USE A FLAT HEAD SCREWDRIVER TO TIGHTEN THE CAM NUTS. A QUARTER TURN CLOCKWISE IS ALL THAT IS NEEDED. STEP 1 - PUSH CAM BOLT INTO INSERT STEP 2 - ALIGN THE CAM BOLT WITH THE HOLE AND PUSH TOGETHER UNTIL FLUSH. ( MAKE SURE THE ARROW OF CAM LOCK IS POINTING TOWARD THE HOLE ON EDGE OF PANEL.
-
Page 3: Parts List
SEC/SH/02/17/EU1 PLEASE CHECK THAT YOU HAVE ALL THE PARTS LISTED BEFORE YOU START PARTS LIST ASSEMBLING.IF YOU DO FIND THAT SOMETHING IS MISSING,DO NOT CONTINUE ASSEMBLY. PLEASE CONTACT YOUR SUPPLIER IMMEDIATELY. INNER TOP PANEL 1 PC CENTRE PANEL 1 PC BASE PANEL 1 PC CENTRE DRAWER DIVIDE... - Page 4 SEC/SH/02/17/EU1 HARDWARE LIST DOWEL 6 X 30MM 2 PCS 69 PCS HANGING RAIL SUPPORT BOLT M7 X 60MM 18 PCS PLASTIC H STRIP 2 PCS SCREW M3.5 X 16MM TAPPING SCREW 8 X 12MM 100 PCS 6 PCS SCREW M4 X 50MM PVC LEG 7 PCS 2 SETS...
-
Page 5: You Will Need
SEC/SH/02/17/EU1 STEP 1 STEP 2 YOU WILL NEED:- YOU WILL NEED:- SCREW MUST BE INSERTED IN THE THIRD 4 PCS 3 PCS HOLE ON THE DRAWER RUNNER 8 PCS 40 PCS TOP SECOND HOLE 10 PCS 2 PCS SECOND FROM LAST HOLE THIRD HOLE TOP SECOND HOLE TOP FIRST HOLE... - Page 6 SEC/SH/02/17/EU1 STEP 3 STEP 4 YOU WILL NEED:- YOU WILL NEED:- 10 PCS 30 PCS 3 PCS 1 PC 2 PCS 2 PCS THE USE OF POWER TOOLS TO ASSEMBLE THIS PRODUCT WILL INVALIDATE CAUTION : ANY CLAIM AND MAY DAMAGE THIS PRODUCT MAKING IT UNSAFE. PAGE 6 OF 13...
- Page 7 SEC/SH/02/17/EU1 STEP 5 STEP 6 YOU WILL NEED:- YOU WILL NEED:- 4 PCS 2 PCS 3 PCS 1 PC 1 & 3 THE USE OF POWER TOOLS TO ASSEMBLE THIS PRODUCT WILL INVALIDATE CAUTION : ANY CLAIM AND MAY DAMAGE THIS PRODUCT MAKING IT UNSAFE. PAGE 7 OF 13...
- Page 8 SEC/SH/02/17/EU1 STEP 7 STEP 8 YOU WILL NEED:- YOU WILL NEED:- 9 PCS 7 PCS 1 PC 1 PC THE USE OF POWER TOOLS TO ASSEMBLE THIS PRODUCT WILL INVALIDATE CAUTION : ANY CLAIM AND MAY DAMAGE THIS PRODUCT MAKING IT UNSAFE. PAGE 8 OF 13...
- Page 9 SEC/SH/02/17/EU1 STEP 9 STEP 10 YOU WILL NEED:- YOU WILL NEED:- FRONT SIDE VIEW 6 PCS 6 PCS 24 PCS 2 PCS 2 SETS BEFORE FIXING THE TOP PANEL PLEASE ALIGN THE TOP PANEL WITH THE INNER TOP PANEL. 2 PCS PLEASE INSERT THE BACK PANEL IN THE UNIT THE USE OF POWER TOOLS TO ASSEMBLE THIS PRODUCT WILL INVALIDATE CAUTION :...
- Page 10 SEC/SH/02/17/EU1 SMALL DRAWER X 2 (L&R) YOU WILL NEED:- STEP 11.1 STEP 11.2 THIRD HOLE 8 PCS 12 PCS 15 & 16 8 PCS 15 & 16 8 PCS 4 PCS 2 PCS 4 PCS 4 SETS 17 & 18 THIRD FROM LAST HOLE STEP 11.5 STEP 11.4...
- Page 11 SEC/SH/02/17/EU1 STEP 12.1 STEP 12.2 BIG DRAWER X 4 YOU WILL NEED:- 24 PCS THIRD HOLE 15 & 16 15 & 16 24 PCS 8 PCS 16 PCS 28 PCS 8 PCS 4 PCS 8 PCS 8 SETS THIRD FROM LAST HOLE STEP 12.4 STEP 12.3 STEP 12.5...
- Page 12 SEC/SH/02/17/EU1 STEP 13 YOU WILL NEED:- 1 PC 6 PCS 1. VERTICAL ADJUSTMENT VIA SLOT IN TH MOUNTING PLATE 2. LATERAL ADJUSTMENT BY SCREW ADJUSTING YOU SHOULD RE-ADJUST SCREWS AS SHOWN ABOVE TO ALIGN DOOR ONCE 3. FRONT-TO-BACK BY THE HINGE ARM MOUNTING SCREW HINGES HAVE BEEN ATTACHED THE USE OF POWER TOOLS TO ASSEMBLE THIS PRODUCT WILL INVALIDATE CAUTION :...
-
Page 13: Hardware List
SEC/SH/02/17/EU1 WARNING HARDWARE LIST Serious or fatal injuries can occur from furniture tipping over. To prevent the furniture from tipping over we recommend that it is permanently fixed to the wall. ( T ) Anti-Tip Strap - 2 pcs Wall fixings are not supplied with this product as different wall materials require different types of fixing devices.Please make sure you use fixings suitable for the walls in your home.
