Lucent Technologies MAP/100P Instructions Manual page 11

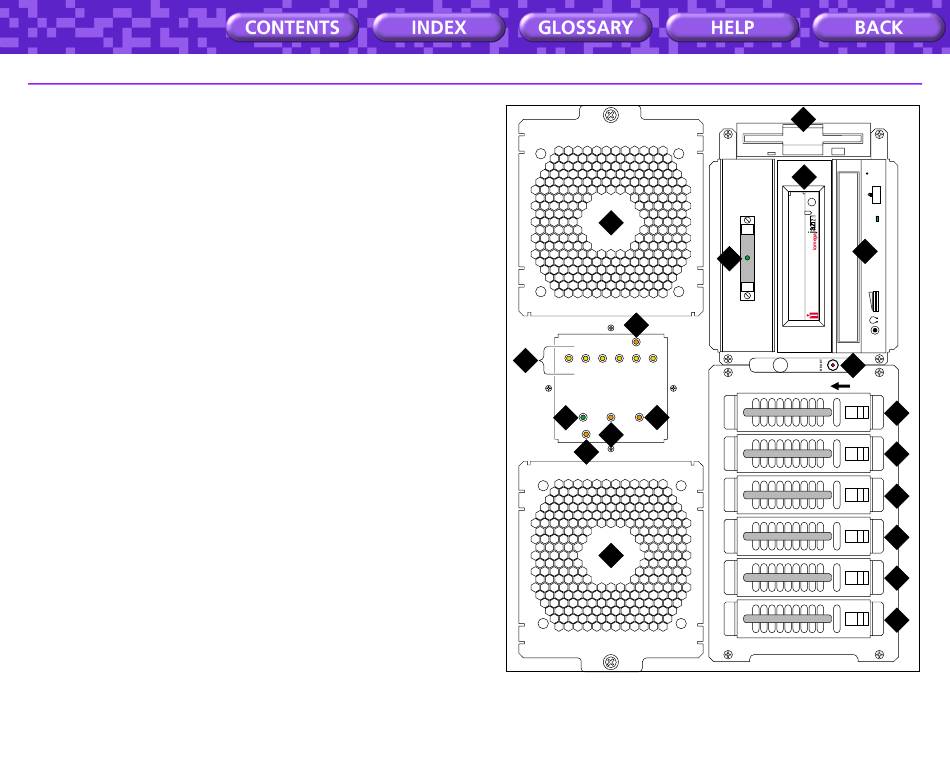

Figure: Front
View of the
MAP/100P
MAP/100P RAID System Recovery - 11
1 Diskette drive
2 CD-ROM drive
3 Cartridge drive
4 Reset push button
5 Hard Disk Drive 0
6 Hard Disk Drive 1
7 Hard Disk Drive 2
8 Hard Disk Drive 3
9 Hard Disk Drive 4
10 Empty hard disk drive
carriage
11 Circuit card cage fan
12 Fan fault LED
13 Fan fault LED
14 Power supply fault LED
15 Power On LED
16 Hard disk drive activity
LEDs
17 Fan fault LED
18 SCSI terminating resistor
Front View of the MAP/100P
11
17
FAN FAULT
DISK ACTIVITY
16
0 1 2 3 4 5
POWER ON P/S FAULT FAN FAULT
13
15
14
FAN FAULT
12
11
1
3
MAINTENANCE
USE ONLY
2
18
4
LATCH RELEASE
0 5
6
1
2 7
3 8
4 9
5 10
