REFRIGERATOR MODELS: EF36BNFSS & PF36BNDFXX*
Tools Required
•
3/32" Allen wrench (not supplied)
•
T20 Torx driver (EF36BNFSS Only)
Parts Included
Installation Preparation (Model EF36BNFXX Only.
For Model PF36BNDFXX, skip to Step 3):
STEP 1:
Using a T20 Torx driver, remove the six (6)
handle mounting studs from the front of the
refrigerator. Retain the Torx mounting screws.
Discard the studs.
Existing handle
mounting screw
(keep)
Existing mounting
stud (discard)
Preference™ Handle Kit,
PN AFP36H3
Preference Style Handles (2 Large, 1 Small)
*Where XX indicates color
INSTALLATION
INSTRUCTIONS
Handle Mounting
Stud Locations
Part No. 102864 Rev. C
Advertisement
Table of Contents
Related Manuals for Dacor EF36BNFSS
Summary of Contents for Dacor EF36BNFSS
-
Page 1: Tools Required

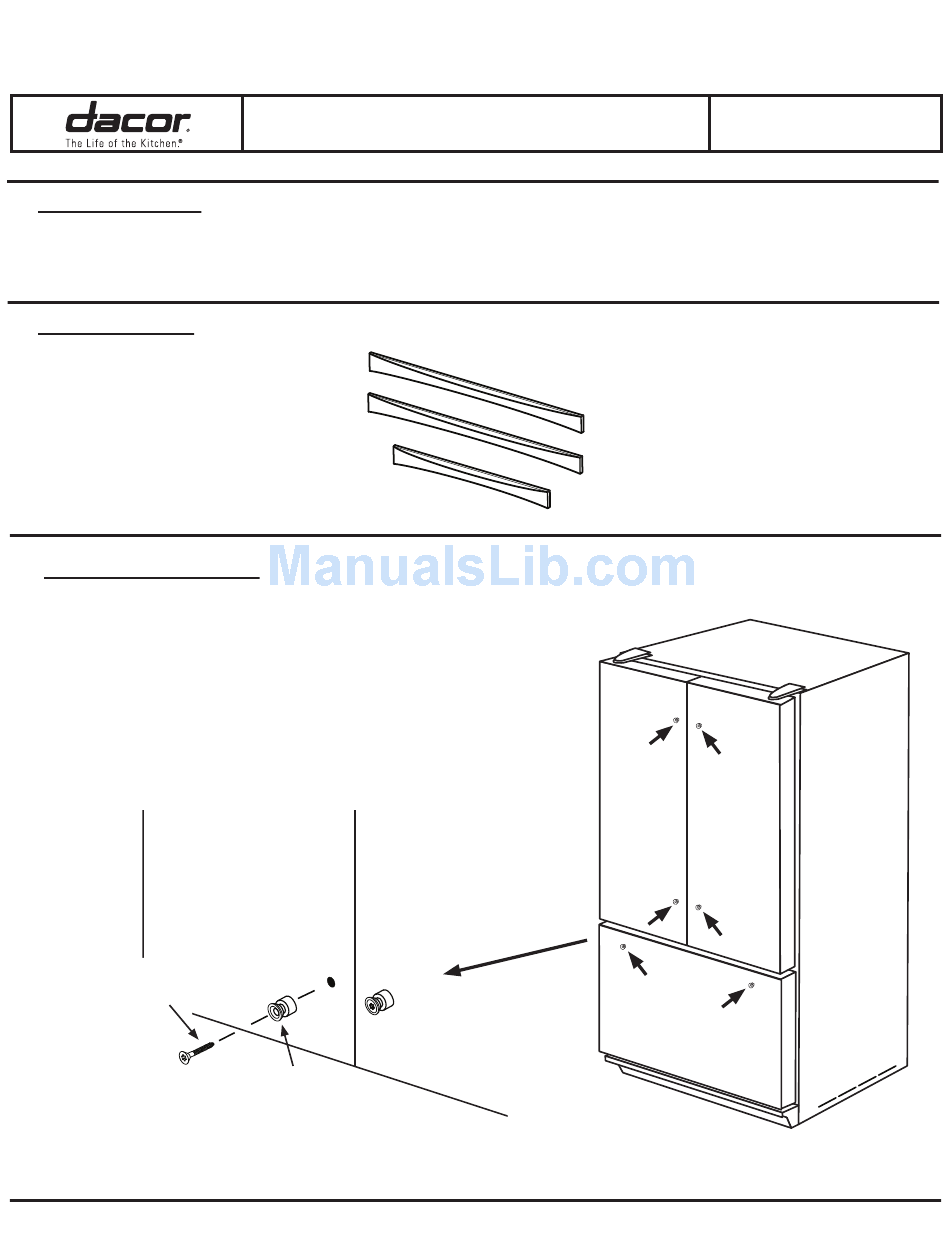

REFRIGERATOR MODELS: EF36BNFSS & PF36BNDFXX* Tools Required • 3/32” Allen wrench (not supplied) • T20 Torx driver (EF36BNFSS Only) Parts Included Installation Preparation (Model EF36BNFXX Only. For Model PF36BNDFXX, skip to Step 3): STEP 1: Using a T20 Torx driver, remove the six (6) handle mounting studs from the front of the refrigerator. - Page 2 Refrigerator Handle Kit Installation Instructions STEP 2 (Model EF36BNFSS only): Using the T20 Torx driver and the screws removed in step 1, install the six (6) short mounting studs from the kit in the locations shown. Existing handle New mounting...
- Page 3 Make sure the set screw holes face toward the center of the refrigerator. Loosen the set screws if necessary to allow the handle to slide into place.
- Page 4 Dacor ● 1440 Bridge Gate Drive, Diamond Bar, CA 91765 ● Tel: (800) 793-0093 ● FAX: (626) 403-3130 ● www.Dacor.com...
