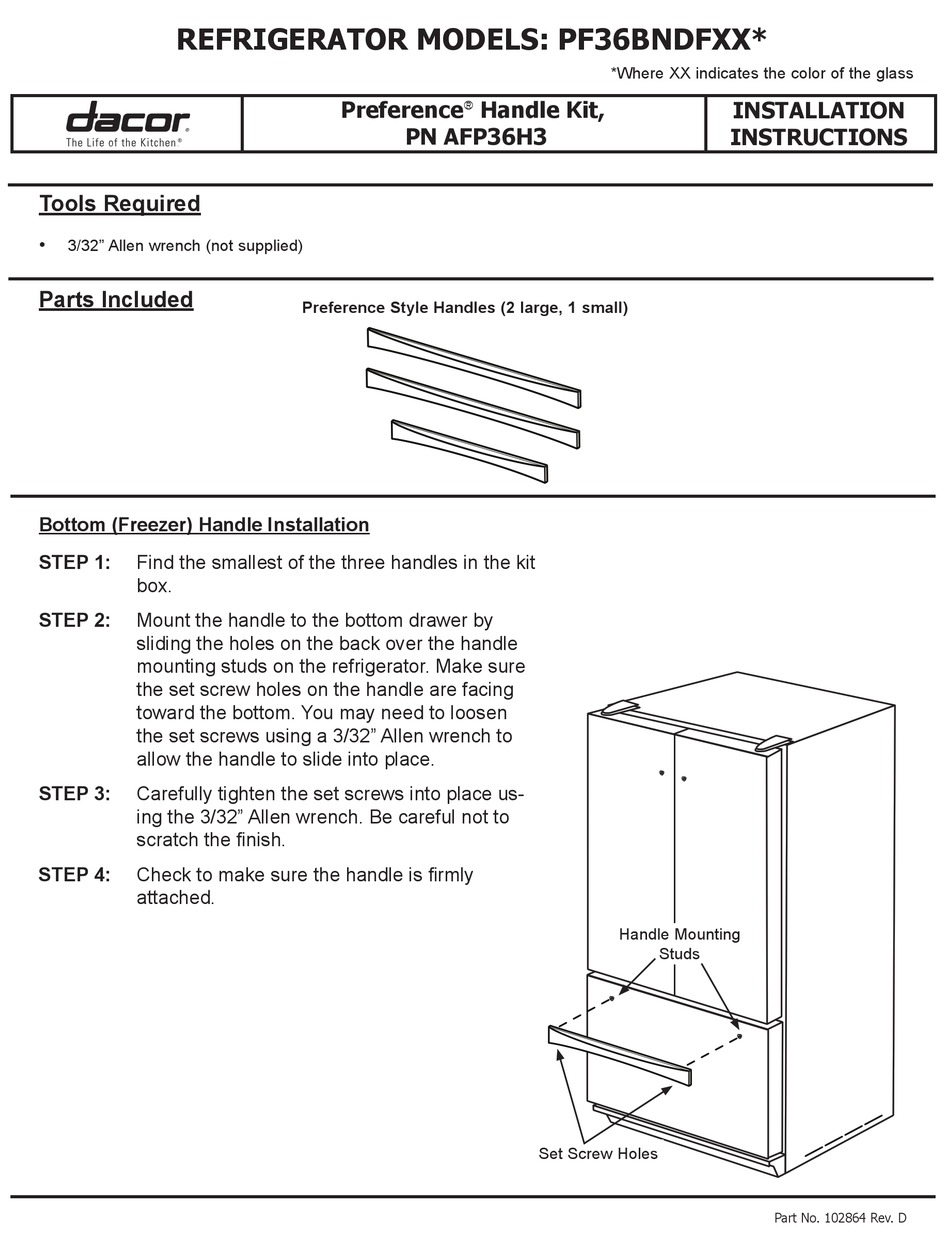

REFRIGERATOR MODELS: PF36BNDFXX*
Tools Required
•
3/32" Allen wrench (not supplied)
Parts Included
Bottom (Freezer) Handle Installation
STEP 1:
Find the smallest of the three handles in the kit
box.
STEP 2:
Mount the handle to the bottom drawer by
sliding the holes on the back over the handle
mounting studs on the refrigerator. Make sure
the set screw holes on the handle are facing
toward the bottom. You may need to loosen
the set screws using a 3/32" Allen wrench to
allow the handle to slide into place.
STEP 3:
Carefully tighten the set screws into place us-
ing the 3/32" Allen wrench. Be careful not to
scratch the finish.
STEP 4:
Check to make sure the handle is firmly
attached.
Preference
Handle Kit,
PN AFP36H3
Preference Style Handles (2 large, 1 small)
*Where XX indicates the color of the glass
Handle Mounting
Studs
Set Screw Holes
INSTALLATION
INSTRUCTIONS
Part No. 102864 Rev. D
