Dacor OBAD20 Installation Instructions

nOteS:
Remove the door from the mounting frame prior to installing the frame. Install the front frame
utilizing the return flange mounting holes located on the left and right side of the frame. After the
frame is in place, level, plumb and install the door. Check for correct latch alignment.

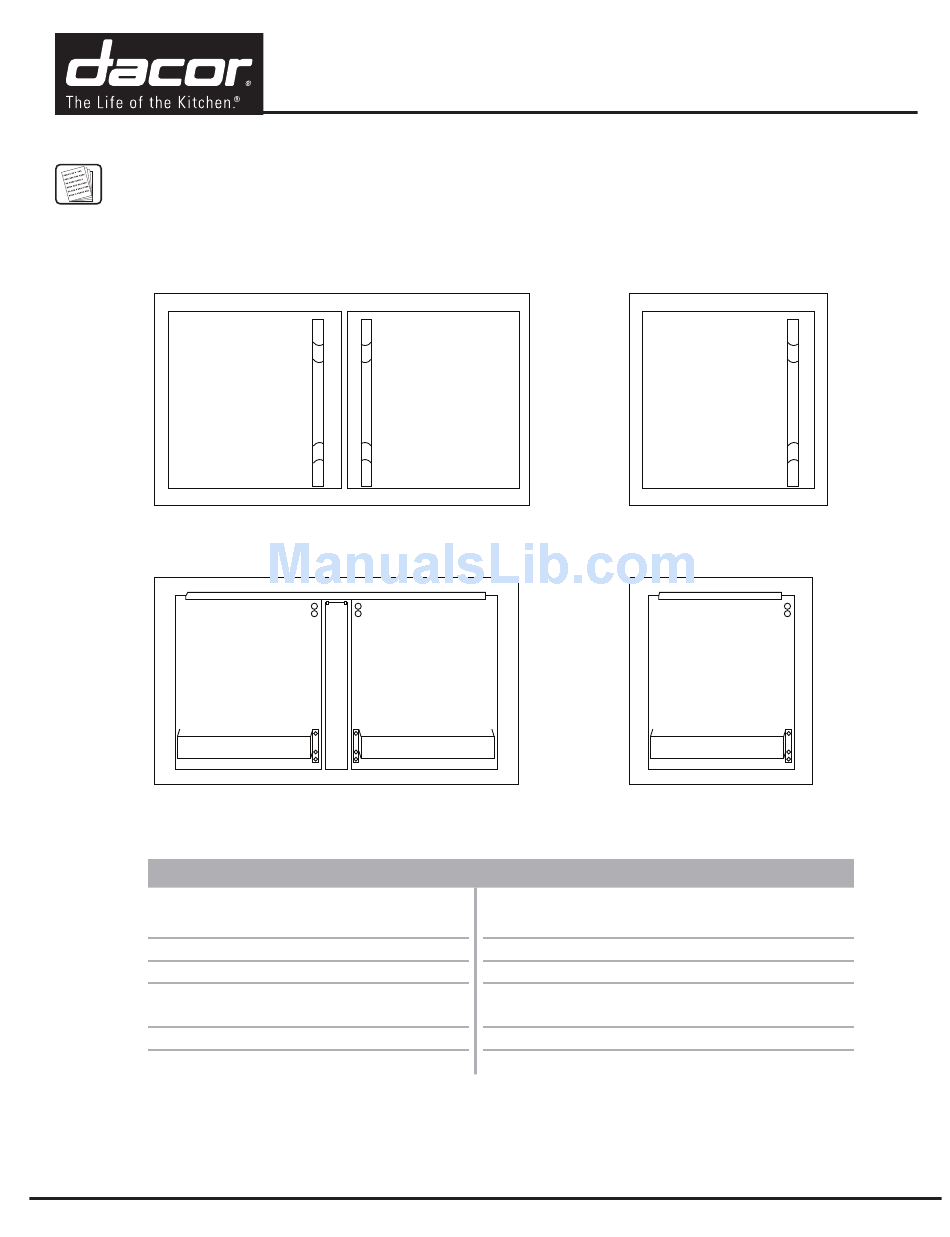

Front View
(OBAD36 shown)
Rear View
(OBAD36 shown)
SPECIFICATIONS
Overall Width
Overall Height
Overall Depth
Cutout Width
Cutout Height
Cutout Depth
Dacor ● 1440 Bridge Gate Drive, Diamond Bar, CA 91765 ● Tel: (800) 793-0093 ● FAX: (626) 403-3130 ● www.Dacor.com

Installation Instructions

Outdoor Grill Accessory Doors
OBAD20 - 19 1/2" (495mm)
OBAD36 - 35 7/8" (911mm)
21" (533mm)
1/4" (6mm) deep return on frame edge
OBAD20 - 16 3/4" (425mm)
OBAD36 - 33 1/8" (841mm)
18 3/4" (476mm)
3" (76mm) Minimum
Part No. 102547 Rev. A
Front View
(OBAD20 shown)
Rear View
(OBAD20 shown)
MEASUREMENTS
