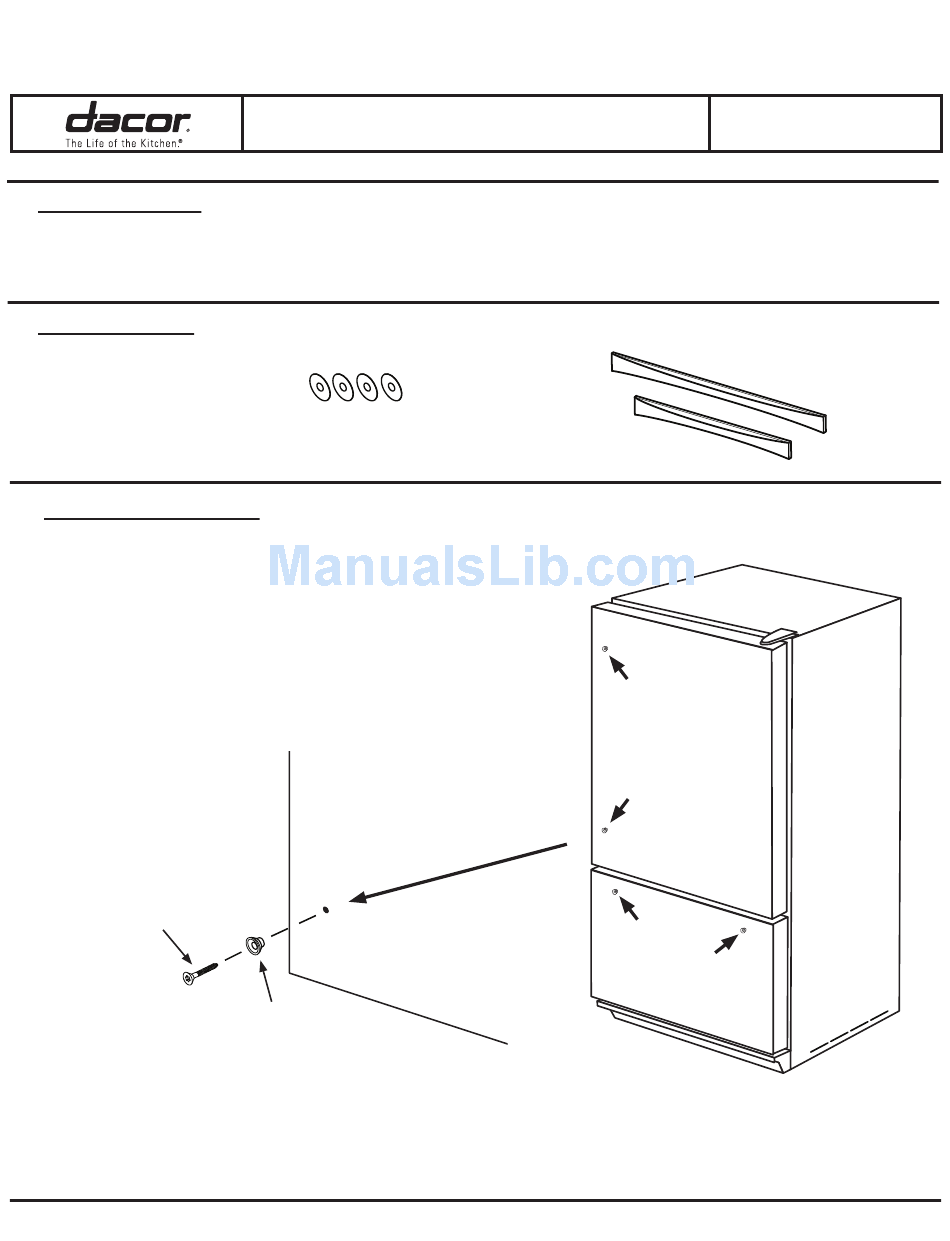

Use and Care Manual
REFRIGERATOR MODELS: EF36LNFSS and EF36RNFSS
Tools Required
•
3/32" Allen wrench (not supplied)
•
T20 Torx driver (EF36BNFSS Only)
Parts Included
Installation Preparation:
STEP 1:
Using a T20 Torx driver, remove the four (4)
handle mounting studs from the front of the
refrigerator. Retain the mounting screws and
studs.
Existing handle
mounting screw
(keep)
Existing mounting
Preference™ Handle Kit,
Plastic Washers (4)
stud (keep)
PN AFP36H2
Preference Style Handles (1 large, 1 small)
Handle Mounting
Stud Locations
INSTALLATION
INSTRUCTIONS
Model EF36RNFSS shown
Part No. 106238 Rev. A
