Dacor Epicure EF36LNDFSS Planning Manual

EF36RNDFSS, EF36LNDFSS, EF36BNDFSS,
Revised
06/12/08
P d
roduct imensions
◊ For EF36 Series models the depth from the front of the door
(w/o door handles) to the back of the refrigerator chassis
is 27" (686 mm), 27 1/4" (692mm) for IF36 Series without
paneling.
◊ The depth of the cabinet less the door is 24 1/4" (616 mm).
◊ The power cord is 60" (1524 mm) long.
◊ The height from the top of the refrigerator to the floor with
the leveling legs in the down position is 69 7/8" (1775 mm)
◊ The height from the top of the refrigerator to the floor with
the leveling legs in the fully extended position is 70 5/8"
(1794 mm).
◊ The refrigerator width from edge to edge is 35 5/8" (905
mm).
d s d
oor wing imensions
The area to the left and the right of the appliance must permit both
doors to open to a minimum of 90°. Allow a minimum of
2 1/2" (64 mm) space between the side of the refrigerator doors
and a corner wall.
Cabinet Layout
◊ A grounded three prong non-GFCI electrical outlet must
be provided and should be in a location that allows the
refrigerator to be connected without an extension cord. See
"Electrical Requirements" for additional information.
◊ The plumbing for the water line can come through the floor
flush to or from the back wall. Install the water valve in a
location that allows it to be turned off without moving the
refrigerator out in the event the refrigerator or water line
requires service.
w s r
ater uPPly equirements
◊ All installations must meet local plumbing code requirements.
◊ Use 1/4" (6 mm) copper line to connect the refrigerator to the
house cold fresh water supply.
◊ Install a shut off valve between the refrigerator and water
supply. The shut off valve should be a drilled saddle valve.
See the diagram above for recommended location.
◊ Do not use a piecing type or 3/16" (4.76 mm) saddle valve
which will reduce water flow and clog more easily.
◊ Allow a minimum of 24" (610 mm) diameter service loop of
copper tubing outside the wall or floor for easy connection to
the water supply.
Web: http://www.Dacor.com
Corporate Phone: 800-793-0093
IF36BNDFSF, & IF36INDFSF
36" Wide
Stand Alone Refrigerator
36" Min. (914 mm)
16"
(406 mm)

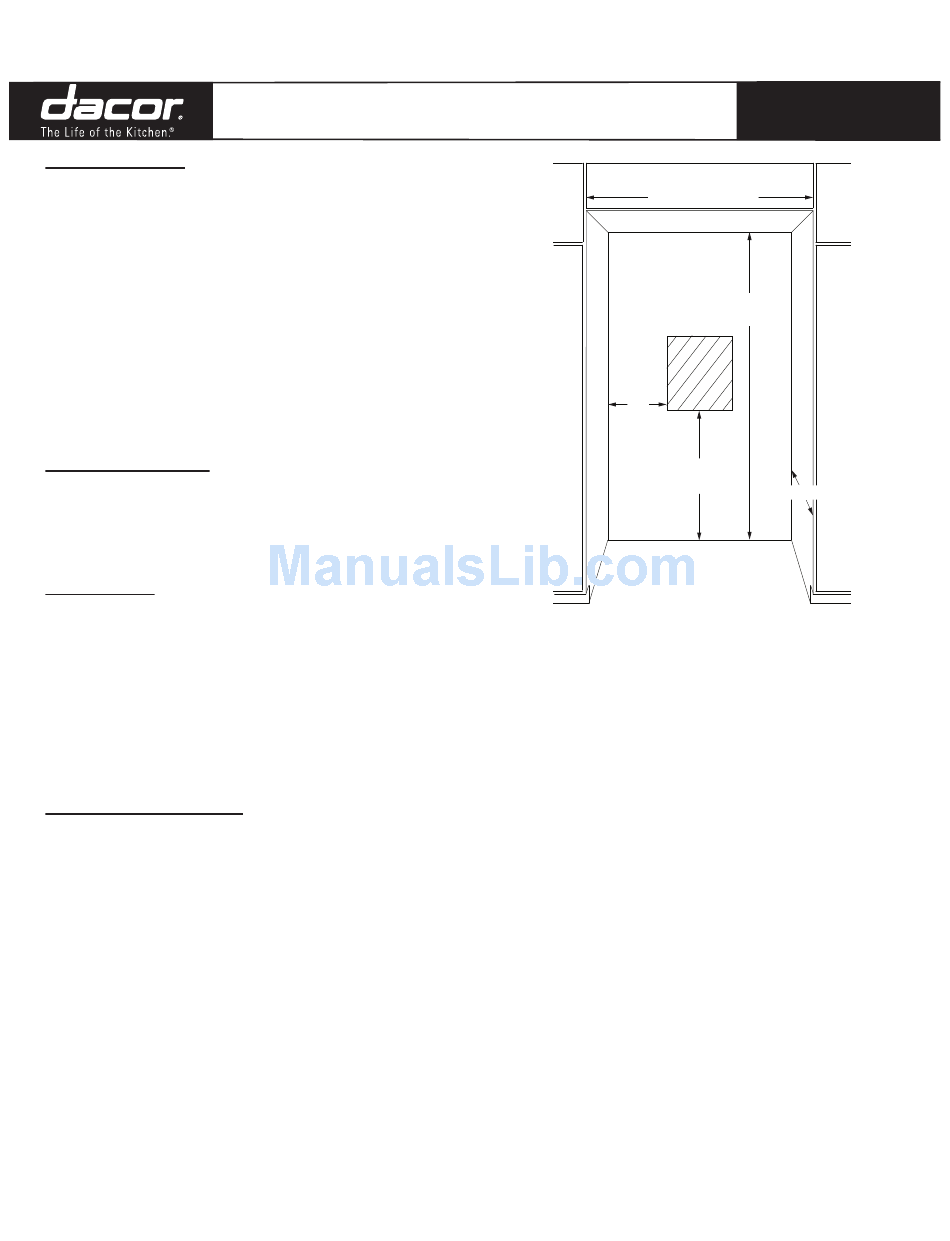

Water Valve Location - Approximate Dimensions
Cold water supply
Connect the ice maker to a cold water line with water pressure
between 35 and 120 psi. If you have any questions about your
water pressure, call your utility company.
Reverse osmosis water supply
IMPORTANT: The pressure of the water supply coming out of
a reverse osmosis system going to the water inlet valve of the
refrigerator needs to be between 35 and 120 psi (241 and 827
kPa).
If a reverse osmosis water filtration system is connected to your
cold water supply, the water pressure to the reverse osmosis
system needs to be a minimum of 40 to 60 psi (276 to 414 kPa).
If the water pressure to the reverse osmosis system is less than 40
to 60 psi (276 to 414 kPa):
■ Check to see whether the sediment filter in the reverse
osmosis system is blocked. Replace the filter if necessary.
■ Allow the storage tank on the reverse osmosis system to refill
after heavy usage.
■ If your refrigerator has a water filter, it may further reduce
the water pressure when used in conjunction with a reverse
osmosis system. Remove the water filter.
If you have questions about your water pressure, call a licensed,
qualified plumber.
Specifications are subject to change without notice.
See installation instructions for additional details.
PLANNING
GUIDE
1/2
70 ½" Min.
(1791 mm)
30".
