LX-SLL136L Low-Power Solar Infrared Sensor Light Instruction
10LUX 60°
Packing items
• 36 LED matrix light /
motion detector
• Adapter
• USB data lines
• USB transfer cable
• User Manual
Summary

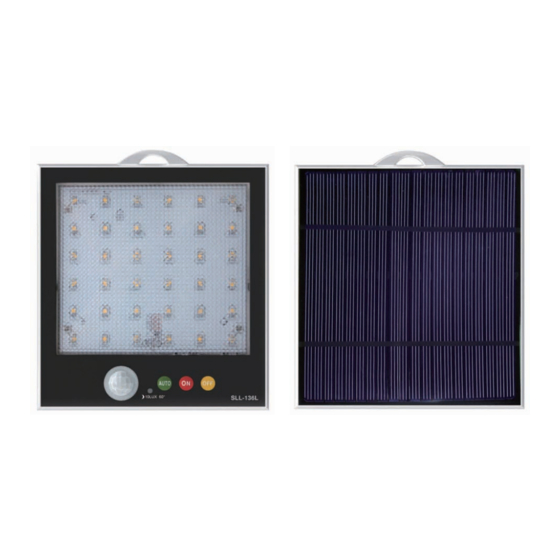

LX-SLL136L is a PIR sensor LED lamp, which takes solar energy as the main source and uses the lithium
cell as the back-up power and which also uses PIR sensor to achieves digital energy-saving control.
Moreover, its lightweight and thin design makes it much more convenient to be used in certain situations,
such as field trip, camping, repairing automobile lighting in dark, power failure from earthquake or electric
power circuit repair etc. LX-SLL136L is also an ideal substitute for charge power supplier in outdoor
emergency, used for mobile phone, camera, MP3, MP4 etc, for LX-SLL136L itself carries spared lithium cell
and external connected solar panel. LX-SLL136L adopts the PIR sensing technology to achieve the
energy-saving, that is, in AUTO state, it will auto-detected the motion signals and light on, and will light off if
you leave away. In ON condition, it can auto detect whether there are motion signals within the detection
range to adjust the light intensity, which helps to extend the time of power supply. LX-SLL136L is an ideal
and multifunctional intelligent PIR sensor lamp and it will become more and more important for daily living
and travelling.
Indoor
Specifications
Solar energy battery tag: 10VDC/3W
Rated load: 2.8W Max.
Power adapter: DC10V 0.5A
Internal lithium cell: 7.4V 1800mA/h
Light source: 36PCS LEDs
System control chip: MCU
Detection range : >12m
Time setting("AUTO "induction trigger):
10sec/night, 60sec/10lux
Adapter
100V-240V Convert 10V
Auto repair lighting
USB data lines
Induction working time(manual trigger ON:constant): >4hours
Working time (No manual trigger ON): >8hours
Detection angle: 140°/120°
Coverage: 180º sensing angle
Working temperature: -15~+40℃
Charge temperature (solar charge): <60℃
Charge requirement and time (solar charge): >6000lux, 8hours
Primary charge time(use power adapter to charge): >15hours
USB transfer cable
Outdoor camping lighting
Advertisement
Related Manuals for Lexing LX-SLL136L
Summary of Contents for Lexing LX-SLL136L
- Page 1 USB transfer cable Summary LX-SLL136L is a PIR sensor LED lamp, which takes solar energy as the main source and uses the lithium cell as the back-up power and which also uses PIR sensor to achieves digital energy-saving control. Moreover, its lightweight and thin design makes it much more convenient to be used in certain situations, such as field trip, camping, repairing automobile lighting in dark, power failure from earthquake or electric power circuit repair etc.
-
Page 2: Sensor Information
Sensor information >12m 140° 120° Detection range Detection angle Detection angle Application and attentions Considering of the loss of the quantity of electricity of inner battery in the process of production and long-playing transportation, so we would better charge up the battery before operation. The primary charge time should over 15 hours, in this way, it will help the battery recover fully and increase the life of battery. - Page 3 Attention: only when the luminance is below 10lux, the product can work under night mode. Therefore, we have to keep it away from the environment where he luminance is above 10lux such as some places where the street-light or other rays can make a direct beam. Reasonable application Charge 1.
-
Page 4: Problems And Solutions
LX-SLL136L also has the warning function, press on three times "ON" button to enter warning state. When you press one time "AUTO" button , press two times "ON" button, this product enter the alarm condition, induction to human body moves in the light of the pearl shine, have warning role. - Page 5 Charge up the light by power adapter. Charge up the LX-SLL136L by power adapter, if not charging normally, firstly, we should check if the connection between the adapter and connection wire is good . Meanwhile, insert the plug cord into the light and check whether the red LED indicator blinks.
