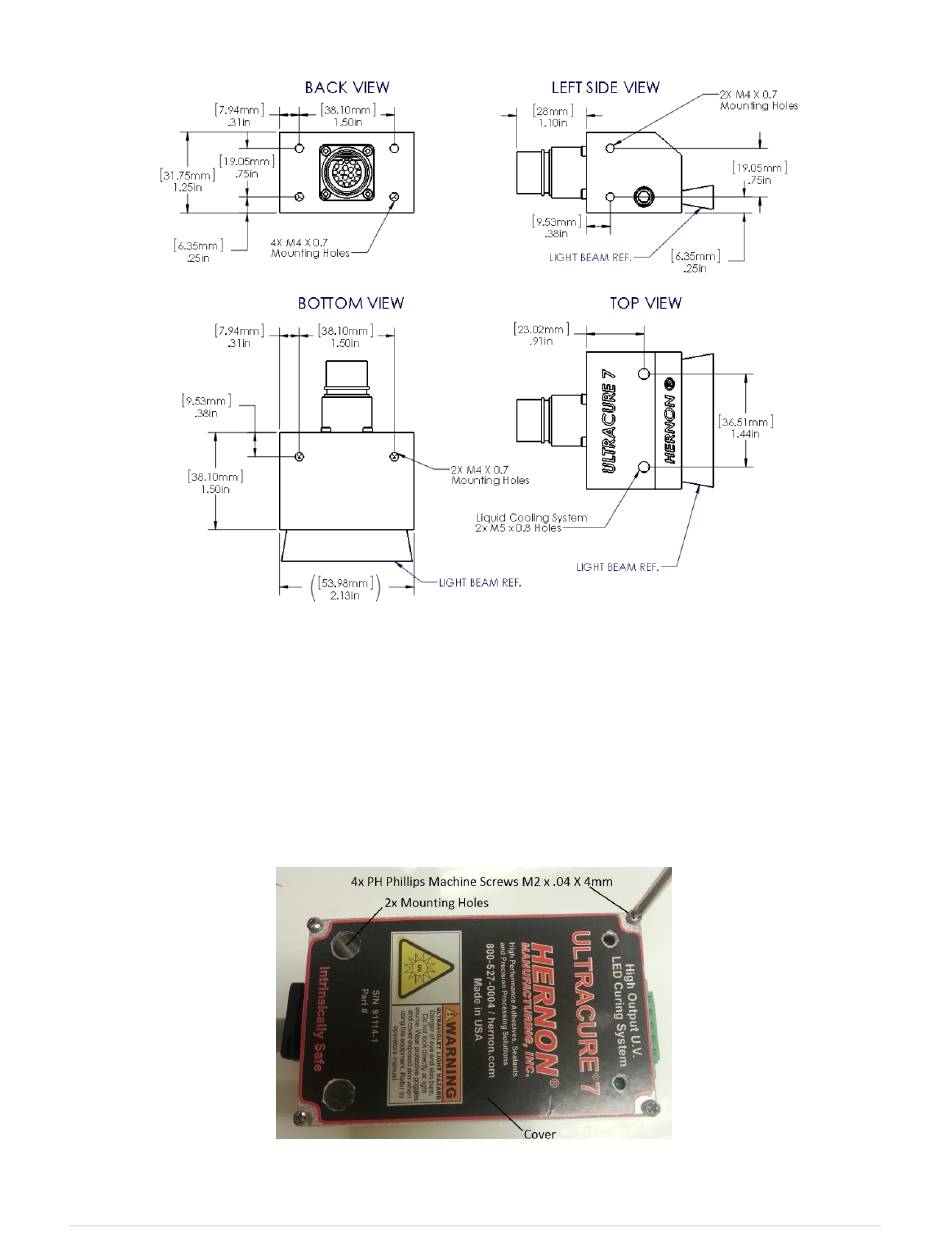

Figure 2- Ultracure 7 LED unit dimensions and mounting.

Mounting

The Ultracure 7 has three mounting options on the LED unit: Four M4 x 0.8 on electrical connector end,
two M4 x 0.8 on the bottom face of the device, and two M4 x 0.8 on both sides of the LED. Refer to
Figure 2.
The control box has two M3 thru-holes for mounting. A DIN Rail adapter, or "Dinclip", can be used, and
is included along with required mounting screws. The control box must be opened in order to install the
DIN Rail adapter.
Figure 3- Control box, with mounting holes and cover screws shown.
