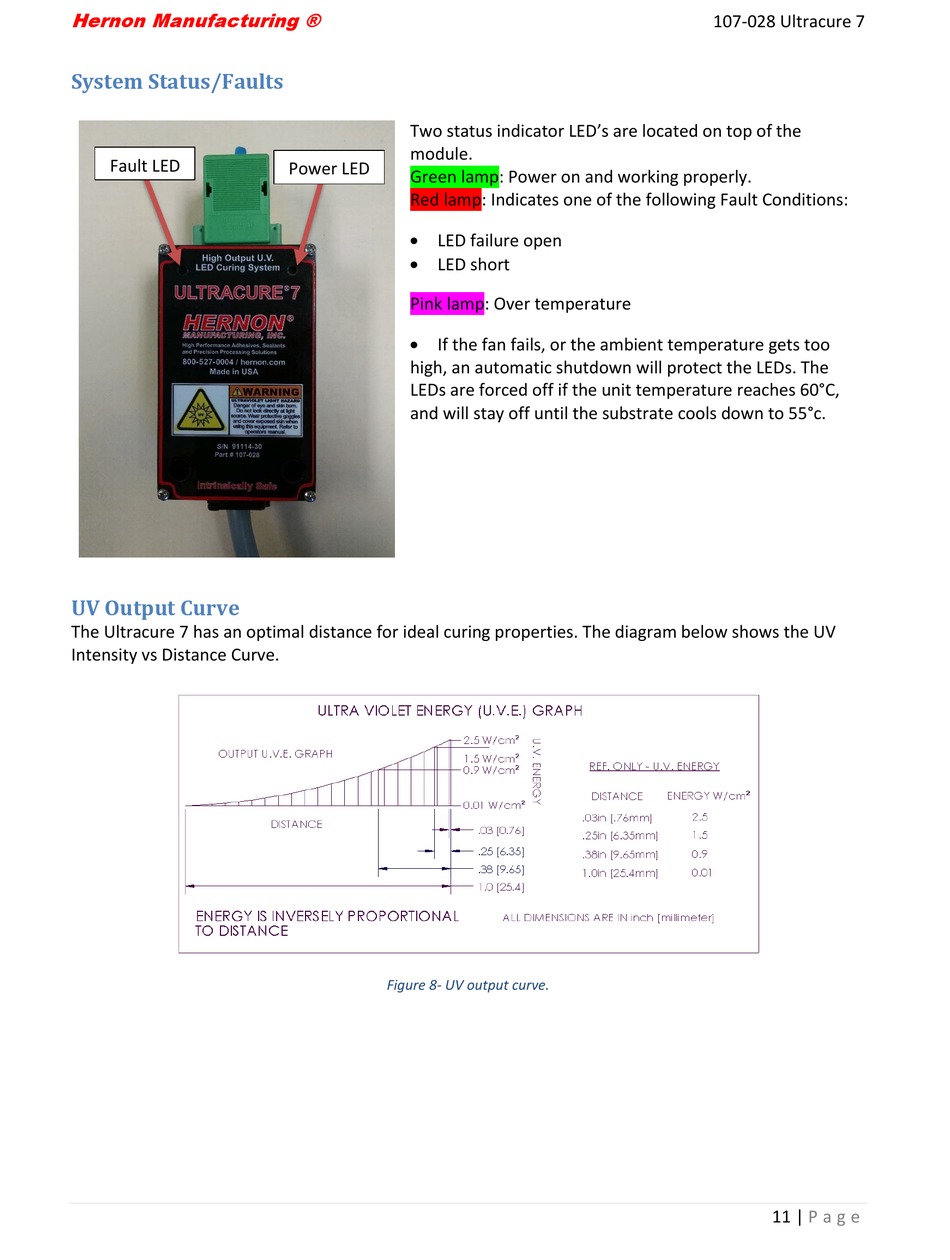

System Status/Faults
Fault LED
UV Output Curve
The Ultracure 7 has an optimal distance for ideal curing properties. The diagram below shows the UV
Intensity vs Distance Curve.
Two status indicator LED's are located on top of the
module.
Power LED
Green lamp: Power on and working properly.
Red lamp: Indicates one of the following Fault Conditions:
 LED failure open
 LED short
Pink lamp: Over temperature
 If the fan fails, or the ambient temperature gets too
high, an automatic shutdown will protect the LEDs. The
LEDs are forced off if the unit temperature reaches 60°C,
and will stay off until the substrate cools down to 55°c.
Figure 8- UV output curve.
