Mounting

The Ultracure 6 has two mounting options. Four M3 x 0.5 on electrical connector end, and four M2 x 0.4
on the bottom of the device. Refer to Figure 1. When mounting the Ultracure 6, do not to mount directly
onto any surface that may obstruct the fan. Hernon recommends using at least a quarter inch (0.25",
6.35mm) clearance between the mounting surface and the surface of the device; this is to ensure that
the Ultracure 6 has optimal airflow for regular operation.
NOTE: M3 x 0.5 mounting holes are supplied with fasteners which act as plugs covering and protecting
enclosure from dust, dirt or any other debris. 3mm Fastener should never thread in excess of 6mm
distance into housing. Extra-long screws may permanently damage electronics.

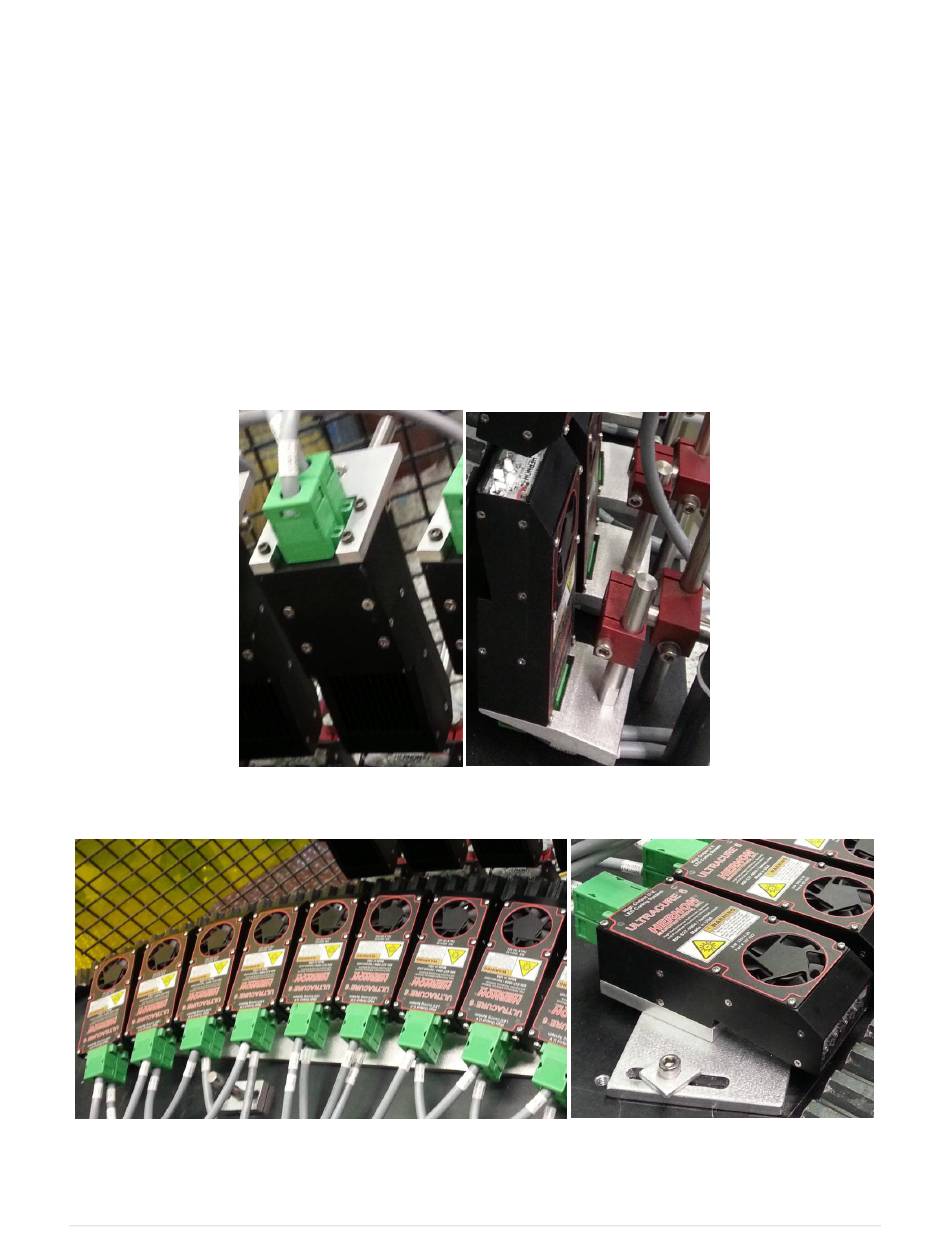

Mounting Examples
Below are examples of how to mount the Ultracure 6.
Figure 2- Ultracure 6 back face mounting, M3 x .03
Figure 3- Ultracure 6 bottom face mounting, M2 x .04
