Wiring #57733 - W&T Web-IO Digital 4.0 Manual

Terminal assignment 57733
Terminal Description / Function
1 + Vcc - Device supply 12-24V 150mA@24V
2 + Vcc - Device supply 12-24V 150mA@24V
3 GND / Device supply
4 Input 0 Switching threshold +8V / Output 0 24V max. 500mA
5 GND - Output 0
6 Input 1 Switching threshold +8V / Output 1 24V max. 500mA
7 GND - Output 1
8 Input 2 Switching threshold +8V / Output 2 24V max. 500mA
9 GND - Output 2
10 Input 3 Switching threshold +8V / Output 3 24V max. 500mA
11 GND - Output 3

Wiring #57733

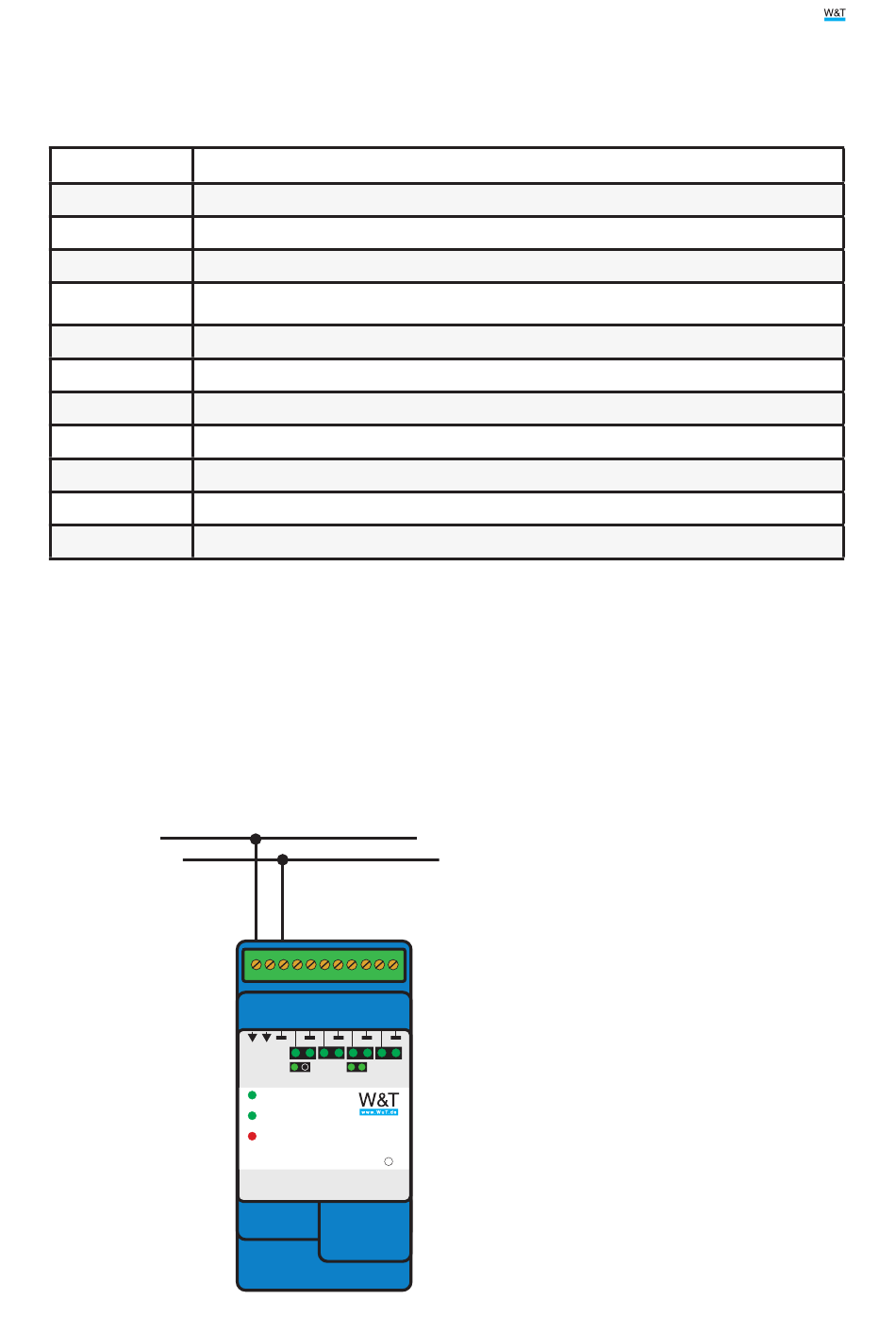

Connection of the supply voltage V
Connection of the supply voltageThe Web IO is supplied with a DC voltage between
12 and 24V.
12 - 24V +
-
GND
1 8
0 1 2 3
- - - -
+ + -
Vcc
12 - 24V DC
Inp. = ON Outp. = ON
150mA +
Outputs: max. 4x500mA
Output Load
Power
Status
Input/Output Mode Check
and LED Test shown on Reset
Error
Reset
______________
URL:
Web-IO 4.0 #57733
Digital, 4xIn/Out
Montage und Verdrahtung
DD
17
