3. Quick Startup

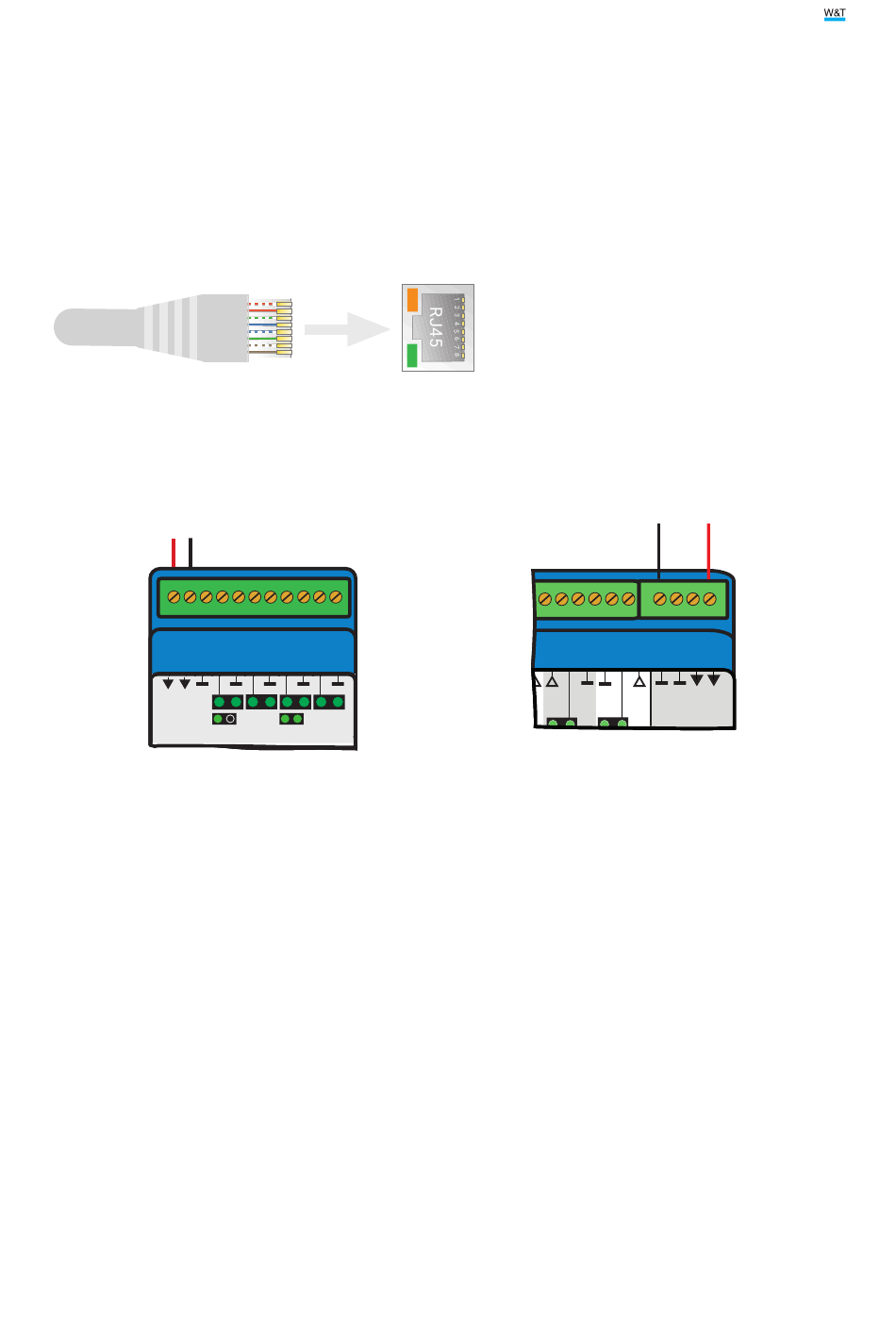

Network connection

Supply voltage

#57733
+ -
12 - 24V
+ - + +
+ + -
V IN
VCC
DD
V Out
12 - 24V DC
DD
150mA +
12-48V
Output Load
For the first test leave the input and outputs unwired.

IP address assignment

Install Wutility-Tool (Download: http://wut.de/wutility)
After starting Wutility your Web-IO appears in the device list. If multiple devices are
shown, please identify your device by the Mac address, that is printed on a white
sticker at the device: "EN = 00c0:3d......" . If there is a DHCP server in your network,
you can use the assigned IP address for a first test. Using the IP address icon in
WuTility you can assign a free static IP address instead to the Web-IO.

Function test

Open the Web page of the Web-IO in a web browser using the address http://<IP-
address of the Web-IO>.
0 - + - 1 + - 2 + - 3
- - - -
0 1 2 3
Inputs/Outputs
Inp. = ON Outp. = ON
max. 4x500mA Out
Outputs: max. 4x500mA
