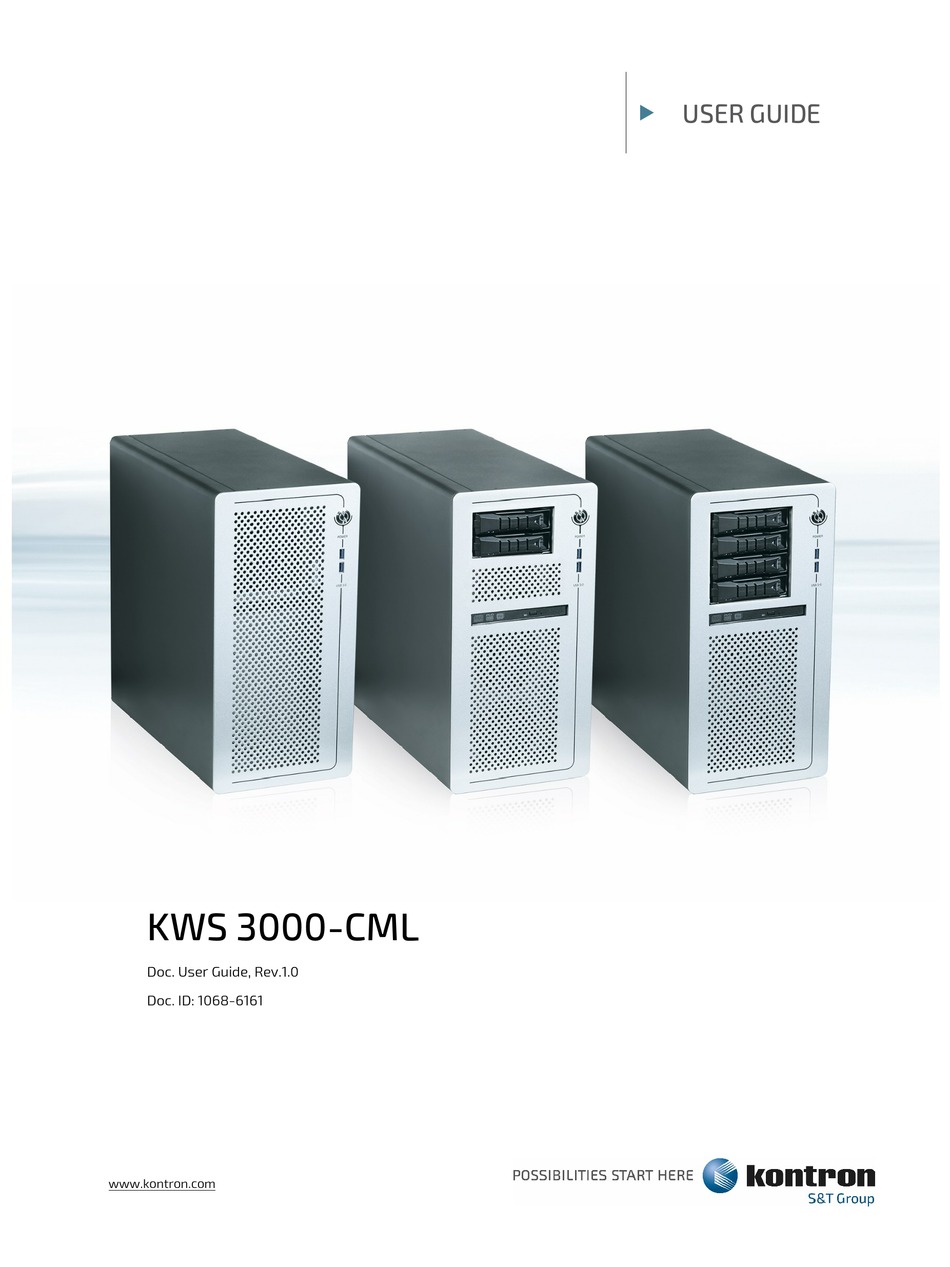

- Page 1 USER GUIDE KWS 3000-CML Doc. User Guide, Rev.1.0 Doc. ID: 1068-6161 www.kontron.com // 1...
- Page 2 KWS 3000-CML - User Guide, Rev.1.0 This page has been intentionally left blank www.kontron.com // 2...
- Page 3 KWS 3000-CML - User Guide, Rev.1.0 KWS 3000-CML - USER GUIDE Disclaimer Kontron would like to point out that the information contained in this user guide may be subject to alteration, particularly as a result of the constant upgrading of Kontron products. This document does not entail any guarantee on the part of Kontron with respect to technical processes described in the user guide or any product characteristics set out in the user guide.
- Page 4 KWS 3000-CML - User Guide, Rev.1.0 Intended Use THIS DEVICE AND ASSOCIATED SOFTWARE ARE NOT DESIGNED, MANUFACTURED OR INTENDED FOR USE OR RESALE FOR THE OPERATION OF NUCLEAR FACILITIES, THE NAVIGATION, CONTROL OR COMMUNICATION SYSTEMS FOR AIRCRAFT OR OTHER TRANSPORTATION, AIR TRAFFIC CONTROL, LIFE SUPPORT OR LIFE SUSTAINING APPLICATIONS, WEAPONS SYSTEMS, OR ANY OTHER APPLICATION IN A HAZARDOUS ENVIRONMENT, OR REQUIRING FAIL-SAFE PERFORMANCE, OR IN WHICH THE FAILURE OF PRODUCTS COULD LEAD DIRECTLY TO DEATH, PERSONAL INJURY, OR SEVERE PHYSICAL OR...
- Page 5 KWS 3000-CML - User Guide, Rev.1.0 Revision History Revision Brief Description of Changes Date of Issue Author/ Editor Initial version 2021-Oct-14 Terms and Conditions Kontron warrants products in accordance with defined regional warranty periods. For more information about warranty compliance and conformity, and the warranty period in your region, visit http://www.kontron.com/terms- and-conditions.
-
Page 6: Symbols
KWS 3000-CML - User Guide, Rev.1.0 Symbols The following symbols may be used in this user guide DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury. -
Page 7: For Your Safety
KWS 3000-CML – User Guide, Rev.1.0 For Your Safety Your new Kontron product was developed and tested carefully to provide all features necessary to ensure its compliance with electrical safety requirements. It was also designed for a long fault-free life. However, the life expectancy of your product can be drastically reduced by improper treatment during unpacking and installation. -
Page 8: Lithium Battery Precautions
KWS 3000-CML - User Guide, Rev.1.0 Lithium Battery Precautions If your product is equipped with a lithium battery, take the following precautions when replacing the battery. Danger of explosion if the battery is replaced incorrectly. Replace only with same or equivalent battery type recommended by the manufacturer. ... -
Page 9: Table Of Contents
KWS 3000-CML - User Guide, Rev.1.0 Table of Contents Symbols ..........................................6 For Your Safety ........................................7 High Voltage Safety Instructions .................................. 7 Special Handling and Unpacking Instruction ............................7 Lithium Battery Precautions ..................................8 General Instructions on Usage ..................................8 Quality and Environmental Management .............................. - Page 10 KWS 3000-CML - User Guide, Rev.1.0 Minimum Thermal Clearance ................................35 Third Party Components ..................................35 Starting Up......................................36 Before Starting Up ....................................36 Operating System (OS) and Drivers..............................36 Starting Up ....................................... 36 Potential Equalization Stud ................................37 BIOS ........................................38 Starting the BIOS .....................................
-
Page 11: List Of Tables
KWS 3000-CML - User Guide, Rev.1.0 Appendix A: List of Acronyms ..................................57 About Kontron – Member of the S&T Group ............................58 List of Tables Table 1: Compliance CE Mark ..................................15 Table 2: Compliance RED Mark ..................................16 Table 3: Country Compliance ..................................17 Table 4: Scope of Delivery ..................................... -
Page 12: 1/ Introduction
KWS 3000-CML - User Guide, Rev.1.0 1/ Introduction This user guide describes the features of the KWS 3000-CML also known as product within this user guide, and informs users how to assemble, install, operate and maintain the product properly. Kontron recommends new operators to take a few minutes to learn about the product’s various parts and study the instructions within this user guide before switching on the power. -
Page 13: 2/ General Safety Instructions
KWS 3000-CML - User Guide, Rev.1.0 2/ General Safety Instructions Please read this passage carefully and take careful note of the instructions, which have been compiled for your safety and to ensure to apply in accordance with intended regulations. If the following general safety instructions are not observed, it could lead to injuries to the operator and/or damage of the product;... -
Page 14: Electrostatic Discharge (Esd)
KWS 3000-CML - User Guide, Rev.1.0 a suitable, easily accessible disconnecting device is used in the application (e.g. overcurrent protective device), if the product itself is not disconnectable a disconnect device, if provided in or as part of the product, shall disconnect both poles simultaneously ... -
Page 15: 3/ Compliance
KWS 3000-CML - User Guide, Rev.1.0 3/ Compliance The KWS 3000-CML complies with the relevant requirements and the approximation of the laws relating to the CE Mark for non-Wi-Fi variants (see Table 1) and CE Radio Equipment Directive (RED) for Wi-Fi variants (see Table 2), and the standards that are constitutional parts of the declaration. -
Page 16: Table 2: Compliance Red Mark
KWS 3000-CML - User Guide, Rev.1.0 Table 2: Compliance RED Mark Europe – CE RED Mark (Conformité Européenne Radio Equipment Directive) Directives 2014/53/EU Directive 2014/53/EU of the European Parliament and of the Council of 16 April 2014 on the harmonization of the laws of the Member States relating to the making available on the market of radio equipment 2011/65/EU:2011-06-08 Directive 2011/65/EU of the European Parliament and of the Council of 8 June... -
Page 17: Table 3: Country Compliance
KWS 3000-CML - User Guide, Rev.1.0 The KWS 3000-CML complies with the following country specific certifications: Table 3: Country Compliance USA/CANADA-NRTL MARL FCC 47 CFR Part 15B and ICES-003 Federal Communications Commission (FCC) rules and regulations regarding unlicensed transmissions Safety UL 62368-1:2014 and CAN/CSA-C22.2 No. -
Page 18: 4/ Shipment And Unpacking
KWS 3000-CML - User Guide, Rev.1.0 4/ Shipment and Unpacking Packaging All parts are delivered together in a product specific cardboard package designed to provide adequate protection to absorb shock. Kontron recommends keeping the packaging to store or transport the product. -
Page 19: Product Identification Type Label
KWS 3000-CML - User Guide, Rev.1.0 Product Identification Type Label The type label includes the product’s electrical specification. Figure 1: Type Label Model Name: KWS 3000-CML Electrical specification/Power rating Product number Compliance Serial number www.kontron.com // 19... -
Page 20: 5/ Features
KWS 3000-CML - User Guide, Rev.1.0 5/ Features The KWS 3000-CML is a standalone highly expandable midi tower workstation designed for high performance, and reliability in industrial, medical and energy markets. With a Micro ATX motherboard and using the Intel® 10 Generation Core-i™... -
Page 21: Front Panel
KWS 3000-CML - User Guide, Rev.1.0 Front Panel The front panel features a power button, two USB 3.2 Gen 1 ports, up to four 3.5” HDD or 2.5” SSD/HDD drive bays (removable or fixed internal), and a slimline DVD/CD drive bay. Figure 3: Front Panel Power button 1x CD/DVD slimline drive... -
Page 22: Drive Bays
KWS 3000-CML - User Guide, Rev.1.0 5.1.1. Drive Bays The front panel varies depending on the specified storage configuration. The four available drive bays may be configured as removable drives or fixed internal drives. Figure 4: Storage Configurations Four removable drives ... -
Page 23: Rear Panel
KWS 3000-CML - User Guide, Rev.1.0 Rear Panel The rear panel features the motherboard’s external interfaces, four PCIe expansion card slots and input power socket and switch. Figure 5: Rear Panel 1x PSU Power switch 10 1x PS2 Keyboard/Mouse port 1x Input power socket 11 2x USB 2.0 (USB11, USB12) 4x PCIe Gen 3 slots... -
Page 24: Wi-Fi Module
KWS 3000-CML - User Guide, Rev.1.0 5.2.1. Wi-Fi Module The Wi-Fi module features are: M.2 2230 key A-E IEEE 802.11ac/a/b/g/n (2T2R) compliant Interface: PCIe x1 Dual antenna Figure 6: Wi-Fi Antenna Dual Wi-Fi connectors Dual hinged Wi-Fi antennas 5.2.2. -
Page 25: Service Cover
KWS 3000-CML - User Guide, Rev.1.0 Service Cover The service cover features three screws located on the rear panel used to open and secure the service cover, and a Kensington lock to limit internal access to authorized personnel only. The underside of the service cover features ten metal catches on the front, left and right sides to hold the service cover securely in place. -
Page 26: 6/ Expansion
KWS 3000-CML - User Guide, Rev.1.0 6/ Expansion Before Expanding Before expanding the product with external devices, consider the PSU’s maximum allowed power consumption. Due to the limited lifespan, Kontron recommends checking the condition of installed expansion devices regularly and to pay attention to the manufacturer’s lifespan specifications. -
Page 27: Pcie Expansion Cards
KWS 3000-CML - User Guide, Rev.1.0 PCIe Expansion Cards Additional features are achieved using four PCIe slots supporting PCIe Gen 3.0 expansion cards. Kontron supports reference Graphics, LAN, RAID controller PCIE cards. Others expansion options are available on request. For more information contact, , contact your local Kontron sales representative or Kontron Inside Sales. -
Page 28: M.2 Ssd Module
KWS 3000-CML - User Guide, Rev.1.0 M.2 SSD Module Additional storage is available when the motherboard’s M.2 2280 Key M socket is populated with a M.2 SSD module. Figure 10: M.2 SSD Module Location Table 8: M.2 SSD Module Options Storage Device Interface Capacity/Power Consumption... -
Page 29: Table 9: M.2 Wi-Fi Module Options
KWS 3000-CML - User Guide, Rev.1.0 Table 9: M.2 Wi-Fi Module Options Wi-Fi/Bluetooth Device Interface Description M.2 2230 key A- E Wi-Fi: PCIe x1 Wi-Fi: IEEE 802.11ac/a/b/g/n (2T2R) Bluetooth: USB 2.0 Bluetooth: V5.0, V4.2, V4.1, V4.0 LE, V3.0+HS, V2.1+EDR Due to the M.2 socket’s location underneath the PCIe expansion cards, the M.2 Wi-Fi module is factory installed www.kontron.com // 29... -
Page 30: 7/ Assembly
KWS 3000-CML - User Guide, Rev.1.0 7/ Assembly Before Opening the Service Cover for Assembly Before opening the service cover to assemble and handle internal components, observe the safety instructions in Chapter 1/ General Safety Instructions and consult the documentation provided by the components manufacturer. Energy hazards present Before removing the service cover, shut down the product properly using power button, PSU switch and disconnect the power cable from the input power socket or mains power outlet. -
Page 31: Installing And Removing Pcie Cards
KWS 3000-CML - User Guide, Rev.1.0 To close and secure the service cover, perform the following: Position the service cover above the main chassis approximately 20 mm away from the front panel. Lower the service cover to rest on the main chassis. Slide the service cover carefully towards the front panel until the metal catches on the front side of the service cover connect with the front panel’s internal plate. - Page 32 KWS 3000-CML - User Guide, Rev.1.0 Insert the PCIe card carefully into the corresponding motherboard PCIe connector (see Table 7: PCIe Expansion Cards) and positioning the PCIe card’s brackets into the corresponding latch for the slot. Secure the PCIe card with screw. Re-install the short bracket and/or long bracket in the original position with the screws retained in step 4.
-
Page 33: Installing And Removing M.2 Modules
KWS 3000-CML - User Guide, Rev.1.0 7.2.2. Installing and Removing M.2 Modules Figure 14: M.2 Modules Location M.2 SSD module location M.2 Wi-Fi module location Due to the M.2 sockets location underneath the PCIe expansion cards and underneath the heatsink, the M.2 modules are factory installed. To remove a M.2 module(s), perform the following: Shut down the product properly using power button, PSU switch and disconnect the power cable from the input power socket or mains power outlet... -
Page 34: 8/ Installing
KWS 3000-CML - User Guide, Rev.1.0 8/ Installing Before Installing Before positioning the product in the operating environment ensure that the operating environment meets the specification stated within this user guide. Due to possible access restrictions in the operating environment, Kontron recommends installing all expansion cards and peripherals before positioning the product in the operating environment. -
Page 35: 9/ Thermal Management
KWS 3000-CML - User Guide, Rev.1.0 9/ Thermal Management Active Cooling Two easily replaceable system fans behind the front panel force air to flow from the front to the back. Additionally, the processor and high performance expansion cards have integrated cooling solutions or are equipped with corresponding cooling devices, that help to maintain the ambient temperature. -
Page 36: 10/ Starting Up
KWS 3000-CML - User Guide, Rev.1.0 Starting Up Before Starting Up Before connecting the KWS-3000-CML to power and starting up, read the instructions in this user guide and observe the safety instructions in Chapter 1/ General Safety Instructions. Operate only with a closed and secured service cover, to ensure that operators do not have access to energized internal parts. -
Page 37: Potential Equalization Stud
KWS 3000-CML - User Guide, Rev.1.0 Potential Equalization Stud The potential equalization stud is not a ground connection. The potential equalization stud ensures that all connected systems share a common potential, even if positioned in a different location. The potential equalization stud ensures that all connected systems share a common potential and is not a ground connection! www.kontron.com // 37... -
Page 38: 11/ Bios
KWS 3000-CML - User Guide, Rev.1.0 11/ BIOS The KWS 3000-CML uses the uEFI BIOS supported by the motherboard. This chapter inform user how to start the BIOS, use the BIOS setup to configure, and perform a BIOS update. uEFI only! No legacy support and no Master Boot Record (MBR) installation. Starting the BIOS To start the uEFI BIOS setup program, perform the following: Power-up the product. -
Page 39: Bios Update
KWS 3000-CML - User Guide, Rev.1.0 For a list of the navigation hot keys in the legend bar, see Table 10. Table 10: Navigation Hot Keys in the Legend Bar Description <F1> Displays the ‘General Help’ window <-> Selects the next lower value within a field <+>... - Page 40 KWS 3000-CML - User Guide, Rev.1.0 Press <Return > and reboot only after completion of the BIOS download. After a BIOS update, additional modifications must be made manually. After a BIOS update If the product fails to boot, the updated BIOS maybe damaged. www.kontron.com // 40...
-
Page 41: 12/ Technical Specifications
KWS 3000-CML - User Guide, Rev.1.0 Technical Specifications Block Diagram Figure 15: Block Diagram KWS-3000-CML Motherboard 1/2 x 2.5" SSD/HDD or 1x 3.5" HDD 1x Keyboard & Mouse IMB-1313 Micro ATX 2x USB 2.0 1/2 x 2.5" SSD/HDD or 1x 3.5" HDD 1x HDMI 2.0a 1/2 x 2.5"... -
Page 42: Hardware Specification
KWS 3000-CML - User Guide, Rev.1.0 Hardware Specification Table 11: Hardware Specification Product KWS 3000-CML Motherboard Type IMB-1313 (Micro ATX) from ASRock Industrial Form Factor Micro ATX (244 mm x 244 mm/9.6“ x 9.6“) Processor Intel® 10th Gen Core-i™ processor series Processors Cores Base Freq. -
Page 43: Software Specification
KWS 3000-CML - User Guide, Rev.1.0 Mass Storage Drive bays 1x 3.5“ HDD or 1/2x 2.5” HDD/SSD (Raid, removable or fixed) 1x 3.5“ HDD or 1/2x 2.5” HDD/SSD (Raid, removable or fixed) 1x 3.5“ HDD or 1/2x 2.5“HDD/SSD (Raid, removable or fixed)) 1x 3.5“... -
Page 44: Environmental Specification
KWS 3000-CML - User Guide, Rev.1.0 Environmental Specification Table 14: Environmental Specification Temperature Description Temperature Operating 0°C to +45 °C (32°F to 113°F) Non-operating -25°C to +70°C (-13°F to 158°F) Relative Humidity Operating 93 % @ 40° C, non-condensing (93% @ 104°F, non- condensing) Non-operating Altitude Operating... -
Page 45: 13/ Standard Interfaces - Pin Assignments
KWS 3000-CML - User Guide, Rev.1.0 Standard Interfaces – Pin Assignments Connectors Low-active signals are indicated by a minus sign. 13.1.1. USB 2.0 Port Pin Assignment (USB2_1/USB2_2) Signal Name USB 2.0 Type A Connector VCC (+5V) Data- Data+ fuse protected 13.1.2. -
Page 46: Dp 1.2 Port Pin Assignment (Dp1)
KWS 3000-CML - User Guide, Rev.1.0 13.1.4. DP 1.2 Port Pin Assignment (DP1) Signal Name Signal Name DP (V1.2) Connector TX0+ TX3- TX0- DVI dongle detect/ GND TX1+ GND / CEC for HDMI AUX+ TX1- TX2+ AUX- Hotplug detect TX2- TX3+ +3.3 V (fuse protected) -
Page 47: Vga Connector Pin Assignment (Vga1)
KWS 3000-CML - User Guide, Rev.1.0 13.1.6. VGA Connector Pin Assignment (VGA1) Signal Name Description D-Sub Connector (female) Red Video Green Green Video Blue Blue Video Monitor ID Bit 2 GND for DCC Ground RGND Red ground GGND Green ground BGND Blue ground Key (no pin) -
Page 48: Gigabit Lan Connector Pin Assignment (Lan1)
KWS 3000-CML - User Guide, Rev.1.0 13.1.9. 2.5 Gigabit LAN Connector Pin Assignment (LAN1) Signal Name Signal Name RJ45 (female) Connector (10/100/1000/2500 Mbps) (10/1000 Mbps) MX1+ Link/Activity LED Speed LED MX1- MX2+ MX3+ MX3- MX2- MX4+ MX4- Link/Activity LED Speed LED LED Status Description LED Status... -
Page 49: Ps/2 Connector Pin Assignment (Keyboard, Mouse)
KWS 3000-CML - User Guide, Rev.1.0 13.1.11. PS/2 Connector Pin Assignment (Keyboard, Mouse) Signal Name PS/2 Connector (female) (Keyboard & Mouse) Purple (Green) Data VCC (+5V) Clock fuse protected Jumpers The Jumpers are labelled on the motherboard. For information regarding the position for the Clear CMOS jumpers (see Figure 16). -
Page 50: Clear Cmos (Clrmos2) Jumper
KWS 3000-CML - User Guide, Rev.1.0 To set the jumper, perform the following: Before setting the CMOS jumper the product must be switched off and disconnected from power by removing the power cable. After 15 seconds, short pin-2 and pin-3 on CLRMOS1 for 5 seconds using a jumper. After updating the BIOS, do not clear CMOS. -
Page 51: 14/ Maintenance And Prevention
KWS 3000-CML - User Guide, Rev.1.0 Maintenance and Prevention The KWS 3000-CML requires minimal maintenance and care to maintain correct operation. Maintenance or repair on the open product must only be carried out by qualified personnel authorized by Kontron. Before Maintaining the Product Before opening the service cover to maintain the product, shut down the product properly using the power button, PSU switch and disconnect the power cable from the input power socket or mains power outlet. -
Page 52: Replacing The Lithium Battery
KWS 3000-CML - User Guide, Rev.1.0 To remove a system fan for maintenance or replacement, perform the following: Shut down the product properly using power button, PSU switch and disconnect the power cable from the input power socket or mains power outlet. Remove the service cover see Chapter 7.2: Opening and Closing the Service Cover. -
Page 53: Figure 19: Battery Holder Location
KWS 3000-CML - User Guide, Rev.1.0 Do not dispose of lithium batteries in general trash collection. Dispose of the battery according to the local regulations dealing with the disposal of these special materials, (e.g. collecting points for dispose of batteries). To replace the lithium battery on the motherboard, perform the following: Shut down the product properly using power button, PSU switch and disconnect the power cable from the input power socket or mains power outlet. -
Page 54: 15/ Technical Support
KWS 3000-CML - User Guide, Rev.1.0 Technical Support For technical support contact our Support Department: Email: support@kontron.com Phone: +49-821-4086-888 Make sure you have the following information available when you call: Product ID Number (PN), Serial Number (SN) The serial number can be found on the product’s Type Label, see Figure 1, pos. -
Page 55: 16/ Storage And Transportation
KWS 3000-CML - User Guide, Rev.1.0 Storage and Transportation Storage If the product is not in use for an extended period time, disconnect the power cable from the mains power outlet. If it is necessary to store the product, re-pack the product as originally delivered to avoid damage. The storage facility must meet the product’s environmental storage requirements as stated within this user guide. -
Page 56: 17/ Warranty
KWS 3000-CML - User Guide, Rev.1.0 Warranty Due to their limited service life, parts that by their nature are subject to a particularly high degree of wear (wearing parts) are excluded from the warranty beyond that provided by law. This applies to the lithium battery, for example. -
Page 57: Appendix A: List Of Acronyms
KWS 3000-CML - User Guide, Rev.1.0 Appendix A: List of Acronyms Table 16: List of Acronyms Advanced Technology eXtended Real Time Clock BIOS Basic Input Output System Single Board Computer Conformité Européenne Serial Data Communication port Solid State Drive Central Processing Unit Trusted Computer Group Direct Current TFTP... -
Page 58: About Kontron - Member Of The S&T Group
KWS 3000-CML – User Guide, Rev.1.0 About Kontron – Member of the S&T Group Kontron is a global leader in IoT/Embedded Computing Technology (ECT). As part of the S&T technology group, Kontron offers individual solutions in the areas of Internet of Things (IoT) and Industry 4.0 through a combined portfolio of hardware, software and services.
