Summary of Contents for S&T Kontron SBOX-5002

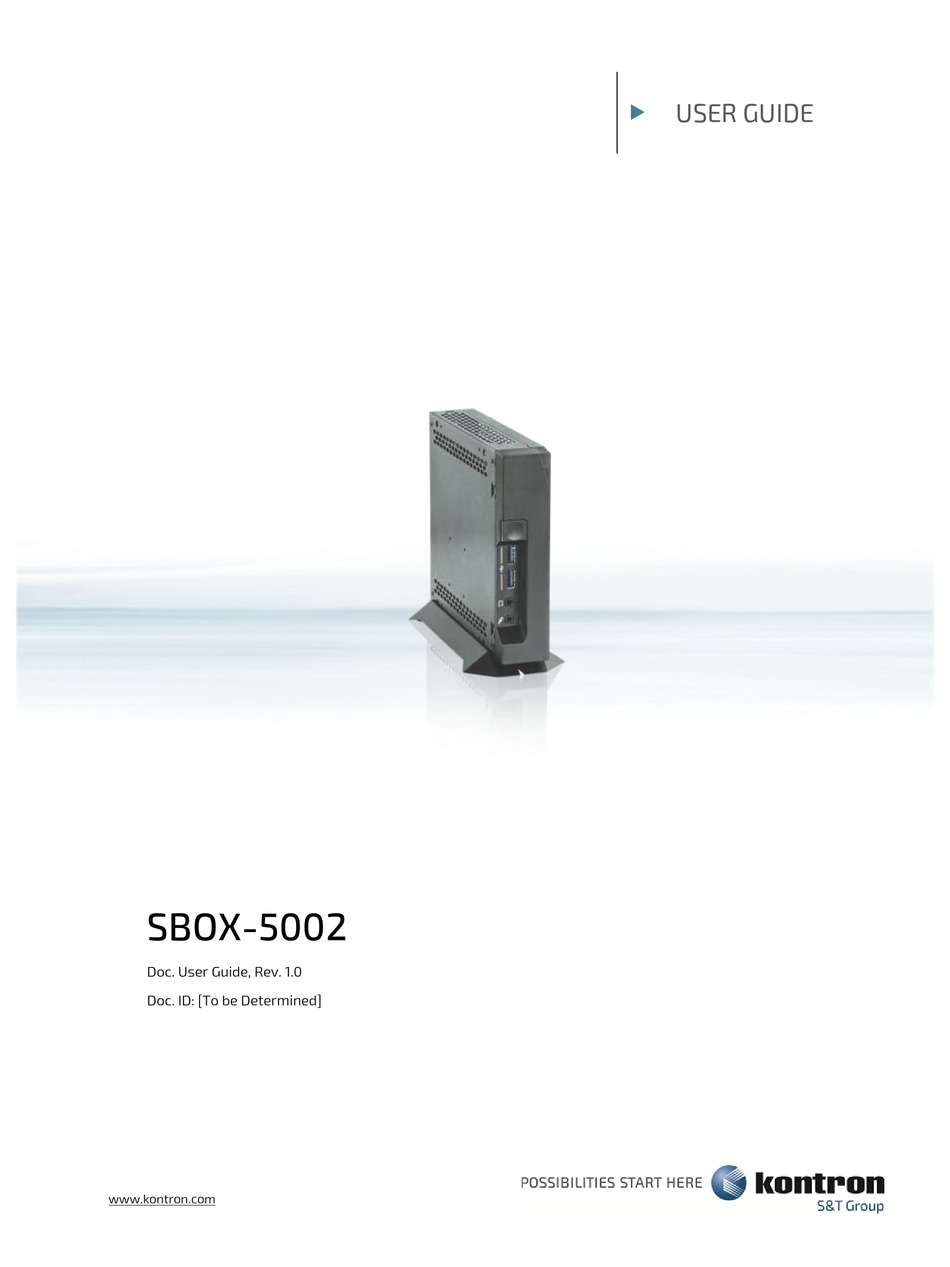

- Page 1 USER GUIDE SBOX-5002 Doc. User Guide, Rev. 1.0 Doc. ID: [To be Determined] www.kontron.com // 1...
- Page 2 SBOX-5002 - User Guide, Rev. 1.0 This page has been intentionally left blank www.kontron.com // 2...
- Page 3 SBOX-5002 - User Guide, Rev. 1.0 SBOX-5002 - USER GUIDE Disclaimer Kontron would like to point out that the information contained in this user guide may be subject to alteration, particularly as a result of the constant upgrading of Kontron products. This document does not entail any guarantee on the part of Kontron with respect to technical processes described in the user guide or any product characteristics set out in the user guide.
- Page 4 SBOX-5002 - User Guide, Rev. 1.0 High Risk Applications Hazard Notice THIS DEVICE AND ASSOCIATED SOFTWARE ARE NOT DESIGNED, MANUFACTURED OR INTENDED FOR USE OR RESALE FOR THE OPERATION OF NUCLEAR FACILITIES, THE NAVIGATION, CONTROL OR COMMUNICATION SYSTEMS FOR AIRCRAFT OR OTHER TRANSPORTATION, AIR TRAFFIC CONTROL, LIFE SUPPORT OR LIFE SUSTAINING APPLICATIONS, WEAPONS SYSTEMS, OR ANY OTHER APPLICATION IN A HAZARDOUS ENVIRONMENT, OR REQUIRING FAIL-SAFE PERFORMANCE, OR IN WHICH THE FAILURE OF PRODUCTS COULD LEAD DIRECTLY TO DEATH, PERSONAL INJURY, OR SEVERE PHYSICAL OR...
- Page 5 SBOX-5002 - User Guide, Rev. 1.0 Revision History Revision Brief Description of Changes Date of Issue Initial Issue 2020-Aug-31 Terms and Conditions Kontron warrants products in accordance with defined regional warranty periods. For more information about warranty compliance and conformity, and the warranty period in your region, visit http://www.kontron.com/terms- and-conditions.
-
Page 6: Symbols
SBOX-5002 - User Guide, Rev. 1.0 Symbols The following symbols may be used in this user guide DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury. -
Page 7: For Your Safety
SBOX-5002 – User Guide, Rev. 1.0 For Your Safety Your new Kontron product was developed and tested carefully to provide all features necessary to ensure its compliance with electrical safety requirements. It was also designed for a long fault-free life. However, the life expectancy of your product can be drastically reduced by improper treatment during unpacking and installation. -
Page 8: Lithium Battery Precautions
SBOX-5002 - User Guide, Rev. 1.0 Lithium Battery Precautions If your product is equipped with a lithium battery, take the following precautions when replacing the battery. Danger of explosion if the battery is replaced incorrectly. Replace only with same or equivalent battery type recommended by the manufacturer. ... -
Page 9: Table Of Contents
SBOX-5002 - User Guide, Rev. 1.0 Table of Contents Symbols ..........................................6 For Your Safety ........................................7 High Voltage Safety Instructions .................................. 7 Special Handling and Unpacking Instruction ............................7 Lithium Battery Precautions ..................................8 General Instructions on Usage ..................................8 Quality and Environmental Management .............................. - Page 10 SBOX-5002 - User Guide, Rev. 1.0 4.5.4. USB 3.1 Wafer ......................................27 Accessing Internal Components ..............................28 5.1. Opening and Closing the SBOX-5002 ..............................29 5.1.1. Installing SO-DIMM memory module ............................. 30 5.1.2. Installing an M.2 SSD .................................... 31 5.1.3. Installing an M.2 WLAN / Bluetooth module ..........................31 Thermal Considerations .................................
-
Page 11: List Of Tables
SBOX-5002 - User Guide, Rev. 1.0 List of Tables Table 1: Power LED Status ..................................... 21 Table 2: Technical Specifications ................................46 Table 3: Mechanical Specifications ................................46 Table 4: Environmental Conditions ................................48 Table 5: Standards and Certifications ..............................48 Table 6: DC Power Input (see Figure 2, pos.1) ............................ - Page 12 SBOX-5002 - User Guide, Rev. 1.0 Figure 37: BIOS Advanced Menu - System Management ........................68 Figure 38: BIOS Advanced Menu - LVDS Configuration ........................69 Figure 39: BIOS Advanced Menu - Embedded Display Port Configuration ................... 70 Figure 40: BIOS Advanced Menu - I/O Configuration ........................... 71 Figure 41: BIOS Advanced Menu - I/O Configuration - Serial Port 1 Configuration..............
-
Page 13: 1/ General Safety Instructions For It Equipment
SBOX-5002 - User Guide, Rev. 1.0 1/ General Safety Instructions for IT Equipment Please read this chapter carefully and take careful note of the instructions, which have been compiled for your safety and to ensure to apply in accordance with intended regulations. If the following general safety instructions are not observed, it could lead to injuries to the operator and/or damage of the product;... - Page 14 SBOX-5002 - User Guide, Rev. 1.0 Additional safety instructions for DC power supply circuits To guarantee safe operation of devices with DC power supply voltages larger than 60 volts DC or a power consumption larger than 240 VA, please observe that: ...
-
Page 15: Electrostatic Discharge (Esd)
SBOX-5002 - User Guide, Rev. 1.0 1.1. Electrostatic Discharge (ESD) A sudden discharge of electrostatic electricity can destroy static-sensitive devices or micro-circuitry. Therefore proper packaging and grounding techniques are necessary precautions to prevent damage. Always take the following precautions: Transport boards in ESD-safe containers such as boxes or bags. Keep electrostatic sensitive parts in their containers until they arrive at the ESD-safe workplace. - Page 16 SBOX-5002 - User Guide, Rev. 1.0 A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas Do not dispose of lithium batteries in general trash collection. Dispose of the battery according to the local regulations dealing with the disposal of these special materials, (e.g.
-
Page 17: 2/ Electromagnetic Compatibility
SBOX-5002 - User Guide, Rev. 1.0 2/ Electromagnetic Compatibility For detailed information refer to section 10.3 “CE Directives and Standards”. 2.1. Electromagnetic Compatibility (EU) This product has been designed for low level of radiated emission for residential, commercial and light industrial environments and high immunity level for industrial environmental. -
Page 18: 3/ Shipment And Unpacking
SBOX-5002 - User Guide, Rev. 1.0 3/ Shipment and Unpacking Please check that your package is complete, and contains the items below (according to the ordered unit configuration). If you discover damaged or missing items, please contact your dealer. 3.1. Unpacking Proceed as follows to unpack the unit: Remove packaging. -
Page 19: 4/ System Overview
SBOX-5002 - User Guide, Rev. 1.0 4/ System Overview The SBOX-5002 is a fanless system enclosed within a compact metal chassis with ventilation slots. It can be optionally factory-equipped with an M.2 WLAN + Bluetooth combo module as well as two integrated antennas. -
Page 20: System Expansion Capabilities
SBOX-5002 - User Guide, Rev. 1.0 4.1. System Expansion Capabilities 4.1.1. System Expansion via M.2 Card Interface The baseboard comes with two onboard M.2 interface connectors with Key B Type 2242 / 2260 / 2280 and Key E Type 2230 support respectively. The Key B connector is intended to be used to install an M.2 SSD card drive. while the Key E connector is intended to be used to install an M.2 WLAN / Bluetooth module. -
Page 21: Front I/O Panel
SBOX-5002 - User Guide, Rev. 1.0 4.2. Front I/O Panel Figure 1: Front I/O Panel Power Button w/ LED (See Chapter 4.2.1) Line-out (see Chapter 4.2.2) Mic-in (see Chapter 4.2.3) USB 3.1 (see Chapter 4.2.4) 4.2.1. Power Button with LED Press this button to turn the system on or off. -
Page 22: Mic-In
SBOX-5002 - User Guide, Rev. 1.0 4.2.3. Mic-in The microphone jack is designed to connect the microphone used for video conferencing, voice narrations, or simple audio recordings. 4.2.4. USB 3.1 The front I/O panel of the SBOX-5002 provides two USB 3.1 / 2.0 interfaces. These connectors allow connection of USB-compatible devices to the system. -
Page 23: Rear I/O Panel
SBOX-5002 - User Guide, Rev. 1.0 4.3. Rear I/O Panel Figure 2: Rear I/O Panel DC-in (See Chapter 4.3.1) DP (see Chapter 4.3.2) GbE (see Chapter 4.3.3) USB 2.0 (see Chapter 4.3.4) Aperture reserved for DB9 COM port (see Chapter 4.3.5) Aperture reserved for USB 3.1 Type C port (see Chapter 4.3.6) 4.3.1. -
Page 24: Usb 2.0
SBOX-5002 - User Guide, Rev. 1.0 Figure 3: Ethernet LED Status LED satatus: LED satatus: Off - Link is down Orange - 1000 Mbit/s link established Flasing Green - Link is up and active Green - 100 Mbit/s link established Steady Green - Link is up, no activity Off - 10 Mbit/s link established 4.3.4. -
Page 25: Left-Side I/O Panel
SBOX-5002 - User Guide, Rev. 1.0 4.4. Left-side I/O Panel Figure 4: Rear I/O Panel Kensington Security Slot (See Chapter 4.4.1) 4.4.1. Kensington Security Slot The slot is used for attaching a lock-and-cable apparatus. Locks are generally secured in place with a key or combination lock attached to a rubberized metal cable. -
Page 26: Internal View
SBOX-5002 - User Guide, Rev. 1.0 4.5. Internal View Figure 5: Internal view - Baseboard DDR4 SO-DIMM Memory Socket (see Chapter 4.5.1) M.2 Key B Socket (see Chapter 4.5.2) M.2 Key E Socket (see Chapter 4.5.2) M.2 Fixing Bolt for Key B Type 2242 M.2 Fixing Bolt for Key B Type 2260 M.2 Fixing Bolt for Key B Type 2280 &... -
Page 27: Socket
SBOX-5002 - User Guide, Rev. 1.0 4.5.2. M.2 Socket The SBOX-5002 reserves one M.2 Key B socket and one M.2 Key E socket as well as corresponding fixing bolts, allowing the expansion with a Type 2242 / 2260 / 2280 SSD and a Type 2230 WLAN / Bluetooth module respectively. 4.5.3. -
Page 28: 5/ Accessing Internal Components
SBOX-5002 - User Guide, Rev. 1.0 5/ Accessing Internal Components This section contains important information that you must read before accessing the internal components. You must follow these procedures properly when installing, removing or handling any board. It is recommended to expand your system with an additional M.2 card(s) before it is installed into an equipment, machine or cabinet. -
Page 29: Opening And Closing The Sbox-5002
SBOX-5002 - User Guide, Rev. 1.0 5.1. Opening and Closing the SBOX-5002 Before opening the SBOX-5002, the system must be switched off and disconnected from the main power supply. Also, disconnect all peripheral devices from the SBOX- 5002. Before you begin, ensure that you have a clean, flat and ESD-safe surface to work For opening and closing the SBOX-5002, please perform the following steps: Close all applications. -
Page 30: Installing So-Dimm Memory Module
SBOX-5002 - User Guide, Rev. 1.0 Slide the top access cover backward. Some pressure may be required. Figure 8: Sliding backward the top access cover of the SBOX-5002 Lift the access covers up. Now you have access to the internal DDR4 SO-DIMM and M.2 connectors / slots / sockets respectively in order to remove or install hardware components. -
Page 31: Installing An M.2 Ssd
SBOX-5002 - User Guide, Rev. 1.0 5.1.2. Installing an M.2 SSD To have access the M.2 SSD socket please proceed according to the steps described: Open the device as described in the subsection 5.1 "Opening and Closing the SBOX-5002" (step 1-7). Locate the M.2 Key B socket (Figure 5, pos. -
Page 32: 6/ Thermal Considerations
SBOX-5002 - User Guide, Rev. 1.0 6/ Thermal Considerations 6.1. Available Processors Please refer to the chapter 10/ "Technical Specifications". The list of processors may be extended over the product lifetime. 6.2. Convection Cooling The applied cooling method provides adequate cooling of the device during operation and performs a one-way thermal transfer to the ambient air. -
Page 33: 7/ Installation Instructions
The SBOX-5002 has to be installed and operated only by trained and qualified personnel. Only personnel with appropriate qualifications, trainings and authorization are permitted to install and work with the Kontron SBOX-5002. This device shall only be installed in or connected to systems that fulfill all necessary technical and specific environmental requirements. -
Page 34: System Mounting
SBOX-5002 - User Guide, Rev. 1.0 7.1. System Mounting In order to adapt the SBOX-5002 for mounting Kontron offers different mounting solution such as: SBOX-5002 configuration with a desk stand kit for vertical or horizontal installation on the desktop as desktop unit ... -
Page 35: Figure 10: Aligning The Holes Of Desk Stand Brackets And Chassis (Horizontal)
SBOX-5002 - User Guide, Rev. 1.0 Figure 10: Aligning the holes of desk stand brackets and chassis (horizontal) Figure 11: Aligning the holes of desk stand brackets and chassis (vertical) Place the desk stand brackets on the chassis. Insert the pin side of the plastic clips (Figure 9, pos. 3) into the clip holes (Figure 9, pos. 4) to fix the stand brackets to the chassis. -
Page 36: Figure 12: Fixing / Securing The Stand Brackets To The Chassis (Horizontal)
SBOX-5002 - User Guide, Rev. 1.0 Figure 12: Fixing / securing the stand brackets to the chassis (horizontal) Figure 13: Fixing / securing the stand brackets to the chassis (horizontal) www.kontron.com // 36... -
Page 37: Wall Mounting
SBOX-5002 - User Guide, Rev. 1.0 7.1.2. Wall Mounting Depending on the ordered SBOX-5002 configuration, your system may be supplied with a wall mount kit (Figure 14). The kit consists of two wall mount brackets (Figure 14, pos. 1) and four screws (Figure 14, pos. 2). Figure 14: Wall mount kit Wall Mount Bracket Screw... -
Page 38: Figure 16: Aligning The Holes Of Wall Mount Brackets And Chassis
SBOX-5002 - User Guide, Rev. 1.0 Prepare the mounting surface with four screws and if necessary anchors corresponding to the mounting surface type if no screw holes are available. Align the screw holes on the wall mount brackets (Figure 14, pos. 1) with the holes on the chassis. Figure 16: Aligning the holes of wall mount brackets and chassis Place the wall mount stand brackets on the chassis. -
Page 39: Vesa Mounting
SBOX-5002 - User Guide, Rev. 1.0 7.1.3. VESA Mounting Depending on the ordered SBOX-5002 configuration, your system may be supplied with a VESA mounting kit (Figure 17). The kit consists of one VESA adapter (Figure 17, pos. 1), four cross-head screws (Figure 17, pos. 2) and four thumb head screws with hanger knobs (Figure 17, pos. -
Page 40: Figure 19: Securing The Thumb Screws
SBOX-5002 - User Guide, Rev. 1.0 Prepare the mounting surface with supplied thumb screws (Figure 17, pos. 3) and if necessary anchors corresponding to the mounting surface type if no VESA-compliant screw holes are available. Secure the thumb screws (Figure 17, pos. 3) to the mounting surface. The following figures take VESA mounting to a monitor as an example. -
Page 41: Figure 21: Hanging The Sbox-5002 On The Mounting Surface
SBOX-5002 - User Guide, Rev. 1.0 Figure 21: Hanging the SBOX-5002 on the mounting surface Now the SBOX-5002 is firmly hanged on the mounting surface. For a sufficient air circulation around the device, we recommend keep a proper clearance and not mount / operate any other devices within the clearance around the SBOX-5002. -
Page 42: Dc Power Connection
SBOX-5002 - User Guide, Rev. 1.0 7.2. DC Power Connection The SBOX-5002 is connected by a DC power input jack (Figure 2, pos. 1) to a DC power source. The SBOX-5002 is delivered with a power adapter to convert AC voltage into DC 19 V and a power cord to carry AC power to the power adapter. -
Page 43: 8/ Starting Up
SBOX-5002 - User Guide, Rev. 1.0 8/ Starting Up The SBOX-5002 must be only operated with the nominal voltage of 19 V DC of type SELV. For details refer to the chapter 10/ “Technical Specifications”. 8.1. Connecting to DC Power Supply The DC power input jack (Figure 2, pos. -
Page 44: Operating System And Hardware Component Drivers
SBOX-5002 - User Guide, Rev. 1.0 8.2. Operating System and Hardware Component Drivers Your system can be supplied optionally with a pre-installed operating system. If you have ordered your SBOX-5002 with a pre-installed operating system, all drivers are installed in accordance with the system configuration ordered (optional hardware components). -
Page 45: 9/ Maintenance And Cleaning
SBOX-5002 - User Guide, Rev. 1.0 9/ Maintenance and Cleaning Equipment from Kontron requires only minimum servicing and maintenance for proper operation. For light soiling, clean the SBOX-5002 with a dry cloth. Carefully remove dust from the surface of the chassis using a clean, soft brush. -
Page 46: Technical Specifications
SBOX-5002 - User Guide, Rev. 1.0 Technical Specifications Table 2: Technical Specifications System Processor Intel® Celeron® J4000 Series Processors Memory 1x DDR4 SO-DIMM memory socket Video Display Interface 2x DP (on rear) Network Connection Ethernet 2x GbE LAN (RJ45 on rear, 1x Intel® I210, 1x Realtek RTL8111G) Peripheral Connection ... -
Page 47: Mechanical Dimensions
SBOX-5002 - User Guide, Rev. 1.0 Weight 700 g / 1.54 lb Mounting Wall Mount VESA Mount (100 mm x 100 mm) Desktop Stand Security 1x Kensington Security Slot (on left) 10.1.1. Mechanical Dimensions Figure 22: Mechanical Dimensions (unit: mm) www.kontron.com // 47... -
Page 48: Environmental Conditions
SBOX-5002 - User Guide, Rev. 1.0 10.2. Environmental Conditions Table 4: Environmental Conditions Operating Temperature 0 °C ~ 40 °C / 32 °F ~ 104 °F Storage Temperature -20 °C ~ 80 °C / -4 °F ~ 176 °F Humidity 5 % ~ 85 % 10.3. -
Page 49: 11/ Standard Interfaces - Pin Assignments
SBOX-5002 - User Guide, Rev. 1.0 11/ Standard Interfaces – Pin Assignments Low-active signals are indicated by a minus sign. 11.1.1. DC Power Input Table 6: DC Power Input (see Figure 2, pos.1) Signal Name DC Jack (female) +19Vin Ground 11.1.2. -
Page 50: Usb 2.0 Port
SBOX-5002 - User Guide, Rev. 1.0 11.1.4. USB 2.0 Port Table 9: USB 2.0 Port (see Figure 2, pos. 4) Signal Name 4-pin USB Connector Type A Version 2.0 +USBVCC USB_D- USB_D+ 11.1.5. DP Connector Table 10: DP Connector (see Figure 2, pos. 2) Signal Name DP Connector TX0+... -
Page 51: Line-Out Connector
SBOX-5002 - User Guide, Rev. 1.0 11.1.6. Line-Out Connector Table 11: Line-Out Connector (see Figure 1, pos. 2) Signal Name Line-out Connector & Corresponding Audio Jack Plug Line-Out_L Ring Line-Out_R Sleeve 11.1.7. Mic-In Connector Table 12: Mic-In Connector (see Figure 1, pos. 3) Signal Name Mic-in Connector &... -
Page 52: 12/ Uefi Bios
SBOX-5002 - User Guide, Rev. 1.0 uEFI BIOS 12.1. Starting the uEFI BIOS The SBOX-5002 is provided with a Kontron-customized, pre-installed and configured version of AMI Aptio® V uEFI BIOS. AMI BIOS firmware is based on the Unified Extensible Firmware Interface (uEFI) specification and the Intel® Platform Innovation Framework for EFI. -
Page 53: Setup Menus
SBOX-5002 - User Guide, Rev. 1.0 12.2. Setup Menus The Setup utility features shows six menus in the selection bar at the top of the screen: Main Advanced Security Power Event Logs Boot Save &... -
Page 54: Figure 23: Bios Main Menu Screen
SBOX-5002 - User Guide, Rev. 1.0 Figure 23: BIOS Main Menu Screen BIOS SETUP UTILITY Main Advanced Security Power Event Logs Boot Save & Exit BIOS Information BIOS Vendor American Megatrends Customized by Fujitsu Compliancy UEFI 2.6; PI 1.4 > System Information >... -
Page 55: Figure 24: Bios Main Menu Screen - System Information
SBOX-5002 - User Guide, Rev. 1.0 Figure 24: BIOS Main Menu Screen - System Information BIOS SETUP UTILITY Main Advanced Security Power Event Logs Boot Save & Exit System Information Board & Firmware Details BIOS Revision R1.11.0 Build Date and Time 10/21/2019 08:35:56 Board D3544-Sx4... -
Page 56: Figure 25: Bios Main Menu Screen - Open Source Software License Information
SBOX-5002 - User Guide, Rev. 1.0 Figure 25: BIOS Main Menu Screen - Open Source Software License Information BIOS SETUP UTILITY Main Advanced Security Power Event Logs Boot Save & Exit Open Source Software License Information This system board contains Open Source Software. →... -
Page 57: Advanced Setup Menu
SBOX-5002 - User Guide, Rev. 1.0 12.2.2. Advanced Setup Menu The Advanced setup menu provides sub-screens and functions for advanced configurations. The following sub- screen functions are included in the menu: Onboard Devices Configuration Auto BIOS Update PCI Subsystem Settings ... -
Page 58: Figure 26: Bios Advanced Menu
SBOX-5002 - User Guide, Rev. 1.0 Figure 26: BIOS Advanced Menu BIOS SETUP UTILITY Main Advanced Security Power Event Logs Boot Save & Exit Advanced Erase Disk [Disabled] > Onboard Devices Configuration > Auto BIOS Update > PCI Subsystem Settings >... -
Page 59: Figure 27: Bios Advanced Menu - Onboard Devices Configuration
SBOX-5002 - User Guide, Rev. 1.0 Figure 27: BIOS Advanced Menu - Onboard Devices Configuration BIOS SETUP UTILITY Main Advanced Security Power Event Logs Boot Save & Exit Onboard Devices Configuration LAN1 Controller [Enabled] → ←: Select Screen LAN2 Controller [Enabled] ↑... -
Page 60: Figure 28: Bios Advanced Menu - Auto Bios Update
SBOX-5002 - User Guide, Rev. 1.0 Figure 28: BIOS Advanced Menu - Auto BIOS Update BIOS SETUP UTILITY Main Advanced Security Power Event Logs Boot Save & Exit Auto BIOS Update Terms of use [Decline] → ←: Select Screen Automatic BIOS update [Disabled] ↑... -
Page 61: Figure 29: Bios Advanced Menu - Pci Subsystem Settings
SBOX-5002 - User Guide, Rev. 1.0 Figure 29: BIOS Advanced Menu - PCI Subsystem Settings BIOS SETUP UTILITY Main Advanced Security Power Event Logs Boot Save & Exit PCI Subsystem Settings PERR# Generation [Disabled] → ←: Select Screen SERR# Generation [Disabled] ↑... -
Page 62: Figure 30: Bios Advanced Menu - Cpu Configuration
SBOX-5002 - User Guide, Rev. 1.0 Figure 30: BIOS Advanced Menu - CPU Configuration BIOS SETUP UTILITY Main Advanced Security Power Event Logs Boot Save & Exit CPU Configuration Active Processor Cores [All] → ←: Select Screen Intel Virtualization Technology [Enabled] ↑... -
Page 63: Figure 31: Bios Advanced Menu - Drive Configuration
SBOX-5002 - User Guide, Rev. 1.0 Figure 31: BIOS Advanced Menu - Drive Configuration BIOS SETUP UTILITY Main Advanced Security Power Event Logs Boot Save & Exit Drive Configuration OffBoard Controller Configuration No controller present → ←: Select Screen OnBoard SATA Configuration SATA Port 0 [Not Installed] ↑... -
Page 64: Figure 32: Bios Advanced Menu - Smart Settings
SBOX-5002 - User Guide, Rev. 1.0 Figure 32: BIOS Advanced Menu - SMART Settings BIOS SETUP UTILITY Main Advanced Security Power Event Logs Boot Save & Exit SMART Settings SMART Self Test [Enabled] → ←: Select Screen ↑ ↓: Select Item Enter: Select +/-: Change Opt. -
Page 65: Figure 33: Bios Advanced Menu - Trusted Computing
SBOX-5002 - User Guide, Rev. 1.0 Figure 33: BIOS Advanced Menu - Trusted Computing BIOS SETUP UTILITY Main Advanced Security Power Event Logs Boot Save & Exit Trusted Computing TPM Support [Enabled] → ←: Select Screen Pending TPM operation [None] ↑... -
Page 66: Figure 34: Bios Advanced Menu - Usb Configuration
SBOX-5002 - User Guide, Rev. 1.0 Figure 34: BIOS Advanced Menu - USB Configuration BIOS SETUP UTILITY Main Advanced Security Power Event Logs Boot Save & Exit USB Configuration USB Devices: → ←: Select Screen 1 Keyboard, 1 Mouse ↑ ↓: Select Item Enter: Select >... -
Page 67: Figure 36: Bios Advanced Menu - Usb Configuration - Usb Port Routing
SBOX-5002 - User Guide, Rev. 1.0 Feature Option Description USB Device Control [Enable all devices], [Enable all devices]: Enables all USB devices. [Enable Keyboard and [Enable Keyboard and Mouse only]: All ports are disabled except Mouse only], [Enable for ports connected to keyboard, mouse and CCID. all devices except [Enable all devices except mass storage devices / Hubs]: Ports mass storage devices... -
Page 68: Figure 37: Bios Advanced Menu - System Management
SBOX-5002 - User Guide, Rev. 1.0 Figure 37: BIOS Advanced Menu - System Management BIOS SETUP UTILITY Main Advanced Security Power Event Logs Boot Save & Exit System Management Firmware Version SMCS Version Fan startup check [Disabled] Fan Control [Auto] Watchdog Timeout Temperatures 39 °C / 102 °F... -
Page 69: Figure 38: Bios Advanced Menu - Lvds Configuration
SBOX-5002 - User Guide, Rev. 1.0 Figure 38: BIOS Advanced Menu - LVDS Configuration BIOS SETUP UTILITY Main Advanced Security Power Event Logs Boot Save & Exit LVDS Configuration LVDS Support [Disabled] → ←: Select Screen ↑ ↓: Select Item Enter: Select +/-: Change Opt. -
Page 70: Figure 39: Bios Advanced Menu - Embedded Display Port Configuration
SBOX-5002 - User Guide, Rev. 1.0 Figure 39: BIOS Advanced Menu - Embedded Display Port Configuration BIOS SETUP UTILITY Main Advanced Security Power Event Logs Boot Save & Exit Embedded Display Port Configuration eDP Brightness → ←: Select Screen eDP to DP [Disabled] ↑... -
Page 71: Figure 40: Bios Advanced Menu - I/O Configuration
SBOX-5002 - User Guide, Rev. 1.0 Figure 40: BIOS Advanced Menu - I/O Configuration BIOS SETUP UTILITY Main Advanced Security Power Event Logs Boot Save & Exit I/O Configuration Super IO Chip NCT5581D → ←: Select Screen > Serial Port 1 Configuration ↑... -
Page 72: Figure 42: Bios Advanced Menu - I/O Configuration - Serial Port 2 Configuration
SBOX-5002 - User Guide, Rev. 1.0 Feature Option Description 485/422 Full Duplex], 485. [RS-485 Half Duplex] Termination [Disabled], [Enabled] Configure the line termination for RS-422 or RS-485 mode. Fast Slew Rate [Disabled], [Enabled] Configure fast slew rate for RS-422 or RS-485 mode. Note: enable fast slew rate for data rates above 250kbps. -
Page 73: Figure 43: Bios Advanced Menu - Serial Port Console Redirection
SBOX-5002 - User Guide, Rev. 1.0 Figure 43: BIOS Advanced Menu - Serial Port Console Redirection BIOS SETUP UTILITY Main Advanced Security Power Event Logs Boot Save & Exit Serial Port Console Redirection COM0 → ←: Select Screen Console Redirection [Disabled] ↑... - Page 74 SBOX-5002 - User Guide, Rev. 1.0 Feature Option Description more bytes [ANSI]: Extended ASCII char set Bits per second [9600], [19200], Selects serial port transmission speed. The speed must be [38400], [57600], matched on the other side. Long or noisy lines may require [115200] lower speeds.
-
Page 75: Figure 45: Bios Advanced Menu - Network Stack Configuration
SBOX-5002 - User Guide, Rev. 1.0 Figure 45: BIOS Advanced Menu - Network Stack Configuration BIOS SETUP UTILITY Main Advanced Security Power Event Logs Boot Save & Exit Network Stack Configuration Network Stack [Disabled] → ←: Select Screen Ipv4 PXE Support* [Enabled] ↑... -
Page 76: Figure 46: Bios Advanced Menu - Graphics Configuration
SBOX-5002 - User Guide, Rev. 1.0 Figure 46: BIOS Advanced Menu - Graphics Configuration BIOS SETUP UTILITY Main Advanced Security Power Event Logs Boot Save & Exit Graphics Configuration Primary Display [Internal Graphics] → ←: Select Screen Internal Graphics [Enabled] ↑... -
Page 77: Figure 47: Bios Advanced Menu - Intel® I210 Gigabit Network Connection
SBOX-5002 - User Guide, Rev. 1.0 Figure 47: BIOS Advanced Menu - Intel® I210 Gigabit Network Connection BIOS SETUP UTILITY Main Advanced Security Power Event Logs Boot Save & Exit > NIC Configuration Blink LEDs UEFI Intel® PRO/1000 7.5.11 PCI-E Adapter PBA 000300-000 Device Name... -
Page 78: Figure 48: Bios Advanced Menu - Intel® I210 Gigabit Network Connection - Nic Configuration
SBOX-5002 - User Guide, Rev. 1.0 Figure 48: BIOS Advanced Menu - Intel® I210 Gigabit Network Connection - NIC Configuration BIOS SETUP UTILITY Main Advanced Security Power Event Logs Boot Save & Exit Link Speed [Auto Negotiated] Wake On LAN [Enabled] →... -
Page 79: Figure 49: Bios Advanced Menu - Realtek Pcie Gbe Family Controller
SBOX-5002 - User Guide, Rev. 1.0 Figure 49: BIOS Advanced Menu - Realtek PCIe GBE Family Controller BIOS SETUP UTILITY Main Advanced Security Power Event Logs Boot Save & Exit Driver Information Driver Name: Realtek UEFI UNDI Driver Driver Version: 2.040 Driver Released Date: 2017/03/09... -
Page 80: Security Setup Menu
SBOX-5002 - User Guide, Rev. 1.0 12.2.3. Security Setup Menu The Security setup menu provides information about the passwords and functions for specifying the security settings, as well as a sub-screen for secure boot. The passwords are case-sensitive. The SBOX-5002 provides no factory-set passwords. -
Page 81: Figure 51: Bios Security Setup Menu - Secure Boot Configuration
SBOX-5002 - User Guide, Rev. 1.0 Feature Option Description Administrator Password input Set administrator password Password User Password Password input Set user password Password Severity [Standard], [Strong], [Standard]: In case of a lost password, unlocking possible via [Stringent] physical presence. [Strong]: In case of a lost password, unlocking only possible via service. - Page 82 SBOX-5002 - User Guide, Rev. 1.0 Feature Option Description Secure Boot Control [Disabled], [Enabled] Secure Boot can be enabled if 1. System running in User mode with enrolled Platform Key (PK) 2. CSM function is disabled Secure Boot [Standard], [Custom] Secure Boot mode selector.
-
Page 83: Figure 52: Bios Security Setup Menu - Secure Boot Configuration - Key Management
SBOX-5002 - User Guide, Rev. 1.0 Figure 52: BIOS Security Setup Menu - Secure Boot Configuration - Key Management* BIOS SETUP UTILITY Main Advanced Security Power Event Logs Boot Save & Exit Factory Default Key Provision [Enabled] > Enroll all Factory Default keys >... - Page 84 SBOX-5002 - User Guide, Rev. 1.0 Feature Option Description Authorized [Set New Key], TimeStamps [Append Key] OsRecovery [Set New Key], Signatures [Append Key] www.kontron.com // 84...
-
Page 85: Remember The Password
SBOX-5002 - User Guide, Rev. 1.0 12.2.3.1. Remember the password It is highly recommended to keep a record of all passwords in a safe place. Forgotten passwords results in being locked out of the system. If the system cannot be booted because the User Password or the Supervisor Password are not know, contact Kontron Support for further assistance. -
Page 86: Power Setup Menu
SBOX-5002 - User Guide, Rev. 1.0 12.2.4. Power Setup Menu The Power setup menu provides functions for power configurations. Figure 53: BIOS Power Setup Menu BIOS SETUP UTILITY Main Advanced Security Power Event Logs Boot Save & Exit Power Settings Power Failure Recovery [Always On] Never Off... - Page 87 SBOX-5002 - User Guide, Rev. 1.0 Feature Option Description [Force LAN Boot] [Force LAN Boot]: Force LAN boot after Wake On LAN (PXE boot options must be enabled to actually force a network boot). USB Keyboard [Disabled], [Enabled], Allows the system to be switch on via keyboard using "any key" [Special Key Only] or special wakeup keys only.
-
Page 88: Event Logs Setup Menu
SBOX-5002 - User Guide, Rev. 1.0 12.2.5. Event Logs Setup Menu The Event Logs setup menu lists the event log settings and options. The following sub-screen functions are included in the menu: Change Smbios Event Log Settings View Smbios Event Log Figure 54: BIOS Event Logs Setup Menu BIOS SETUP UTILITY Main... -
Page 89: Figure 56: Bios Event Logs Setup Menu - View Smbios Event Log
SBOX-5002 - User Guide, Rev. 1.0 Feature Option Description Erase Event Log [No], [Yes, Next Choose options for erasing Smbios Event Log. Erasing is done reset], [Yes, Every prior to any logging activation during reset. rset] When Log is Full [Do Nothing], [Erase Choose options for reactions to full Smbios Event Log. -
Page 90: Boot Setup Menu
SBOX-5002 - User Guide, Rev. 1.0 12.2.6. Boot Setup Menu The boot setup menu lists the for boot device priority order, that is generated dynamically. Figure 57: BIOS Boot Setup Menu BIOS SETUP UTILITY Main Advanced Security Power Event Logs Boot Save &... - Page 91 SBOX-5002 - User Guide, Rev. 1.0 Feature Option Description Boot Menu [Disabled], [Enabled] Specifies whether the Boot menu can be invoked during the POST process by pressing the [F12] key. [Enabled]: The Boot menu can be invoked. [Disabled]: The Boot menu cannot be invoked. Boot Removable [Disabled], [Enabled] This option enables / disables support for booting to removable...
-
Page 92: Save & Exit Setup Menu
SBOX-5002 - User Guide, Rev. 1.0 12.2.7. Save & Exit Setup Menu The exit setup menu provides functions for handling changes made to the UEFI BIOS settings and the exiting of the setup program. Figure 58: BIOS Boot Setup Menu BIOS SETUP UTILITY Main Advanced... -
Page 93: Appendix A: List Of Acronyms
SBOX-5002 - User Guide, Rev. 1.0 Appendix A: List of Acronyms The following table does not contain the complete acronyms used in signal names, signal type definitions or similar. A description of the signals is included in the I/O Connector and Internal connector chapters within this user guide. Table 15: List of Acronyms Two-Dimensional Random Access Memory... -
Page 94: About Kontron
SBOX-5002 – User Guide, Rev. 1.0 About Kontron Kontron is a global leader in embedded computing technology (ECT). As a part of technology group S&T, Kontron offers a combined portfolio of secure hardware, middleware and services for Internet of Things (IoT) and Industry 4.0 applications. With its standard products and tailor-made solutions based on highly reliable state-of-the-art embedded technologies, Kontron provides secure and innovative applications for a variety of industries.
