Page 1 Instrument manual Transmitter Series PR 5220 Translation of the original instrument manual 9499 050 52201 Edition 10.6.0 03/07/2022 Release 4.50 Minebea Intec GmbH, Meiendorfer Str. 205 A, 22145 Hamburg, Germany Phone: +49.40.67960.303 Fax: +49.40.67960.383...
Page 2 Any information in this document is subject to change without notice and does not represent a commitment on the part of Minebea Intec unless legally prescribed. This product should only be operated/installed by trained and qualified personnel. In correspondence concerning this product, the type, name, and release number/serial number as well as all license numbers relating to the product have to be cited.
Page 3: Table Of Contents
PR 5220/07 EtherNet IP ..........................13 General notes ................................13 Overview of the device .............................13 3.3.1 Communication protocols ..........................14 Housing ..................................14 3.4.1 Sticker ................................14 3.4.2 Dimensions ..............................15 Display and operating elements ..........................15 3.5.1 General information ............................15 3.5.2 Overview................................16 Minebea Intec EN-1...
Page 4 Power failure/Data backup/Restart ........................59 7.1.1 Power failure..............................59 7.1.2 Data backup..............................59 7.1.3 Overwrite protection .............................59 7.1.4 Restart ................................61 Switching on the device............................61 Switching off the device ............................62 Warm-up time ................................62 Finding and connecting the device automatically in the network..............62 EN-2 Minebea Intec...
Page 5 Setting the xBPI dead load.........................108 7.13.7 xBPI calibration with user specified weight.....................109 7.13.8 xBPI calibration with automatic weight detection ..................110 7.13.9 xBPI calibration with default weight......................111 7.13.10 xBPI calibration with built-in weight ......................112 7.13.11 xBPI linearization ............................113 Minebea Intec EN-3...
Page 6 8.3.1 Configuring production mode ........................161 8.3.2 Configuring digital inputs and outputs....................164 8.3.3 Configuring material ........................... 166 Filling ..................................168 Extended functions .......................... 170 Hardware test................................170 9.1.1 Serial interfaces............................170 9.1.2 Inputs and outputs ............................171 EN-4 Minebea Intec...
Page 7 Setup of the fieldbus interface ......................... 205 SPM ..............................211 13.1 General information ..............................211 13.2 Elementary data types............................211 13.3 Addressing................................212 13.4 System data................................212 Repairs and maintenance ......................... 218 14.1 Repairs..................................218 14.2 Maintenance................................218 Minebea Intec EN-5...
Page 8 17.5.4 Sensitivity..............................229 17.5.5 Connecting cables............................229 17.6 Mechanics ................................230 17.6.1 Design................................230 17.6.2 Weights................................. 230 17.7 Documentation on the CD included ........................230 Appendix ............................231 18.1 Replacement parts ..............................231 18.2 Test connector................................. 231 18.3 Certificates................................231 EN-6 Minebea Intec...
Page 9: Introduction
WARNING indicates that death or severe, irreversible injury may occur if appropriate safety measures are not observed. Take the corresponding safety precautions. CAUTION Warning of personal injury. CAUTION indicates that minor, reversible injury may occur if appropriate safety measures are not observed. Take the corresponding safety precautions. Minebea Intec EN-7...
Page 10: Hotline
NOTICE indicates that damage to property and/or the environment may occur if appropriate safety measures are not observed. Take the corresponding safety precautions. Note: User tips, useful information, and notes. Hotline Phone: +49.40.67960.444 Fax: +49.40.67960.474 eMail: help@minebea-intec.com EN-8 Minebea Intec...
Page 11: Safety Instructions
If there are grounds for rejection of the goods, a claim must be filed with the carrier immediately. The Minebea Intec sales or service organization must also be notified. Before operational startup NOTICE Perform visual inspection.
Page 12: Supply Voltage Connection
The device is intended for use in an industrial environment. Operation of this device in a residential environment is likely to cause radio frequency interference, see Chapter 17.4.3. In this case, the operator may be required to take appropriate measures. EN-10 Minebea Intec...
Page 13: Failure And Excessive Stress
General information Repairs are subject to inspection and must be carried out at Minebea Intec. In case of defect or malfunction, please contact your local Minebea Intec dealer or service center for repair. When returning the device for repair, please include a precise and complete description of the problem.
Page 14: Device Description

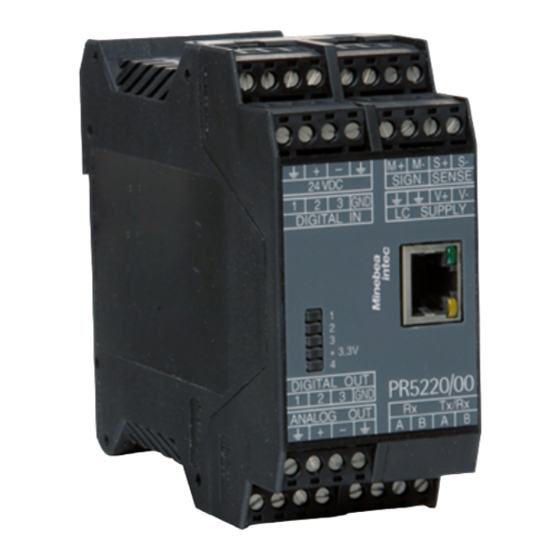

3.1.1 General information The transmitter of the PR 5220 series exists in 5 versions. A later extension of the version is not possible. Each type is clearly fixed by the corresponding number. The front overlays are adapted to the corresponding type.
Page 15: Pr 5220/04 Devicenet
Calibration using weights according to the mV/V method or using load cell data (smart calibration) Analogue output 0/4 to 20 mA, configurable for gross/net weight Analog value via field bus 3 digital inputs, electrically isolated 3 digital outputs, electrically isolated Minebea Intec EN-13...
Page 16: Communication Protocols
Field bus (slave): PR 5220/01 ProfiBus DP PR 5220/04 DeviceNet PR 5220/06 ProfiNet I/O PR 5220/07 EtherNet-IP For the internal LAN: ModBus-TCP Ethernet TCP/IP Housing 3.4.1 Sticker The connection diagram is located on the side of the housing. EN-14 Minebea Intec...
Page 17: Dimensions
Dimensions all dimensions in mm Display and operating elements 3.5.1 General information The transmitter of the PR 5220 series can only be operated by Notebook/PC. VNC viewer (see Chapters 3.5.4.4 and 7.9) or WEB browser (see Chapter 7.10) Minebea Intec...
Page 18: Overview
Above the weight display on the user interface, the currently displayed weight is shown in a bar graph that indicates the percentage of the maximum capacity (Max). 0 is on the left, and 100% on the right. EN-16 Minebea Intec...
Page 19 3 Device description Transmitter Series PR 5220 Description Weight type/plus or minus sign/standstill Bar graph Status display Weight value Symbols/mass unit Info line Minebea Intec EN-17...
Page 20 Value not permissible in legal metrology (e.g., 10x resolution, deactivated load cell) Range 1 Range 2 Range 3 WP A Weighing point A Maximum capacity (weighing range) Minimum weight t, kg, g, mg, lb, oz These mass units are available. EN-18 Minebea Intec...
Page 21 The LED remains lit, even if there is no communication or the physical connection is interrupted. Weight status Standstill ± Null < Null or > FSD** +3.3V ** FSD (full scale deflection) Note: For weight error status, see Chapter 16.2. Minebea Intec EN-19...
Page 22: Operating Elements
Backspace Pressing the delete key deletes indivi- dual characters (within an entry). Cursor to the left Cancel entry/selection (after a confir- mation prompt) without saving the ch- Selection ange. Exit parameters/menu window. Cursor to the right Selection EN-20 Minebea Intec...
Page 23 Press the cursor key within an entry to select the next charac- ter. Within an input, pressing the delete key deletes the character to the left of the cursor. Minebea Intec EN-21...
Page 24 The required values | texts are entered via the alphanumeric keys. key is used to check the ☑ box. If the list of parameters is long, a vertical bar graph on the left (black and gray) shows which part of the list is displayed. EN-22 Minebea Intec...
Page 25: Overview Of Connections
An arrow in front of a menu item indicates that there are menu sublevels. Possible settings and an available selection list is indicated by double arrows. The parameter is selected using the key. 3.5.4.4 Operation using VNC User interface, see Chapters 3.5.2, 3.5.3.1 and 3.5.4.1. Overview of connections Minebea Intec EN-23...
Page 26: Device Installation
Connect to supply voltage. Check the installation. Mechanical preparation Have all required parts, technical documents, and tools at hand for control cabinet installation. Other procedure: Install the device. Secure the cable at the place of installation, e.g. using cable ties. EN-24 Minebea Intec...
Page 27: Emc-Compliant Installation
Connect the mounting rail to protective ground. Keep measurement and data cables away from power cables. Description Screen clamp (e.g. Phoenix SK8-D) Screen clamping rail (e.g. Phoenix NLS-CU 3/10) Rail connector (e.g. Phoenix AB-SK 65D) Mounting rail (35 mm) Minebea Intec EN-25...
Page 28: Hardware Construction
The current IT security guidelines must be followed so as to minimize the risks. 4.4.2.1 Ethernet port The Ethernet port contains a powerful TCP/IP interface connection with transfer rates of 10 or 100 Mbit/s. Function tests can be performed via the LEDs (green and yellow) in the RJ-45 socket. EN-26 Minebea Intec...
Page 29 Notebook/PC connection Remote operation of the device from a notebook/PC is possible (install VNC software version 3.3.7* on the notebook/PC). For the network address, see Chapter7.7. * Minebea Intec guarantees the functionality only if this version is used. Minebea Intec EN-27...
Page 30: Interface
<8/1> or 7/1 Parity even, <uneven>, none Signals TxA, RxA (R-), TxB, RxB (R+) Potential isolation Cable type Twisted pair, screened (e.g., LifYCY 2×2×0.20) Cable gauge 1.5 mm Cable length max. 1000 m <…> = preset values (factory settings) EN-28 Minebea Intec...
Page 31 ON: 2-wire Rx bus termination OFF: not connected ON: (RxA 120 Ω RxB) Tx/Rx bus termination OFF: not connected ON: (TxA 120 Ω TxB) CAL switch see also Chapter 7.1.3.1. OFF: no write protection ON: Write protection active Minebea Intec EN-29...
Page 32 One IS platform scale with xBPI or SBI protocol can be connected via the RS-485 interface (2-wire). PR 5220/00 switch settings PR 5220/00 configuration ON: S1, S2, S3 - [Serial ports parameters] - [xBPI port] - [Built-in RS-485] S4 not relevant Note: For further information, see the platform scale operating instructions. EN-30 Minebea Intec...
Page 33 Color code Color Terminal designation Description + Supply voltage blue - Supply voltage green B Signal gray A Signal The following example shows the connection to the PR 6024/68S junction box using 8 digital load cells, type Pendeo®. Minebea Intec EN-31...
Page 34 Transmitter Series PR 5220 4 Device installation Connection example EN-32 Minebea Intec...
Page 35: Analog Outputs
Output: Function Gross/net weight or via Profibus Output: Range 0/4… to 20 mA, configurable Output: Resolution e.g. 0…20 mA in max. 40,000 counts Output: @ 0 to …20 mA: <0.05% Linearity error @ 4 to …20 mA: <0.025% Minebea Intec EN-33...
Page 36 Screened twisted pair (e.g., LifYCY 2x2x0.20) Cable length <150 m screened Analog signal "current output" Analog signal "voltage output" Current is supplied directly via the terminal contacts. The voltage level corresponds to the voltage drop at the external 500 Ω resistor. EN-34 Minebea Intec...
Page 37: Digital Inputs
Passive, external power supply required Input current ≤11 mA @ U = 24 V ≤5 mA @ U = 12 V Signals GND (-) common for all inputs Potential isolation Yes, via optocoupler Cable length Max. 50 m screened Minebea Intec EN-35...
Page 38: Digital Outputs
If the voltage at terminals (in this example: 1-GND) is U = 10 V, input 1 is active (true). 4.4.6 Digital outputs 3 passive opto-decoupled outputs are permanently built into the device. The interface can be configured by software. All outputs have a common GND (-). EN-36 Minebea Intec...
Page 39 ① Supply unit U = 24 V 0.5 A * Inductive load for free-wheel diode The relay switches when the output 1 is active (true). To protect the output circuit, relays must be equipped with free-wheel diodes. Minebea Intec EN-37...
Page 40: Connection Of Analog Load Cells And Weighing Platforms
4.4.7.2 4.4.7.3 several load cells in the junction box via connecting cable, see Chapter 4.4.7.4 3.4.1 Note: The colors listed here apply for the Minebea Intec load cell and connection cables of type "PR …" Color code Black Blue Green...
Page 41 - Measuring voltage (load cell output) SENSE S+ + Sense + Sense voltage SENSE S- - Sense - Sense voltage LC SUPPLY V+ + Supply/rd + Supply voltage LC SUPPLY V- - Supply/bu - Supply voltage LC SUPPLY ⏚ Grounding Screen (ground) Minebea Intec EN-39...
Page 42 Load resistance of load cell circuit ≥75 Ω, e.g., 8 load cells of 650 Ω each The supply voltage is fixed at U = 12 V and protected against short circuits. For further technical data, see Chapter 17.5.1. EN-40 Minebea Intec...
Page 43 Connection example 4.4.7.5 Connecting load cells of type series PR 6221 See installation manuals of PR 6221 and PR 6021/08, ../18, ../68S. Minebea Intec EN-41...
Page 44 12 V ±0.8 V (symmetrical to housing ground) Sense voltage 12 V ±0.8 V (symmetrical to housing ground) Measuring voltage 0–12 mV @ LC with 1.0 mV/V 0–24 mV @ LC with 2.0 mV/V Measuring voltage 0 V ±0.5 V EN-42 Minebea Intec...
Page 45 - [Weighing point] - [WP A] - [Calibration] - [Param] - [External supply] has to be set to "below 8 V DC" in order to reduce the sense voltage U to below approx. ±4 V. Connection example Minebea Intec EN-43...
Page 46 The screen of the load cell cable and the screen of the connecting cable must not be connected inside the junction box, if connection of both ends is not permissible according to the regulations for installation in the ex-zone. EN-44 Minebea Intec...
Page 47 4 Device installation Transmitter Series PR 5220 Connection example ① Equipotential bonding conductor ② Mounting rail ③ Screen Minebea Intec EN-45...
Page 48 The cable screens must be connected to the grounding terminal of the device. If the measuring lines (+M, -M) are screened individually, these screens must be connected to the grounding terminal as well (see also Chapter 4.3). EN-46 Minebea Intec...
Page 49 4 Device installation Transmitter Series PR 5220 Example: Platform with 4-wire connection The following links between the terminal contacts are provided: ① from SIGN. SENSE S+ to LC SUPPLY V+ ② from SIGN. SENSE S- to LC SUPPLY V- Minebea Intec EN-47...
Page 50: Interfaces
Communication protocols and syntax comply with the ProfiBus-DP standard to IEC 61158, with transfer rates up to 12 Mbit/s. Connection to the ProfiBus is established using the 9-pin D-Sub female connector on the front of the device. EN-48 Minebea Intec...
Page 51 Profibus test center Comdec in Germany and PNO (Profibus User Organization). Industry-compatible CE, UL, and cUL Note: The GSD file is stored on the CD supplied with the device (fieldbus directory of the respective device). The current file is also available to download online: http://www.minebea-intec.com Minebea Intec EN-49...
Page 52 DGND Insulated GND to RS-485 side 6 -------------------- Insulated power supply +5 V to RS-485 side Not connected 8 -------------------- RxD/TxD-N (negative) ac- Green Send/receive data cording to RS-485 specifi- Data core A/D (N) cation Not connected EN-50 Minebea Intec...
Page 53: Devicenet Interface
120 Ω at the cable ends Bus load 33 mA @ U = 24 V Cable type DeviceNet; color: petrol green; 2x2 twisted pair; screened Cable impedance 150 Ω Cable length Depends on cable type and transmission rate: 100 to 500 m Minebea Intec EN-51...
Page 54: Profinet I/O Interface
It contains powerful UDP/IP connecting circuitry with transfer rates of 10 and 100 Mbit/s. Technical data Description Data Transfer rate 10 Mbit/s and 100 Mbit/s Auto-detection (100, FullDX) Protocol ProfiNet I/O Connection mode Network Configuration XML file "GSDML-Vx.xx-Sartorius-PR5220-2P-xxxxxx.xml" EN-52 Minebea Intec...
Page 55 When replacing devices or servicing, please note: As well as the IP address, the device name must correspond to that of the replacement device. Explicit assignment out of the master is required. Example: Minebea Intec EN-53...
Page 56: Ethernet/Ip Interface
Twisted pairs, screened, e.g., patch cable CAT5 Autolink (stra- ight or crossover) Cable impedance 150 Ω Cable length to HUB Max. 115 m Certificate ODVA for HMS Industrial Networks AB Product code: 99 Product name: Anybus-CC 40 EtherNet/IP SOC file name: ABCC40-EIP-2P.stc 15.05.2014 EN-54 Minebea Intec...
Page 57 - [Fieldbus parameters] (refer also to Chapter 7.15.3 and 12.2) The EDS file is stored on the CD supplied with the device (fieldbus directory of the respective device). The current file is also available to download online: http://www.minebea-intec.com Minebea Intec EN-55...
Page 58: "Standard" Application
5.1.2 Display functions Display of gross, net or tare weight Tare/reset tare Set gross to zero Display of weight values or remote display Functions via digital inputs and outputs Information interchange via serial I/O, fieldbus and network EN-56 Minebea Intec...
Page 59: Easyfill" Application
Input: tolerance values; adopt unit from the calibration. — Calming time Calming time Input: in ms — Start Start filling. — Stop Stop filling. — Restart Restart filling. — Abort Abort filling. — Configuration — Configuration mode Configure the mode Minebea Intec EN-57...
Page 60 Tolerance above/below set point Input: tolerance values; adopt unit from the calibration. — Calming time Calming time Input: in ms — Default Reset values to 0. — Print all Print all ID entries. — Print Print selected ID entry. EN-58 Minebea Intec...
Page 61: Getting Started
When the CAL switch is in "opened" position, the calibration data and parameters can be changed using the PC program or via the ProfiBus connection. With the CAL switch in the "closed" position, the calibration data (e.g. dead load, SPAN) and parameters (measuring time, zero tracking etc.) cannot be changed. Minebea Intec EN-59...
Page 62 Standstill time <1> M SPAN <1.000000> mV/V Standstill range <1.00> d Standstill timeout <8> M Calibration parameters <default> Test mode <absolute> Overload (range over Max.) <9>d Zero range <50.00> d W&M node <none> Zerotrack range <0.25> d EN-60 Minebea Intec...
Page 63: Restart
The device is reset to its factory settings. The network settings are not changed. Switching on the device The device can be set up as follows: Via a notebook/PC using the VNC software (included on the CD) Via a notebook/PC using an Internet browser Minebea Intec EN-61...
Page 64: Switching Off The Device
If the DHCP server is active in the network, the connected device (default setting under - [Network parameters]: "Use DHCP" is activated.) is automatically assigned an IP address. On the notebook/PC, the host names of the connected devices in the network are listed under [Network]. EN-62 Minebea Intec...
Page 65: Finding And Connecting A Device With A Notebook/Pc
CD-ROM) and via the "host name" of the device. The "host name" is composed of the device name and the last 3 bytes of the MAC ID. A label with the complete MAC ID is located on the outside of the device. Minebea Intec EN-63...
Page 66 Short-term visual feedback from the device: Regular running light in LED 1, 2, 3. Click the button to re-start the network search run. Waiting 2…3 minutes is essential! Acoustic signal for each device that was detected as "online." EN-64 Minebea Intec...
Page 67: Resetting The Network Address
ID of the local notebook/PC must be checked and changed, if necessary. Only certain Minebea Intec devices are supported by the "indicator browser"! Resetting the network address The device can be reset using a pin with a diameter of approx. 1.0 mm (e.g. paper clip).
Page 68: Operation Using Vnc
For direct operation using the VNC program, the IP address (extended by :1) must be specified when you run the program, e.g., 172.24.20.233:1. Note: In the device, the VNC access to certain notebooks/PCs in the network can be limited, see Chapter 7.15.4. EN-66 Minebea Intec...
Page 69: Operation Via A Web Browser
In addition to VNC, this includes: easy operation for printing out the configuration easy operation for displaying and saving protocols easy operation for saving and loading configuration and calibration data Example: Enter the IP address in the Internet browser and confirm. Minebea Intec EN-67...
Page 70: System Setup
Selection: <none>, built-in RS-485 — Param Selection: Assigned to, Baudrate, Bits, Parity, Stopbits 7.11.2 Operating parameters — Application Selection: Standard, EasyFill — PIN Entry code with which to protect the system control from unauthorized use. Input: 6 numerical characters EN-68 Minebea Intec...
Page 71: Fieldbus Parameter
Assign, "Pendeo Load Cells" selected: Search, View, Calib, LC name, Service, see Chapter 7.11.5.3. 7.11.5.1 "Internal A" weighing point — Calib Calibration of the weighing electronics — New Query window for new calibration: Reset Span and dead load Minebea Intec EN-69...
Page 72 Selection legal-for-trade mode: <none>, OIML (impossible when [Range mode] "Multi- interval" has been selected or Max has more than 3 decimals), NSC, NTEP Note: Transmitters of the PR 5220 series are not approved for legal-for-trade mode. — Standstill time Input of the standstill period: 0.01 s…<0.50 s>…2.0 s (The range depends on...
Page 73 Select environmental conditions: Very stable, stable, unstable, very unstable — Application filter Select application filter: Final readout, Filling mode, Low filtering, w/o filtering — Standstill range Select standstill range: 0.25 igit, 0.5 digit, 1 digit, 2 digit, 4 digit, 8 digit Minebea Intec EN-71...
Page 74 Select parity: Mark, Space, Odd, Even — Stop bits Selection: 1 stop bit, 2 stop bits — Handshake Selection: Software handshake, CTS with 2 chr.pau = CTS with 2 characters , CTS with 1 chr.pau = CTS with 1 character EN-72 Minebea Intec...
Page 75 — Type xBPI-Scale — W&M Selection legal-for-trade mode: <none>, OIML, NSC, NTEP Note: Transmitters of the PR 5220 series are not approved for legal-for-trade mode. — Tare timeout Timeout due to instability: 0.1 s…<2.0 s>…25 s — Serial number <0>, if >0 the serial number will be checked (at legal-for trade scale) —...
Page 76 — W&M Selection legal-for-trade mode: <none>, OIML, NSC, NTEP Note: Transmitters of the PR 5220 series are not approved for legal-for-trade mode. — Unbal. Unbalanced check deviation: The plausibility Check deviat. check is activated when the average deviation is >0%.
Page 77: Limit Parameter
No change is possible! 7.11.6 Limit parameter Note: This menu item is only available if under -[Operating parameter]- [Application] "Standard" has been selected. — Limit 1…3 on Enter 0 – Max (maximum load); take unit from calibration. Minebea Intec EN-75...
Page 78: Digital I/O Parameters
— Weight at 0/4 mA Weight value for 0/4 mA output — Weight at 20 mA Weight value for 20 mA output 7.12 Calibrating internal weighing point 7.12.1 General information Transmitters of the PR 5220 series are not approved for calibration. EN-76 Minebea Intec...
Page 79: Displaying Calibration Data
Overwrite protection via a CAL switch When the CAL switch is closed, a tool tip is displayed. The Data under [Calib] and [Param] is displayed only. The calibration data and parameters are displayed in the format entered/determined during calibration. Minebea Intec EN-77...
Page 80: Selecting The Calibration Mode
The [Modify] menu item is only used for small changes (e.g.changing the dead load/ preload, changing the mV/V values for dead load/preload and/or Max, changing the scale interval). Otherwise select the [New] menu item. Under - [Weighing point] - [Calib] choose between [New] and [Modify]. EN-78 Minebea Intec...
Page 81 7. Calibrating with load [Max at], see Chapter 7.12.7. 8. Calibrating with mV/V [Max at], see Chapter 7.12.8. 9. Calibrating with load cell data (smart calibration) [Max at], see Chapter 7.12.8.1. 10. Carrying out linearization, see Chapter 7.12.11. Minebea Intec EN-79...
Page 82 4. Either press the [by mV/V] softkey to enter the value again or clear the scale/hopper and press the [by load] softkey to reset the dead load. 5. Press to exit the calibration. A prompt window opens. EN-80 Minebea Intec...
Page 83: Setting Maximum Load
Max weight value from 0.00010 to 999999 in t, kg, g, mg, lb or oz. Maximum weight value must be an integer multiple of the scale interval (1 d). It may have up to 6 digits and is entered as a numeric value with or without a decimal point. Minebea Intec EN-81...
Page 84: Determining The Scale Interval
= Max/scale interval (1 d) d = 6000 kg/2 kg d = 3000 Procedure: The weight unit is taken from [Max]. The number of digits behind the decimal point is also automatically determined when [Max] is entered. EN-82 Minebea Intec...
Page 85: Determining The Dead Load
Only deleting of the linearization points deactivates the linearization mode! To use the empty scale/hopper as dead load (normal case): Clear the scale/hopper. 2. Press the [by load] softkey. 3. Confirm entries with The verification is displayed by "Setting dead load…". Minebea Intec EN-83...
Page 86: Calibrating With Weight
Changes cannot be made while linearization is switched on. Only deleting of the linearization points deactivates the linearization mode! Press the [by load] softkey. 2. Place the CAL weight on the scale. 3. Enter the weight of the CAL weight. 4. Confirm the entries. EN-84 Minebea Intec...
Page 87: Calibrating With Mv/V
Calculating SPAN value for Max and, if necessary, for the dead see Chapter 7.12.8.1. 2. Press the [by mV/V] softkey. 3. Entering the SPAN value for Max and, if necessary, for the subsequent correction of dead load (see Chapter 7.12.10). Minebea Intec EN-85...
Page 88 Dead load 0,5 kg 1000 kg Example 1 load cell with rated output C = 2 mV/V At maximum capacity 2000 kg Maximum capacity 1000 kg Dead load 500 kg Load cell supply voltage U = 12 V EN-86 Minebea Intec...
Page 89: Calibrating With Load Cell Data (Smart Calibration)
Gravity at place of installation Default is the value for Hamburg, Germany: 9.81379 m/s [Hysteresis error] Hysteresis error When switching from [not specified] to [specified] values for [Correction A/B] must be entered. For this data refer to the load cell certificate. Minebea Intec EN-87...
Page 90: Subsequent Dead Load Correction
(overwrite protection must be deactivated, see Chapter 7.1.3.1) without affecting other calibration data/parameters. To do this select -[Weighing points]- [Calib]- [Modify] and determine the dead load with [Dead load at] using the [by load] option (see Chapter 7.12.6). EN-88 Minebea Intec...
Page 91: Linearization
The measurement range for a straight can be optimized by setting the linearization points. Requirements: Calibration of Max and dead load was done. Procedure: Press the [Linear.] softkey. The menu linearization is shown. 2. Press the [Add] softkey to set a linearization point. The input window opens. Minebea Intec EN-89...
Page 92 By pressing [Delete] the selected linearization point can be deleted. 6. Select a linearization point, place the corresponding weight on the scale, and press the [by load] softkey. The value corresponding to the weight is automatically entered in mV/V. EN-90 Minebea Intec...
Page 93 7. Repeat these steps to automatically enter the corresponding values for the weights of all set linearization points in mV/V. 8. Press to switch to the previous window. A message is displayed, indicating that the value for Max cannot be changed as long as linearization is active. Minebea Intec EN-91...
Page 94: Calculating The Test Value
[Absolute] the maximum load with [Relative] the deviation from the test value 7.12.13 Saving the calibration Quit calibration by pressing the softkey. You are prompted to confirm whether calibration should be closed without determining the test value. EN-92 Minebea Intec...
Page 95: Cancelling A Calibration
Quit calibration by pressing the softkey. You are prompted to confirm whether calibration should be closed without determining the test value. If not all data was determined when calibrating with [New] (e.g.dead load not set/ entered), this message is shown: Minebea Intec EN-93...
Page 96: Parameter Input
Selection: 5 ms, 10 ms, 20 ms, 40 ms, 80 ms, 160 ms, <320 ms>, 640 ms, 960 ms, 1280 ms, 1600 ms. [Digital filter] Selection of the digital filter (filter characteristic): <off> (no Filter), Bessel, aperiod. (aperiodic), Butterw. (Butterworth), Tcheby. (Tschebyscheff) EN-94 Minebea Intec...
Page 97 When the load cells are connected to an external supply, it is possible to switch to ≤8 V, to tune Sense voltage monitoring to the lower supply voltage. Selection: below or equal 8 V (≤8 V), <above 8 V> (>8 V) Minebea Intec EN-95...
Page 98 Indication range within which automatic zero tracking compensates deviations. Setting range: 0.25…10000.00 d [Zerotrack step] If a weight change exceeds the adjusted value, automatic tracking does not function any more. Setting range for automatic tracking increments: 0.25…10 d EN-96 Minebea Intec...
Page 99 Range 1: 0…1000 kg (when calibrating set scale interval: 1 kg) Range 2: 0…2000 kg (next highest scale interval: 2 kg) Range 3: 0…3000 kg (next highest scale interval: 5 kg) Choose "Range mode" from the -[Weighing point]- [Calib]- [Param] menu. Minebea Intec EN-97...
Page 100 The parameters [Range limit 1] and [Range limit 2] are the interval ranges. As soon as the displayed weight exceeds range 1, the next highest range with the next highest scale interval becomes valid (1->2->5->10->20->50). Note: During calibration, the multi-interval function is always switched off. EN-98 Minebea Intec...
Page 101: Calibrating Xbpi-Scale
5. Press the softkey to exit and save calibration. 7.13 Calibrating xBPI-scale 7.13.1 General information The legal-for-trade application of PR 5220 with a xBPI-scale is not possible. 7.13.2 Parameters for serial interface Select -[Serial ports parameter]- [xBPI-Port] and confirm. Minebea Intec EN-99...
Page 102 3. Press the [Param] softkey. The following window opens: 4. If necessary, change the parameters. Only the "baudrate" and "stop bits" can be set for an xBPI scale. 5. Press to exit the menu and to save the settings. EN-100 Minebea Intec...
Page 103: Parameters For The Xbpi-Weighing Function
With serial number "0", checking is omitted. Setting range: 0…99999999 [SBN Address] When the address is not set to 0, bus operation is active. Possible addresses: 1–31, i.e., max. 31 xBPI scales can be operated on an RS-485 branch. Minebea Intec EN-101...
Page 104: Setting Up An Xbpi Platform
The parameters of the xBPI-scale are read into the device. Ticks indicate the progress. An error message is displayed if communication with the xBPI scale is not possible! The following window opens: 3. Select [Show device info] with the cursor and confirm. The following window opens: EN-102 Minebea Intec...
Page 105 Only the parameters supported by the connected scale are displayed. 12. Press the softkey to exit the menu and to save the settings. A prompt window opens. 13. Press the [Yes] softkey to save the data. Press [No] for exit from the menu without data change. Minebea Intec EN-103...
Page 106: Xbpi-Parameter Tables
— Stable conditions — Unstable cond. — Very unstable cond. — Application/Filter — standard mode — manual filling — automatic dosing — checkweighing — Stability range — 0.25 digit — 0.5 digit — 1 digit — 2 digits EN-104 Minebea Intec...
Page 107 — only for zeroing — Measure rate — normal output — fast output — Calibration check — Off — Calibration prompt — External adjustment — Accessible — Blocked — Maximum capacity — reduced by preload — constant Minebea Intec EN-105...
Page 108 — three levels lower — 1% — 0.5% — 0.2% — 0.1% — 0.05% — 0.02% — 0.01% — Multi interval — increased by 10 7.13.5.3 Interface parameters [Interface settings] — Communication type — SBI protocol — xBPI protocol EN-106 Minebea Intec...
Page 109 — with each display — after 2 updates — after 5 updates — after 10 updates — after 20 updates — after 50 updates — after 100 updates — Parameter change — can be changed — cannot be changed Minebea Intec EN-107...
Page 110: Setting The Xbpi Dead Load
7 Getting started 7.13.6 Setting the xBPI dead load Note: For Minebea Intec both terms "dead load" and "preload" are used. Select -[Weighing point]- [xBPI-Scale] and confirm. 2. Press the [Setup] softkey. The parameters of the xBPI-scale are read into the device.
Page 111: Xbpi Calibration With User Specified Weight
[Weighing parameters] - [Confirming adjust.] was set to "manual". The communication between the device and platform is active. Procedure: Select -[Weighing point]- [xBPI-Scale] and confirm. 2. Press the [Setup] softkey. The parameters of the xBPI-scale are read into the device. Minebea Intec EN-109...
Page 112: Xbpi Calibration With Automatic Weight Detection
In the menu [Weighing point A] - [xBPI-Scale] - [Setup] at [Configuration] - [Weighing parameters] - [Confirming adjust.] was set to "manual". The communication between the device and platform is active. Procedure: Select -[Weighing point]- [xBPI-Scale] and confirm. EN-110 Minebea Intec...
Page 113: Xbpi Calibration With Default Weight
In the menu [Weighing point A] - [xBPI-Scale] - [Setup] at [Configuration] - [Weighing parameters] - [Confirming adjust.] was set to "manual". The communication between the device and platform is active. Procedure: Select -[Weighing point]- [xBPI-Scale] and confirm. Minebea Intec EN-111...
Page 114: Xbpi Calibration With Built-In Weight
In the menu [Weighing point A] - [xBPI-Scale] - [Setup] at [Configuration] - [Weighing parameters] - [Confirming adjust.] was set to "manual". The communication between the device and platform is active. Procedure: Select -[Weighing point]- [xBPI-Scale] and confirm. EN-112 Minebea Intec...
Page 115: Xbpi Linearization
In the menu [Weighing point A] - [xBPI-Scale] - [Setup] at [Configuration] - [Weighing parameters] - [Confirming adjust.] was set to "manual". The communication between the device and platform is active. Procedure: Select -[Weighing point]- [xBPI-Scale] and confirm. Minebea Intec EN-113...
Page 116: Calibrating Digital Load Cells Of Type "Pendeo
The calibration data for the gravity acceleration at the place of installation can be adapted only in the instrument and protected against overwriting (see Chapter 7.1.3.1). For connecting digital load cells (xBPI load cells), firmware version 2.10 or higher must be installed. The available interfaces are visible under -[Show HW-slots]. EN-114 Minebea Intec...
Page 117: Selecting And Configuring Rs-485 Interface
The following window opens: 2. Select the desired interface and confirm. 3. Press the [Param] softkey. The following window opens: 4. Select [Baudrate] and confirm. A selection window opens. 5. Select "19200 bd" and confirm. 6. Select [Stopbits] and confirm. Minebea Intec EN-115...
Page 118: Selecting The Load Cell Type
Recalibrate: Maximal load with weight unit, scale interval, dead load, CAL weight, see Chapter 7.14.7. Perform a corner correction if necessary; see Chapter 7.14.10.3. Note: For further information about calibrating weighing points, see Chapter 7.12.3. 7.14.5 Searching load cells Select -[Weighing point]- [Weighing point A]. EN-116 Minebea Intec...
Page 119 A prompt window opens. 4. Press the [Continue] softkey to start a new search process. Press the [Cancel] softkey to accept and display the existing values. A window with load cell information opens [Type] Type of load cells Minebea Intec EN-117...
Page 120 6. Select the desired load cell and press the [Info] softkey. The load cell data is displayed. Note: If load cell names have been assigned (see Chapter 7.14.8), the view can be switched with the [by name] softkey. 7. Press to exit the menu and save. EN-118 Minebea Intec...
Page 121: Assigning Load Cells
As soon as the device detects the weight change, the corresponding line is selected. 6. Confirm the assignment of the first load cell by selecting The future LC no. is shown at the far right of the line. 7. Remove the weight. Minebea Intec EN-119...
Page 122: Calibrating Load Cells
Entering the local value of gravitational acceleration (in this example: Hamburg 9.81379 m/s ), see e.g.http://www.ptb.de/cartoweb3/SISproject.php. [Number of platforms] (only for Pendeo Truck-load cell) This parameter is shown only in the case of 8 load cells. Entering the number of platforms. EN-120 Minebea Intec...
Page 123 Perform a corner correction if necessary; see Chapter 7.14.10.3. Note: During calibration the weight can be displayed with 10 fold resolution by pressing key. After 5 seconds the display returns to normal resolution. Press if you want to switch to normal resolution immediately. Minebea Intec EN-121...
Page 124: Assigning Load Cell Names
Item number, serial number, dead load and current weigh of connected load cells are displayed. 7.14.9.1 Deactivating the load cell A load cell can be deactivated if it is defective. The weight is then distributed to the remaining load cells. EN-122 Minebea Intec...
Page 125 After inserting and connecting the new load cell, select the line of the deactivated load cell and confirm. 2. Press the [Accept] softkey. A search process is started and only then is the new load cell detected. Minebea Intec EN-123...
Page 126: Corner Correction
7. If all load cells have been loaded one time, press the [Calc] softkey to perform the corner correction. The total weight remains unchanged. Only the effect of the individual load cells is corrected. When corner correction is completed, it is marked with "OK". 8. Press to exit the menu and save. EN-124 Minebea Intec...
Page 127: Terminating/Saving Calibration
5. After finishing calibration, set the CAL switch to the closed position; see Chapter 7.1.3.1. 7.14.12 Parameter Input The menu is accessible via - [Weighing point] - [Weighing point A] - [Assign] - [Calib] - [Param] . Minebea Intec EN-125...
Page 128 (or by a corresponding external command), and automatic zero tracking is active. Setting range: 0.00…10000.00 d [Zerotrack indic. range] Indication range within which automatic zero tracking compensates deviations. Setting range: 0.25…10000.00 d EN-126 Minebea Intec...
Page 129: Subsequent Dead Load Correction
To view the range which is already utilized by zero tracking or zero setting, in [Calibration] press the key; this also activates 10-fold increased resolution of the weight value. Press again to return to the previous state. Note: The scale must not be loaded! Minebea Intec EN-127...
Page 130: Displaying Weighing Point Serial Number
-[Operating parameter]- [Application] "Standard" has been selected. Configuring digital inputs and outputs [Digital i/o parameter] Note: This menu item is only available if under -[Operating parameter]- [Application] "Standard" has been selected. Configuring analog output [Analog output parameter] EN-128 Minebea Intec...
Page 131: Selecting And Configuring Serial Interfaces
The interfaces are configured under this menu item. Select - [Serial ports parameter] and confirm. The following window opens. 7.15.1.1 Remote display protocol Select [Remote display] and confirm. A selection window opens. 2. Select the desired interface and confirm. Minebea Intec EN-129...
Page 132 "single transmitter". 8. Enter the unique device address (in this case: A) and the address of the device that follows (in this case: B) and confirm. 9. Press two times to exit the menu and save. EN-130 Minebea Intec...
Page 133 2. Select the desired interface and confirm. The selected interface is displayed. 3. Press the [Param] softkey to set the parameters. The following window opens: 4. Select [Baudrate] and confirm. A selection window opens. 5. Select the desired transmission speed and confirm. Minebea Intec EN-131...
Page 134 2× to exit the menu and save. 7.15.1.3 SMA protocol Select [SMA] and confirm. A selection window opens. 2. Select the desired interface and confirm. The selected interface is displayed. 3. Press the [Param] softkey to set the parameters. EN-132 Minebea Intec...
Page 135 5. Select the desired transmission speed and confirm. 6. Press two times to exit the menu and save. 7.15.1.4 xBPI protocol Select [xBPI-Port] and confirm. A selection window opens. 2. Select the desired interface and confirm. The selected interface is displayed. Minebea Intec EN-133...
Page 136: Operating Parameters
The access code can be used to protect the system setup from unauthorized operation. Input: number with up to 6 digits As long as you are in this menu, the value can be overwritten as required. If the [PIN] is set to "0", no access code prompt is displayed. EN-134 Minebea Intec...
Page 137: Fieldbus Parameters
The fieldbus parameters are set under this menu item. Open the menu via -[Fieldbus parameter]. This menu item can only be selected for the devices PR 5220/01, PR 5220/04, PR 5220/ 06 and PR 5220/07. The protocol displayed automatically depends on the device version : Minebea Intec EN-135...
Page 138 Setup menu. The following prompt window appears: Save the data with [Yes]. Press [No] to exit the menu without changing data. 7.15.3.1 ProfiBus-DP settings for S7 Requirements: PR 5220/01 ProfiBus-DP is installed. The parameters are selected and saved. EN-136 Minebea Intec...
Page 139 Establish communication with the PLC (here: SIEMENS S7-300/400 or S7-1500). NOTICE Potential network problems A unique device name must be assigned for the hardware configuration and assignment/download. 2. Enter the IP address and network mask under - [Fieldbus parameter] and confirm. Minebea Intec EN-137...
Page 140 2. Register the file "sag_5220_Ethernetip.eds" using the "Hardware Installation Tool". 3. Select and insert the instrument from the catalog into the I/O configuration. Note: See Chapter 12.2 Example: The gross weight should be read. I/O size = 8 bytes, counted from byte 0–7 EN-138 Minebea Intec...
Page 141: Network Parameters
If ☑ is checked (presettings: DHCP selected), the server automatically allocates the IP address, subnet mask, and default gateway. If ☐ is not checked, the settings [IP address], [Subnetmask] and [Default gateway] must be defined in consultation with the responsible system administrator. Minebea Intec EN-139...
Page 142: Configuring Limit Values
The scale and the unit must not be changed after configuration. The following settings are required: [Weighingpoint/xBPI-Scale] - [Setup] - [Configuration] - [Application settings] - [Number of units] "1 Weight" Define the parameters for limits under -[Limit parameter]. EN-140 Minebea Intec...
Page 143 The output signal (Limit 2 out) of Limit 2 switches OFF below 290 kg. The two limit values have a hysteresis of 10 kg. In the event of a power failure both outputs turn to "off" ("OFF"), thus indicating underfill and overfill simultaneously. Minebea Intec EN-141...
Page 144 1 X64 = 1 Set marker 1 set marker 2 X65 = 1 Set marker 2 set marker 3 X66 = 1 Set marker 3 clr marker 1 X64 = 0 Clear marker 1 EN-142 Minebea Intec...
Page 145 (in this case, Marker 1 is set when 900 g is exceeded). 3. If applicable, set additional markers and confirm. 7.15.5.3 Determining a condition Additionally, a [Condition] can be assigned to the marker. The possible conditions are listed in the following table. Minebea Intec EN-143...
Page 146 X02 = 1 digital input 3: active actual limit 1 X16 = 1 Limiting signal 1: active actual limit 2 X17 = 1 Limiting signal 2: active actual limit 3 X18 = 1 Limiting signal 3: active EN-144 Minebea Intec...
Page 147 "0". marker bit 3 X66 = 1 Marker bit 3 set, after power-on the markers are set to "0". Highlight and confirm the condition line of the appropriate limit using the cursor. A selection window opens. Minebea Intec EN-145...
Page 148: Configuring Digital Inputs
-[Digital i/o parameter]. Note: This menu item is only available if under -[Operating parameter]- [Application] "Standard" has been selected. For the configuration the following order must be followed: 1. Defining an action 2. Determining a condition 3. Saving parameters EN-146 Minebea Intec...
Page 149 Define the action for the rising edge of Input 1 (in this case: When the input signal changes from 0 to 1, a tare command is generated). Accordingly, an action for the falling edge can be determined. Minebea Intec EN-147...
Page 150 0 to 1 (on) or for signal change from 1 to 0 (off). The condition is selected from the list in Chapter 7.15.5.3. No condition is defined when selecting [no condition]. The action is executed directly. Select and confirm the condition line of the appropriate parameter. A selection window opens. EN-148 Minebea Intec...
Page 151: Configuring Digital Outputs
X57 = 0 For internal use only. tare active X58 = 0 Instrument is not tared. marker bit 1 X64 = 0 Marker bit 1 not set, after power-on the markers are set to "0". Minebea Intec EN-149...
Page 152 Function and output are active (e.g.: if 'overload' is reached, a lamp is lit). SPM Bit [X34 = 0] Function is active and output is not active (e.g.: if "overload" is reached, a lamp goes out). The parameters for the digital outputs are defined under -[Digital i/o parameter]. EN-150 Minebea Intec...
Page 153 Select [Output 1] and confirm. A selection window opens. The output 1 [Output 1] is true (active), when the weight value drops below zero (X35=1). 2. Select [below zero] and confirm. 3. Select [Output 2] and confirm. Minebea Intec EN-151...
Page 154 5. Select [Output 3] and confirm. A selection window opens. Output 3 [Output 3] is true (active), when the weight is zero ±¼ d (X36=1). 6. Select [center zero] and confirm. The menu opens. 7. Press to exit the menu and save. EN-152 Minebea Intec...
Page 155: Configuring Analog Output
The output drops below 4 mA down to the limit (at 4…20 mA). [Output if > Max] [0 mA] Set output to 0 mA. [4 mA] Set output to 4 mA. [20 mA] Set output to 20 mA. Minebea Intec EN-153...
Page 156: System Information
This menu displays system information. You can also check inputs and outputs, see Chapter 9.1.2.2. Press to access the menu. Note: also has other functions; see Chapters 7.12.2.2 and 7.12.10. 7.16.1 Displaying the version Confirm [Show version]. EN-154 Minebea Intec...
Page 157: Displaying The Status
Version number and firmware creation date [PRxxxx-Application] Version number and application creation date [BIOS] Version number and BIOS creation date [Board number] Nine-digit board number 2. Press to return to the previous window. 7.16.2 Displaying the status Select [Show status]. Minebea Intec EN-155...
Page 158: Showing Hardware Options
Free working system memory space [CAL switch] Status display [opened] = opened, no write protection. [closed] = closed, write protection is active. 2. Press to return to the previous window. 7.16.3 Showing hardware options Select [Show HW-slots] and confirm. EN-156 Minebea Intec...
Page 159: Displaying Pendeo Data
The tool tip displays the version number. 5th line Standard interface, weighing electronics The tool tip displays the weighing point serial number and manufacturing date of the factory. 2. Press to return to the previous window. 7.16.4 Displaying Pendeo data Minebea Intec EN-157...
Page 160 Max. load including dead load (load cell, cannot be changed) The colors have the following meanings: Weight value is above maximum load (overload) or below -¼d Green Weight value is within tolerances Orange Weight value is above maximum capacity E (max. capacity of load cell) EN-158 Minebea Intec...
Page 161 Max. temperature Max. measured temperature Min. temperature Min. measured temperature Max. weight value at Date and time display Time of largest load on load cells Max. weight value Display 3. Press to return to the previous window. Minebea Intec EN-159...
Page 162: Production
There are hard drives for 10 material data records available, which are retained after a power failure. It is important to save material data. Starting the application Requirements: The "EasyFill" application has been selected; see Chapter 7.15.2. Procedure: Press the [Start] softkey. The menu opens. EN-160 Minebea Intec...
Page 163: Configuration Via A Notebook/Pc
The following modes are configured under the [Configuration mode] menu item: Filling mode Interaction mode Select [Configuration mode] and confirm. 2. Select [Dosing mode] and confirm. A selection window opens. 3. Select the desired filling mode (see Chapters 8.3.1.1 and 8.3.1.2) and confirm. Minebea Intec EN-161...
Page 164 7. Press the [Yes] softkey to save the changes. 8.3.1.1 Net filling (B1) The scale is tared and then the amount listed in the process line is automatically (Coarse/ Fine) added. A fix overshoot value is configurated. Net = gross - tare EN-162 Minebea Intec...
Page 165 A fine flow is batched until the switch-off point (overshoot) is reached. ④ Calming: Time to wait during which the overshoot is effective and scale vibrations may settle. ⑤ Tolerance checking: The weight is determined and checked Gross against the tolerance values. Time Minebea Intec EN-163...
Page 166: Configuring Digital Inputs And Outputs
SPM addresses are assigned to the digital inputs and outputs under the [Configuration digital IOs] menu item. Note: The selected SPM address must be unique within the system. The SPM addresses for the input and outputs are unchanged after a restart. Select [Configuration digital IOs] and confirm. EN-164 Minebea Intec...
Page 167 3. Select inputs 1…3. Use the keypad to enter and confirm a corresponding SPM address %MXxxx (see Chapter 13.4). Note: The SPM address %MX for an unused digital input = 0. 4. Press to exit the window and to save the changes. 5. Select [Configuration digital outputs] and confirm. Minebea Intec EN-165...
Page 168: Configuring Material
The SPM address %MX for an unused digital output = 0. 7. Press to exit the window and to save the changes. 8.3.3 Configuring material The materials (products) 1…10 are configured under the [Configuration material] menu item. Select [Configuration material] and confirm. EN-166 Minebea Intec...
Page 169 [Material name] Input: Material name, max. 18 alphanumeric characters [Set point] Input: Set point [Preset] Input: Preset point for switching from coarse flow to fine flow [Overshoot (OVS)] Input: Material overshoot [+/- tolerance] Input: Tolerance above/below set point Minebea Intec EN-167...
Page 170: Filling
Digital inputs and outputs are configured (optional); see Chapter 8.3.2. Material (product) is configured; see Chapter 8.3.3. Example: Filling mode: Net filling (B1) Interaction mode: VNC Digital outputs 1, 2: SPM-Adresse %MX 1162 (coarse)/1163 (fine) Material ID: 2 EN-168 Minebea Intec...
Page 171 Press the [Stop] softkey to stop the process. You can then press the [Restart] softkey to restart the process. 4. Once the set point is reached, the [Start] softkey can be pressed again. 5. Press 2× to exit the application. Minebea Intec EN-169...
Page 172: Extended Functions
Plug the test connector (see Chapter 18.2) into the RS-485 interface. 2. Place the switch in the proper position, see Chapter 18.2. 3. Select and confirm the desired interface. The results are displayed: passed = ok failed (no data) = error EN-170 Minebea Intec...
Page 173: Inputs And Outputs
(display). "Internal" Active PLC: The entered input values are sent to the PLC (application). The PLC output is displayed (display). The physical inputs and outputs of the system (plant) are deactivated and passive (in secured condition). Minebea Intec EN-171...
Page 174 The output current can be adapted in small ranges. This is required, if small deviations from the nominal value occur in a connected PLC. Open the menu with - [HW-Slots]. Select and confirm the analog output. 2. Press the [Adjust] softkey. EN-172 Minebea Intec...
Page 175 4. Enter and confirm e.g.the value for 20 mA measured by the connected PLC under [Measured]. A prompt window opens. 5. Press the [Yes] softkey to save the settings. If applicable, press the [No] softkey to keep the original values. Minebea Intec EN-173...
Page 176 7. Press the [Yes] softkey to reset to the factory settings. If applicable, press the [No] softkey to keep the entered values. 8. Press to return to the previous window. 9.1.2.2 Digital inputs and outputs Open the menu with - [HW-Slots]. Select and confirm the appropriate line. EN-174 Minebea Intec...
Page 177 An info window is shown briefly. The "Internal" test mode is active. The inputs are simulated to test the functionality of the PLC (application); see Chapter 9.1.2. 4. Press to return to the previous window. 5. Press the [Stop PLC] softkey. Minebea Intec EN-175...
Page 178: Functions Via The Web Site
The device name entered under -[Network parameter]- [Hostname] is shown under the header in brackets. [Remote Configuration (VNC)] Operation using the VNC program, see Chapter 7.9. [Remote Configuration (VNC) Pop-up Window] Operation using the VNC program, see Chapter 7.9. EN-176 Minebea Intec...
Page 179: Displaying Weighing Points In A Table
WEB menu. 9.2.3 Configuration printout With the [Configuration Printout] menu item the configuration of the device of the device can be displayed, saved and printed out. Click the [Configuration Printout] menu item in the WEB menu. Minebea Intec EN-177...
Page 180 The configuration of the device is shown on the display. 2. Click on [File]- [Save as…]. 3. Create and open the required directory e.g.on the notebook. 4. Click on [Save] to save the text file in the relevant directory. EN-178 Minebea Intec...
Page 181: Log Files
With the [Logfiles] menu item the logfiles of the device can be displayed, saved and printed out. Click the [Logfiles] menu item in the WEB menu. A list of logfiles is shown on the display. 2. Click on the desired file. Minebea Intec EN-179...
Page 182: Screenshots
With the [Screenshot] menu item a screenshot of the device can be displayed, saved and printed out. Click on the [Screenshot] menu item in the WEB menu. The current device display is shown as a screenshot. 2. Press the right mouse button. EN-180 Minebea Intec...
Page 183: Error Log
With the [Show error Log] menu item the error log of the device can be displayed, saved and printed out. Click the [Show error Log] menu item in the WEB menu. The error log of the device is shown on the display. Minebea Intec EN-181...
Page 184: Configuration Data
The configuration and calibration data of the EAROMs can be saved for back-up on the Notebook and downloaded, if necessary. Click the [Backup of Earom] menu item in the WEB menu. The backup/restore menu is shown on the display. EN-182 Minebea Intec...
Page 185: Resetting The Device To The Factory Settings
7. Close the CAL switch. Resetting the device to the factory settings Note: Reset to the factory settings is possible only, when the CAL switch is open. The IP address and the Hostname remain unaffected. Click on 2. Click on Minebea Intec EN-183...
Page 186: Updating New Software With Flashit
Updating with a fixed IP address Requirements: Device and notebook/PC are connected to a network/each other. The automatic address assignment "DHCP" is deactivated in the device and in the notebook/PC, see Chapter 7.15.4. Notebook/PC is set to a fixed IP address. EN-184 Minebea Intec...
Page 187 IP address which has the same address range given by the subnet mask. Example: PR 5220: IP address 192.24.22.1 Notebook/PC: IP address 192.24.22.2 Device and notebook/PC have the subnet mask 255.255.255.0. 4. Enter the corresponding subnet mask. 5. Press to exit the window and to save the changes. Minebea Intec EN-185...
Page 188 The first three LEDs blink in a pattern on the device for 30 seconds. 4. Press the reset key (1) on the device a short time, within these 30 seconds using a pen tip or paper clip with a diameter of 1.0mm. EN-186 Minebea Intec...
Page 189 As soon as software loading is completed the device will be re-started. 5. Load next file, as described. Note: If the device cannot start because the software has not loaded correctly, the first three LEDs blink in a pattern to prompt an update. Minebea Intec EN-187...
Page 190: Modbus Protocol
W205 TA000000 00000000 T: Instrument is tared. A: Analog test is active. W231 00021MRZ 00000000 2: Limit 2 1: Limit 1 M: Weight is stable (standstill). R: Weight within zero-setting range Z: Weight within ¼d of 0 EN-188 Minebea Intec...
Page 191 10 ModBus protocol Transmitter Series PR 5220 Write data Bit address Value in 32-bit integer format W100 Zero device: Write value 256 W101 Tare device: Write value 256 Reset the tare of the device: Write value 512 Minebea Intec EN-189...
Page 192: Sma Protocol
The following commands are supported: W, Z, D, A, B, <ESC>, H, P, Q, R, S, T, M, C, I, N EN-190 Minebea Intec...
Page 193: Fieldbus Interface
12.2 Scale protocol (8-byte) for the "Standard" application The interface works with an 8‑byte write window and an 8‑byte read window for each weighing point. Note: All fieldbus data is only valid, if 'Read_Value_Selected' has been reflected. Minebea Intec EN-191...
Page 194: Data Exchange Range
Now the test value can be read out by reading the gross weight. ResTare 1 bit Tare is reset. SetTare 1 bit The weighing point is tared. SetZero 1 bit The weighing point is set to zero. EN-192 Minebea Intec...
Page 195 The scale has been tared. Cal_Changed 1 bit The device has been calibrated. When this bit is 1, the weighing point parameters (EX- PO/UNIT/STEP+FSD) must be read again. Set after "Power on" and reset after reading the FSD. Minebea Intec EN-193...
Page 196: Reading And Writing Data With Function Numbers
Read requested data in Read_Data (bytes 0-3). 12.2.2.2 Writing data Procedure: Wait until Write_Active = 0 in the read window (slave is ready to receive new data). 2. Write value in bytes 0-3 of the write window. EN-194 Minebea Intec...
Page 197 Read_Data (Byte 0-3) of the read window. In those bytes, the bits must be evaluated individually. The procedure is the same as that described in Chapter 12.2.2.1. Minebea Intec EN-195...
Page 198: Reading And Writing Bits Directly
Check the CmdError bit. If CmdError is set: Evaluate the LastError (for function number 4, see Chapter 12.2.5.5) Set the ResetError bit (for function number 121, see Chapter 12.2.5.13). The ResetError bit is reset. The CmdError bit is reset. EN-196 Minebea Intec...
Page 199: Function Numbers
Byte 1 Byte 2 PowerFail Action CmdError Active Byte 3 Tare Active Cal Test Active Changed Note: Byte 0 corresponds to byte 7 in the output area. Weight error in byte 1, see table in Chapter 16.1. Minebea Intec EN-197...
Page 200 The device has been calibrated. When this bit is 1, the weighing parameters (EXPO/UNIT/STEP) must be read again. Set after "Power on" and reset after reading the FSD (Full scale de- flection). Tare_Active The scale has been tared. EN-198 Minebea Intec...
Page 201 13 = zero setting is not possible. The scale has been tared. 18 = negative weight value when taring and W&M mode on. 147 = no zero setting; weight not within zero setting range. 255 = general command error Note: Other error nos are possible. Minebea Intec EN-199...
Page 202 12.2.5.10 Function number 24–29: Limit value (Read/Write) Function number 24 Limit 1 on Function number 25 Limit 1 off Function number 26 Limit 2 off Function number 27 Limit 2 off Function number 28 Limit 3 on Function number 29 Limit 3 off EN-200 Minebea Intec...
Page 203 (for one write operation). The bit is set as Write_Value_Select with the specified number (see Chapter 12.2.2.3 Function number 112 SetZero Function number 113 SetTare Function number 114 ResetTare Function number 115 SetTest Function number 116 ResetTest Minebea Intec EN-201...
Page 204: Example: Reading The Gross Weight
Below Over- Above range still Zero Zero load Error Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 The gross value (hex:000004D2 <=> 1234) can be read from bytes 0…3. EN-202 Minebea Intec...
Page 205: Special Note For Devicenet And Ethernet Ip
Filling functions 12.3.4.1 Filling start 12.3.4.1.1 General information There are two ways to carry out filling: (A) Filling parameters are written at each start by the PLC. (B) Filling parameters are stored in the device (PR 5220). Minebea Intec EN-203...
Page 206 Filling stops with the rising edge and the system goes to the hold status (hold state). If the system is in hold state, filling can be restarted or canceled. 12.3.4.2.2 Restarting filling Requirements: The system stops, i.e., the Hold_state bit is active. EN-204 Minebea Intec...
Page 207: Setup Of The Fieldbus Interface
The first byte controls (multiplexes) the da- ta written in the read window by the device. A "0" describes the read window according to the system data layout. A "1" copies the material data to the read window. Minebea Intec EN-205...
Page 208 BYTE Value range: 1…10 Byte 4…7 Set point DINT/REAL Weight Byte 8…11 Preset DINT/REAL Preset point for switching from coarse flow to fine flow. Byte 12…15 Material overshoot (OVS) DINT/REAL Weight Byte 16…19 Calming time DINT [ms] EN-206 Minebea Intec...
Page 209 After a power failure the bit is set and can Bit 7: filling mode be reset by bit 0 in byte 2. Bit 6: Filling is not possible within the menu items. Bit 7: status-controlled: 0 = fill, 1 = empty Minebea Intec EN-207...
Page 210 DINT/REAL Byte 44…47 Set point filling result DINT/REAL Example: Byte 48…51 Date of filling result DINT 20161116h corresponds to November 16, 2016 Byte 52…55 Time of filling result DINT Example: 14153199h corresponds to 14:15:31 and 99 ms EN-208 Minebea Intec...
Page 211 After a power failure the bit is set and can Bit 7: filling mode be reset by bit 0 in byte 2. Bit 6: Filling is not possible within the menu items. Bit 7: status-controlled: 0 = fill, 1 = empty Minebea Intec EN-209...
Page 212 Current set point Byte 56…59 Tolerance below set point DINT/REAL Current set point Byte 60…62 Reserved Byte 63 "Last_Error" error The last error number is retained until it is reset (for possible errors see Chap- ter 16.6.2). EN-210 Minebea Intec...
Page 213: Spm
1 ms to ±2 DATE date (only) 1.1.1900 to 31.12.2099 TIME_OF_DAY time of day (only) 00:00:00.00 to 23:59:59.99 DATE_AND_TIME Date and time of day see DATE and TIME_OF_DAY STRING variable-long character max. 255 characters (ISO) string Minebea Intec EN-211...
Page 214: Addressing
BOOL > Max + permitted range (OVL) BOOL < zero BOOL Zero ±¼ d BOOL Within the zeroset range (ZSR) BOOL The weight is stable BOOL Weight < zero or > Max (FSD = Full Scale Deflection) EN-212 Minebea Intec...
Page 215 Weight unit 1 = mg, 2 = g, 3 = kg, 4 = t, 5 = lb, 9 = oz SINT Verification interval (for multi-interval/multi-range = d1 or e1) BYTE Last weighing point error, see Chapter 16.6.1. BYTE Higher byte of product code (0x52) BYTE Lower byte of product code (0x20) Minebea Intec EN-213...
Page 216 Preset tare memory (X118, X119) B144 BYTE EasyFill only: Batching status 1 X1152 BOOL Batching active X1153 BOOL Batching ready (ready/idle) X1154 BOOL Batching is in error state X1155 BOOL The setup menu of the scale is active. EN-214 Minebea Intec...
Page 217 EasyFill only: Tolerance below set point DINT EasyFill only: Tolerance above set point W104 (B209) WORD EasyFill only: Report: Material ID B212…229 BYTE EasyFill only: Report: Material name DINT EasyFill only: Report: Batched weight DINT EasyFill only: Report: Set point Minebea Intec EN-215...
Page 218 SPM out AND coarse X1152…1215 BOOL Output and coarse LWORD SPM out AND fine X1216…1279 BOOL Output and fine Note: The system variables (e.g. ST_WGT_A) for communication via OPC are described in operating instructions PR 1792 (Chapter 4 + 5). EN-216 Minebea Intec...
Page 219 13 SPM Transmitter Series PR 5220 Example: Production start Write material parameters (D44…D49). Start batching (X1168). Monitor status (B144, B145). Once batching is complete, read report data. Minebea Intec EN-217...
Page 220: Repairs And Maintenance
14.1 Repairs Repairs are subject to inspection and must be carried out at Minebea Intec. In case of defect or malfunction, please contact your local Minebea Intec dealer or service center for repair. When returning the device for repair, please include a precise and complete description of the problem.
Page 221: Disposal
Minebea Intec at a charge. This option of returning the product is intended to provide proper recycling or reuse in a manner that is collected separately from municipal waste.
Page 222: Error Messages
Internal weighing point: The measuring signal is higher than the permissible range of 36 mV. Cannot read weight values from ADC (analog-digital converter). Error in weighing electronics board. Defective load cell. Cable break. 16.2 Weight error status EN-220 Minebea Intec...
Page 223: Error Messages For Xbpi Scales
Cable break. Internal scale error. The scale is not connected to the power supply. No weight data The weight value is not displayed: Another weighing point was selected. Press to assign the new weighing point to the device. Minebea Intec EN-221...
Page 224: Error Messages For Pendeo Load Cells
At least 1 load cell gives an error status or is defective (no communicati- on). Wrong configuration The number of load cells does not match the configuration. Wrong serial number Serial number of scale does not match the number set in the device. EN-222 Minebea Intec...
Page 225: Error Messages During Calibration
0.8 internal counts per scale interval (d) are available. This message displays if the maximum load is not an integer multiple of the scale interval. Weight units don't match, e.g., subsequent change for [Max] from kg in- to lb. Minebea Intec EN-223...
Page 226 Adapt the standstill conditions. This message is displayed if the weight on the scale is < the dead load after input of the weight value. The maximum capacity is not an integer multiple of the scale interval. EN-224 Minebea Intec...
Page 227: Error Numbers @ "Last_Error
Sequence number is invalid. invalid Invalid fieldbus com- Fieldbus action is invalid (e.g., simultaneous start and stop com- mand mand). Cannot read from Error when reading a material entry from the hard drive memo- earom ry (EAROM) → hardware error Minebea Intec EN-225...
Page 228 Example: Starting filling during an ongoing filling process or star- ting filling when querying the system setup. Weight unit of mate- The unit of the weighing point does not match the unit of the ma- rial invalid terial. EN-226 Minebea Intec...
Page 229: Technical Data
Current number 30 = Hamburg 252* = April 2010 * Is increment according to the year group table of Minebea Intec. 17.3 General data The following characteristics are valid after a warm-up time of at least 60 minutes (reference temperature 23 °C).
Page 230: Electromagnetic Compatibility (Emc)
8 load cells, each with 650 Ω for max. 4 load cells, each with 350 Ω Sense voltage monito- Sense voltage below U = +4…-4 V ring will be detected. Can be switched off via software Max. load ≥75 Ω EN-228 Minebea Intec...
Page 231: Principle
Length of the connecting cable between junction box and instrument Cable type PR 6135, PR 6135A max. 500 m – length of the load cell cable Length of the connecting cable between weighing platform and instrument Cable type LiYCY max. 500 m Minebea Intec EN-229...
Page 232: Mechanics
PR 5220/00 PR 5220/01, -/04, -/06, -/07 Net weight 0.29 kg 0.35 kg 17.7 Documentation on the CD included The documents and manuals listed in the appendix (see Chapter 18.3) can be found on the PR 5220 CD. EN-230 Minebea Intec...
Page 233: Appendix
EU-Declaration of Conformity MEU17030 Declaration of Conformity MDC17004 Certificate of Conformance UL 20170313 – E478290 Certificate of Conformity TR CU 020 RU Д-DE.A301.B.06727 The documents listed in the table can be found on the PR 5220 CD. Minebea Intec EN-231...
Page 234 Published by Minebea Intec GmbH | Meiendorfer Strasse 205 A | 22145 Hamburg, Germany Phone: +49.40.67960.303 | Email: info@minebea-intec.com www.minebea-intec.com...

This manual is also suitable for:

Pr 5220/00 Pr 5220/01 Pr 5220/04 Pr 5220/06 Pr 5220/07

Minebea Intec PR 5220 Series Instrument Manual

Quick Links

Need help?

Questions and answers

Related Manuals for Minebea Intec PR 5220 Series

Summary of Contents for Minebea Intec PR 5220 Series

This manual is also suitable for:

Table of Contents
