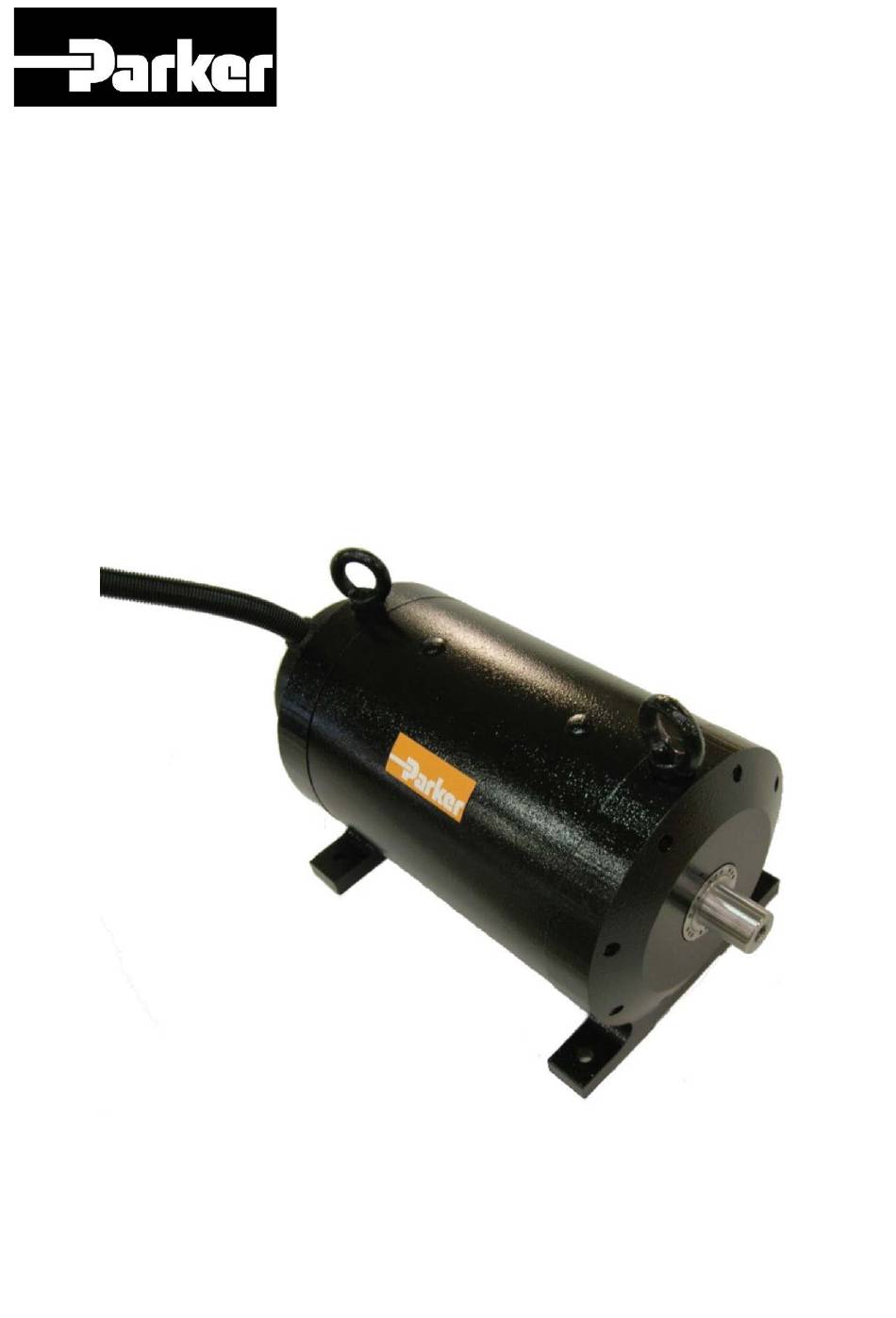

- Page 1 HIGH SPEED MOTORS MGV Series Commisionning Manual PVD 3661_GB - 1 - PVD 3661 MGV_ commisionning manual_March 2012.docx...
- Page 2 Equipment shall furthermore be mounted on a mechanical support that conducts heat effectively and does not exceed 40°C. Parker 8, avenue du Lac – BP30749 F-21007 DIJON CEDEX Tel : +33 (0)3 80 42 41 40 Fax : +33 (0)3 80 42 41 23 www.parker.com...
-
Page 3: Table Of Contents
AC890 Drive Association ........................14 3.2.4. Illustration of tables ........................... 14 3.2.5. Further Data ............................15 3.2.6. Time constants of the motor ......................15 3.2.7. Voltage withstand characteristics of MGV series ................15 3.3..........................15 IMENSION DRAWINGS 3.4............................16 OTOR MOUNTING 3.4.1. - Page 4 3.8.1. Wires sizes ............................28 3.8.2. Conversion Awg/kcmil/mm²: ......................30 3.8.3. Motor cable length ..........................30 3.8.4. Ground connection ........................... 30 3.8.5. Motor cable ............................31 3.9............................31 EEDBACK SYSTEM 3.9.1. Resolver ............................31 3.9.2. Cables and connectors associated to the resolver ................32 3.9.3.
-
Page 5: Introduction
1. INTRODUCTION 1.1. Purpose and intended audience This manual contains information that must be observed to install, operate and maintain PARKER MGV high speed motors. Installation, operation and maintenance of the equipment should be carried out by qualified personnel. A qualified person is someone who is technically competent and familiar with all safety information and established safety practices;... - Page 6 Electrical hazard Servo drives may contain non-insulated live AC or DC components. Respect the drives commissioning manual. Users are advised to guard against access to live parts before installing the equipment. Some parts of the motor or installation elements can be subjected to dangerous voltages, when the motor is driven by the inverter , when the motor rotor is manually rotated, when the motor is driven by its load, when the motor is at standstill or stopped.
-
Page 7: Product Description

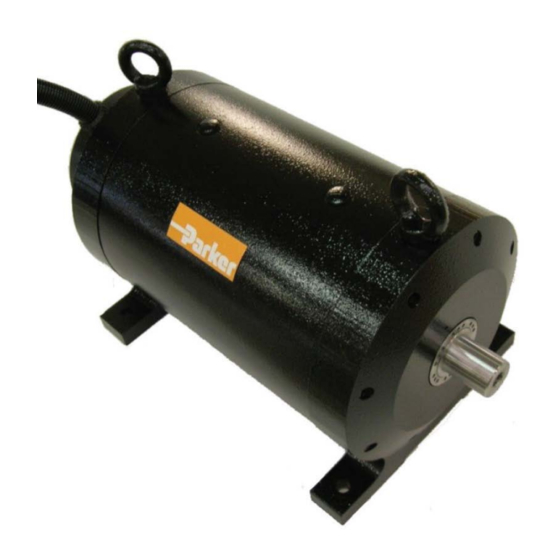

2. PRODUCT DESCRIPTION 2.1. Overview The MGV high-speed motors from Parker are innovating solutions through direct drive, specifically designed for industrial applications where high speed is needed. The MGV motors are brushless synchronous servomotors, with permanent magnets, based on HKW active parts and fully integrated with a water-cooled housing, high speed ball bearings, encoder …... -
Page 8: General Technical Data
2.3. General technical data Motor type Permanent-magnet synchronous motor Magnet material Nd-Fe-B Number of poles Size: MGV400 MGV600 MGV800 MGV900 MGVA00 Nbr of poles: Mechanical interface Flange IM3001 (IM B5) or feet IM1001 (IM B3) (IEC60034-7) Sizes 4, 6, 8, 9, A Degree of Protection IP40 as standard Cooling... -
Page 9: Product Code
2.4. Product Code Code Product Series Motor size (in connection with diameter) 4, 6, 8, 9, or A Active Part Length Torque / Speed characteristics See motor datas Feedback Sensor A : Resolver K : sin/cos encoder (on request) Mounting arrangement B3 : by feet B5 : by flange Bearing design... -
Page 10: Technical Data
° At high speed, the calculation is more complex, and the derating is much more important. Please refer to PARKER to know the precise data of Torque derating according to water inlet temperature at high speed for a specific motor. -
Page 11: Thermal Equivalent Torque (Rms Torque)
3.1.3. Thermal equivalent torque (rms torque) SEE PVD 3627_GB 3.1.4. Acceleration – Deceleration time with MGV motors SEE PVD 3627_GB 3.1.5. Drive selection The drive selection depends on its rated power, nominal current and maximal electrical frequency able to be managed by the drive and by the flux weakening ratio. -
Page 12: Current Limitation At Stall Conditions (I.e. Speed < 3 Rpm)
Other limitations can come from the bearing type (steel straight, hybrid or Xlife) Cf: §3.4 Bearing 3.1.6. Current limitation at stall conditions (i.e. speed < 3 rpm) Recommended reduced current at speed < 3 rpm: ≅ reduced Warning: The current must be limited to the prescribed values. If the nominal torque has to be maintained at stop or low speed (<... -
Page 13: Motor Characteristics And Drive Association
Tp (second) Ipeak/In >2.4 MGV4 MGV6 MGV8 MGV9 MGVA Consult us for more demanding applications. 3.2. Motor characteristics and drive association 3.2.1. Intrinsic characteristics MoS6 Io S6 (kW) (kW) (Nm) (Nm) (rpm) (rpm) (Arms) (Arms) MGV430BAL DRIVE 25/51 - 400 13100 45000 X life... -
Page 14: Ac890 Drive Association
3.2.3. AC890 Drive Association MoS6 (kW) (kW) (Nm) (Nm) (rpm) (rpm) MGV430BAL 890SD-53230SC 13000 27900 Hybrid MGV430BAI 890SD-532450D 22000 30000 Hybrid MGV635CAF 890SD-532450D 7500 15800 Steel MGV635CAD 890SD-532590D 13000 20000 Hybrid MGV635CAD 890SD-432730E 12000 16000 Steel MGV840CAP 890SD-532450D 2300 4510 Steel MGV840CAH 890SD-432870E... -
Page 15: Further Data
3.2.6.2. Mechanical time constant: SEE PVD 3627_GB 3.2.6.3. Thermal time constant of the copper: SEE PVD 3627_GB 3.2.7. Voltage withstand characteristics of MGV series SEE PVD 3627_GB 3.3. Dimension drawings SEE PVD 3627_GB 15 - PVD 3661 MGV_ commisionning manual_March 2012.docx... -
Page 16: Motor Mounting
3.4. Motor mounting 3.4.1. Motor mounting By flange and feet By feet For vertical mounting, Please consult us. The load capacity and vibration resistance on shaft are different than for horizontal mounting. 3.4.2. Typical mounting. Warning : The load must be supported by bearings. No additional weight must be mounted on the shaft, even if this weight generates a force lower than the maximum force allowed on the shaft. -
Page 17: Frame Recommendation
3.4.3. Frame recommendation Warning : The user has the entire responsibility to design and prepare the support, the coupling device, shaft line alignment, and shaft line balancing. Foundation must be even, sufficiently rigid and shall be dimensioned in order to avoid vibrations due to resonances. -
Page 18: Coupling
Thermal expansion can also generate strain and load. These forces (axial and radial) must be below the maximum shaft allowed forces (§3.4). Warning : Parker will not be responsible for any motor shaft failure due to excessive strains on the shaft . -
Page 19: Vibration And Bearings Temperature Control
3.4.7. Vibration and bearings temperature control It is highly recommended to implement a vibratory control in accordance with the ISO 10816 standard to detect any sign of mechanical evolution before breakdown. Accelerometers must be located closed to the bearings Accelerometers (vibration sensor) Moreover, it is highly recommended to monitor the bearings temperature. -
Page 20: Bearings
3.5. Bearings The bearings are greased for life. The statistic bearings life is limited from 6000h up to 10000h depending on the way there are assembled and used, it is recommended to control the vibrations every 3000h or to change it once the predicted lifetime is reached. -
Page 21: Cooling
3.6. Cooling In compliance with the IEC 60034-1 standards: 3.6.1. General recommendations Danger: The cooling system has to be operational when the motor is running or energized. Danger: The Inlet temperature and the water flow have to be monitored to avoid any damage. -
Page 22: Additives For Water As Cooling Media
3.6.2. Additives for water as cooling media Please refer to motor technical data for coolant flow rates. The water inlet temperature must not exceed 25°C to get the full performances. The inner pressure of the cooling liquid must not exceed 5 bars. Caution: To avoid the corrosion of the motor cooling system (aluminum or steel), the water must have anti-corrosion additive. -
Page 23: Motor Cooling Circuit Data And Chiller Selection
Chiller must be able to evacuate motor power loss (see table above). Chiller pump must provide water flow through motor and pipe pressure drop. Inlet temperature must be inferior to 25°C. You can find various chillers solutions in Parker Hiross - http://www.dh-hiross.com/ Maxi drop Series Hyperchill type ICE... -
Page 24: Flow Derating According To Glycol Concentration
3.6.4. Flow derating according to glycol concentration Gly col concentration [% ] 10.2 10.6 11.1 11.8 12.4 15.3 15.9 16.7 17.6 18.7 20.4 21.2 22.2 23.5 24.9 25.5 26.5 27.8 29.4 31.1 30.6 31.8 33.4 35.3 37.3 35.7 37.1 38.9 41.1 43.6 40.8... -
Page 25: Water Cooling Diagram
3.6.5. Water cooling diagram Recommendation: The use of a filter allows reducing the presence of impurities or chips in the water circuit in order to prevent its obstruction. We recommend a 0.1mm filter. This section shows typical water cooling diagram: There is no recommendation on water inlet and... - Page 26 No Parallel Circuit Chiller or Exchanger without flow control Pump Spindle servomotor To other(s) device(s) No Serial Circuit Pump Spindle servomotors 26 - PVD 3661 MGV_ commisionning manual_March 2012.docx...
-
Page 27: Thermal Protection
3.7. Thermal Protection Protection against thermal overloading of the motor is provided by two PTC thermistors and one KTY temperature sensor (and one more in case of KTY failure) built into the stator winding as standard. The thermal sensors, due to their thermal inertia, are unable to follow very fast winding temperature variations. They achieve their thermal steady state after a few minutes. -
Page 28: Temperature Measurement With Kty Sensors
3.7.2. Temperature measurement with KTY sensors: Motor temperature can also be continuously measured by the drive using a KTY 84-130 thermal sensor built in to the stator winding. KTY sensors are semiconductor sensors that change their resistance according to an approximately linear characteristic. - Page 29 Not limiting example in France: NFC 15-100 or IEC 60364 as well in Europe. Cable selection depends on the cable construction, so refer to the cable technical documentation to choose wire sizes Some drives have cable limitations or recommendations; please refer to the drive technical documentation for any further information.
-
Page 30: Conversion Awg/Kcmil/Mm²
Please contact Parker for further information. Caution: It might be necessary to fit a filter at the servo-drive output if the length of the cable exceeds 25 m. -
Page 31: Motor Cable
3.8.5. Motor cable The electrical connection on MGV motor is realized by high performance cable. The motor cable section depends on the motor current level. Please refer to the outline drawing to know the cross section (depending of torque/speed characteristics letter code). Caution: The motor cables are designed for high current density, so cable surface can reach or exceed 100°C. -
Page 32: Cables And Connectors Associated To The Resolver
3.9.2. Cables and connectors associated to the resolver Cable reference for DIGIVEX drive: CD1UA1F1R0xxx depending on length Cable reference for AC 890 drive: CS4UA1F1R0xxx depending on length. The "xxx" in the part number must be replaced by the length in meter. Ex : for 20m cable, "xxx"... -
Page 33: Storage
The picture hereunder shows the correct way for handling the high-speed motors. 50°min 50°min DANGER: Choose the correct slings for the motor weight. The two slings must the same length and a minimum angle of 50° has to be respected between the motor axis and the slings. -
Page 34: Preparation
The table below gives the average tightening torques required regarding the fixing screw diameter. These values are valid for both motor’s feet and flange bolting. Screw diameter Tightening torque Screw diameter Tightening torque M2 x 0.35 0.35 N.m M9 x 1.25 31 N.m M2.5 x 0.4 0.6 N.m... -
Page 35: Alignment
Danger : Coupling misalignment generates vibrations that can lead to a shaft failure. Warning : Parker will not be responsible for any motor shaft fatigue due to excessive strain on the shaft, a bad alignment or bad shaft line balancing . -
Page 36: Motor Startup
Different solutions are possible to align motor with load: With dial gauge : Dial gauge to mesure offset Dial gauge to measure angular deviation With laser A laser alignment is highly recommended for speeds > 10000rpm Laser receptor Laser transmitter Warning : The load must be supported by bearings. -
Page 37: Shaft Line Balancing And Vibration Control
Attention : Strong speed step without speed ramp can damage bearings or can excite natural frequency. 4.2.6. Shaft line balancing and vibration control Once the motor is fixed on its frame and linked with the driven load, it is highly recommended to check complete shaft line balancing to minimize vibrations. -
Page 38: Maintenance Operations
The qualified personnel must know the safety (C18510 authorization, standard VDE 0105 or IEC 0364) and local regulations. They must be authorized to install, commissioning and operate in accordance with established practices and standards. Please contact PARKER for technical assistance. Operation Periodicity Section number... -
Page 39: Troubleshooting
4.5. Troubleshooting We provide hereunder a symptom list in regard with their possible cause. This is not an exhaustive list so in case of trouble, please refer to the associated servo drive manual (the diagnostic board indications will help you investigating).
