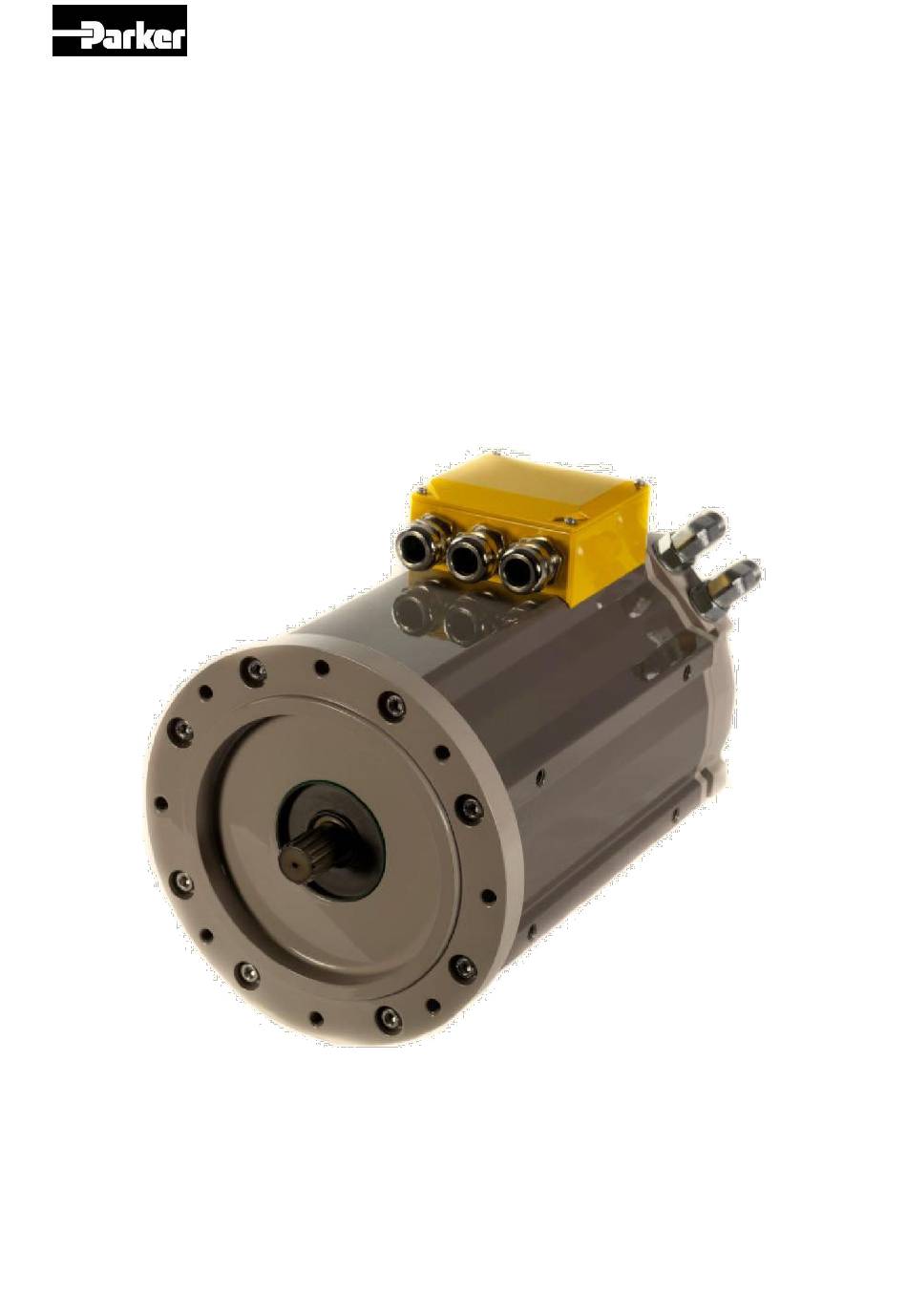

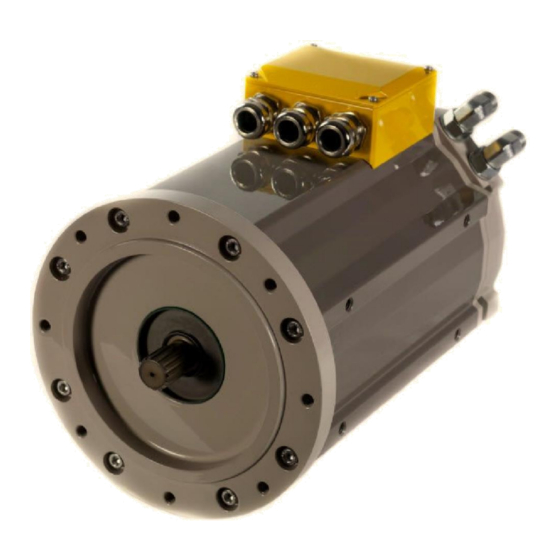

Global Vehicle Motors
GVM Series
Technical Manual
PVD 3668_GB
- 1 –
18-06-08 PVD3668_GB_GVM_June_2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GVM Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Parker GVM Series

Summary of Contents for Parker GVM Series

  • Page 1 Global Vehicle Motors GVM Series Technical Manual PVD 3668_GB - 1 – 18-06-08 PVD3668_GB_GVM_June_2018...
  • Page 2 - 2 – 18-06-08 PVD3668_GB_GVM_June_2018...

  • Page 3: Table Of Contents

    Table of Content INTRODUCTION ............................5 1.1......................5 URPOSE AND INTENDED AUDIENCE 1.2..............................5 AFETY 1.2.1. Principle ............................. 5 1.2.2. General Safety Rules ........................ 6 PRODUCT DESCRIPTION ......................... 8 2.1. URL ............................8 UICK 2.2............................8 VERVIEW 2.3.
  • Page 4 COMMISSIONING, USE AND MAINTENANCE ..................76 4.1......................76 ECEPTION HANDLING STORAGE 4.1.1. Equipment delivery ........................76 4.1.2. Handling ........................... 76 4.1.3. Storage ............................ 77 4.2............................77 NSTALLATION 4.2.1. Mounting ..........................77 4.2.2. Preparation ..........................78 4.2.3. Mechanical assembly ......................78 4.3.

  • Page 5: Introduction

    If any malfunction or technical problem occurs, that has not been dealt with in this manual, please contact PARKER for technical assistance. In the case of missing information or doubts regarding the installation procedures, safety instructions or any other issue tackled in this manual, please contact PARKER directly.

  • Page 6: General Safety Rules

    1.2.2. General Safety Rules Generality DANGER: The installation, commissioning and operation must be performed by qualified personnel, in conjunction with this documentation. The qualified personnel must know the safety (C18510 authorization, standard VDE 0105 or IEC 0364 as an example) and local regulations. They must be authorized to install, commission and operate in accordance with established practices and standards.
  • Page 7 Mechanical hazard Brushless synchronous motors can accelerate in milliseconds. Running the motor can lead to other sections of the machine moving dangerously. Moving parts must be screened off to prevent operators coming into contact with them or to protect the people against a shaft failure.

  • Page 8: Product Description

    All informations and datas are avaible on : http://ph.parker.com/us/17607/en/gvm-global-vehicle-motors-for-mobile-applications 2.2. Overview The GVM motors from Parker are innovative solutions, specifically designed for Mobile applications for Traction, Electro Hydraulic Pump (EHP) or Auxiliary functions. The GVM motors are brushless synchronous servomotors, with permanent magnets, with a Water-glycol or Oil cooling system and a resolver / encoder speed sensor.
  • Page 9 Mechanical interface Different interfaces for Implement and Traction Sizes (square motor dimension) 142, 210 Degree of Protection IP67 as standard ; IP6K9K on request (IEC 60034-5) Cooling Water-glycol cooled, Oil cooled or Natural convection Cooling liquid temperature -20°C to 65°C depending on coolant characteristics Rated voltage 24 VDC to 800 VDC Connections...

  • Page 10: Product Code

    2.5. Product Code GVM 210 150 AA W A A A TA 1 G Motor Code : Series : GVM - Motor GVK – Kit Frame : Outer width of motor in mm Stack : Length of motor lamination stack 075** 150* 200*...

  • Page 11: Technical Data

    Standard datasheets are available for water cooling without Glycol and inlet temperatures of 25°C or 65°C (see total flow required if Glycol is added on § 3.6.3). Parker can provide a specific datasheet for a different coolant type or coolant temperature. 3.1.3. Thermal equivalent torque (rms torque) The selection of the correct motor can be made through the calculation of the rms torque (i.e.
  • Page 12 Selection of the motor : The motor corresponding to the duty cycle has to provide the rms torque M at the rms speed(*) without extra heating. This means that the permanent torque M available at the average speed presents a sufficient margin regarding the rms torque M rms.

  • Page 13: Inverter Selection

    3.1.4. Inverter selection The Inverter selection depends on at first on the available voltage and then on its rated power, nominal current and maximum electrical frequency have to be achieved by the drive and by the flux weakening ratio. Please refer to the drive technical documentation for any further information and to select the best motor and drive association.

  • Page 14: Current Limitation At Stall Conditions (I.e. Speed < 3 Rpm)

    3.1.5. Current limitation at stall conditions (i.e. speed < 3 rpm) Recommended reduced current at speed < 3 rpm:   reduced Warning: The current must be limited to the prescribed values. If the nominal torque has to be maintained at stop or low speed (< 3 rpm), the current must not exceed 70% of I (permanent current at low speed), in order to avoid any excessive overheating of the motor.
  • Page 15 Ip = Peak current In = Nominal current for a define speed (For low speed In=Io) tp = duration of the peak current in the cycle. tc = duration of the cycle Irms = Thermal equivalent current. ( Irms=√(Ip²*tp/tc) ) Tcp = Thermal time constanst of the copper.
  • Page 16 Consult us for more demanding applications. - 16 – 18-06-08 PVD3668_GB_GVM_June_2018...

  • Page 17: Motor Characteristics And Inverter Association

    3.2. Motor characteristics and inverter association The torque vs speed graph below explains different intrinsic values of the next tables. Peak Torque Mmax Intermittent Operating Area Rated Power Nn ,Mn Rated Torque Constant Power Continuous Operating Area Flux Weakening Nmax Speed Rated 1000...

  • Page 18: Motor - Drive Connection Rules

    Following instructions are given as general rules to respect for standard architecture, all other connections like I/O, throttles … must respect rules as well. Some adjustments could be necessary. All connections, settings, architectures are not under PARKER responsibility POWER BATTERY...

  • Page 19: Low Voltage Associations With Natural Convection

    3.2.2. Low Voltage Associations with Natural Convection These associations without liquid cooling are typically dedicated to EHP due to the low speed level available. GVM with a contact surface at 60°C – Characteristics given for an optimal inverter/motor association Battery Rated Rated Rated...
  • Page 20 GVM with a contact surface at 60°C – Characteristics with Low Voltage MC drive association Battery Rated Rated Rated Rated Peak Peak Peak Max. Efficiency Torque Power Current Speed Torque power Current Speed at Rated Motor Drive Voltage Mmax Nmax Power Supply (N.m)

  • Page 21: Low Voltage Associations With Liquid Cooling

    3.2.3. Low Voltage Associations with Liquid Cooling GVM with input coolant at 65°C – Characteristics given for an optimal inverter/motor association Battery Rated Rated Rated Rated Peak Peak Peak Max. Pure Efficiency Torque Power Current Speed Torque power Current Speed Water at Rated Motor...
  • Page 22 GVM with input coolant at 65°C – Characteristics with Low Voltage MC drive association Battery Rated Rated Rated Rated Peak Peak Peak Max. Pure Efficiency Torque Power Current Speed Torque power Current Speed Water at Rated Motor Drive Voltage Mmax Nmax Flow Power...

  • Page 23: High Voltage Associations With Liquid Cooling

    3.2.4. High Voltage Associations with Liquid Cooling GVM with input coolant at 65°C – Characteristics given for an optimal inverter/motor association Battery Rated Rated Rated Peak Peak Peak Max. Pure Efficiency Rated Power Current Speed Torque power Current Speed Water at Rated Motor Torque...
  • Page 24 GVM with input coolant at 65°C – Characteristics with High Voltage MD drive association Battery Rated Rated Rated Rated Peak Peak Peak Pure Efficiency Torque Power Current Speed Torque Power Current Speed Water at Rated Motor Drive Voltage Flow Power Supply (N.m) (kW)
  • Page 25 Battery Rated Rated Rated Rated Peak Peak Peak Pure Efficiency Torque Power Current Speed Torque Power Current Speed Water at Rated Motor Drive Voltage Flow Power Supply (N.m) (kW) (Arms) (rpm) (N.m) (kW) (Arms) (rpm) (l/min) GVM210 - Three-phased - Liquid cooled at 65°C GVM210-050-QRW MD-4A-80-053-00 38.4 9.26...
  • Page 26 GVM with input coolant at 25°C – Characteristics given for an optimal inverter/motor association Rated Rated Rated Rated Peak Peak Max. Speed speed Power Torque Speed Current Torque Current Speed Motor Torque Current Mpeak I peak Nmax (kW) (Nm) [rpm] [Arms] [Nm] [Arms]...

  • Page 27: Typical Efficiency Maps Without Flux-Weakening

    3.2.1. Typical Efficiency Maps without Flux-Weakening Caution: The efficiency curves are typical values. They may vary from one motor to an other Caution: The efficiency curves are given for an optimal motor control (no voltage saturation and optimal phase between current and EMF) Caution: The efficiency curves do not include the losses due to the switching frequency.
  • Page 28 GVM142-050 in Motor operation mode : GVM142-050 in Generator operation mode : - 28 – 18-06-08 PVD3668_GB_GVM_June_2018...
  • Page 29 GVM142-075 in Motor operation mode : GVM142-075 in Generator operation mode : - 29 – 18-06-08 PVD3668_GB_GVM_June_2018...
  • Page 30 GVM142-100 in Motor operation mode : GVM142-100 in Generator operation mode : - 30 – 18-06-08 PVD3668_GB_GVM_June_2018...
  • Page 31 GVM210-050 in Motor operation mode : GVM210-050 in Generator operation mode : GVM210-100 in Motor operation mode : - 31 – 18-06-08 PVD3668_GB_GVM_June_2018...
  • Page 32 GVM210-100 in Generator operation mode : GVM210-150 in Motor operation mode : - 32 – 18-06-08 PVD3668_GB_GVM_June_2018...
  • Page 33 GVM210-150 in Generator operation mode : - 33 – 18-06-08 PVD3668_GB_GVM_June_2018...
  • Page 34 GVM210-200 in Motor operation mode : GVM210-200 in Generator operation mode : - 34 – 18-06-08 PVD3668_GB_GVM_June_2018...
  • Page 35 GVM210-300 in Motor operation mode : GVM210-300 in Generator operation mode : - 35 – 18-06-08 PVD3668_GB_GVM_June_2018...
  • Page 36 GVM210-400 in Motor operation mode : GVM210-400 in Generator operation mode : - 36 – 18-06-08 PVD3668_GB_GVM_June_2018...

  • Page 37: Time Constants Of The Motor

    3.2.2. Time constants of the motor 3.2.2.1. Electric time constant:   elec With following values given in the motor data sheet inductance of the motor phase to phase [H], ph_ph resistance of the motor phase to phase at 25°C [Ohm]. ph_ph Example: Motor series GVM210-400-DPW...
  • Page 38  For a GVM motor, the mechanical time constant represents the duration needed to mech reach 63% of the final speed when applying a voltage step without any resistant torque, if the electrical time constant is much smaller than the mechanical time constant. An overall summary of motor time constants is given later.

  • Page 39: Dimension Drawings

    3.3. Dimension drawings 3.3.1. GVM142 outline drawings - 39 – 18-06-08 PVD3668_GB_GVM_June_2018...
  • Page 40 - 40 – 18-06-08 PVD3668_GB_GVM_June_2018...
  • Page 41 - 41 – 18-06-08 PVD3668_GB_GVM_June_2018...

  • Page 42: Gvm210 Outline Drawings

    3.3.2. GVM210 outline drawings - 42 – 18-06-08 PVD3668_GB_GVM_June_2018...
  • Page 43 - 43 – 18-06-08 PVD3668_GB_GVM_June_2018...
  • Page 44 - 44 – 18-06-08 PVD3668_GB_GVM_June_2018...
  • Page 45 - 45 – 18-06-08 PVD3668_GB_GVM_June_2018...
  • Page 46 - 46 – 18-06-08 PVD3668_GB_GVM_June_2018...
  • Page 47 - 47 – 18-06-08 PVD3668_GB_GVM_June_2018...

  • Page 48: Motor Mounting

    GVM motors have been designed for an horizontal mounting (see §4.2). Considering the above schematics, GVM motors have to be supported on their rear side. For alternative mounting positions, please contact Parker. GVM motors have been designed for being assembled on gearboxes or hydraulic pumps and cannot support any axial / radial additional load on the shaft.

  • Page 49: Frame Recommendation

    It is recommended to change it once the predicted lifetime is reached. Please contact Parker in order to achieve this operation. Other limitations can come from the winding or the drive (cf: §3.1.4-Drive selection)

  • Page 50: Axial And Radial Load

    The bearing arrangement is made with 2 ball bearings (one on the shaft end + another on the rear). The rear bearing is blocked in axial translation and the front one is free in translation to avoid any stress from the shaft thermal expansion during the running. So, it is important not to block in translation the shaft expansion by any extra bearing or similar device.
  • Page 51 GVM210 Horizontal mounting Max radial Max axial Max Radial Max axial Load load Lenght Load Pump load Pump Traction Traction 8000 6000 GVM210-400 5000 3000 1000 1200 1500 1300 1650 8000 6000 GVM210-300 5000 3000 1020 1200 1500 1400 1650 8000 6000 GVM210-200...
  • Page 52 GVM210 Vertical Mounting – Shaft Upper side Max radial Max axial load Max Radial Max axial load Lenght Load Traction Traction (N) Load Pump (N) Pump (N) Without load : Without load : Without load : Without load : 8000 11000 h 11000 h 11000 h...
  • Page 53 - 53 – 18-06-08 PVD3668_GB_GVM_June_2018...
  • Page 54 GVM210 Vertical Mounting – Shaft down side Max radial Max axial Max Radial Max axial Lenght Load Traction load Traction Load Pump load Pump 8000 6000 GVM210-400 5000 3000 1500 8000 6000 Minimum GVM210-300 5000 pre-load 3000 1500 guaranteed 8000 7000 6000 GVM210-200...
  • Page 55 - 55 – 18-06-08 PVD3668_GB_GVM_June_2018...

  • Page 56: Cooling

    3.6. Cooling 3.6.1. General recommendations Danger: It is compulsory to start the cooling system before starting the motor. Danger: The Inlet temperature and the water flow have to be monitored to avoid any damage. Caution: When motor is no more running, the cooling system has to be stopped 10 minutes after the motor shut down.

  • Page 57: Additives For Water As Cooling Media

    3.6.2. Additives for water as cooling media Please refer to motor technical data for coolant flow rates. The inner pressure of the cooling liquid must not exceed 5 bars. Caution: To avoid the corrosion of the motor cooling system (aluminum or copper), the water must have anti-corrosion additive (as Glycol).

  • Page 58: Flow Rating According To Glycol Concentration

    3.6.3. Flow rating according to glycol concentration Use of the graph above - Example If the motor needs 10 l/min with 0% glycol, If application needs 20% glycol, the water flow must be 10,6 l/min, If application needs 40% glycol, the water flow must be 11,8 l/min. Main formulas Power dissipatio...

  • Page 59: Gvm Internal Pressure Drop

    3.6.4. GVM Internal Pressure Drop These values do not take into account the customer cooling connection. With Water-Glycol 50% - input at 65 °C : - 59 – 18-06-08 PVD3668_GB_GVM_June_2018...
  • Page 60 With Oil with a 46 cSt viscosity (@40°C) – input at 65°C : - 60 – 18-06-08 PVD3668_GB_GVM_June_2018...

  • Page 61: Chiller Selection

    3.6.5. Chiller selection This section describes how to choose the chiller. The chiller is able to extract the heat from the motor losses with the water circulation. The motor losses (= power to extracted by the chiller) depend on the efficiency and motor power : ...

  • Page 62: Liquid Cooling Diagram

    3.6.6. Liquid cooling diagram Recommendation: The use of a filter allows reducing the presence of impurities or chips in the liquid circuit in order to prevent any obstruction. This section shows typical liquid cooling diagram: There is no recommendation on liquid inlet and outlet position Chiller or Exchanger Pump...
  • Page 63 No Parallel Circuit Chiller or Exchanger without flow control Pump GVM motor To other(s) device(s) No Serial Circuit Pump GVM motors - 63 – 18-06-08 PVD3668_GB_GVM_June_2018...

  • Page 64: Coolant Connections

    GVM142 : Coolant inlet / outlet are ORB-4 SAE J1926-1 with thread 7/16-20 UNF GVM210 : Coolant inlet / outlet are ORB-8 SAE J1926-1 with thread 3/4-16 UNF These parts can be provided by Parker as follows : 2 options are available for the GVM fittings :...

  • Page 65: Thermal Protection - Positive Temperature Coefficient Sensors

    3.7. Thermal Protection – Positive Temperature Coefficient sensors Protection against thermal overloading of the motor is provided by three PTC thermistors and two linear temperature sensors equivalent to KTY84 (one is a redundant spare ; only one is connected) built into the stator winding as standard. Globally, the thermal sensors, due to their thermal inertia, are unable to follow very fast winding temperature variations.

  • Page 66: Temperature Measurement With Linear Positive Temperature Coefficient Sensors

    3.7.2. Temperature measurement with Linear Positive Temperature Coefficient sensors : Motor temperature can also be continuously measured by the drive using an LPTC thermal sensor (or equivalent) built in to the stator winding. LPTC sensors change their resistance according to an approximately linear characteristic. The required temperature limits for alarm and tripping can be set in the drive.
  • Page 67 Example for a step of current on GVM210 1000 delay ~ few seconds Time [s] Average winding T° [°C] KTY84 or LPTC600@25°C 3 serial PTC - 67 – 18-06-08 PVD3668_GB_GVM_June_2018...

  • Page 68: Power Electrical Connection

    3.8. Power electrical connection 3.8.1. Cables sizes In every country, you must respect all the local electrical installation regulations and standards. Cable selection depends on the cable construction, so refer to the cable technical documentation to choose wire sizes Some drives have cable limitations or recommendations; please refer to the drive technical documentation for any further information.

  • Page 69: Motor Cable Length

    Please contact PARKER for further information. Caution: It might be necessary to fit a filter at the servo-drive output if the length of the cable exceeds 25 m.

  • Page 70: Mains Supply Connection Diagrams

    Caution: A bad tightening on the cable or a too small cable section can generate an overheating and damage the motor. Parker can provide High Power cables, to be placed between the motor and the drive, with standard lengths of 1, 2, 3 or 4 meters.
  • Page 71 3.8.3.1. Motor connection For Parker High Power cables, please follow the next 5 steps : Please use M6 x 10 to fix the terminals (tightening torque : see p61) - 71 – 18-06-08 PVD3668_GB_GVM_June_2018...
  • Page 72 For the specific case of High Voltage Low Power drives : Parker can supply 4 meter length Power cable which part number is HVLP-D-M-CABLE. To connect the motor, please follow the 7 next steps. - 72 – 18-06-08 PVD3668_GB_GVM_June_2018...
  • Page 73 Take care to close non-used cable glands As previously, Parker can provide 4 meter length power cable to take place between the drive and the battery (with 2 interlock wires) which part number is HVLP-B-D-CABLE. For High Voltage Low Power drives with multi core thin cables, the plastic insulator must not be damaged neither removed to insure insulation and safety protection.

  • Page 74: Feedback System

    L,M,N,P,R,S,T,U,V Not Connected In this case, Parker can provide Resolver Sensor cables, to be placed between the motor and the drive, with standard lengths of 1, 2, 3 or 4 meters ; its part number is built as follows “CBFRE0H0-SRX-000-00x0-00” where “x” is the length in meter.

  • Page 75: Sin-Cos Encoder (Low Voltage Application)

    L,M,N,P,R,S,T,U,V Not Connected In this case, Parker can provide Encoder Sensor cables, to be placed between the motor and the drive, with standard lengths of 1, 2, 3 or 4 meters ; its part number is built as follows “CBFSC0H0-SRX-000-00x0-00” where “x” is the length in meter.

  • Page 76: Commissioning, Use And Maintenance

    4. COMMISSIONING, USE AND MAINTENANCE 4.1. Reception, handling, storage 4.1.1. Equipment delivery All the GVM motors are strictly controlled during manufacturing, prior to shipping. Upon receipt it, it is necessary to verify the motor condition and confirm it has not been damaged during transit.

  • Page 77: Storage

    4.1.3. Storage Before being mounted, the motor has to be stored in a dry place, without rapid or significant temperature variations in order to avoid condensation. If the GVM motor has to be stored for a long time, verify that the shaft end and the flange are coated with corrosion proof product.

  • Page 78: Preparation

    Warning : The user has the entire responsibility to prepare the support, the coupling device, shaft line alignment, and shaft line balancing. Warning : Parker will not be responsible for any motor shaft fatigue due to excessive strain on the shaft, a bad alignment or bad shaft line balancing .

  • Page 79: Electrical Connection

    4.3. Electrical connection Warning : Check that the power to the electrical inverter is safely off prior to make any connections. Warning : The wiring must comply with the inverter commissioning manual, with recommended cables, the standard and the local regulations Warning : The GVM motor must be grounded by connecting to an unpainted section of the motor.

  • Page 80: Resolver / Encoder / Thermistor Cable Handling

    4.3.2. Resolver / Encoder / Thermistor cable handling Danger: before any intervention the drive must be stopped in accordance with the procedure. Caution: It is forbidden to disconnect the Encoder cable under voltage (high risk of damage and sensor destruction). Warning: Always wear an antistatic wrist strap during encoder handling.

  • Page 81: Maintenance Operations

    The qualified personnel must know the safety local regulations. They must be authorized to install, commissioning and operate in accordance with established practices and standards. Please contact PARKER for technical assistance. Section Operation Periodicity number...

  • Page 82: Troubleshooting

    (the diagnostic board indications will help you investigating) or contact us at: http://www.parker.com/eme/repairservice.  Check if the phases are not in short circuit. You note that the ...
