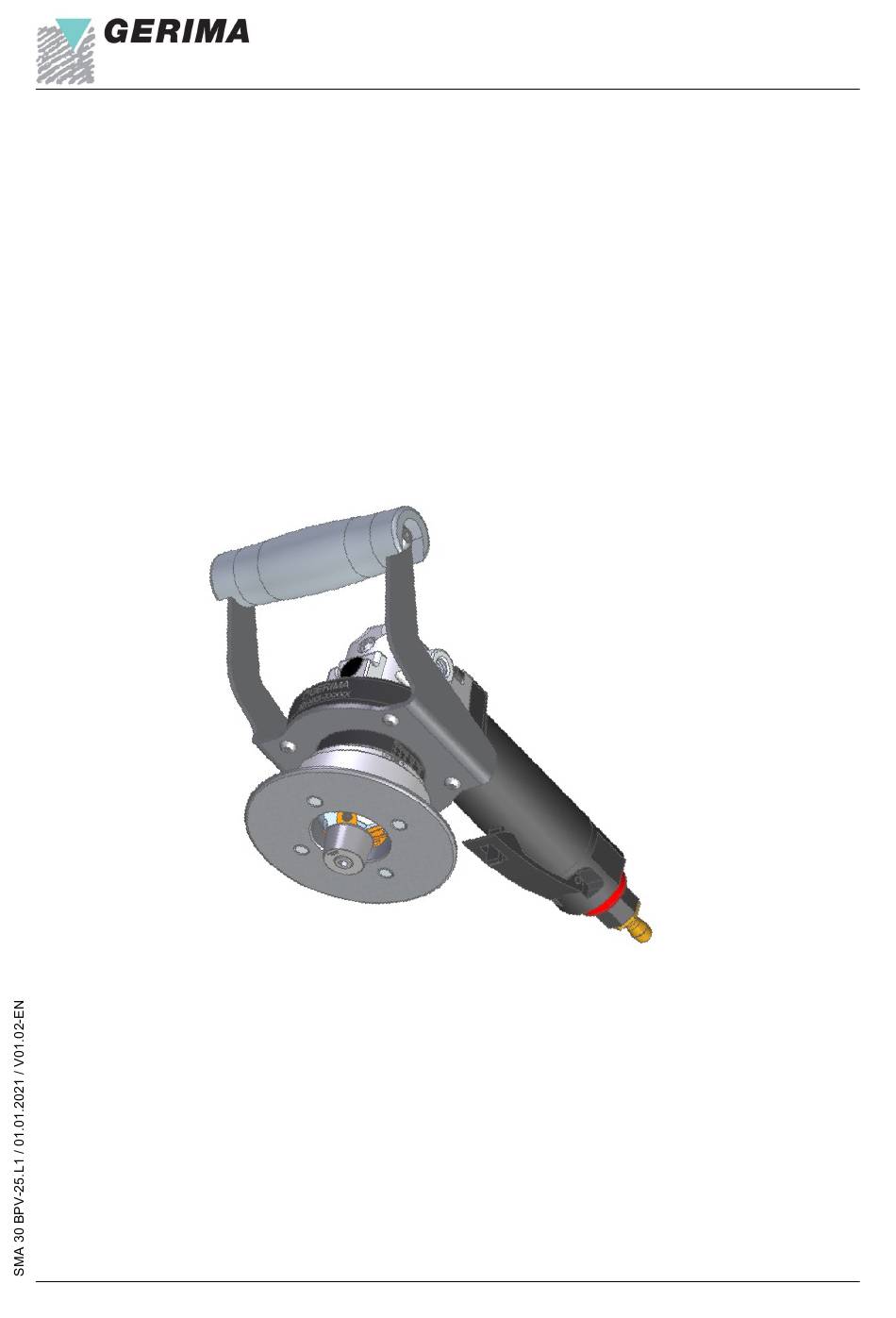

- Page 1 © Operating manual Hand-held beveling machine SMA 30 BPV-25.L1 Operating manual...
-
Page 2: Preface
All rights, including translation, are reserved. No part of this manual may be reproduced in any form (print, photocopy, microfilm or any other process) without the written permission of GERIMA GmbH, St. Wendel, reproduced or distributed using electronic systems, duplicated or distributed. -
Page 3: Table Of Contents
© Directory Preface…….…………………………………………. Imprint…...………………………………………….… 2 Foreword……………………………………………... Signs and symbols ..……………………………….. Technical specification………………….………… 6 Technical data….…………………………………….. 6 Shipment….………………………….……………….. 6 Noise emission value…..………………………….… 7 Power-on time…………..………………………….… 7 Safety instructions……….………………………… 8 Basic safety instructions…………….………………. 8 Intended use………………………...……………….. 14 Settings………………...……………………..……… 15 Replacing guiding roll……………..………………... 15 Replacing carbide inserts……...…………………... -
Page 4: Foreword
If you have questions regarding the use or operation of the machine, or if you need our Please contact GERIMA for the latest product in- supportor advice regarding specialized appli- formation. cations, our team of specialist retailers and... -
Page 5: Signs And Symbols
© Signs and symbols Please read the manual before using the ma- The information in this manual are indentified as follows: chine ! Danger! This manual has been created so that you can Warning of person, machinery or work with your device quickly and safely. Here is a environmental damage. -
Page 6: Technical Specification
Handle Spindle lock Motor Air connection On-/Off-switch Height clamping lever Milling head with guiding roll Guiding plate Vernier scale Shipment 1x Basic machine SMA 30 BPV-25.L1 (milling head not included) 1x Manual 1x Torx wrench T15 1x Hexagon screwdriver SW5... -
Page 7: Noise Emission Value
© Technical manual Noise emission values in accordance with the DIN Power-on time (POT): EN 60745-1 standard: To avoid damaging the machine, it is essential to be monitor how long the machine has been Noise emission [dB (A)] Value operating continuously (‘power-on time’). certainty Emission sound pressure The compressed air that powers a pneumatic drive... -
Page 8: Safety Instructions
Basic safety instructions Duties of the operator The following instructions must be The SMA 30 BPV-25.L1 was desig- read carefully in order to avoid ac- ned and built taking into account a risk cidents to persons and / or property... - Page 9 © Basic safety instructions Operator qualifications and protection of ma- Protective clothing: chine operators: When working on/with the machine always wear: The term ‘operator’ is used here to mean any per- son who operates, adjusts, services and/or repairs the machine. ear protectors, The employer is obliged to inform the operator about security relevant standards and to verify...
- Page 10 • Always use genuine GERIMA spare parts and acces- sories. • Repair: The machine may only be repaired by appropriately qualified technical staff or by the manufacturer’s service personnel.
- Page 11 © Basic safety instructions Pneumatically-driven power tools Regular pre-start safety precautions are generally not insulated in a way that would allow them to come into Perform the following pre-start proce- contact with an electrical power dures each time you plan to use the source.
- Page 12 © Basic safety instructions Maintenance: Maintenance or service work must • If protective guards or other safety devices have only be performed once the machi- to be removed for servicing or maintenance work, ne’s moving parts have come to they must be reinstalled immediately after the rest.
- Page 13 • The machine is covered to prevent the risk of Any alterations to the machine contact with moving parts. must have been approved by GERIMA GmbH. • However residual risks still exist. This also applies to the welding of the component parts.
-
Page 14: Intended Use
25.L1 may only be used for work and materials described in the section ‚intended use‘. Do not use the machine to work on materials containing asbestos! The SMA 30 BPV-25.L1 is a hand-held, pneumati- cally powered beveling machine intended: • For machining workpieces made of steel,... -
Page 15: Settings
© Settings Replacing guidind roll / carbide inserts / milling body Adjusting the 8-fold bevel- and radius carbide inserts (type KX and RKX): Before replacing the machine must be disconnected from The bevel- and radius-carbide inserts of type KX and RKX the compressed air supply have 8 cuttings. -
Page 16: Setting The Bevel Length
© Settings Setting the bevel length: Adjusting radius: The procedure for setting the radius and bevel is identi- a leg length = bevel length a cally. For the radii> R2, R3, R4 and R6 are the appropri- b leg length = bevel length b ate columns on the scale (2). -
Page 17: Operating Mode
© Operating mode General: Handling: Two-handed operation: Damages caused by wrong power supply! Whatever the position of the • Check values air connection. The air machine, always use two hands to control the machine. pressure must correspondend with the specifications on the type plate of the machine. -
Page 18: Maintenance
• Wear protective gloves when changing and secured against or readjusting the carbide inserts! reconnection. Repair must only be carried out by a GERIMA trained technician! Improperly repaired machines are hazzard! • Increased risk of injury • Machine does not function correctly! Hot carbide inserts and milling head! •... -
Page 19: Disposal
© Disposal Disposal of components removed from the ma- chine: All machine parts, operating and auxiliary materials must be dis- posed of in accordance with the applicable statutory provisions. -
Page 20: Technical Documentation
© Technical documentation Assembly group SMA 30 BPV-25.L1 0202-03-15-00-00-02 name of part order-nr. Steel sleeve 0101.462.20-00002 Locking ring 0101.462.20-00003 Holding plate handle 0101.462.19-00013 Handle 0101.462.19-00025 Guiding plate Ø120 0101.352.15-00003 Drive shaft 0109.242.19-00003 Spacer 0109.242.19-00001 Flywheel mass 0109.242.19-00002 Bearing housing (lower part) 0109.242.19-00004... -
Page 21: Terms Of Guarantee
GERIMA or by one of its authorized specialist retailer or representatives. Guarantee claims can be made only for genuine GERIMA parts and if the machine was used for its intended purpose. The guarantee does not cover, in particular: operational wear and tear; improper use;... -
Page 22: Ec Declaration Of Conformity
66606 St. Wendel Germany Product SMA 30 BPV-25.L1, 21-294-*****, 00001-99999, 2021 We hereby declare that the above mentioned product complies with all relevant provisions of the Machinery Directive 2006/42/EC. The above product fulfills the relevant requirements of the following guidelines: ►...
