5.4.

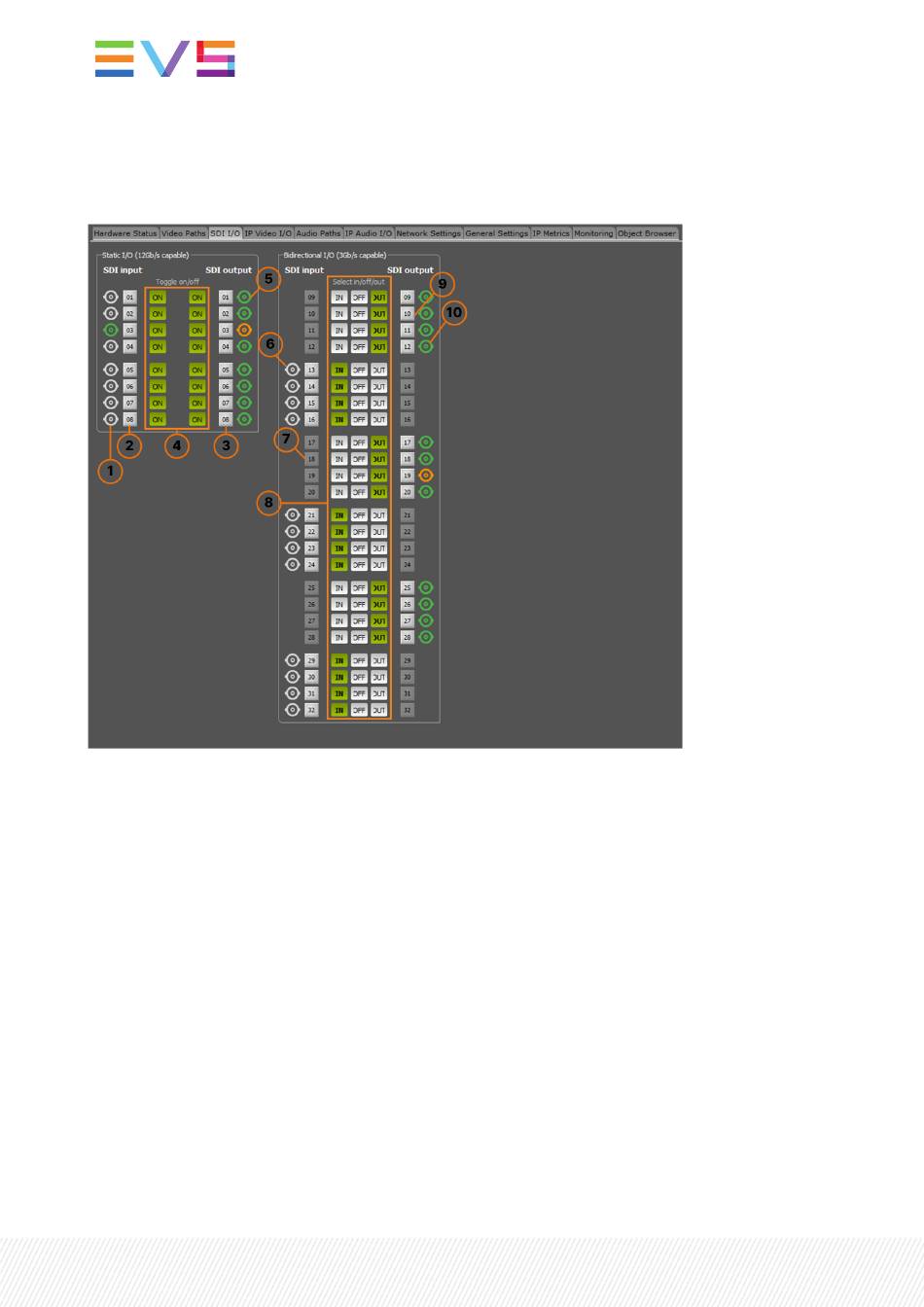

SDI I/O Tab

1. Static SDI input status icon. When the corresponding SDI input is enabled, the status icon indicates
whether an input has been detected (green) or not (gray).
2. Static SDI input channel number indicator. These indicators become green when the corresponding
input is used by one of the processing paths. When the indicator is transparent, the corresponding
input connector is disabled.
3. Static SDI output channel number indicator. When this indicator is transparent, the corresponding
static output connector is disabled.
4. Static SDI input and output Toggle on/off buttons. With these buttons you can enable (green) or
disable (red) a specific SDI input or output. When an input or output is disabled, the SDI status icon
disappears and the channel number indicator becomes transparent.
5. Static SDI output status icon. When the corresponding SDI output is enabled, the status icon
indicates whether the output format status is ok (green) or not (orange).
6. Bi-directional SDI input status icon. When the corresponding SDI connector is enabled and
configured as an input, the status icon indicates whether an input has been detected (green) or not
(gray).
