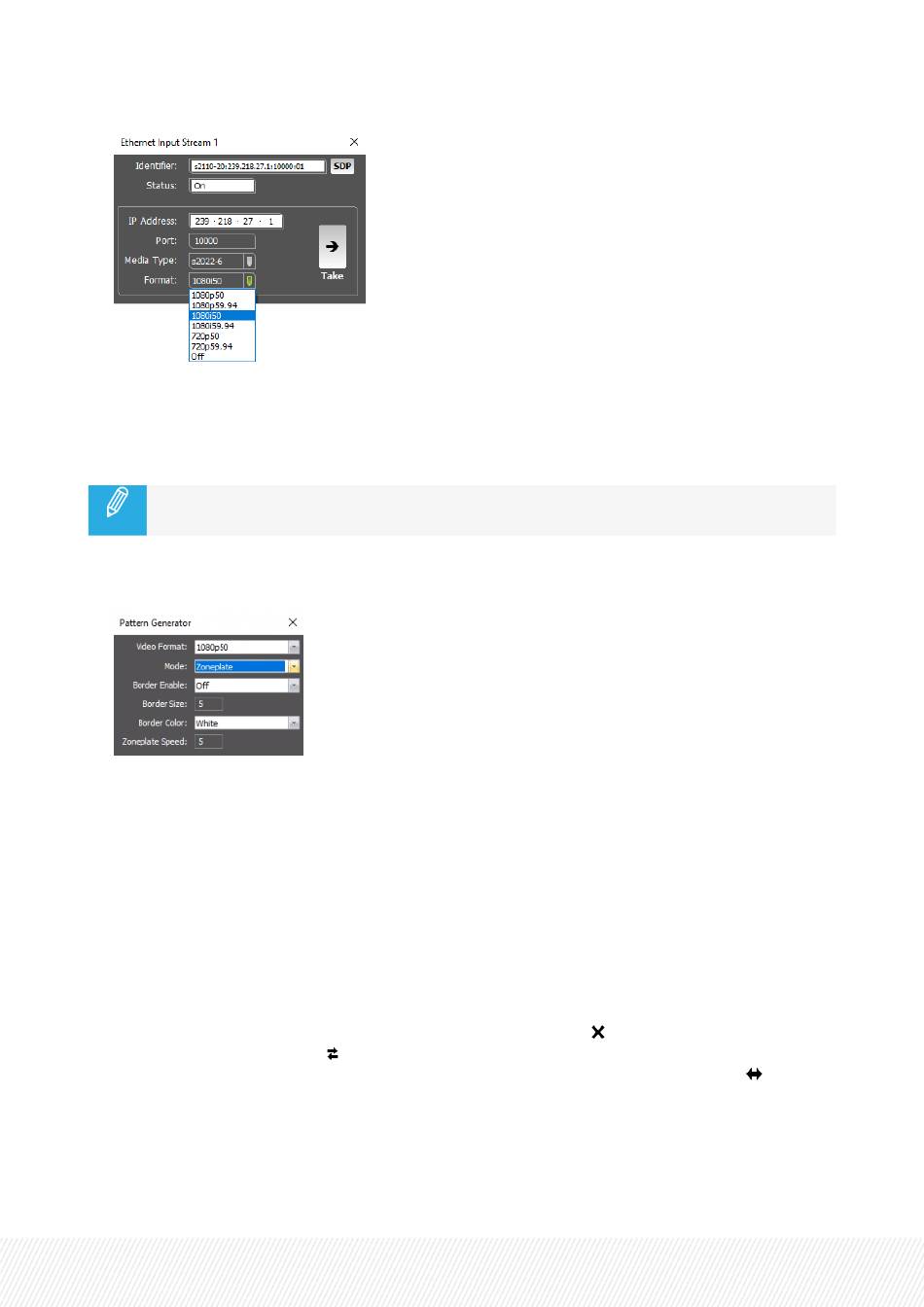

In the pop-up, you can either fill in an identifier string (pressing Enter after typing or pasting will
immediately switch the input, without having to use TAKE) or specify an SDP file (after clicking on
the SDP button). Alternatively, you can fill in the IP Address, Port number, Media Type and Format
fields, then select TAKE.
When filling in an IP address, port and media type instead of an Identifier string, the input will
only change when the TAKE button is clicked.
6. Pattern settings. In the dialog which this button opens, the following input options can be
configured:
Setting Options
2160p50, 2160p59.94, 1080p50, 1080p59.94, 1080i50,
Video Format
1080i59.94, 720p50, 720p59.94, SD625, SD525
Black, Colorbar 75%, Colorbar 100%, Colorbar Comp,
Mode
Zoneplate
Border Enable Off, On
Border Size 2..5..10
Border Color White, Black, Gray, Red, Blue, Green
Zoneplate Speed 0..5..15
7. Backup switch settings. Clicking this button will open a pop-up in which the backup mode can be
set. When the backup mode is set to Off, this button will indicate a
On, this button will indicate a
when the main input fails. When the mode is set to BackUp Fail this button will indicate a
processing path's input will switch to the back-up input until the main input is back again. In the
Backup settings pop-up you can also force all processing paths to either use the Main input, by
setting the Input Selection to MAIN, or the backup input, by setting the Input Selection to BACKUP. In
the video paths tab, this is indicated by a lock icon above the main or the backup drop-down box
columns.
