2. Installation

2.1.

Preparing the Product for Installation

Before installing the frame, please take the following steps:
• Check the product for any visible damage that may have occurred during transit.
• Confirm receipt of all products on the packing list.
• Retain the original packaging for possible re-use.
Please refer to section 1.2 "Shipping" in the Neuron NFR2000/NFR2001 manual for more information
about returning a product for servicing or replacement.
Please contact your EVS dealer if parts are missing or damaged or when products on the
packing list are missing.
2.2.

Unpacking

The Neuron processing board must be unpacked in an anti-static environment. Care must be taken NOT
to touch components on the board – always handle the board carefully by the edges. The board must be
stored and shipped in anti-static packaging. Ensuring that these precautions are followed will prevent
premature failure from components mounted on the board.
2.3.

Module layout

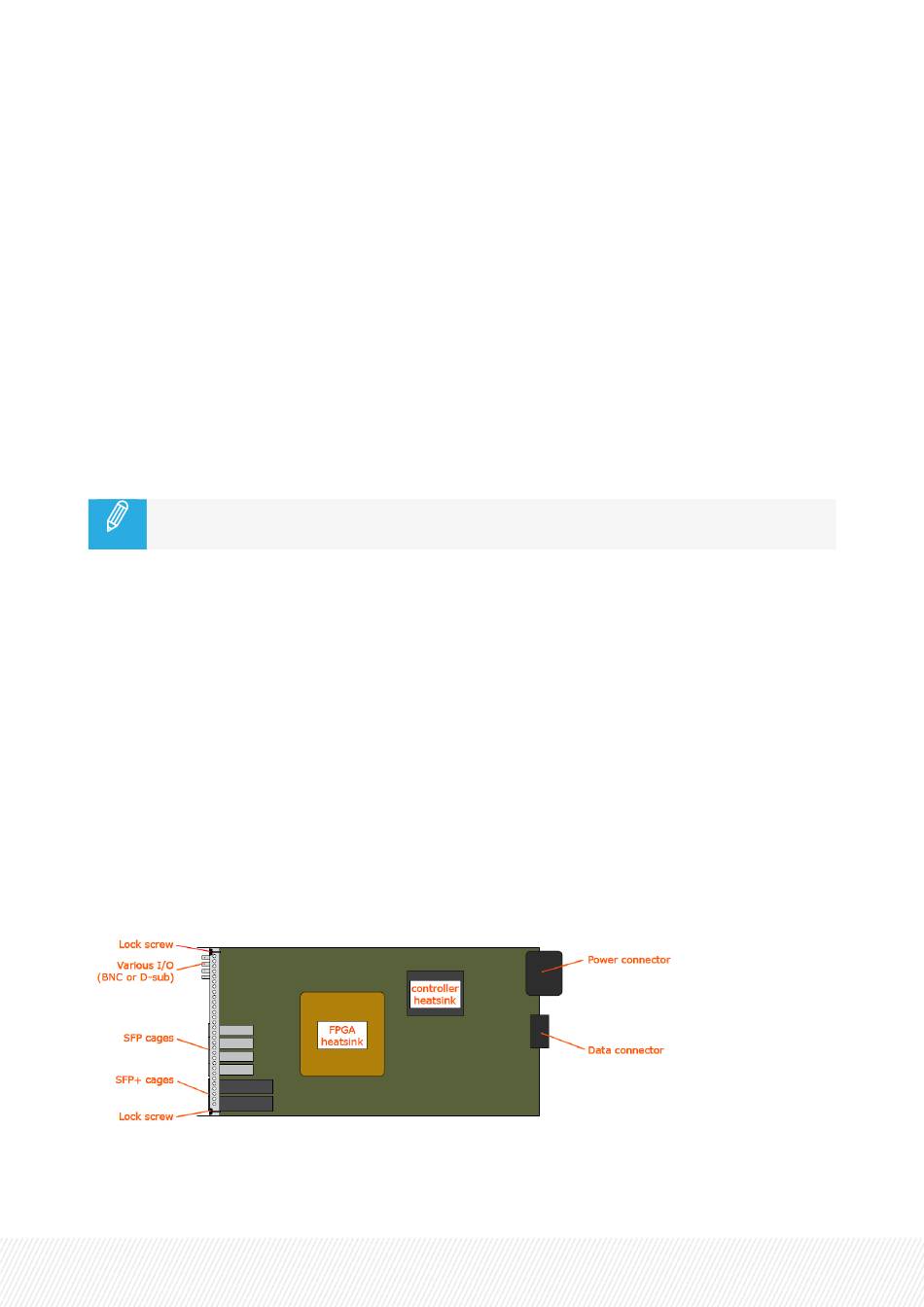

In general, a Neuron processing module layout appears as shown in the diagram below. The module
consists of a metal baseplate, an I/O backplate and a PCB with connectors. Indicated in the diagram are
the most important parts of a Neuron processing module.
