Video Paths Tab

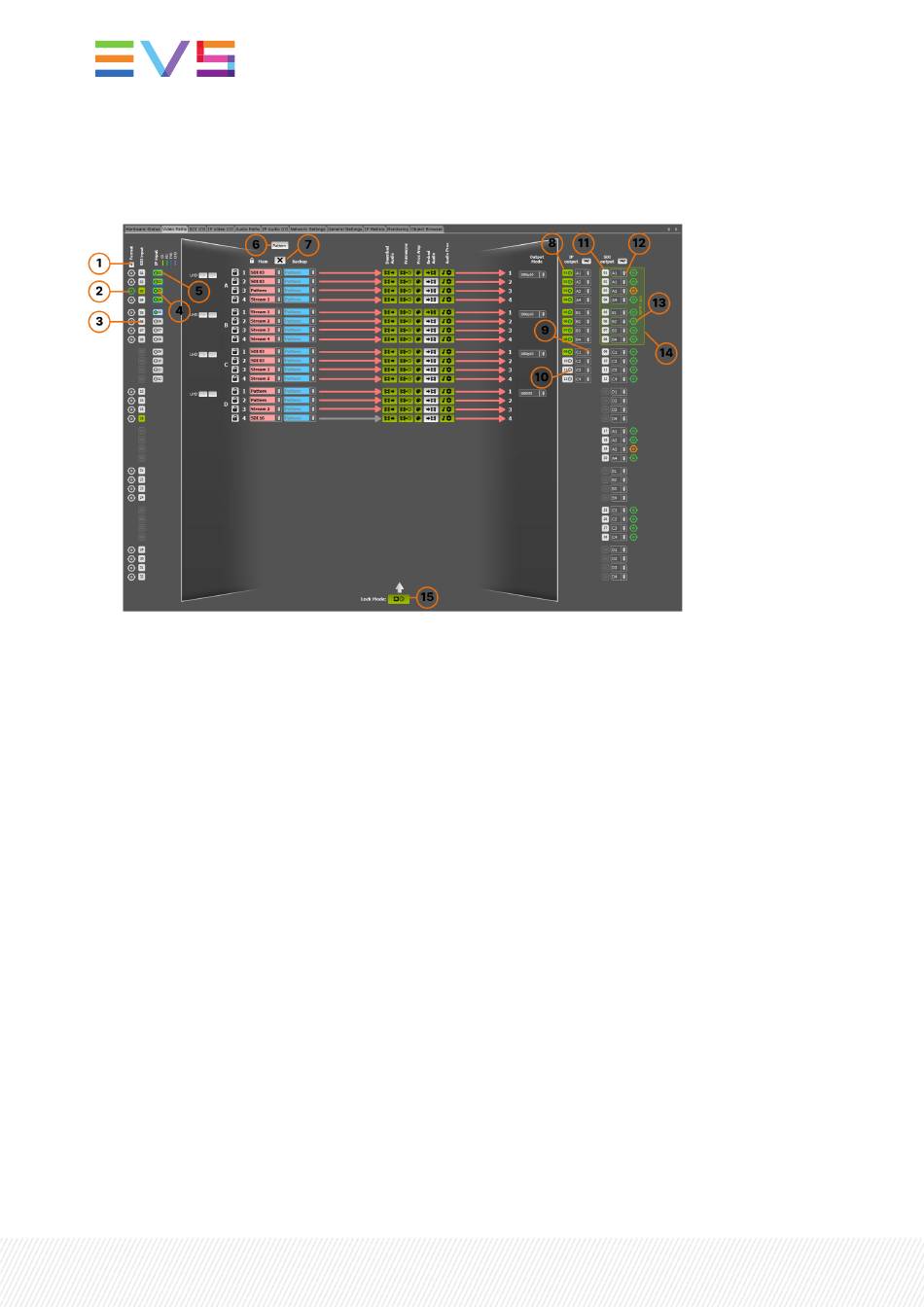

1. Hide/Show SDI input Format display. Clicking the + button will toggle the fields indicating the
detected input format behind each corresponding SDI input.
2. SDI input status. A green SDI icon indicates that an input is detected. Gray means that no SDI input
has been detected. Clicking any of the icons will give a pop-up in which the status and detected
input format is displayed.
3. SDI input number and USED status. When this button is green, it means the corresponding SDI input
is currently in use by one of the processing paths. When it is gray, the SDI input is not used. Clicking
the SDI number button will open a pop-up in which the SDI input can be switched off, or the direction
of the corresponding SDI connector changed to an input or an output (SDI 9 to 32 only).
4. Ethernet status icons. When the link status of Ethernet 1 and 2 are 10Gb/s or higher, the Ethernet
icon is green. When it is lower than 10Gb/s it is yellow. When there is no link, the icon is gray.
5. Ethernet input number and Used status.
Ethernet Input Color Indicator
Yellow
Green
Blue
Purple
Gray
Clicking this button will open a pop-up in which the input stream can be set up.
18 | February 2022 | Issue 4.9.C
Input Stream Type
SD
HD
FHD
UHD
input stream is not used
