2.4.
Processing Module Installation and
Replacement
To insert the processing module into an NFR2000/NFR2001 frame, you should first determine whether
the frame is built as a datacenter version (connections on the front) or a broadcast version (connections
on the back). Once this is determined, slide in the processing module from the connector side until it
cannot be pressed any further. Make sure both sides of the card are following the glides so the card is
guided exactly into the frame's internal bus connector. Push the card firmly into the internal bus. Then

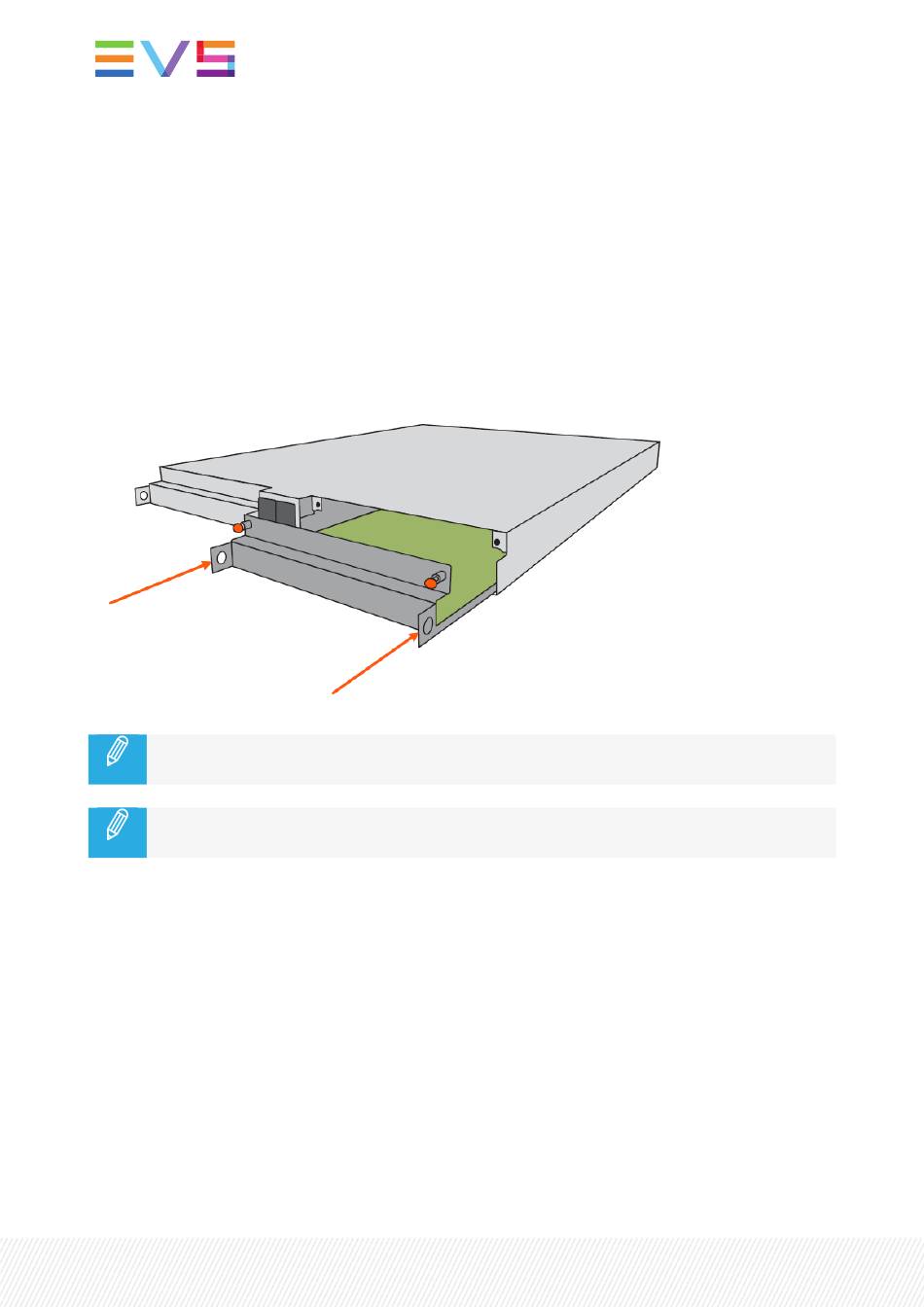

screw the two lock screws, indicated in the picture below in red, firmly into the frame.
If a module slot remains empty, the empty slot should be fitted with a blind panel.
For instructions and details about how to install the Neuron frame, please refer to the
NFR2000/NFR2001 manual.
