General
The NFS-640 intelligent Fire Alarm Control Panel is part of
the ONYX™ Series of Fire Alarm Controls from NOTIFIER.
As a stand-alone small-to-large system, or as a large net-
work, the ONYX™ Series of products meets virtually every
application requirement.
Designed with modularity and for ease of system planning,
the NFS-640 can be configured with just a few devices for
small building applications, or for a large campus or high-
rise application. Simply add additional peripheral equipment
to suit the application.
Features
• One, expandable to two, isolated intelligent Signaling Line
Circuit (SLC) Style 4, 6 or 7.
• Up to 159 detectors (any mix of ion, photo, thermal, or multi-
sensor) and 159 modules (N.O. manual stations, two-wire
smoke, notification, or relay) per SLC. 318 devices per loop/
636 per FACP or network node.
• Standard 80-character display, 640-character large display,
or display-less (a node on a network).
• Network option – 103 nodes supported (NFS-640, NCA
Network Annunciator, or NCS Network Control Station) us-
ing wire or fiber-optic connections.
• 6.0 amp switch mode power supply with four Class A/B
built-in Notification Appliance Circuits (NAC). Selectable
System Sensor strobe synchronization.
• Built-in Alarm, Trouble, and Supervisory relays.
• Up to 64 output circuits per FACP or network node; cir-
cuits configurable online.
• VeriFire™ Tools offline program option. Sort Maintenance
Reports by compensation value (dirty detector), peak alarm
value, or address.
• Autoprogramming and Walk Test reports.
• Optional universal 636-point DACT.
• 80-character remote annunciators (up to 32).
• EIA-485 annunciators, including custom graphics.
• Printer interface (80-column and 40-column printers).
• History file with 800-event capacity in nonvolatile memory,
plus separate 200-event alarm-only file.
• Alarm Verification selection per point, with tally.
• Autoprogramming and Walk Test reports.
• Positive Alarm Sequence (PAS) Presignal.
• Silence inhibit and Auto Silence timer options.
• March time / temporal / California two-stage coding / strobe
synchronization.
• Field-programmable on panel or on PC, with VeriFire™
Tools program check, compare, simulate.
• Full QWERTY keypad.
• Charger for up to 90 hours of standby power.
• Non-alarm points for lower priority functions.
• Remote ACK/Signal Silence/System Reset/Drill via moni-
tor modules.
NOTIFIER® is a company.
This document is not intended to be used for installation purposes. We try to keep our
product information up-to-date and accurate. We cannot cover all specific applications
or anticipate all requirements. All specifications are subject to change without notice.
For more information, contact NOTIFIER. Phone: (203) 484-7161 FAX: (203) 484-7118
12 Clintonville Road, Northford, Connecticut 06472
March 8, 2004
NFS-640
Addressable Fire Alarm System
Section: Intelligent Fire Alarm Control Panels
MEA
CS118
S635
California
State Fire
Marshal
7165-0028:214
7170-0028:216
U.S. Coast Guard
161.002/42/0
City of
DENVER

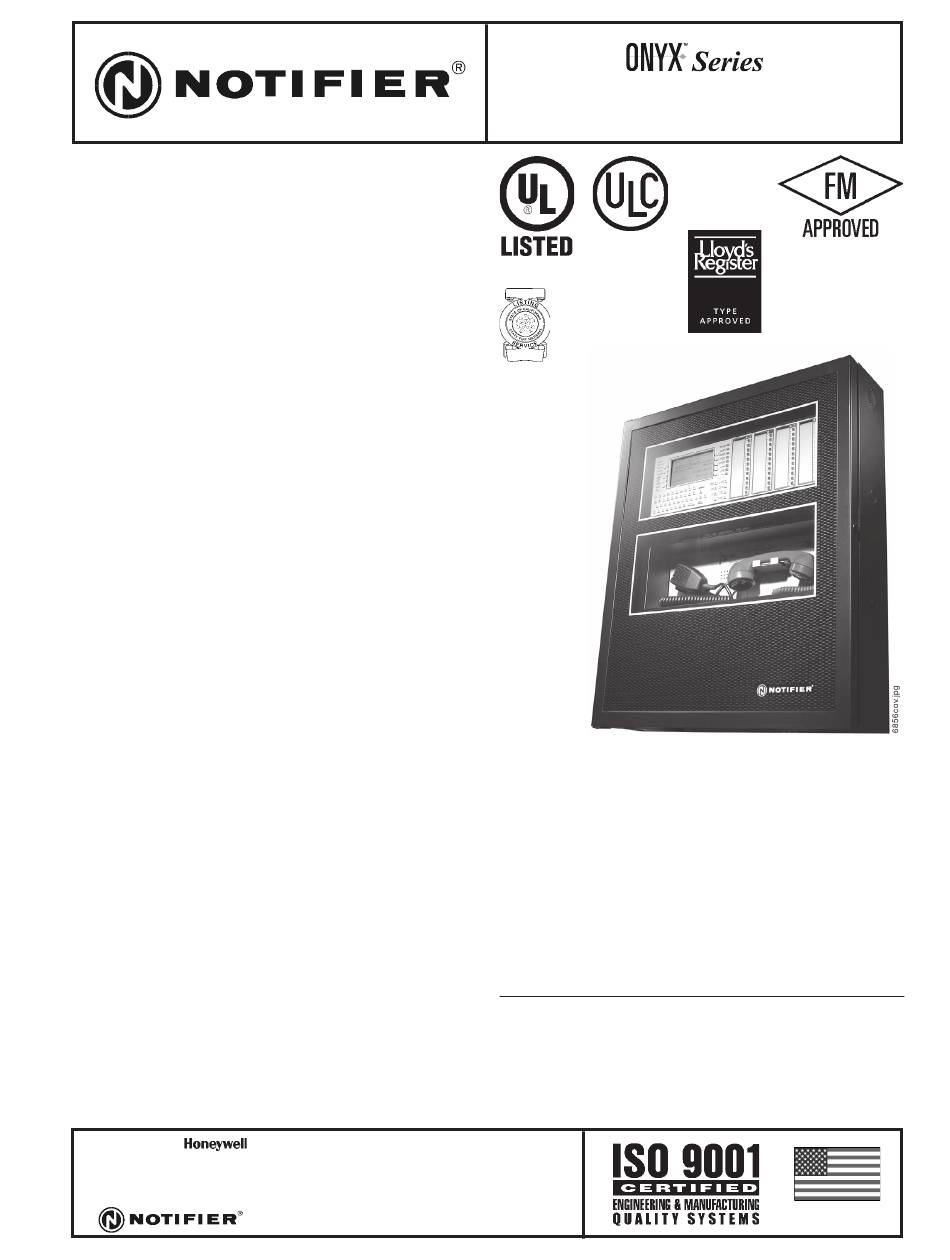

NFS-640 shown in CAB-B4 with
