Quad SSD/ HDD
Mounting Frame, 5.25"
Quick Installation Guide
DA-70443

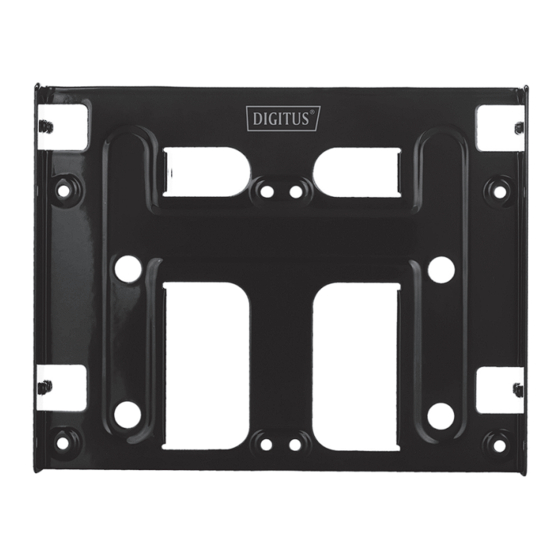

The Digitus Quad SSD/HDD mounting frame, 5.25" makes it possible for you to install up to four
2.5" SSDs/HDDs or two 2.5" SSDs/HDDs + one 3.5" HDD/SSD. It is suitable for internal mounting in
5.25" standard mounting bays. Thanks to its simple handling and high quality, installation is very
easy. Screws and protective rubber for the SSDs/HDDs are included.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Digitus DA-70443
Summary of Contents for Digitus DA-70443
- Page 1 Quick Installation Guide DA-70443 The Digitus Quad SSD/HDD mounting frame, 5.25" makes it possible for you to install up to four 2.5" SSDs/HDDs or two 2.5" SSDs/HDDs + one 3.5" HDD/SSD. It is suitable for internal mounting in 5.25" standard mounting bays. Thanks to its simple handling and high quality, installation is very...
- Page 2 Technical Features Suitable for the installation of up to 4x 2.5“ SSDs/HDDs or 2x 2.5“ + 1x 3.5“ SSDs/HDDs Suitable for 5.25“ standard mounting bays Suitable for 2.5“ or 3.5“ SSDs or hard disks Decoupled mounting of a 3.5“ HDD ...
- Page 3 Installation Step 1: 1. Place two 2.5" SSDs/HDDs into the mounting bay on the top side of the frame. 2. Screw both SSDs/HDDs to the frame from underneath using the included fine thread screws. 3. Place two 2.5" SSDs/HDDs into the frame on the bottom side of the mounting frame. 4.
- Page 4 Installation Step 2: Open the PC case Slide the Quad mounting frame with pre-installed SSDs/HDDs into a 5.25" mounting bay of the PC referring to the installation guidelines included with the case. Screw the frame to the case using the included fine thread screws. Refer to the installation guidelines included with the case.
