Summary of Contents for Digitus DA-90438

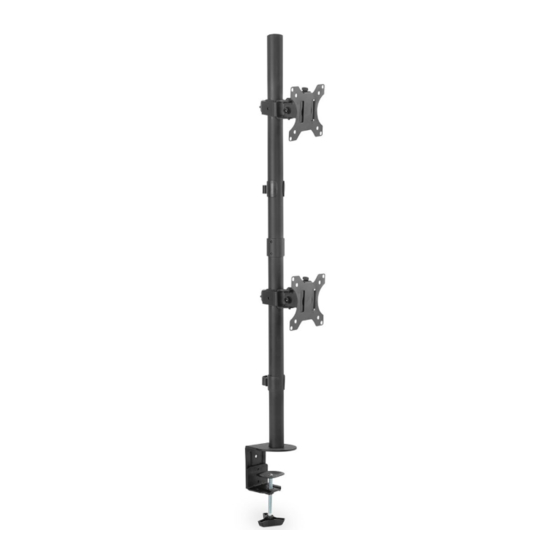

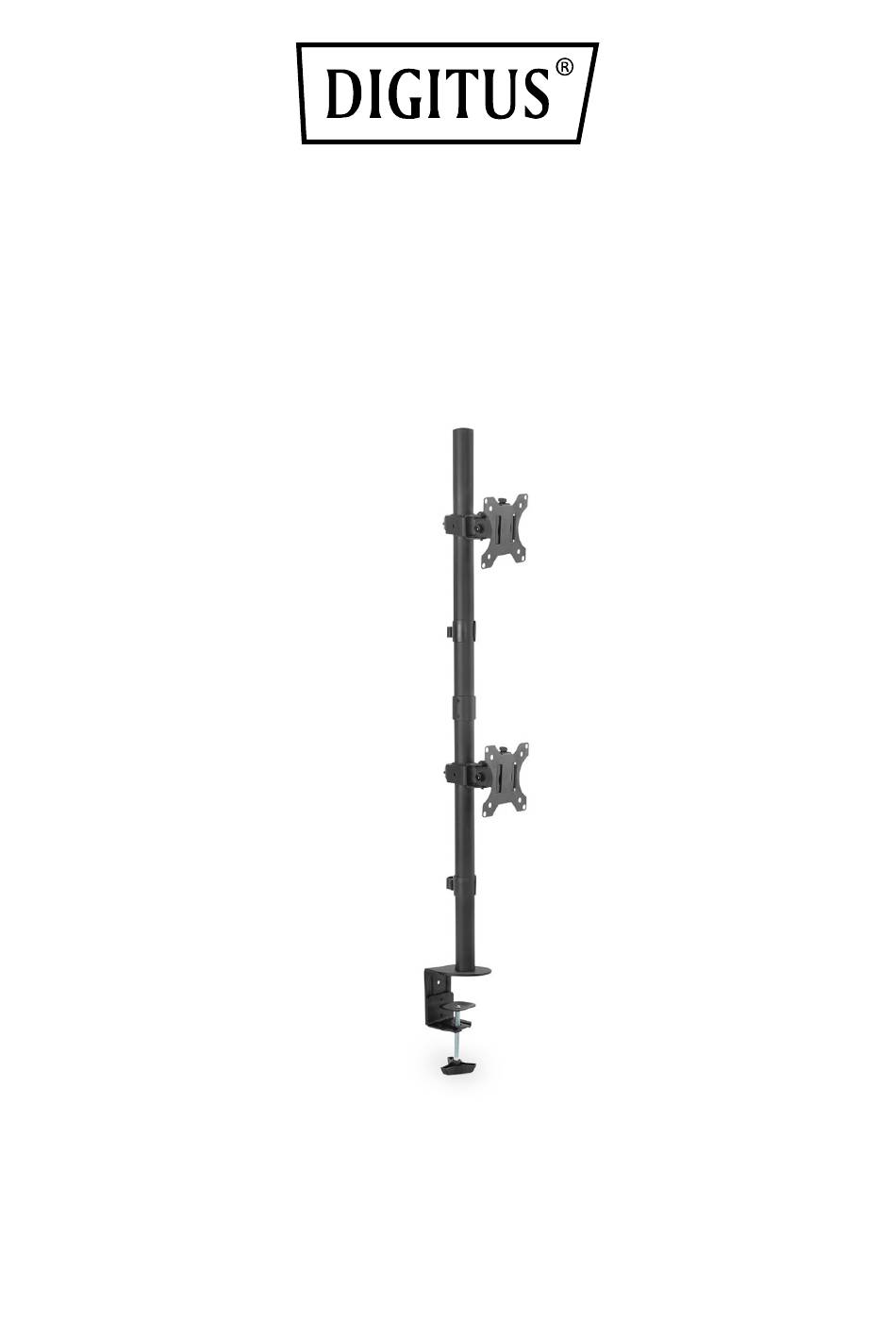

- Page 1 Universal Dual Monitor Stand, vertical Quick Installation Guide DA-90438...
-
Page 2: Technical Features
Table of contents 1. Introduction ............... 2 2. Technical Features ............. 2 3. Package content ..............3 4. Mounting Instruction ............4 1. Introduction The desktop mount allows you to mount two monitors of up to 32" / 8 kg vertically, one above the other. Swiveling, rotating as well as tilting of the monitors is made possible by the mount. -
Page 3: Package Content
Monitor mount Tilt: -45°/+45°, Swivel: - 45°/+45°, Front panel rotation range: - 180°/+180° Surface Powder coating Color Black, matte Weight 4,2 kg 3. Package content • 1 x Universal Dual Monitor Stand, vertical • 1 x Assembly instructions • 1 x Mounting material: 2 x A 2 x B 1 x C... -
Page 4: Mounting Instruction
1x O 4 mm 1 x P 6 mm M4 x 12 (x 8), M-A M4 x 16 (x 8), M-B M5 x 12 (x 8), M-C M5 x 16 (x8), M-D D5 (x 8), M-E M-F (x 8) 4. Mounting Instruction... - Page 5 2.a) 2.b)
- Page 7 5.a) 5.b)
- Page 10 10.) www.assmann.com Assmann Electronic GmbH Auf dem Schüffel 3 58513 Lüdenscheid, Germany...
