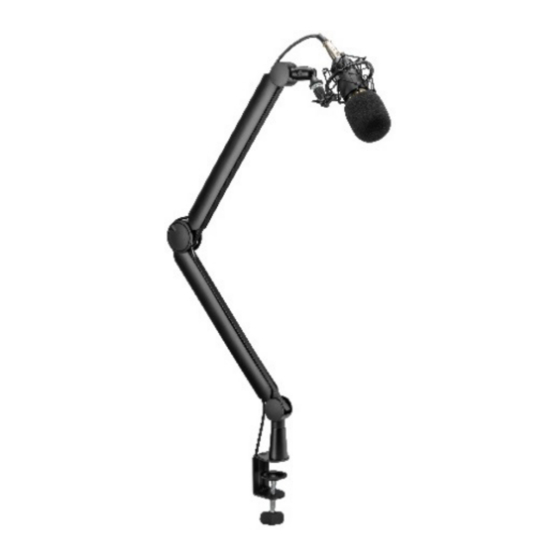

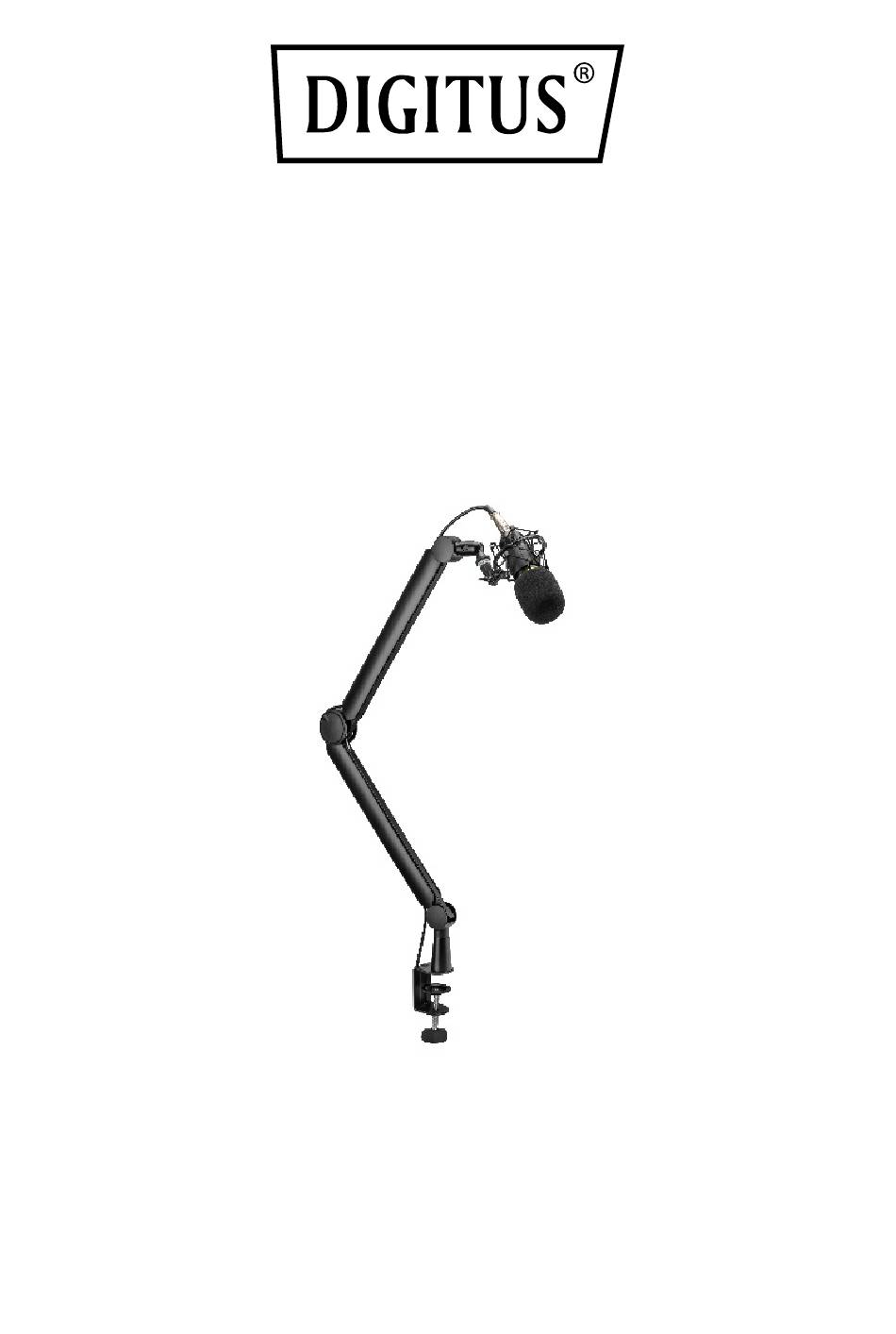

- Page 1 MICROPHONE ARM WITH TABLE CLAMP AND CABLE GUIDANCE Quick Installation Guide DA-20315...
-
Page 2: Package Content
1. Introduction The DIGITUS Microphone Arm is ideal for streaming, podcasts as well as gaming. The arm has 3 rotating joints with which you can configure the optimal position of the microphone. The robust clamp or screw fastening creates a solid connection with your working table and ensures a perfect hold. -
Page 3: Mounting Instruction
x 1 (3mm) 3. Mounting instruction Clamp Mounting:... - Page 4 Grommet Mounting:...
- Page 5 Desktop with existing Through- Hole:...
- Page 6 Stored energy hazard! 1. Firmly hold the two halves of the spring arm together and have another person cut off the cable tie from around the spring arm. 2. Slowly release the pressure on the spring arm and allow to gradually stretch to its full extansion.
- Page 8 Hold the Head Joint (C1) and loosen the knob, adjust the microphone to desired position, then tighten the knob.
- Page 9 Adjust the screw clockwise when the bracket arm can not stand, but do not screw counterclockwise.
- Page 10 Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address. www.assmann.com Assmann Electronic GmbH Auf dem Schüffel 3 58513 Lüdenscheid Germany...
