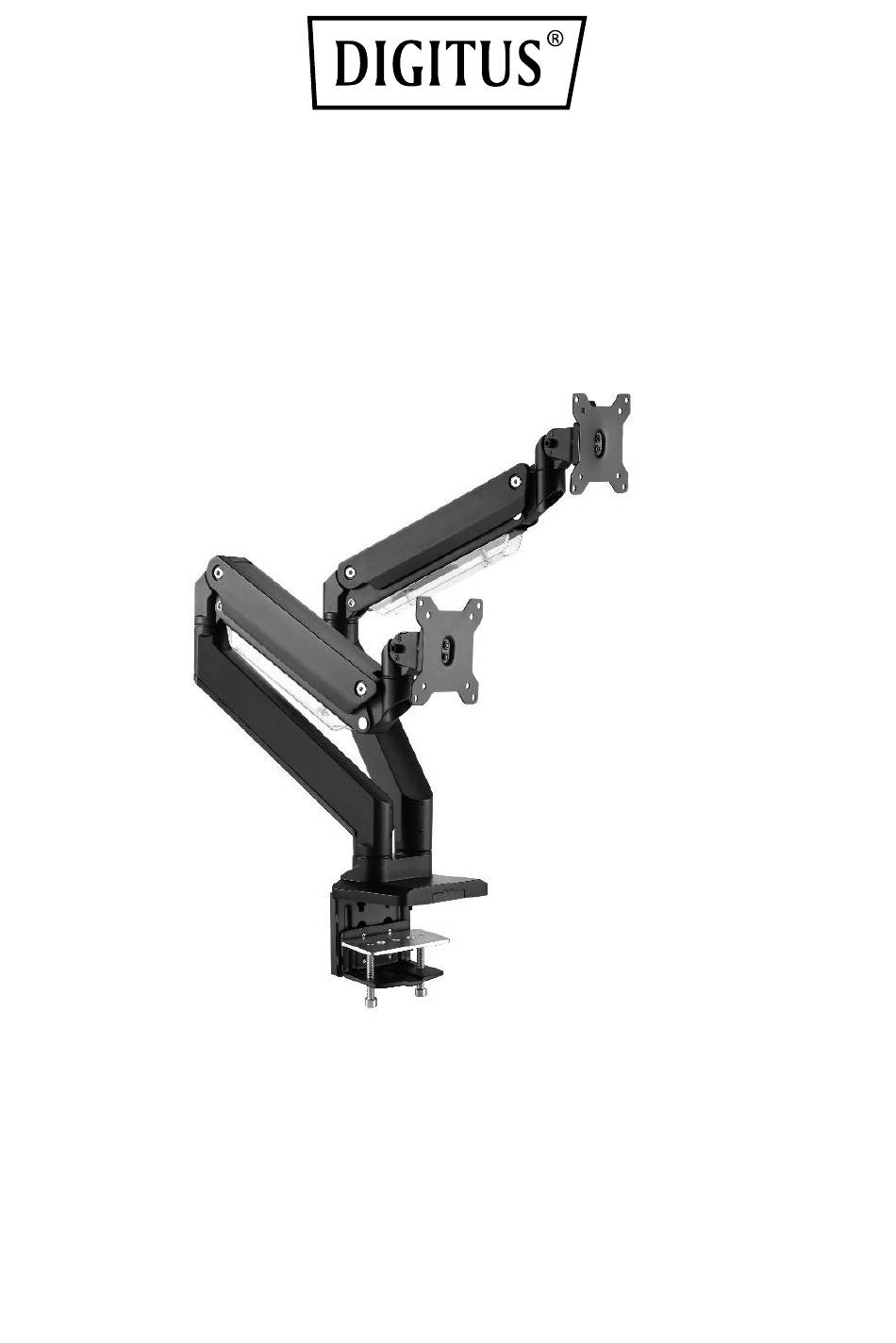

- Page 1 Dual Gas Spring Monitor Desk Mount Quick Installation Guide DA-90427...
-
Page 2: Package Content
Package Content A (x1) B (x2) C (x2) E (x1) F (x1) D (x2) G (x1) H (x1) I (x1) K (x4) L (x1) M6x12 J (x1) M-A (x4) M (x1) N (x1) M4x12 M-B (x4) M-C (x4) M5x12... -
Page 3: Mounting Instructions
Mounting Instructions Step 1: 6 mm 10-48 mm 10-58 mm Ø 10 mm (Ø 3/8“) - Page 4 6 mm 50-58 mm CAUTION: Do not over tighten screw. CAUTION: Do not over tighten screw.
- Page 5 Step 2: ± 135° Arm can rotate 270°. Step 3:...
- Page 6 Step 4: Too long Too short Step 5:...
- Page 7 Step 6: To properly balance the arm with monitors mounted, adjust the spring tension using the supplied Allen Key as follows: First, position and firmly hold the arm horizontally as shown. Ask for assistance should you require it. If the arm drops, turn the adjustment screw counter-clockwise until it stays in a horizontal position.
- Page 8 Step 8: CAUTION: DO NOT use the display beyond the arrow range, avoid tipping Step 9: Note: If the display does not stop at your desired position, tighten the screws as shown.
-
Page 9: Manutenzione
Read the entire instruction manual before you start installation and assembly. If you have any questions regarding any of the instructions or warnings, please contact your local distributor for assistance. CAUTION: Use with products heavier than the rated weights indicated may result in instability causing possible injury. •... - Page 10 Przed rozpoczęciem instalacji i montażu należy przeczytać całą instrukcję obsługi. W przypadku jakichkolwiek pytań dotyczących instrukcji lub ostrzeżeń prosimy o kontakt z lokalnym dystrybutorem w celu uzyskania pomocy. UWAGA: Użytkowanie z ciężarami większymi niż podane może spowodować niestabilność, a w konsekwencji także obrażenia. •...
