Summary of Contents for Digitus DA-90436

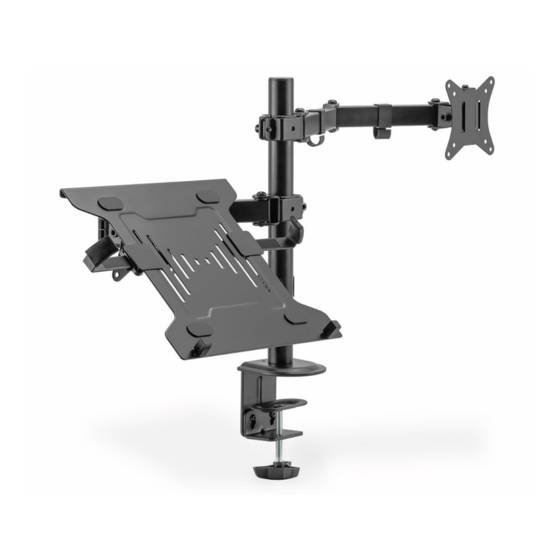

- Page 1 Universal monitor mount with notebook holder Quick Installation Guide DA-90436...
-
Page 2: Technical Features
Table of contents 1. Introduction ..............2 2. Technical Features ............. 2 3. Package content ..............3 4. Mounting Instruction ............5 1. Introduction The desktop mount allows you to arrange one monitor up to 32" / 9 kg as well as one notebook up to 15.6" / 4 kg in an individual, space-saving and ergonomic manner. -
Page 3: Package Content
Mounting options 2, both table clamp and pass- through rod are included in the scope of delivery Material Steel, plastic Number of monitors Number of notebooks Monitor mount Tilt: -45°/+45°, Swivel: -90°/+90°, Front panel rotation range: -180°/+180° Surface Powder coating Color Black, matte Weight... - Page 4 1 x G 2 x H 2 x I 1 x J 4 x K 1 x L 1 x M 4 x N 4 x O 1 x P 1 x Q 4 x M-A (M4 x 12) 4 x M-B (M5 x 12) 4 x M-C (D5)
-
Page 5: Mounting Instruction
4. Mounting Instruction... - Page 6 Desktop with Existing Through-Hole...
- Page 7 You will need to position the VESA Mounts to an UP position. To do that insert the VESA plate and rotate it to an upright position as shown. When complete, remove the VESA plate and proceed to the next step.
- Page 8 Too long Too short...
- Page 10 CAUTION: DO NOT use the display beyond the arrow range avoid tipping.
- Page 11 Note: If the display does not stop at your desired position tighten the screws as shown. www.assmann.com Assmann Electronic GmbH Auf dem Schüffel 3 58513 Lüdenscheid, Germany...
