Summary of Contents for Digitus DA-90353

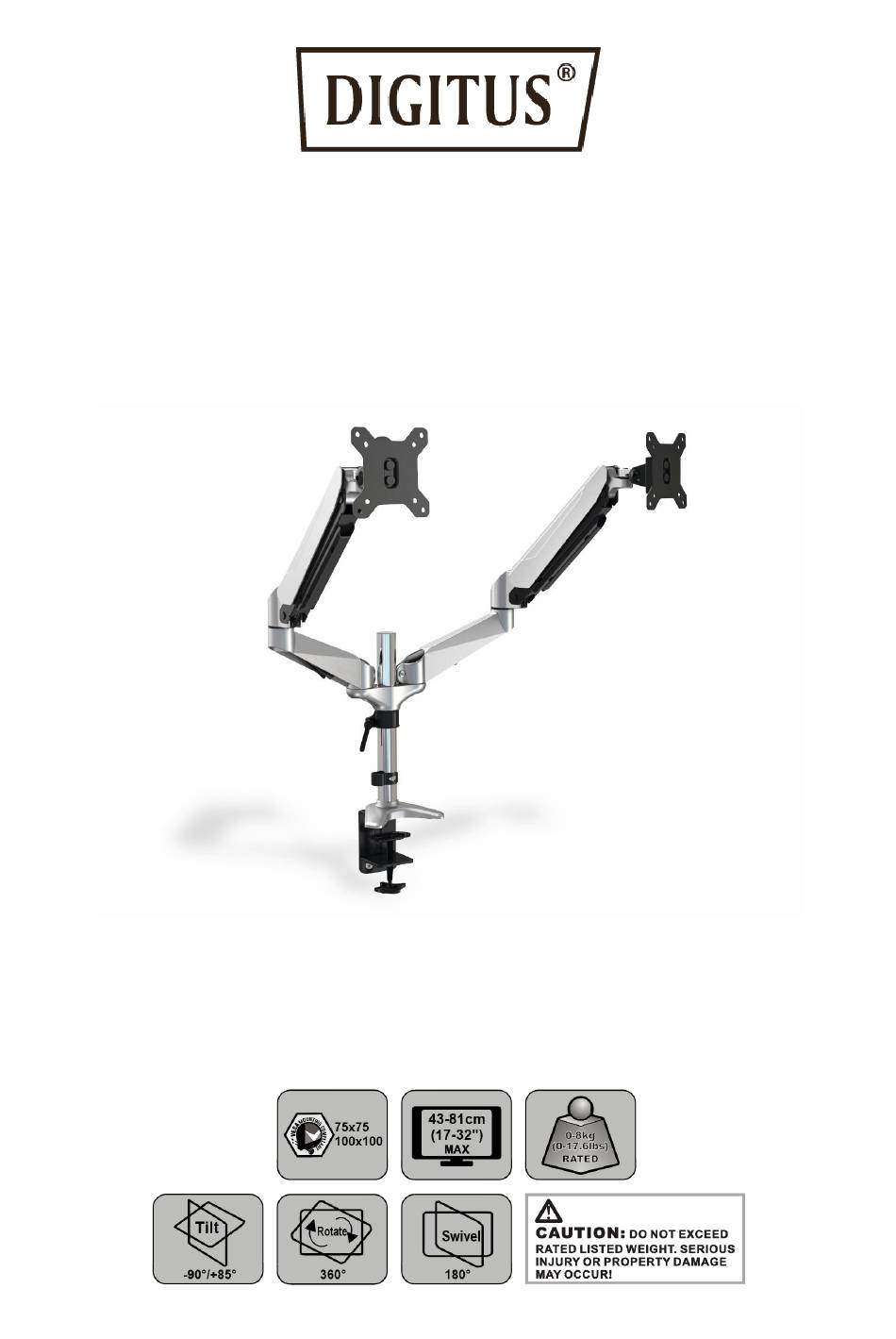

- Page 1 Universal Dual Desktop Monitor Mount Quick Installation Guide DA-90353...
- Page 2 NOTE: Read the entire instruction manual before you start installation and assembly.
- Page 3 PARTS INCLUDED...
- Page 4 Loosen clamp screw until enough space is left for the edge of the desk. NOTE: If space is still not enough for clamp, remove clamp screw and attachment entirely and reattach clamp screw with attachment upside-down. Tighten clamp using clamp screw until mount is securely fastened to desk.
- Page 5 Adjust locating ring at proper height and screw up tight to hold the mount. Adjust aluminum support part above the locating ring and use a hex key to fix it. Insert the screw through the hole from supporting part to the decorative cap. Insert extension arms to the supporting part.
- Page 6 Flush surface installation: Install 4 screws through faceplate to monitor via mounting holes. Recessed surface installation: Put 4 spacers between faceplate and monitor. Install 4 screws through faceplate, spacers to monitor via mounting holes.
- Page 7 Insert the screw through the hole from extension arm to the decorative cap. Lift the spring arm along with the monitor and put it on the extension arm. NOTE: Turn clockwise to reduce tension for lighter monitors and counter-clockwise to increase tension for heavier monitors.
- Page 8 Use a hex wrench to adjust the damp for swiveling. Turn counter-clockwise to reduce damping and clockwise to increase damping. Insert cables into cable covers. Use cable clamp to limit cables close to steel pipe.
- Page 9 PRODUCT LINE GRAPH info@assmann.com Assmann Electronic GmbH Auf dem Schüffel 3 58513 Lüdenscheid Germany...
