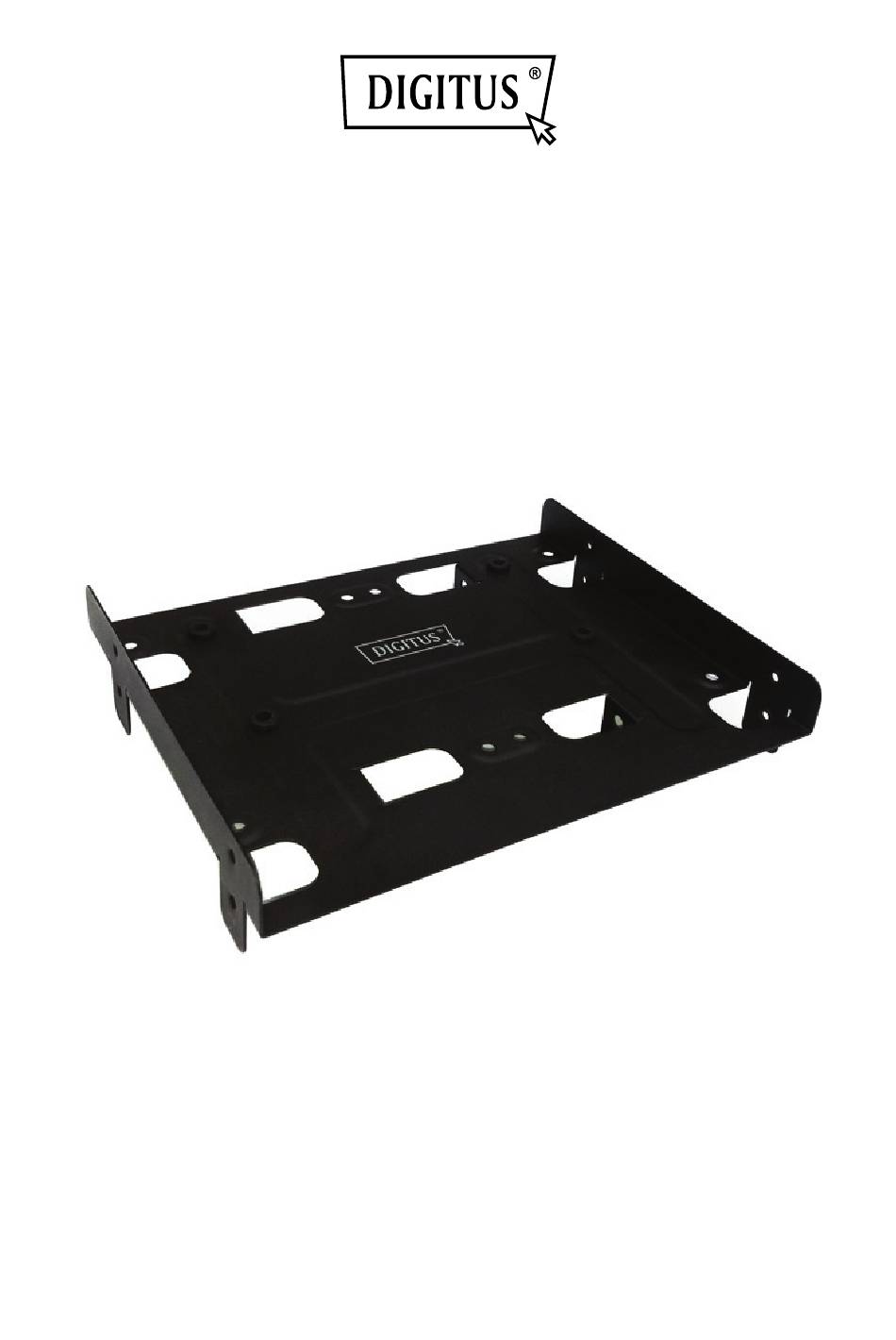

- Page 1 Mounting frame for HDDs and SSDs Manual DA-70432...
- Page 2 • Weight: ~120g • Color: black Package contents: • 5.25" mounting frame DIGITUS • 4x decoupler • 4x mounting screws for 3.5" HDDs (coarse thread) • 16x mounting screws for 2.5" HDDs/SSDs (fine thread) • 4x mounting screws for the mounting frame (fine thread) •...
- Page 3 Installation 1: 1. Place two 2.5" HDDs/SSDs into the mounting bays on the top side of the mounting frame. DIGITUS 2. Screw both HDDs/SSDs to the mounting frame from underneath DIGITUS using the included fine thread screws. 3. Place two 2.5" HDDs/SSDs into the mounting bays on the lower side of the mounting frame.
- Page 4 Installation 2: 1. Place one 3.5" HDD into the mounting bay on the top side of the mounting frame. DIGITUS 2. Screw the HDD to the mounting frame from underneath through DIGITUS the decouplers using the included coarse thread screws.
