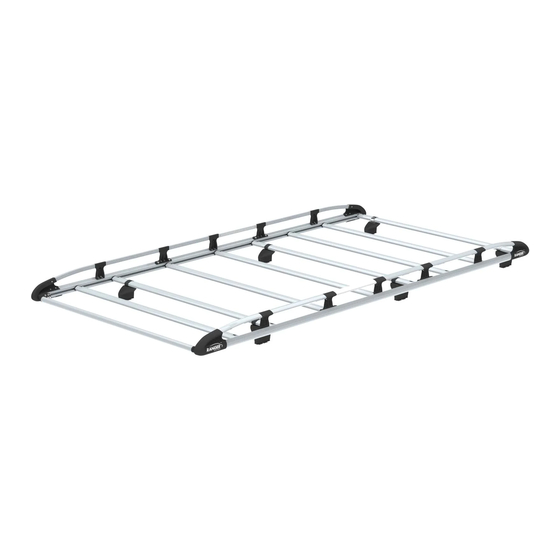

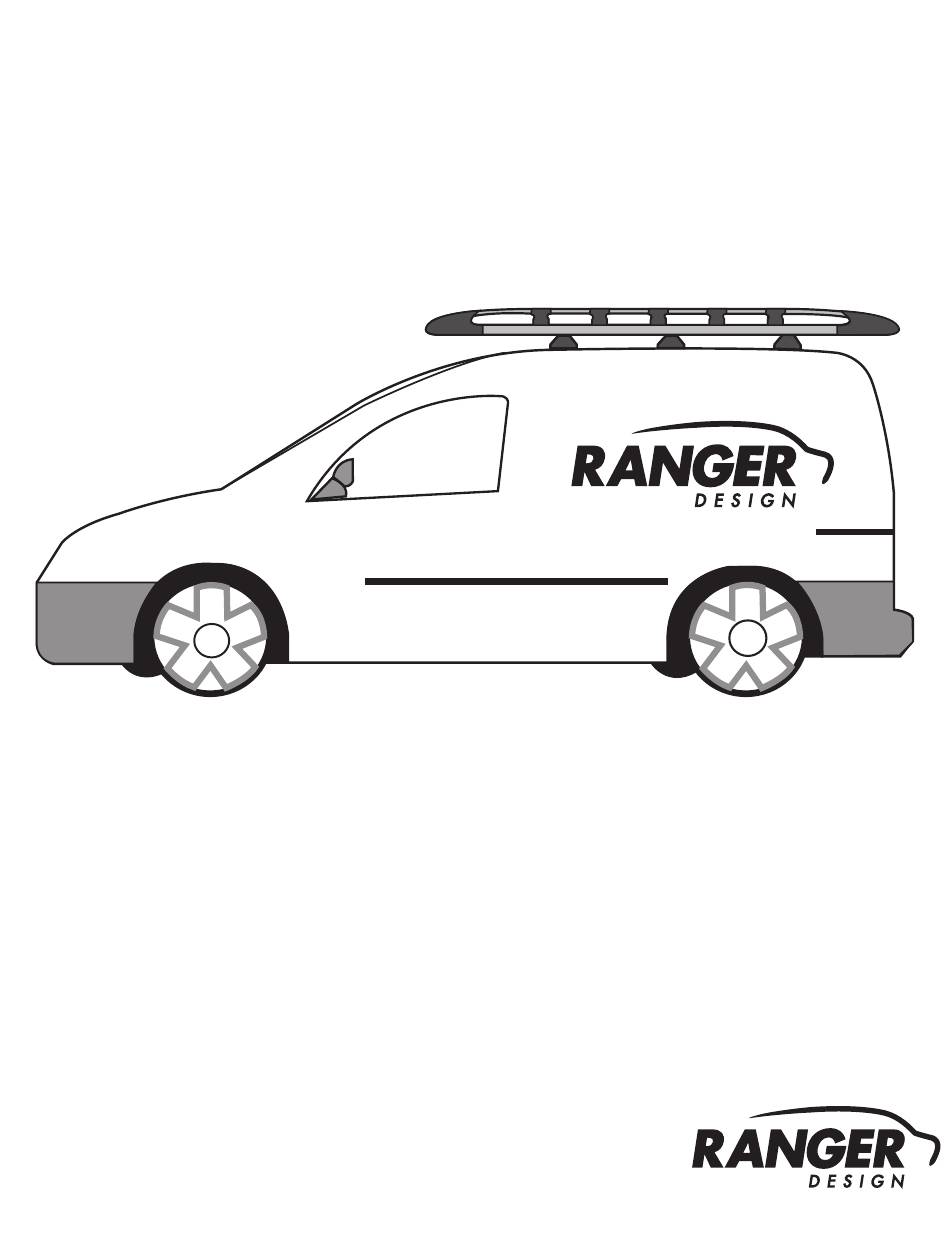

- Page 1 INSTALLATION GUIDE 1506-DS Cargo Plus Sprinter 144" Wheelbase...
- Page 2 PHASE 1 – ASSEMBLY 1.1 SETUP 1.1.2 Verify all parts are present. 15-U4002 BOX ×6 ×6 ×6 ×6 addle xtruSion uBBer paCer “r” ×1 “l” ×1 CFK - 1 ×1 CFK - 2 ×1 CFK - 3 ×1 CFK - 4 ×1 oller upport oller...
- Page 3 HARDWARE ( M8 × 65 ) ×12 ( M8 × 25 ) ×6 ( M8 × 25 ) ×6 ( M8 × 25 ) ×34 ( M8 ) ×22 ( M8 ) ×22 ( M8 ) ×28 ( M8 ) ×4 ( M8 ) ×4 ( M8 ) ×1 REQUIRED ITEMS...
- Page 4 PHASE 2 – INSTALLATION 2.1 INSTALLATION 2.1.1 Install the feet. W/O OEM TRACK WITH OEM TRACK NOTE: Use 1 and 6 holes from the front. M8 × 25 M8 × 25 INSIDE 1506-DS Installation Guide | REV. B1 | Page 4 For technical support, contact us at 1-800-565-5321...
- Page 5 2.1.2 Connect the 2 half side rails. 2× STEP 1 STEP 2 10 NM STEP 3 STEP 4 1506-DS Installation Guide | REV. B1 | Page 5 For technical support, contact us at 1-800-565-5321...
- Page 6 2.1.6 Attach the roller to the side rails using 2.1.3 Install 3 bars in the feet. the 2 last channel nuts from the front. 2.1.4 Slide 11pcs. of channel nuts in each 2.1.7 Slide the rack to the appropriate side rails. position.
- Page 7 2.1.9 Attach the 6 bar. 2.1.10 Attach the foot cowl to the foot. PHASE 3 – TIPS 3.1 SAFETY TIPS 1506-DS Installation Guide | REV. B1 | Page 7 For technical support, contact us at 1-800-565-5321...
- Page 8 “You have successfully installed your 1506-DS Cargo Plus Thank you for doing business with us.” cs@rangerdesign.com For any feedback or suggestions you may have, please contact: 1506-DS Installation Guide | REV. B1 | Page 8 For technical support, contact us at 1-800-565-5321...
