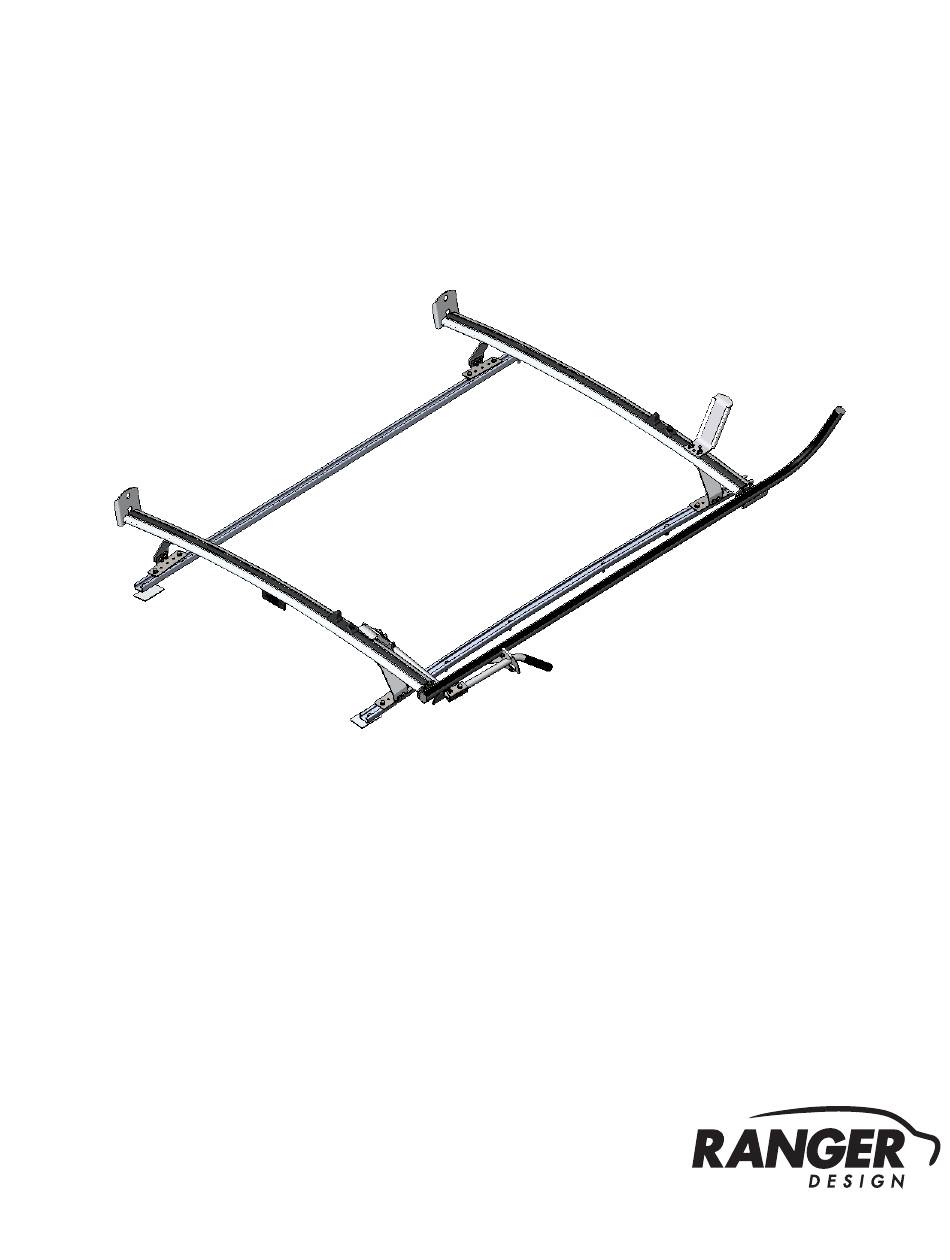

- Page 1 INSTALLATION GUIDE 1520-M Single Clamp Ladder Rack RAM Cargo Van ( Aluminum )
-
Page 2: Required Items
QUICK START GUIDE Phase 1 - Assembly q 1.1 Setup............................... 3 - 5 q 1.2 Ladder Rack Assembly........................6 - 13 Phase 2 - Installation q 2.1 Mounting Tracks Installation......................14 - 16 q 2.2 Ladder Rack Installation........................17 - 20 q 2.3 Note.............................. -
Page 3: Phase 1 - Assembly
15-3006 Ladder Clamp Bar ( Passenger Side ) 15-3013 Ski ( Right ) 15-4290 Front Hook 94-1006 Assembly Fastener Kit 96-1012 Install Fastener Kit 1520-M Installation Guide | REV. D3 | Page 3 For technical support, contact us at 1-800-565-5321... - Page 4 #90-491 Carriage Bolt 5/16" × 1" #98-160 Spacer Lock Washer 15× #98-117 Flat Washer Regular 5/16" # 98-123 SS304 #98-123 Lock Washer #94-105 Hex Nut 1520-M Installation Guide | REV. D3 | Page 4 For technical support, contact us at 1-800-565-5321...
- Page 5 5/16", O.D. 3/4" #98-113 Flat Washer SS18-8 #94-130 Plusnut .250 Lock Washer 8× # 98-119 1/4" SS304 Lock Washer 8× 5/16" # 98-123 SS304 1520-M Installation Guide | REV. D3 | Page 5 For technical support, contact us at 1-800-565-5321...
- Page 6 HARDWARE USED 2× hardware is pre assembled #90-225 Hex Bolt 5/16" - 18 × 2" SS304 #98-117 Flat Washer #98-117 Flat Washer #94-111 Lock Nut 1520-M Installation Guide | REV. D3 | Page 6 For technical support, contact us at 1-800-565-5321...
- Page 7 HARDWARE USED #90-487 Carriage Bolt 4× 5/16" × 3/4" SS304 #90-491 Carriage Bolt 4× 5/16" × 1" SS304 #90-491 Hex Bolt 5/16" × 1" SS304 1520-M Installation Guide | REV. D3 | Page 7 For technical support, contact us at 1-800-565-5321...
- Page 8 Tape Measure q Marker HARDWARE USED 2× Carriage bolts are already on the crossbows. #98-117 Flat Washer #98-123 Lock Washer #94-105 Hex Nut 1520-M Installation Guide | REV. D3 | Page 8 For technical support, contact us at 1-800-565-5321...
- Page 9 Marker HARDWARE USED 2× hardware is pre assembled #90-491 Carriage Bolt 5/16" × 1" #98-117 Flat Washer #98-123 Lock Washer #94-105 Hex Nut 1520-M Installation Guide | REV. D3 | Page 9 For technical support, contact us at 1-800-565-5321...
- Page 10 Cordless Impact q 1/2" Socket HARDWARE USED 2× Carriage bolts are already on the ski. #98-117 Flat Washer #98-123 Lock Washer #94-105 Hex Nut 1520-M Installation Guide | REV. D3 | Page 10 For technical support, contact us at 1-800-565-5321...
- Page 11 Marker HARDWARE USED 2× hardware is pre assembled #90-487 Carriage Bolt 5/16" × 3/4" #98-117 Flat Washer #98-123 Lock Washer #94-105 Hex Nut 1520-M Installation Guide | REV. D3 | Page 11 For technical support, contact us at 1-800-565-5321...
- Page 12 1.2.9 Slide 3pcs. of carriage bolts on the rear end of the ski, then attach end plugs on both ends of the ski. end plug end plug TOOLS q Mallet end plug HARDWARE USED 3× #90-491 Carriage Bolt 5/16" × 1" SS304 1520-M Installation Guide | REV. D3 | Page 12 For technical support, contact us at 1-800-565-5321...
- Page 13 #98-123 Lock Washer #94-105 Hex Nut 1× Carriage bolts are already on the ski. #98-160 Spacer #98-117 Flat Washer #98-123 Lock Washer #94-105 Hex Nut 1520-M Installation Guide | REV. D3 | Page 13 For technical support, contact us at 1-800-565-5321...
-
Page 14: Phase 2 - Installation
12 holes from the mounting tracks to the roof. TOOLS q Marker q Tape Measure 1520-M Installation Guide | REV. D3 | Page 14 For technical support, contact us at 1-800-565-5321... - Page 15 • Attach plusnuts in the 2nd, 3rd, 4th and 6th holes. 5th holes TOOLS q Plusnut Tool HARDWARE USED 8× # 94-130 Plusnut .250 1520-M Installation Guide | REV. D3 | Page 15 For technical support, contact us at 1-800-565-5321...
- Page 16 #90-217 Hex Bolt 5/16" × 1-1/2" q 1/2" Wrench #98-117 Flat Washer NOTE: be sure there’s a #98-117 Flat Washer bead of silicone around the hole. #94-111 Lock Nut 1520-M Installation Guide | REV. D3 | Page 16 For technical support, contact us at 1-800-565-5321...
- Page 17 2.2.1 Position the Ladder Rack ( minimum two persons ) on the vehicle so that the feet are on the tracks. NOTE: If you do not have a hoist, lift the ladder rack onto the roof manually. Ladder Rack 1520-M Installation Guide | REV. D3 | Page 17 For technical support, contact us at 1-800-565-5321...
- Page 18 1/2" Socket q Tape Measure FASTENERS USED 8× #90-209 Hex Bolt 5/16" × 1" #98-123 Lock Washer #98-117 Flat Washer #94-150 Channel Nut 1520-M Installation Guide | REV. D3 | Page 18 For technical support, contact us at 1-800-565-5321...
- Page 19 2.2.3 Center the crossbows on the vehicle, then tighten all the “C” feet to the crossbows. TOOLS q Ratchet q 1/2" Socket 1520-M Installation Guide | REV. D3 | Page 19 For technical support, contact us at 1-800-565-5321...
- Page 20 Now adjust the front hook to be snug against the ladder rung and tighten the bolts on the front crossbow. TOOLS q Cordless Impact q 1/2" Socket front hook 1520-M Installation Guide | REV. D3 | Page 20 For technical support, contact us at 1-800-565-5321...
- Page 21 If the handle is interfering with the door or roof of the vehicle, disassemble the handle, then assemble it in an alternate position as shown. Handle 1520-M Installation Guide | REV. D3 | Page 21 For technical support, contact us at 1-800-565-5321...
- Page 22 “You have successfully installed your 1520-M Ladder Rack Thank you for doing business with us.” cs@rangerdesign.com For any feedback or suggestions you may have, please contact: 1520-M Installation Guide | REV. D3 | Page 22 For technical support, contact us at 1-800-565-5321...
