Installing the Device
2.6 Installing the Fan Tray Cables
2.6
Installing the Fan Tray Cables
1.
Apply Loctite® 222 to the threads of the fan tray cable connector threads.
1

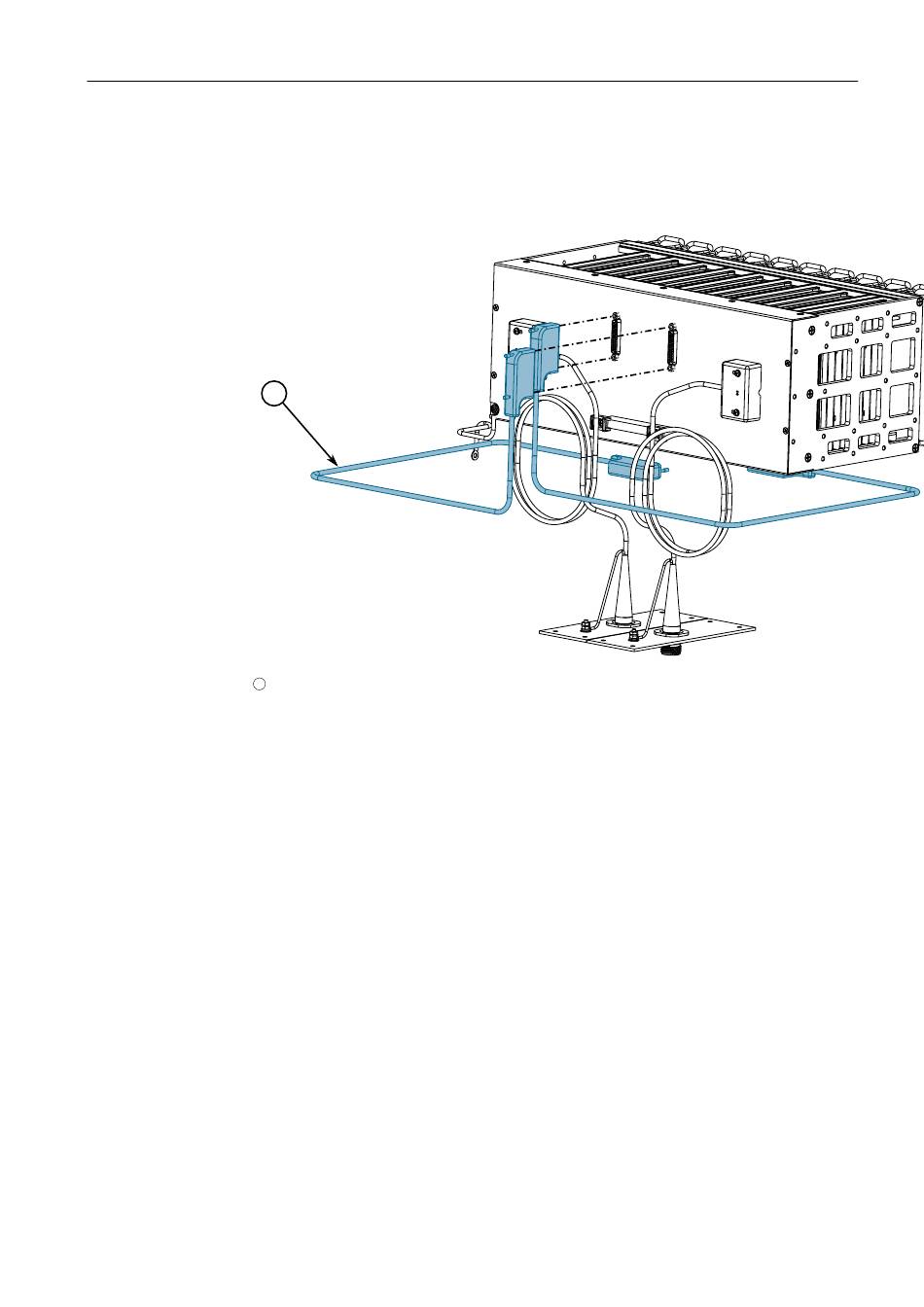

Figure 2.7
2.
Attach two fan cables to the terminals on the rear of the RUGGEDCOM MX5000.
16
1
Fan Cables
Fan Tray Cable Connections
RUGGEDCOM MX5000RE
Installation Manual, 01/2021, C79000-G8976-1060-13
