2.3

Installing the Power Supply Patch Cables

To connect the power supply patch cables to the enclosure, do the following:
1. Remove the screws from the outer safety cover.
1
2
3
4
5
6
7
8
9

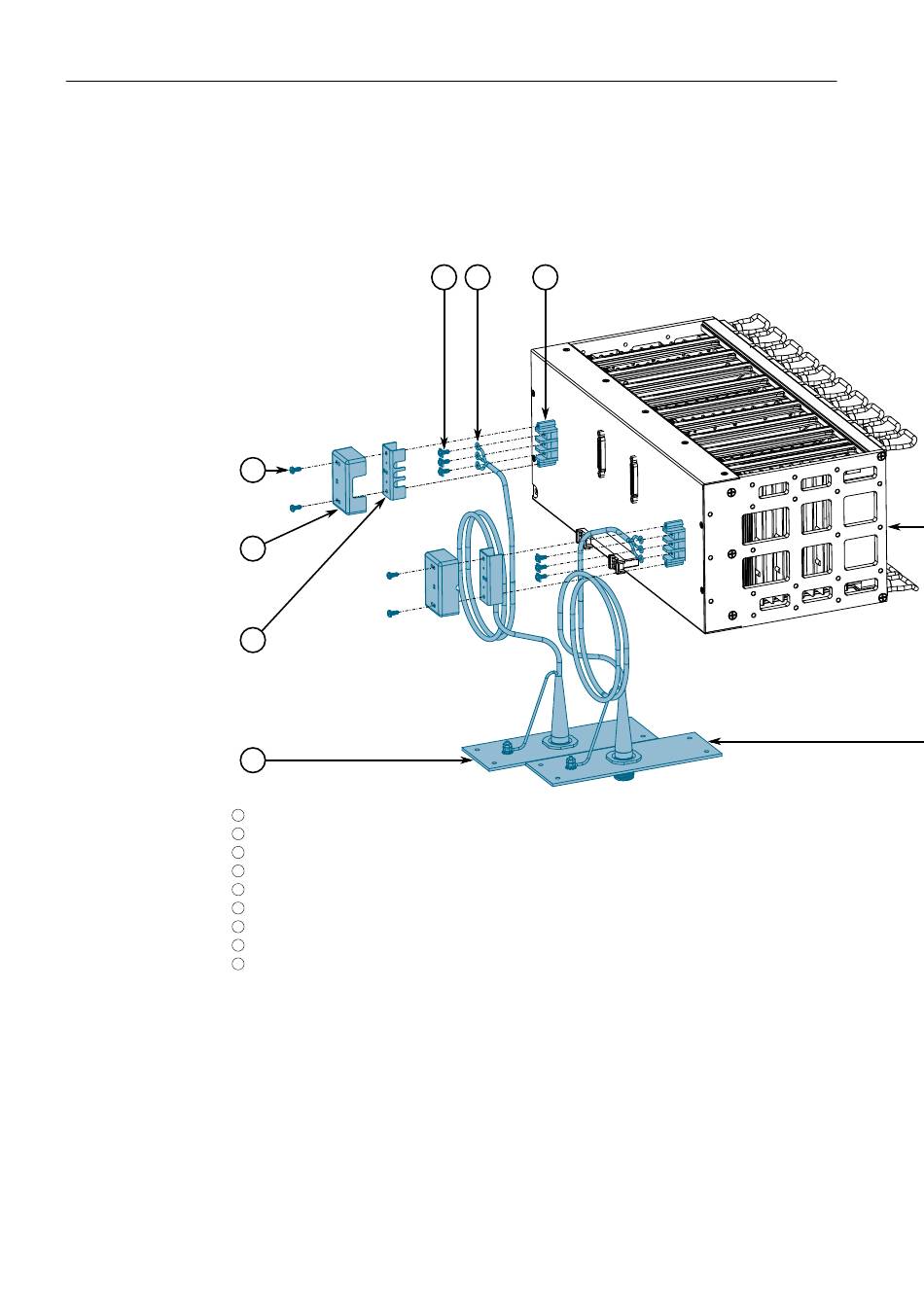

Figure 2.1
2. Remove the outer safety cover and the inner safety cover from the RUGGEDCOM
MX5000.
RUGGEDCOM MX5000RE
Installation Manual, 01/2021, C79000-G8976-1060-13
1
2
3
4
#6-32×3/8" Pan Head Screw
Outer Safety Cover
Inner Safety Cover
PS1 Cable Assembly
Terminal Lug Screws
Terminal Ring Lug
Terminal Block
MX5000
PS2 Cable Assembly
Power Supply Patch Cable Connections
2.3 Installing the Power Supply Patch Cables
5 6 7
