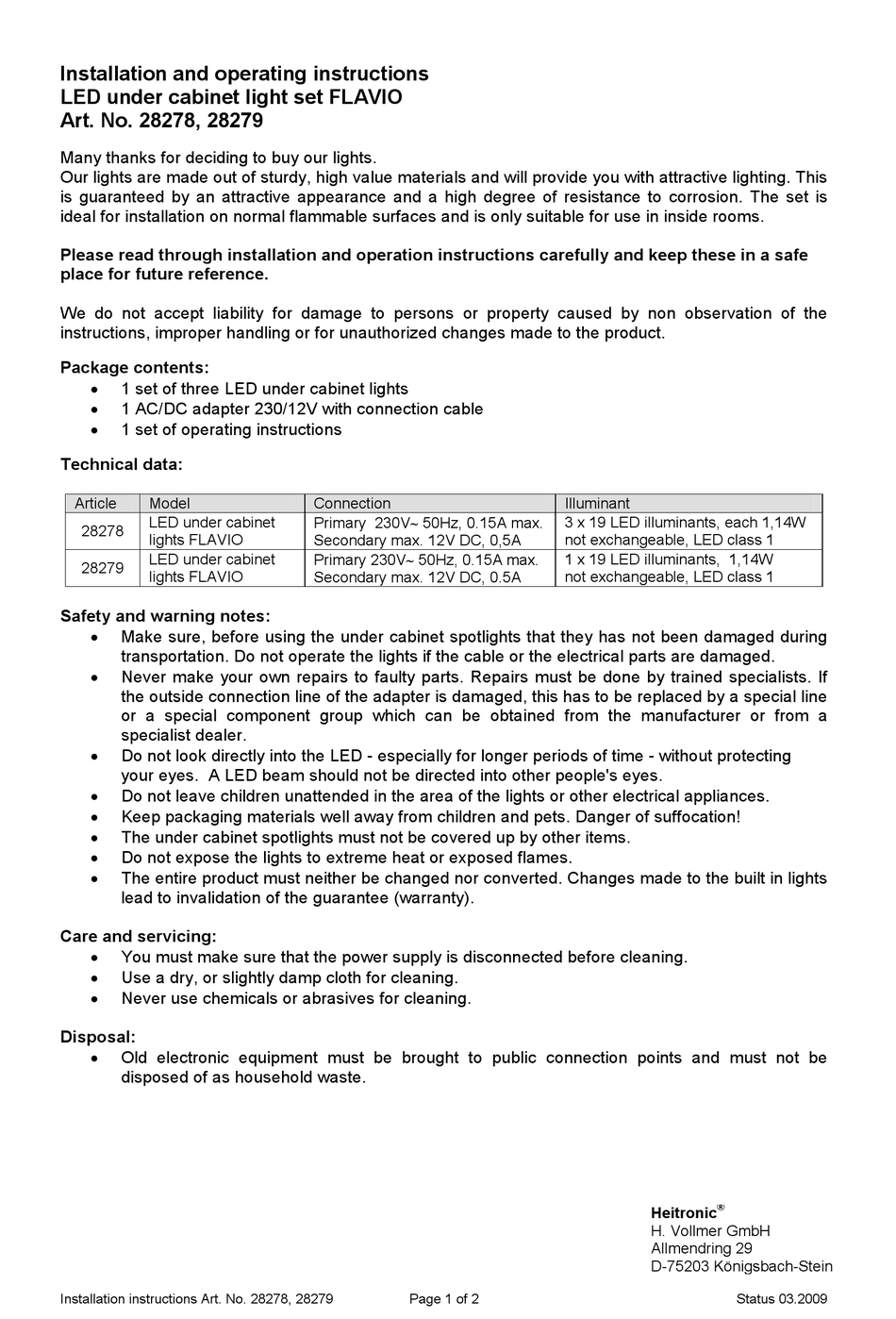

Installation and operating instructions
LED under cabinet light set FLAVIO
Art. No. 28278, 28279
Many thanks for deciding to buy our lights.
Our lights are made out of sturdy, high value materials and will provide you with attractive lighting. This
is guaranteed by an attractive appearance and a high degree of resistance to corrosion. The set is
ideal for installation on normal flammable surfaces and is only suitable for use in inside rooms.
Please read through installation and operation instructions carefully and keep these in a safe
place for future reference.
We do not accept liability for damage to persons or property caused by non observation of the
instructions, improper handling or for unauthorized changes made to the product.

Package contents:


1 set of three LED under cabinet lights

1 AC/DC adapter 230/12V with connection cable

1 set of operating instructions

Technical data:

Article Model
LED under cabinet
28278
lights FLAVIO
LED under cabinet
28279
lights FLAVIO

Safety and warning notes:


Make sure, before using the under cabinet spotlights that they has not been damaged during
transportation. Do not operate the lights if the cable or the electrical parts are damaged.

Never make your own repairs to faulty parts. Repairs must be done by trained specialists. If
the outside connection line of the adapter is damaged, this has to be replaced by a special line
or a special component group which can be obtained from the manufacturer or from a
specialist dealer.

Do not look directly into the LED - especially for longer periods of time - without protecting
your eyes. A LED beam should not be directed into other people's eyes.

Do not leave children unattended in the area of the lights or other electrical appliances.

Keep packaging materials well away from children and pets. Danger of suffocation!

The under cabinet spotlights must not be covered up by other items.

Do not expose the lights to extreme heat or exposed flames.

The entire product must neither be changed nor converted. Changes made to the built in lights
lead to invalidation of the guarantee (warranty).

Care and servicing:


You must make sure that the power supply is disconnected before cleaning.

Use a dry, or slightly damp cloth for cleaning.

Never use chemicals or abrasives for cleaning.

Disposal:


Old electronic equipment must be brought to public connection points and must not be
disposed of as household waste.
Installation instructions Art. No. 28278, 28279
Connection
Primary 230V 50Hz, 0.15A max.
Secondary max. 12V DC, 0,5A
Primary 230V 50Hz, 0.15A max.
Secondary max. 12V DC, 0.5A
Page 1 of 2
Illuminant
3 x 19 LED illuminants, each 1,14W
not exchangeable, LED class 1
1 x 19 LED illuminants, 1,14W
not exchangeable, LED class 1
®
Heitronic
H. Vollmer GmbH
Allmendring 29
D-75203 Königsbach-Stein
Status 03.2009
