Tern DuoStand Ends Quick Start Manual

DuoStand Ends
™
What's Included
• DuoStand Ends
™
Installation
Tools required (not included)
• 5 mm Allen Wrench
• 17 mm Wrench x 2
• Hacksaw
• Hand File

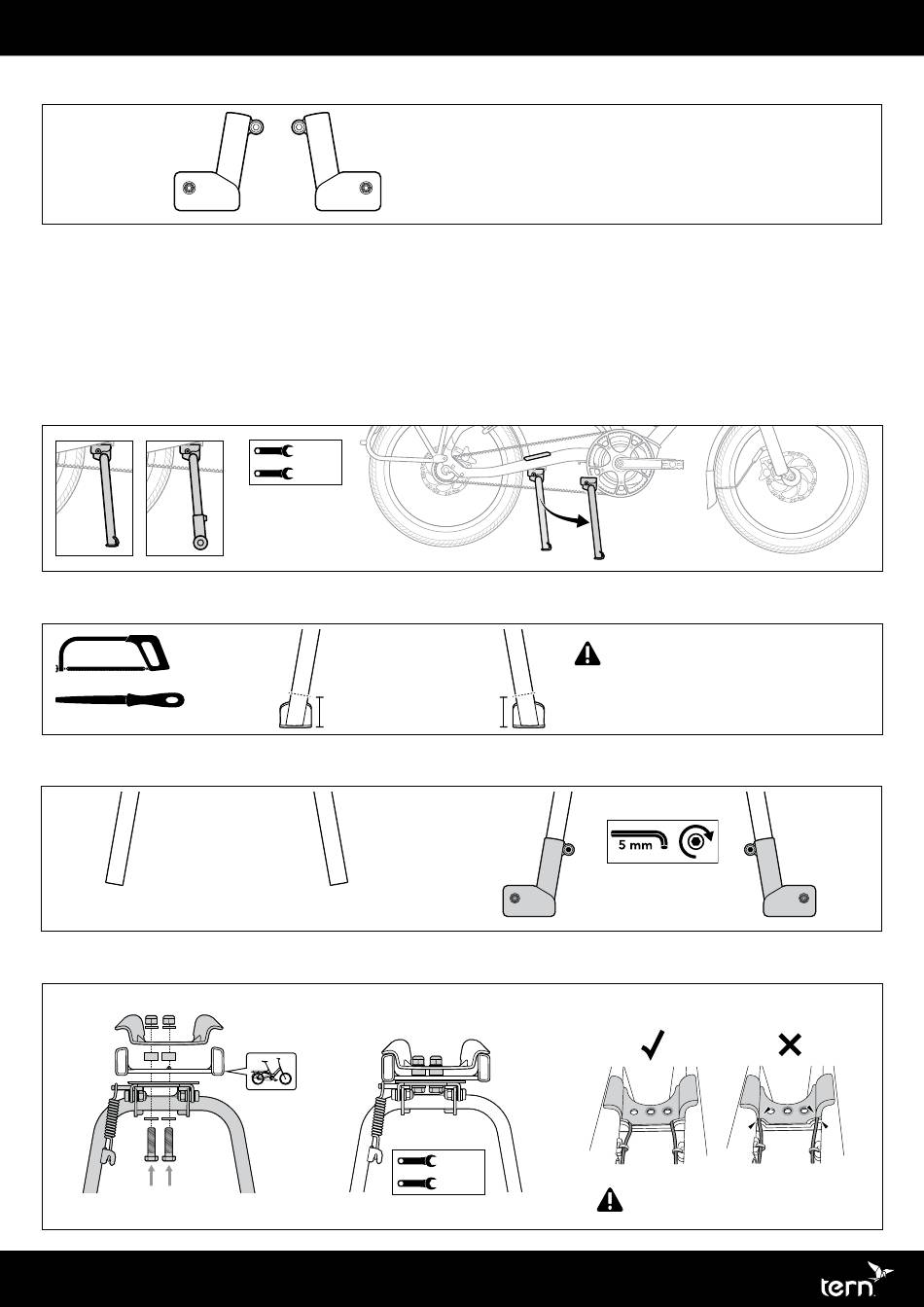

1. Remove DuoStand (Gen 1) from bike. (Note the assembly order of the bolts and hardware.)
For DuoStand (Gen 2) owners, do not remove the DuoStand from the bike.
Gen 1 Gen 2
2. Measure and use the hacksaw to shorten the legs of the DuoStand (Gen 1). Use the hand file to smooth the metal burrs.
3. Install DuoStand Ends. Loosely tighten the bolts. Bolts will be fully tightened after height adjustments are completed in Step 5.
4. Reinstall the DuoStand (Gen 1).
ternbicycles.com 1
17 mm
17 mm
35 mm 35 mm
17 mm
17 mm
35 Nm – 40 Nm
CAUTION: Please note this step is only for
owners of the DuoStand (Gen 1) version.
Do not shorten if you are installing the
DuoStand Ends on a DuoStand (Gen 2)
version.
Loosely tighten
WARNING: Route cables as shown
to avoid damage from compression.
