8. Insert the "Accessory cable" through the
plastic cap and solder the wire end of the
cable (+12V=Red; T/R=Orange; GND=Black)
to the Relay. Connect this cable to the
accessory connector at the back of the
repeater.
9. Disconnect internal coax N-Male connector
from the inside of the TX bulkhead N-Female
connector.
10. Connect this cable to the "TX" N-Female
connector of the Relay.
11. Connect N-Male to BNC Male adapter
(included in Antenna Relay KIT) to the
"RX" BNC-Female connector of the Relay.
12. Connect the N-Female connector for the
RX cable (W12) to the N-Male to BNC
Male adapter.
All manuals and user guides at all-guides.com

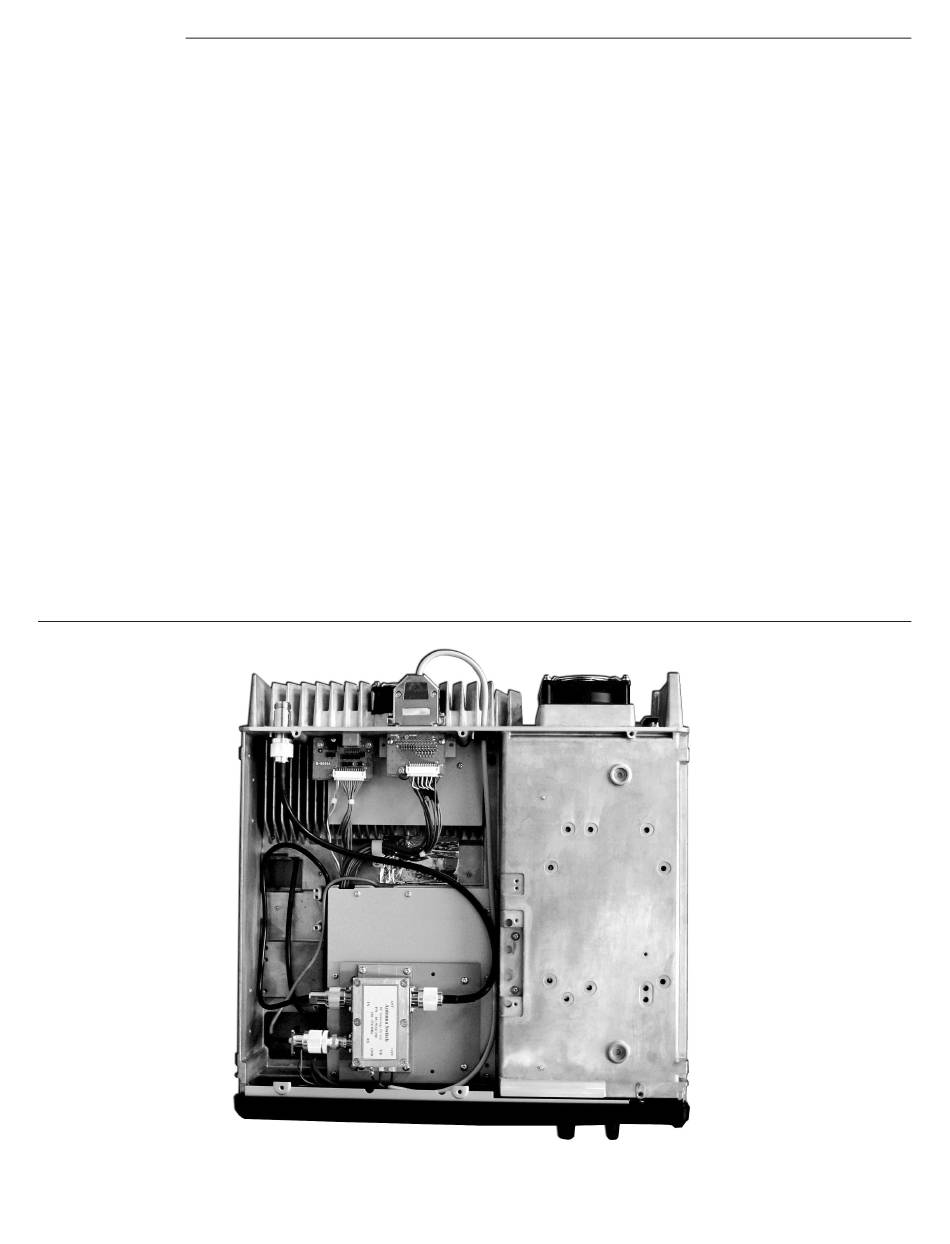

13. Connect one end of the supplied coax
14. Mount the Relay plate with 4 screws
15. Connect the other end of the supplied N-
16. Replace the RX Unit cover.
17. Replace the outer covers.
jumper to the Antenna port of the relay.
(included in Antenna Relay KIT) securely in
the bottom of the duplexer compartment.
Orient this plate in a manner that the 4
closely spaced mounting holes are towards
the front of the repeater.
Male to N-Male coax jumper to the TX
bulkhead N-Female connector located
inside on the rear of the chassis.
