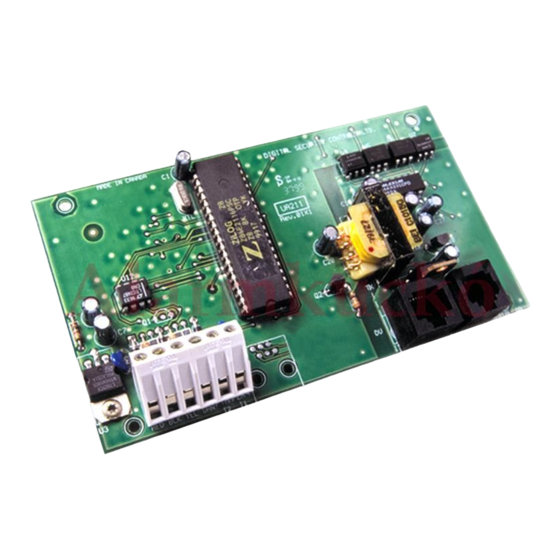

DSC PC5400 Installation Manual

Hide thumbs Also See for PC5400:
Table of Contents

Advertisement

Quick Links

Table of Contents

Features ........................................................................................................................... 3
Module Specifications ..................................................................................................... 3
Installation ........................................................................................................................ 3
PC1575 Programming Sections ..................................................................................... 15
3
4
5
6
18
22
22
23
24
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PC5400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DSC PC5400

Summary of Contents for DSC PC5400

  • Page 1: Table Of Contents

    Table of Contents Introduction Features ........................... 3 Module Specifications ..................... 3 Installation ........................3 PC5400 Hookup Diagram Programming Section Descriptions Programming Worksheets PC5010, PC5015, PC5008, PC1555, PC580 Programming Sections ......7 PC1575 Programming Sections ..................15 Appendix A: ADT DVACS Transmission Table Appendix B: Special Events for PC5010 v1.03 ADTU...
  • Page 2 Notes:...

  • Page 3: Introduction Features

    Installation Allows compatible alarm control panels to be Mounting the Cabinet connected to a DVACS communications network. When mounting a new cabinet for the PC5400, Module Specifications select a dry location near the F1/F2 subset for DVACS communications. • 4 wire (QUAD) hook-up to keybus To mount the PC5400: •...

  • Page 4: Pc5400 Hookup Diagram

    PC5400 Hookup Diagram...

  • Page 5: Programming Section Descriptions

    Sections [36-39]: Zone Definitions Make sure that the zone definitions match those programmed in the control panel. NOTE: If you change any of the above options from the default settings, test the PC5400 to make sure it is operating as desired.

  • Page 6: Programming Worksheets

    Programming Worksheets If you will be connecting the PC5400 to a PC5010, PC5015, PC5008, PC1555 or PC580 control panel, access the PC5400 programming sections at a system keypad by entering [*][8][Installer's Code][803]. Then enter the 2-digit number of the section you want to program. See page 7 for PC5010, PC5015, PC5008, PC1555, PC580 programming sections.

  • Page 7: Pc5010, Pc5015, Pc5008, Pc1555, Pc580 Programming Sections

    PC5010, PC5015, PC5008, PC1555, PC580 Programming Sections (see page 15 for PC1575 programming sections) [10] Zone 1-8 Reporting Codes Default Default I____I____I Zone 1 I____I____I Zone 5 I____I____I Zone 2 I____I____I Zone 6 I____I____I Zone 3 I____I____I Zone 7 I____I____I Zone 4 I____I____I Zone 8...
  • Page 8 PC5132 I____I____I ESCORT5580 I____I____I PC5208 I____I____I PC59xx I____I____I PC5204 I____I____I Downlook Module I____I____I PC5400 I____I____I Alternate Communicator [18] First Transmission Options Default Option On Option Off ON I____I Option 1 Zone Alarms Disabled ON I____I Option 2 Zone Alarm Restorals...
  • Page 9 Fourth Transmission Options Default Option On Option Off ON I____I Option 1 PC5400 Supervisory Disabled ON I____I Option 2 PC5400 Supervisory Restore Disabled ON I____I Option 3 PC5400 Tamper Disabled ON I____I Option 4 PC5400 Tamper Restore Disabled ON I____I Option 5...
  • Page 10 [24] Seventh Transmission Options Default Option On Option Off ON I____I Option 1 Closing By User Disabled OFF I____I Option 2 Recent Closing Disabled ON I____I Option 3 For future use ON I____I Option 4 Automatic Closing Disabled ON I____I Option 5 Quick Arm Disabled ON I____I Option 6...
  • Page 11 [28] Partition 1 Zone Assignments (1-8) Default Option On Option Off ON I____I Option 1 Zone 1 is on Partition 1 Zone 1 is not on Partition 1 ON I____I Option 2 Zone 2 is on Partition 1 Zone 2 is not on Partition 1 ON I____I Option 3 Zone 3 is on Partition 1 Zone 3 is not on Partition 1...
  • Page 12 [32] Partition 2 Zone Assignments (1-8) Default Option On Option Off OFF I____I Option 1 Zone 1 is on Partition 2 Zone 1 is not on Partition 2 OFF I____I Option 2 Zone 2 is on Partition 2 Zone 2 is not on Partition 2 OFF I____I Option 3 Zone 3 is on Partition 2 Zone 3 is not on Partition 2...
  • Page 13 ZONE DEFINITIONS 00 Null Zone (Not Used) 10 24-Hour Supervisory Buzzer 20 24-Hour Freeze 01 Delay 1 11 24-Hour Burglary 21 24-Hour Latching Tamper 02 Delay 2 12 24-Hour Holdup 22 Momentary Keyswitch Arm 03 Instant 13 24-Hour Gas 23 Maintained Keyswitch Arm 04 Interior 14 24-Hour Heat 24 LINKS Answer...
  • Page 14 [50] Hadheld Keypad Low Battery Reporting Codes Default Default I____I____I Handheld Keypad #1 I____I____I For future use I____I____I Handheld Keypad #2 I____I____I For future use I____I____I Handheld Keypad #3 I____I____I For future use I____I____I Handheld Keypad #4 I____I____I For future use [51] Wireless Key 1-8 Low Batery Reporting Codes Default...

  • Page 15: Pc1575 Programming Sections

    Phone #1 FTC I____I____I Bell Supervisory I____I____I Phone #2 FTC I____I____I For future use [17] Module Reporting Codes Default Default I____I____I PC5400 I____I____I For future use I____I____I ESCORT5580 I____I____I For future use I____I____I For future use I____I____I For future use I____I____I...
  • Page 16 Fourth Transmission Options Default Option On Option Off ON I____I Option 1 PC5400 Supervisory Disabled ON I____I Option 2 PC5400 Supervisory Restore Disabled ON I____I Option 3 PC5400 Tamper Disabled ON I____I Option 4 PC5400 Tamper Restore Disabled ON I____I Option 5-6...
  • Page 17 [23] - [35] For Future Use ZONE DEFINITIONS 00 Null Zone (Not Used) 09 24-Hour Supervisory (LINKS) 18 24-Hour Sprinkler 01 Delay 1 10 24-Hour Supervisory Buzzer 19 24-Hour Water 02 Delay 2 11 24-Hour Burglary 20 24-Hour Freeze 03 Instant 12 24-Hour Heat 21 24-Hour Latching Tamper 04 Interior...

  • Page 18: Appendix A: Adt Dvacs Transmission Table

    Appendix A: ADT DVACS Transmission Table Note: represents 1-32 (Zones, Users) Note: Please refer to Zone Reporting Type PC5010 Event Description --------------------- ADT Transmission ------- Comments Zone xx Alarm (Burglary) ------------------------- See "ADT DVACS ZONE REPORTING TYPES" Zone xx Alarm (Fire) -------------------------------- See "ADT DVACS ZONE REPORTING TYPES" Zone xx Alarm (Medical) -------------------------- See "ADT DVACS ZONE REPORTING TYPES"...
  • Page 19 PC5010 Event Description --------------------- ADT Transmission ------- Comments • option for zone bypasses Zone xx Bypass (Burglary)• --------------------- id##BBxx --------------------- OR Partial Closing governs Zone xx Bypass (Fire)• ---------------------------- id##FBxx --------------------- these transmissions Zone xx Bypass (Medical)• ---------------------- id##MBxx --------------------- •...
  • Page 20 PC5010 Event Description --------------------- ADT Transmission ------- Comments Aux. Power Supply Trb. Alarm ------------------ UTxx --------------------------- Default xx = 36 Aux. Power Supply Trb. Restore ---------------- URxx --------------------------- DLS Lead In ------------------------------------------ RB1 ---------------------------- DLS Lead Out ---------------------------------------- RS1 ----------------------------- Installer Lead In ------------------------------------- id39SI ------------------------- Only 1 Installer, always 39 Installer Lead Out ----------------------------------- id39SO ------------------------ ADT On Premise (by maintenance) ------------ id38SI -------------------------...
  • Page 21 PC5010 Event Description --------------------- ADT Transmission ------- Comments Downlook Module Supervisory ------------------ UTxx 8ST -------------------- PC5015 Only - Default xx = 40 Downlook Module Supervisory Restore ------ URxx --------------------------- PC5015 Only Downlook Module Remote Trigger ------------- RV ------------------------------ PC5015 Only Late To Close ---------------------------------------- OTp ---------------------------- p = Partition (1 or 2);...

  • Page 22: Appendix B: Special Events For Pc5010 V1.03 Adtu

    Sick Sensor ------------------------------------------- BTxx 32ST ------------------ xx = Alarm Rep Code, no tx options Events NOT Transmitted when using the PC5400 with the PC5010 v1.03 ADTU 2-Wire Smoke Alarm -------------------------------- FAxx 1ST -------------------- 2-Wire Smoke Alarm Restoral ------------------- FRxx --------------------------- Default xx = 33...

  • Page 23: Appendix D: Adt Dvacs Zone Reporting Types

    Appendix D: ADT DVACS Zone Reporting Types DUAL-EOL / ZONE DOUBLER DEVICE ACTIVATED OPEN LOOP SHORT ON LOOP (OPENS CONTACTS) INPUT POINT ASSIGNMENT ARMED DISARMED ARMED DISARMED ARMED DISARMED 00 NULL 01 DELAY 1 BA 2ST BA 2ST BT 2ST BA 1ST BT 1ST 02 DELAY 2...

  • Page 24: Limited Warranty

    LIMITED WARRANTY Digital Security Controls Ltd. warrants that for a period of twelve months from the date of purchase, the product shall be free of defect in materials and workmanship under normal use and that in fulfilment of any breach of such warranty, Digital Security Controls Ltd. shall, at its option, repair or replace the defective equipment upon return of the equipment to its repair depot.
  • Page 25 FCC COMPLIANCE STATEMENT FCC COMPLIANCE STATEMENT FCC COMPLIANCE STATEMENT FCC COMPLIANCE STATEMENT FCC COMPLIANCE STATEMENT CAUTION: Changes or modifications not expressly approved by Digital Security Controls Ltd. could void your authority to use this equipment. This equipment generates and uses radio frequency energy and if not installed and used properly, in strict accordance with the manufacturer’s inst ru cti ons , ma y ca use int erf er ence t o radio and t elevi sion recep tion.
  • Page 26 Installation Manual ™ PC54OO ADT-DVACS 1-8OO-387-363O Version 2.2 TAFNZ © 1998 Digital Security Controls Ltd. 1645 Flint Road, Downsview, Ontario, Canada M3J 2J6 • W A R N I N G • (416) 665-8460 Please refer to the System Installation Manual for information on 29003134 R0 Printed in Canada limitations regarding product use and function and information on the...
