The PC5700 is a zone expansion module to be used with any control panel which supports the PC5108
module. In addition to four general purpose zone inputs, the module provides the following features: two
Class A supervisory waterflow zones, ground fault detection and dual-supervised telephone lines. The
PC5700 connects to a control panel via the 4-wire Keybus using standard 22-guage unshielded cable.

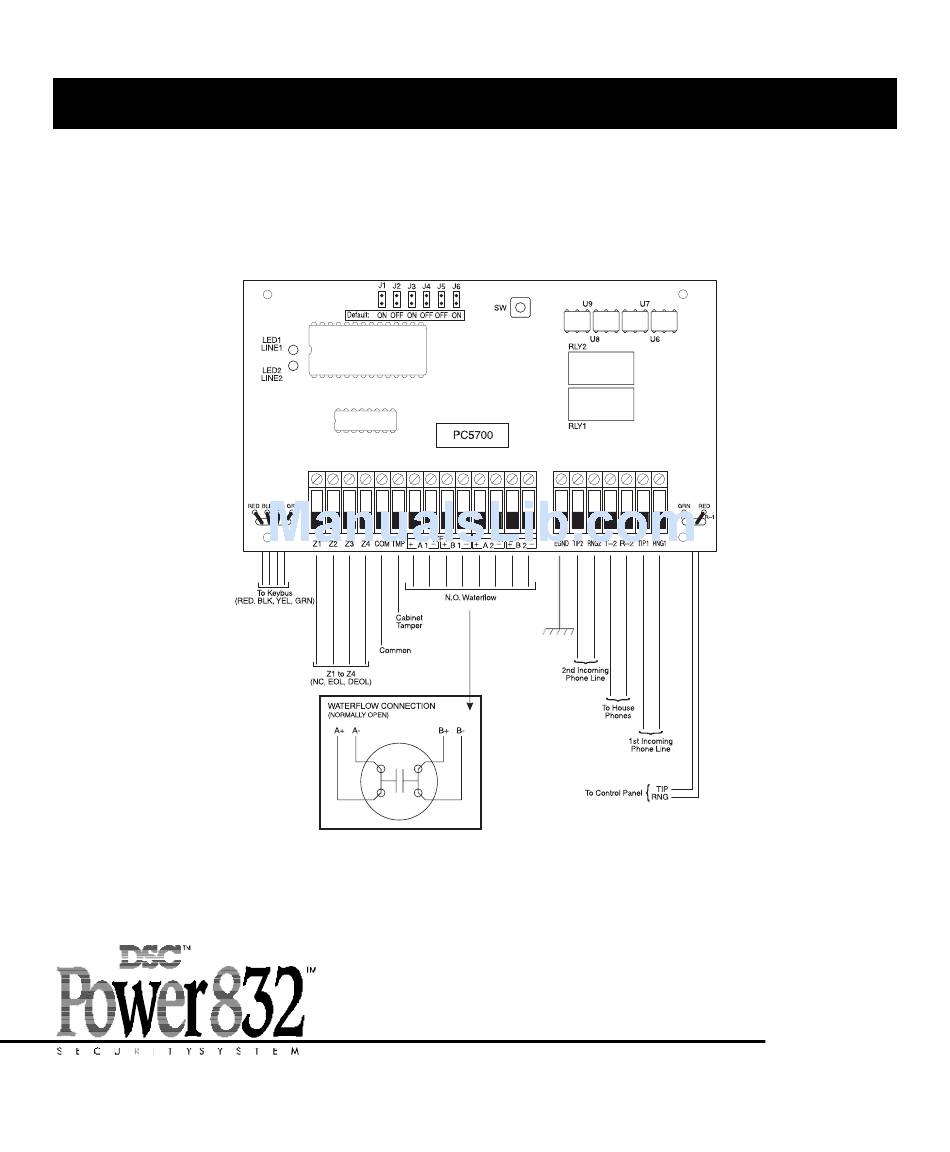

PC5700 Connection Diagram

Zone Inputs

The first four zone inputs (Z1-Z4) on the PC5700 are general purpose zones which can be programmed as
any zone type offered by the alarm control panel. The last four zone inputs are as follows:
Installation Instructions
PC57OO
Fire Module
