- Page 1 Air2-Smarty/W Wireless indoor sounder/flasher Installation and programming manual...
-
Page 2: Table Of Contents
Table of contents 1. Description of the Air2 system 2. Description of Air2-Smarty/W 2.1 Description of parts 2.2 Technical specifications of Air2-Smarty/W 3. Sounder/flasher functions 3.1 Types of signalling 3.2 Sounder/flasher activations 3.3 Faults and tampers 4. Installation of Air2-Smarty/W 4.1 Enrolling a wireless device 4.2 Battery replacement 5. Programming of Air2-Smarty/W 5.1 Wireless sounder/flasher parameters 5.2 Real-time 5.3 Programming the patterns 6. General information 6.1 About this manual 6.2 Manufacturer's details 6.3 Notes from the Manufacturer 6.4 Simplified EU Declaration of Conformity 6.5 Warranty 6.6 Limited warranty 6.7 Documents for the users 6.8 Disposal of the product Installation and programming manual- 102... -
Page 3: Description Of The Air2 System
RF output power 25mW e.r.p. Communication type Two-way Modulation GFSK Device monitoring from 12 to 250 minutes Note In order to comply with the EN 50131-1 standards the alarm system supervision time must be below 120 minu- tes. Air2-Smarty/W | © 2021 Inim Electronics S.r.l. -
Page 4: Description Of Air2-Smarty/W

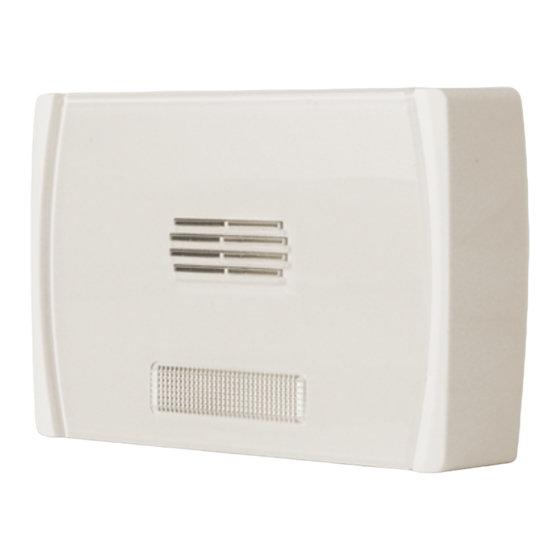

2. Description of Air2-Smarty/W 2. Description of Air2-Smarty/W The Air2-Smarty/W wireless sounder interfaces with INIM control panels via the Air2-BS200 transceiver and through it is controlled and supervised by the control panel. The sounder/flasher can be programmed from the control panel via software that allows the configuration of the various parameters (tone, maximum alarm time, flash rate, signalling activation mode, etc.) and the acti- vation of different signals for different events. The control panel, via the Air2 wireless system, is at all times capable of supervising tamper, low battery, fault and battery level signalsl. The Air2-Smarty/W provides self-diagnostic functions for prompt identification of faults and, during the instal- lation phase, allows the operator to choose the type of signal for wireless-signal loss events. The super bright LED flasher offers long autonomy and reduced power consumption and has two ancillary signal LEDs. Functions Piezoelectric horn Super bright LED-technology flasher 3.6V 2.8Ah battery Open-enclosure tamper protection Tamper-protection device IP Protection rating30 Communicates with Air2-BS200 transceiver @ 868 Direct control via control panel Battery with test circuit Programmable sound-output time ... -
Page 5: Description Of Parts
2.1 Description of parts 2.1 Description of parts Cover pin [A] [L] Locations for the cover pin [B] Battery [M] Cable entry [N] Battery connector Mounting screw location ENROLL button Tamper-screw location [E] Piezoelectric horn [F] Tamper microswitch: Dislodgement [G] Tamper microswitch: Open cover Red STATUS LED Green PRG LED LED flasher Cover screw Air2-Smarty/W | © 2021 Inim Electronics S.r.l. -
Page 6: Technical Specifications Of Air2-Smarty/W
2. Description of Air2-Smarty/W 2.2 Technical specifications of Air2-Smarty/W Warning device type For indoor use , self-powered, type W Battery type ER17505M 3,6V 2,8Ah with connector estimated life 4 y ears (depending on activations) ‘Low battery’ fault voltage Less than 3.2V Current draw during standby 50 µA maximum 200 mA Acoustic output type tones Sound pressure at 1m. -
Page 7: Sounder/Flasher Functions
Air2- Smarty/W sounders can be activated both by signals from the anti- intrusion control panel and by events generated by the sounder unit itself. Control-panel event activations The occurrence of control-panel events (activations or resets) can activate a sounder/flasher and generate signalling. Each event can be associated with one or more sounder/flashers, configured as ‘Outputs’ during the event programming phase. Each event can be associated with one of the tone types (patterns) available. Sounder/flasher events The sounder/flasher processes the signals detected by the devices it is equipped with, in such a way as to generate events to which one or more signals can be associated: Low battery Open casing Device dislodgement Loss of wireless communication with the control panel Wireless noise Air2-Smarty/W | © 2021 Inim Electronics S.r.l. -
Page 8: Faults And Tampers
3. Sounder/flasher functions Note The ‘Open casing’ event does not trigger audible signals when the connected intrusion control panel is operating in ‘Programming’ mode. Deactivations Signalling will cease when one of the following conditions occurs: Deactivations from the control panel: with the ‘Stop alarms’ shortcut by accessing maintenance mode by pre-set disarm scenarios with the events associated with the causes of shutdown The alarm condition clears The maximum alarm time expires If an alarm condition exceeds the maximum sounder signalling time, the signalling will be interrupted. -
Page 9: Installation Of Air2-Smarty/W
2. Remove the cover by first unscrewing the screw then lifting the catch on the base (Description of parts, [K]). 3. Using the wall plugs, attach the base to the wall. 4. Insert the tamper-protection screw into its location (Description of parts, [O]). 5. Connect the battery to the connector on the PCB (Description of parts, [C]) and place it in its housing. The STATUS LED will alternate 5 flashes and 5 second pauses (waiting to be enrolled). 6. Enroll the device. The STATUS LED will alternate 3 flashes and 3 second pauses (waiting for the dislodgement/ Open tamper device to close). 7. Close the cover by positioning the pin in its location on the base, then turn it until the catch clicks clo- sed. The STATUS LED will flash with a frequency of one flash per second for 15 seconds. The STATUS LED will stop flashing and the sounder/flasher will be ready to operate. Air2-Smarty/W | © 2021 Inim Electronics S.r.l. -
Page 10: Enrolling A Wireless Device
4. Installation of Air2-Smarty/W 4.1 Enrolling a wireless device The enrolling process allows you to associate an INIM wireless device with the Air2-BS200 transceiver that connects to the anti-intrusion control panel. This procedure varies depending on the control panel in use and the programming software or application: 1. Access the control-panel programming section. 2. Select the device to be enrolled in accordance with its type: an input terminal, for a detector (motion detector, magnetic contact, etc.) an output terminal, for an output device connected to a terminal of the Air2-MC300 magnetic contact a keypad a sounder/flasher a key, for a remote control device, selecting as the associated reader the one simulated by the transceiver 3. Set the device as ‘Wireless’. 4. Start the learning phase from the control panel. 5. Press the ENROLL button on the wireless device. ... -
Page 11: Battery Replacement
4.2 Battery replacement In this section it is possible to add the device to the configuration or delete it, by means of keys ‘ ’ and ‘ ’. As soon as the device is enabled it must be configured as ‘Wireless’: PROGRAMMING Sounders, ChoosePeripheral, "sounder", Wireless Once the OK button has been pressed, it is necessary to work through the menu options in order to enroll it. 4.2 Battery replacement When replacing the power supply batteries of the equipment, the installer must use only non-rechargeable lithium batteries compliant with IEC 60086-4 standard. In the case of battery replacement, it is advisable to press the ENROLL in order to ensure that the device is synchronized with the wireless transceiver. Air2-Smarty/W | © 2021 Inim Electronics S.r.l. -
Page 12: Programming Of Air2-Smarty/W
5. Programming of Air2-Smarty/W 5. Programming of Air2-Smarty/W Programming of Air2-Smarty/W wireless sounders can only be done through the control panel programming software. On accessing the software, it is necessary to open a solution, configuration of the real system to be desi- gned. Such a project must provide for the inclusion of the sounder. For a new installation or the creation of a new solution, it is necessary to select a sounder/flasher from the devices available and include it in the system project. If you are using an already programmed solution, you must check that the system includes a soun- der/flasher. At this point it is possible to proceed with the programming of the sounder/flasher. Note Once the programming has been completed and the parameter have been ‘written’ on the control panel, it will take at least 30 seconds for the device to become operative. -
Page 13: Real-Time
Monitoring the wireless sounder/flasher In this section, the monitoring window lists the parts of the sounder/flasher whose status is represented by icons/LED: Colour Status Green Sounder/flasher not in tamper status Tamper Sounder/flasher in tamper status (open or dislodged) Green Battery charged Battery inefficient Battery charge low (below 40%) Green Audible signalling Off Sounder active Audible signalling On Green Visual signalling Off Flasher active Visual signalling On Green STATUS LED Off STATUS LED ON STATUS LED On Air2-Smarty/W | © 2021 Inim Electronics S.r.l. -
Page 14: Programming The Patterns
5. Programming of Air2-Smarty/W Colour Status Green PRG LED Off PRG LED ON PRG LED On Signal reception This series of notches represents the reception level of the wireless signal of the device as received by the Air2-BS200 level transceiver. Battery charge level Percentage of charge of the sounder/flasher battery Monitoring wireless This software section starts a monitoring phase on the variation of the signal transmitted by the device and background noise detected over time. 5.3 Programming the patterns By selecting the system ‘Sounder’ category, it is possible to program the patterns, sequences of visual and audible signalling, for all the sounders in the configuration. Pattern parameters Parameter Software section Configured soun- ... - Page 15 3 minutes Burglary low 3 minutes medium / low 3 minutes volume Fire 3 minutes high 3 minutes Tamper 3 minutes high 3 minutes STATUS ON Pre-alarm 30 seconds 30 seconds Automation 3 seconds medium / low PRG ON Signalling 1 second 3 seconds ON solid Chime 3 seconds 3 seconds ON solid Total cut off Air2-Smarty/W | © 2021 Inim Electronics S.r.l.
-
Page 16: General Information
6.3 Notes from the Manufacturer The Air2 devices are certified by IMQ-Sistemi di sicurezza (Italian certification body). The information relating to the power-supply batteries required by Air2 devices is shown in the Technical Specification table that follows. The manufacturer cannot guarantee the declared battery life. Attention! Do not use batteries other than those indicated by the manufacturer as they may explode. 6.4 Simplified EU Declaration of Conformity Hereby, Inim Electronics S.r.l. declares that the radio equipment type Air2-Smarty/W is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.inim.biz. Installation and programming manual- 102... -
Page 17: Warranty
Manuals may be downloaded free of charge from the web address www.inim.biz, getting access to the reser- ved area, after the login, and then to the section of each product. 6.8 Disposal of the product Informative notice regarding the disposal of electrical and electronic equipment (applicable in countries with differentiated waste collection systems) The crossed-out bin symbol on the equipment or on its packaging indicates that the product must be disposed of correctly at the end of its working life and should never be disposed of together with gene- ral household waste. The user, therefore, must take the equipment that has reached the end of its working life to the appropriate civic amenities site designated to the differentiated collection of electrical and elec- tronic waste. As an alternative to the autonomous-management of electrical and electronic waste, you can hand over the equipment you wish to dispose of to a dealer when purchasing new equipment of the same type. You are also entitled to convey for disposal small electronic-waste products with dimensions of less than 25cm to the premises of electronic retail outlets with sales areas of at least 400m2, free of charge and without any obligation to buy. Appropriate differentiated waste collection for the subsequent recycling of the Air2-Smarty/W | © 2021 Inim Electronics S.r.l. - Page 18 6. General information discarded equipment, its treatment and its environmentally compatible disposal helps to avoid possible negative effects on the environment and on health and favours the re-use and/or recycling of the materials it is made of. Information about disposal of batteries and accumulators (applicable in Countries with sepa- rate collection systems) This marking on batteries and/or their manual and/or their packaging, indicates that batteries of this products, at the end of their working life, should not be disposed of as unsorted municipal waste, but must be object of a separate collection. Where marked, the chemical symbols Hg, Cd o Pb indicate that the bat- tery contains mercury, cadmium or lead above the reference levels of the directive 2006/66/EC. If batteries are not properly disposed of, these substances, together with other ones contained, can cause harm to human health and to the environment. To protect human health and the environment, to facilitate treatment and recycling of materials, separate batteries from other kind of waste and use the collection scheme stated in your area, in accordance to current laws. Before disposing of the above, it's appropriate to remove them from their holders avoiding to damage them or causing short circuits. Installation and programming manual- 102...
- Page 19 6.8 Disposal of the product Air2-Smarty/W | © 2021 Inim Electronics S.r.l.
- Page 20 Inim Electronics S.r.l. Via dei Lavoratori 10, Loc. Centobuchi 63076 Monteprandone (AP) I TALY Tel. +39 0735 705007 _ Fax +39 0735 704912 info@inim.biz _ www.inim.biz DCMIINE0A2SMARTYW8E-102-20210526...
