- Page 1 Installation and programming manual EN 50131-1 EN 50131-5-3 EN 50131-4 EN 50130-4 EN 50130-5 Hedera Wireless sounder/flasher for outdoor use Installation and programming manual...
-
Page 2: Table Of Contents
Order codes ........11 Copyright The information contained in this document is the sole property of INIM Electronics s.r.l. No part may be copied without written authorization from INIM Electronics s.r.l. -
Page 3: Chapter 1 General Information
Web: www.inim.biz The persons authorized by the manufacturer to repair or replace the parts of this system have authorization to work on INIM Electronics brand devices only. Air2 System Description The advanced Air2 two-way wireless intrusion protection system (868MHz frequency) integrates directly with all models in INIM intrusion control panel range. -
Page 4: Chapter 2 Sounder/Flasher Description

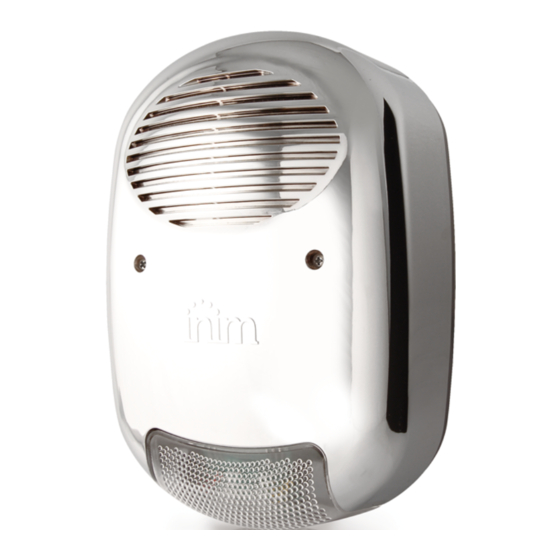

Hedera Wireless sounder/flasher Chapter 2 SOUNDER/FLASHER DESCRIPTION The Hedera outdoor wireless sounder/flasher interfaces with the SmartLiving system via an Air2-BS200 transceiver, which allows the control panel to supervise and control it. The Hedera sounder/flasher can be programmed from the control panel via software which permits the configuration of the various parameters (sound, maximum alarm time, flash rate, signalling activation mode, etc.) and the activation of diverse signals for different events. - Page 5 Installation and programming manual PACKAGE Inside the box you will find: CONTENTS • Hedera sounderflasher • 2 securing screws for the metal guard • 2 securing screws for the casing • 5 wall plugs for mounting the backplate and tamper bracket •...
- Page 6 Hedera Wireless sounder/flasher Table 3: Technical specifications Battery ER34615M 3,6V 13Ah Battery life 3 years (depending on activations) “Low battery” fault voltage Less than 3V Stand-by current draw 60μA Maximum current draw 600mA Sound pressure at 1m. 103 dB(A) Carrier frequency 1148 Hz Flash rate per minute 36 -56...
-
Page 7: Chapter 3 Sounder/Flasher Functions
Installation and programming manual Chapter 3 SOUNDER/FLASHER FUNCTIONS The Hedera sounder/flasher provides various audible and visual signals. The signals will activate or deactivate in accordance with the programmed settings of the Hedera sounder/flasher or the connected control panel (refer to Chapter 3 - Sounderflasher activations). -
Page 8: Faults And Tampers
Hedera Wireless sounder/flasher Note The event "Open casing" of a Hedera unit does not trigger audible signalling when the connected anti-intrusion control panel is in "Programming" mode. DEACTIVATIONS Signalling will cease when one of the following conditions occurs: • the control panel deactivates it (see above) •... -
Page 9: Chapter 4 Installation And Programming
Installation and programming manual Chapter 4 INSTALLATION AND PROGRAMMING The Ivy unit should be mounted high up on a smooth surface, in such way that it is out of reach but on view and, therefore, may serve as a visible deterrent against break-in. -
Page 10: Programming
Hedera Wireless sounder/flasher From the list select the wireless reader simulated by the Air2-BS200 transceiver the Hedera sounder/flasher is to be associated with. Click on the “Enroll” button. Click on the “Enroll” button (table 2, R) of the Hedera sounder/flasher. Once the device has been enrolled, the PRG LED on the sounder/flasher will flash and the window in the software programme will show a confirmation message. -
Page 11: Appendix A Order Codes
Installation and programming manual Appendix A ORDER CODES Please quote the following order codes when ordering items from the INIM Electronics product range: Code Product description Air2-Aria Wireless keypad with backlit graphic display Air2-BS200/10 Wireless transceiver module, 10 terminals Air2-BS200/30... - Page 12 Hedera Wireless sounder/flasher ISO 9001 Quality Management certified by BSI with certificate number FM530352 via Fosso Antico snc - fraz. Centobuchi 63076 Monteprandone (AP) ITALY Tel. +39 0735 705007 _ Fax +39 0735 704912 info@inim.biz _ www.inim.biz...
