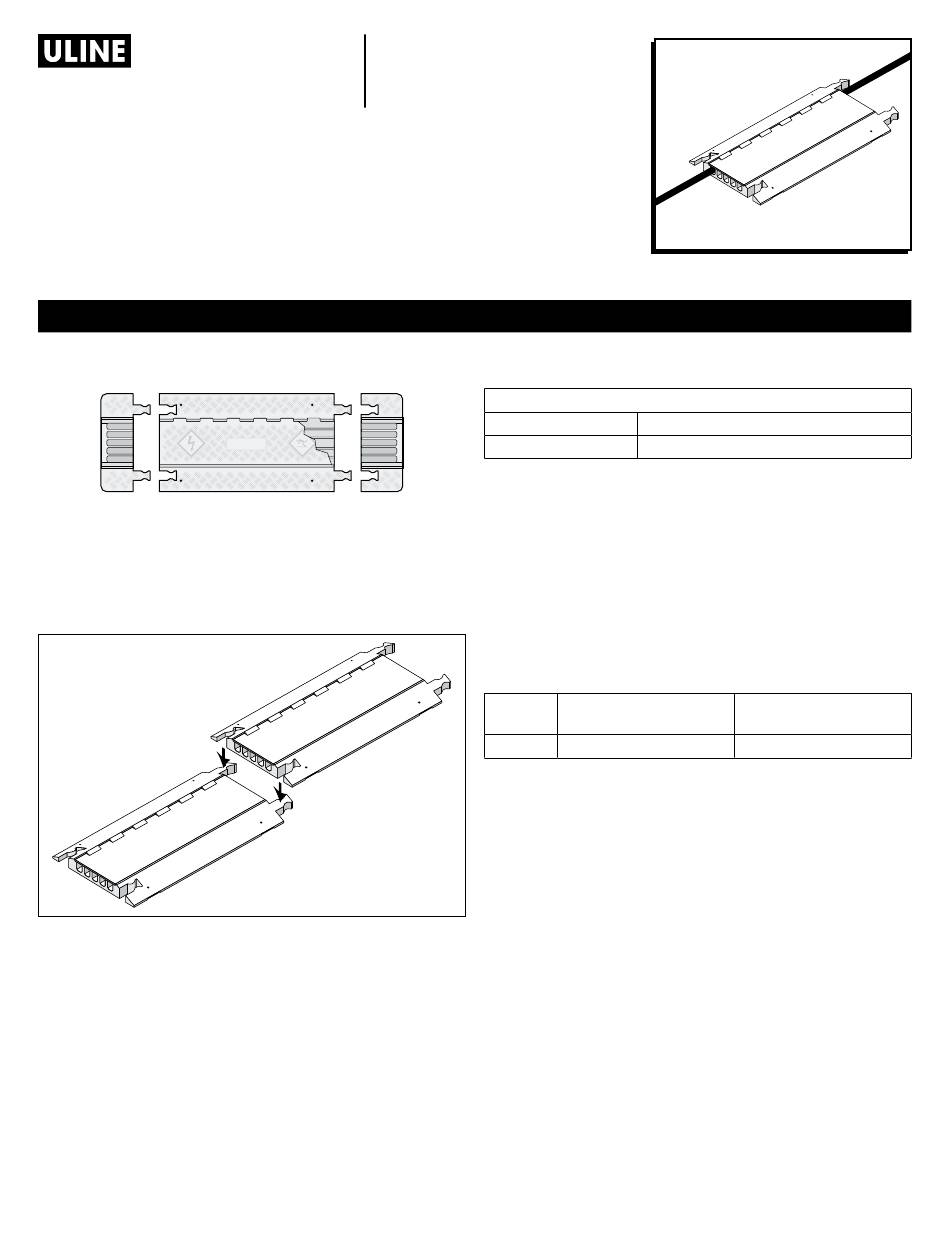

U-Line H-4618 Manual

H-4618, H-4619
5 CHANNEL CABLE
PROTECTOR

COMPONENTS

End Cap 36" Lineal Protector

ASSEMBLY

Interlock with dog-bone connectors to extend protection
length. (See Figure 1)
Figure 1
• Inspect areas for safety hazards.
• Assemble sections by aligning female connectors
over male connectors and press with foot to secure.
• Using through-holes, fasten protector to ground
(optional - see Mounting Instructions).
• Close cover flush with base.
• Test installation for intended use.
• Periodically inspect installation.
PAGE 1 OF 6
1-800-295-5510
uline.com
INSTRUCTIONS

CHANNEL CAPACITY

4 Outer Channels
Center Channel

LOAD CAPACITY

End Cap
The 5 Channel Cable Protector has different load
supporting capabilities depending on type of vehicle
and temperature. Suitability must be verified by testing
under actual conditions.
Load-supporting capacity varies by type of loading
conditions and environmental conditions. The load
capacity decreases in warm environments. Test before
use and inspect periodically.
MODEL
NO.
H-4618

OPERATING TEMPERATURE

-40° to 120°F (-40° to 48°C)

CHEMICAL RESISTANCE

Tested for compatibility with common motor oils, gasoline
and diesel fuel. Limited resistance to brake fluids and
other chemicals.
MATERIAL
UV-stabilized polyurethane elastomer.
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
CHANNEL CAPACITY - MAX. DIAMETER INCHES
1.339" width x 1.325" height
1.704" width x 1.325" height
LOAD CAPACITY PER TIRE
MAX LOAD 70°F (21°C)
10,500 lbs.
LOAD CAPACITY PER AXLE
MAX LOAD 70°F (21°C)
21,000 lbs.
0421 IH-4618
