- Page 1 All manuals and user guides at all-guides.com Modem RNX-56USB-AG User Manual...

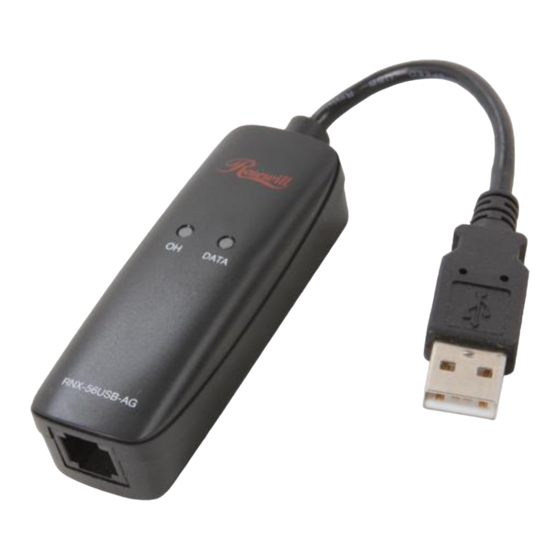

- Page 2 All manuals and user guides at all-guides.com Modem RNX-56USB-AG User Manual Installation for 98SE, ME, 2000, XP, Vista 32/64bit 1. Plug in your 56K USB Modem to your USB port. ．'OH' LED: On while dialing and connected; off after disconnected. ．'DATA' LED: Blinking during data sending/receiving.
- Page 3 All manuals and user guides at all-guides.com Modem RNX-56USB-AG User Manual 3. The installation driver CD in your package will automatically activate the auto-run installation program after you insert it into your CD-ROM drive. Then click Driver Installation. 4. Select drive for your OS, for example: Windows 2K_XP.
- Page 4 All manuals and user guides at all-guides.com Modem RNX-56USB-AG User Manual 5. The Device drive installation wizard shows that the device is being installed. 6. Click OK.
- Page 5 All manuals and user guides at all-guides.com Modem RNX-56USB-AG User Manual Click Continue Anyway. Click OK.
- Page 6 All manuals and user guides at all-guides.com Modem RNX-56USB-AG User Manual Manual Dial-up Connection Settings (XP for example) On Control Panel/Network Connections, click Create a new connection. Click Next.
- Page 7 All manuals and user guides at all-guides.com Modem RNX-56USB-AG User Manual Select Connect to the Internet and click Next. Select Set up my connection manually and click Next.
- Page 8 All manuals and user guides at all-guides.com Modem RNX-56USB-AG User Manual Select Connect using a dial-up modem and click Next. Input ISP Name and click Next.
- Page 9 All manuals and user guides at all-guides.com Modem RNX-56USB-AG User Manual Input User name, Password and Confirm password, select Use this account name and password when anyone connects to the Internet from this computer. Click Finish to complete manual connection.
- Page 10 All manuals and user guides at all-guides.com Modem RNX-56USB-AG User Manual Click Dial to connect to Internet. Manual Dial-up Connection Settings (For Vista) 1. open control Panel and click view network status and tasks...
- Page 11 All manuals and user guides at all-guides.com Modem RNX-56USB-AG User Manual 2. click Set up a connection or network 3. Select Set up a dial-up connection then click Next...
- Page 12 All manuals and user guides at all-guides.com Modem RNX-56USB-AG User Manual 4. Input Dial-up phone number, User name, Password then click Connect 5. Waiting for Dial-up Connection. System will complete the other steps automatically.
- Page 13 All manuals and user guides at all-guides.com Modem RNX-56USB-AG User Manual...
- Page 14 All manuals and user guides at all-guides.com Modem RNX-56USB-AG User Manual...
- Page 15 Modem RNX-56USB-AG User Manual 6. Once this screen pops out, the internet is connected successfully. Thank you for purchasing a quality Rosewill Product. Please register your product at : www.rosewill.com for complete warranty information and future support for your product.
